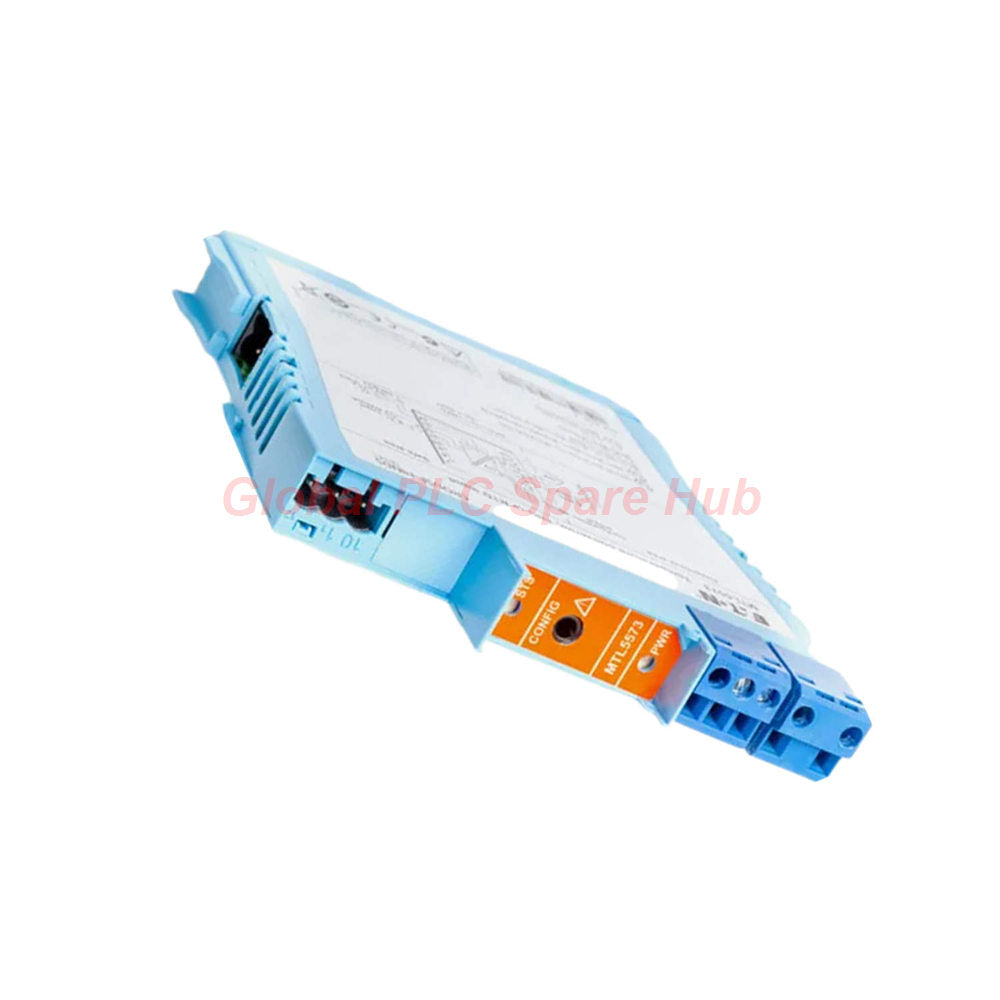

MTL5573 Eaton Temperature Converter RTD THC Input Module
Manufacturer: MTL
Product No.: MTL5573
Condition： In stock
Product Type: Temperature Input Converter
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
MTL5573 Precision Temperature Signal Interface
MTL5573 converts hazardous-area temperature signals into stable process control outputs.
The module supports both RTD and thermocouple input technologies.
The interface delivers accurate 4-20mA transmission for industrial control systems.
Its compact DIN rail footprint supports dense cabinet installations.
The converter combines isolation, filtering, and signal conditioning functions.
MTL5500 Series modules target critical process instrumentation environments.
The design improves measurement stability in electrically noisy facilities.
Industrial Signal Processing Characteristics
- Single-channel temperature signal conversion
- RTD and thermocouple input compatibility
- Stable analog current output transmission
- Selectable cold junction compensation function
- Early thermocouple burnout monitoring capability
- High common-mode noise rejection
- Configurable sensor failure response modes
- Galvanic isolation for hazardous-area protection
- LED operating and status indication
Detailed Technical Parameters
- Brand: Eaton Crouse-Hinds
- Series: MTL5500 Series
- Model: MTL5573
- Module Type: Temperature Converter
- Input Type: RTD or Thermocouple
- Signal Category: Temperature Input
- Channel Quantity: 1 Channel
- Supply Voltage: 20-35 VDC
- Current Consumption: 50mA
- Power Dissipation: 1.2W
- Response Time: 500ms
- Output Signal: 4-20mA nominal
- Standard Load Resistance: 0-400Ω
- Maximum Load Resistance: 600Ω
- High Impedance Support: Greater than 10kΩ
- RTD Excitation Current: 200µA
- Transfer Accuracy: ±11µA
- Temperature Drift: ±1.0µA/°C
- Cold Junction Compensation: Selectable ON or OFF
- CJC Accuracy: ≤1.0°C
- Common Mode Rejection: 120dB at 50/60Hz
- Series Mode Rejection: 40dB at 50/60Hz
- Sensor Failure Safety Drive: Upscale, Downscale, or OFF
- Early Burnout Detection: Triggered above 50Ω increase
- Configuration Method: PCS45 software with PCL45USB interface
- Isolation Rating: 250V rms
- Mounting Format: 35mm DIN Rail
- Connection Type: Crimp Ferrules
- Terminal Capacity: Up to 2.5mm² conductors
- Power LED: Green
- Status LED: Yellow
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -40°C to 80°C
- Humidity Range: 5-95% RH
- Dimensions: 109.8 × 118.8 × 15.8 mm
- Weight: 150g
- Hazardous Area Approval: Zone 0
- EMC Compliance: EN61326
Global PLC Spare HUB Review
MTL5573 performs effectively in precision temperature monitoring applications.
The configurable safety drive modes improve process fault handling flexibility.
Engineers benefit from the strong noise rejection performance.
The module supports stable measurement transmission across long cable runs.
Its burnout detection capability helps reduce unexpected sensor failures.
The software configuration process simplifies commissioning adjustments.
The compact profile benefits modern process cabinet optimization projects.
Recommended Device Integration
- RTD temperature sensor assemblies
- Industrial thermocouple transmitters
- PLC analog input systems
- DCS process monitoring platforms
- Boiler temperature control systems
- Heat exchanger monitoring equipment
- Industrial furnace automation panels
- Process instrumentation cabinets
Typical Process Industry Applications
- Petrochemical temperature monitoring
- Refinery thermal process control
- Pharmaceutical production systems
- Power plant instrumentation loops
- Industrial kiln monitoring
- HVAC process automation
- Food processing thermal systems
- Chemical reactor temperature supervision
Diagnostic and Monitoring Features
- Early burnout detection supports predictive maintenance.
- Status LEDs simplify operational diagnostics.
- Strong rejection filtering improves signal stability.
- Sensor fault modes improve operational safety strategies.
- Transfer accuracy supports precise thermal measurements.
Engineering Installation Guidance
- Separate thermocouple wiring from power cables.
- Use shielded signal conductors in noisy environments.
- Verify grounding continuity before commissioning.
- Configure correct sensor type before operation.
- Inspect terminal tightness during maintenance intervals.
Shipping and Fulfillment
- 24-48 hour dispatch processing
- FedEx international shipping available
- UPS industrial logistics support
- DHL express delivery service
- Protective anti-static export packaging included
Warranty and Support
- 12-month warranty coverage
- Technical integration assistance available
- Professional industrial support response
Professional FAQ
Why is cold junction compensation important for thermocouple systems?
It improves temperature accuracy during changing ambient conditions.
How does early burnout detection improve maintenance planning?
The feature identifies sensor degradation before complete signal failure occurs.
What should engineers consider when selecting RTD or thermocouple inputs?
Consider measurement range, environmental temperature, and response characteristics.
Why does high common-mode rejection matter in process plants?
It minimizes electrical interference from motors and industrial power equipment.
Can MTL5573 support long-distance signal transmission?
Yes. Proper shielding and grounding maintain stable analog output quality.
