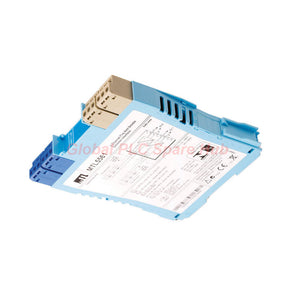

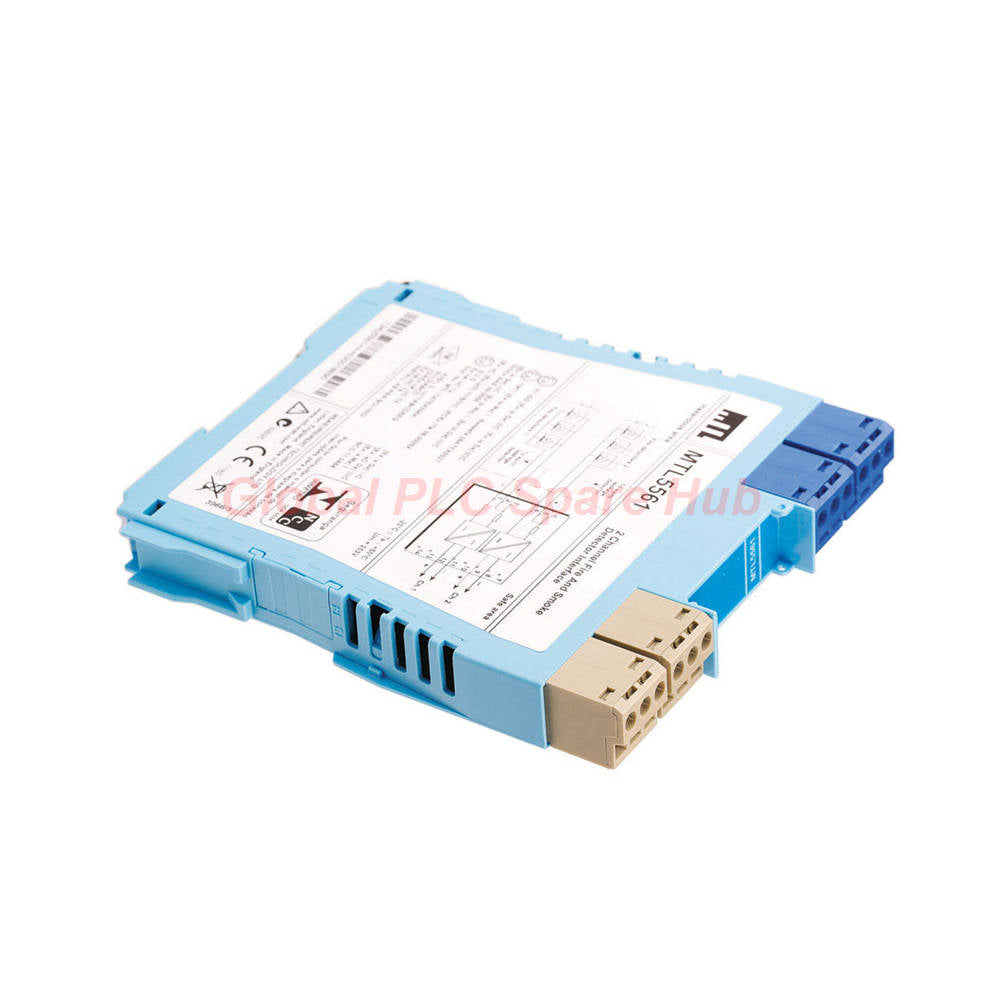

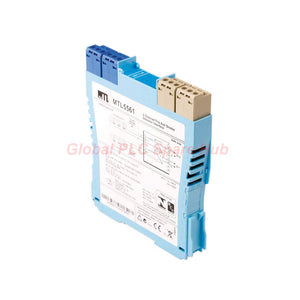

MTL5561 Eaton MTL Fire Smoke Detector Interface Safety Module

Manufacturer: MTL
Product No.: MTL5561
Condition： In stock
Product Type: Interface Safety Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

MTL5561 Hazardous Area Fire Detection Interface

MTL5561 provides secure signal transfer between hazardous-area detectors and control systems.

The interface supports conventional fire and smoke detection architectures.

Its loop-powered structure minimizes additional field power requirements.

The module supports two fully floating independent channels.

Reverse polarity protection improves field wiring safety.

The design targets critical industrial fire monitoring applications.

MTL Fire & Smoke Detector Interface Series focuses on stable hazardous-area communication.

Technical Performance Profile

Brand: Eaton Crouse-Hinds
Series: MTL Fire & Smoke Detector Interface
Model: MTL5561
Module Category: Fire & Smoke Detector Interface
Channel Configuration: Two fully floating channels
Power Method: Loop-powered operation
Input Voltage Range: 6 to 30V DC
Current Operating Range: 1 to 40mA nominal
Quiescent Current: Less than 400µA per channel
Reverse Polarity Protection: Integrated input protection
Maximum Output Voltage: 28V from 300Ω
Transfer Accuracy: Better than 400µA at 20°C
Temperature Drift: Less than 4µA/°C from 0°C to 60°C
Low Temperature Drift: Less than 15µA/°C from -20°C to 0°C
Response Speed: Settles within 1.5ms
Power Dissipation: 0.7W maximum at 24V
Maximum Dissipation: 0.9W maximum at 30V
Safety Output Voltage: Uo = 28V
Safety Output Current: Io = 93mA
Maximum Output Power: Po = 0.65W
Maximum Safe Voltage: Um = 253V rms or DC
Hazardous Area Support: Zone 0, IIC, T4-T6
Division Rating: Div.1 Group A hazardous area

Global PLC Spare HUB's Insight

MTL5561 suits engineers designing reliable hazardous-area fire monitoring loops.

The fast response characteristic improves event transmission stability.

Dual floating channels increase system flexibility during field integration.

The low quiescent current benefits energy-sensitive installations.

Engineers value the reverse polarity protection during commissioning work.

The interface performs consistently in high-noise industrial environments.

The module supports long-term process safety strategies.

Recommended System Compatibility

Conventional fire alarm control panels
Industrial smoke detection systems
Gas and flame monitoring networks
PLC-based emergency shutdown systems
Distributed process safety systems
Hazardous-area annunciation panels
Industrial evacuation alarm systems
Marine fire protection cabinets

Application Engineering Scenarios

Refinery fire detection loops
Offshore drilling platforms
Chemical storage facilities
Pharmaceutical production plants
Fuel transportation terminals
Hazardous material processing lines
Industrial clean-room fire monitoring
Power generation facilities

Field Diagnostic Advantages

Fast settling time improves alarm verification accuracy.
Floating channels simplify fault isolation procedures.
Stable transfer accuracy improves detector communication reliability.
Integrated polarity protection reduces commissioning errors.
Low drift characteristics support stable long-term monitoring.

Installation Engineering Notes

Use certified hazardous-area detectors for compliance.
Separate detector wiring from high-voltage cable paths.
Verify loop current before startup commissioning.
Maintain dry cabinet conditions during installation.
Inspect field grounding during maintenance intervals.

Logistics and Delivery Support

24-48 hour order preparation
FedEx industrial shipment service
UPS international logistics support
DHL express delivery available
Protective export-grade packaging included

Warranty Coverage

12-month industrial warranty support
Technical assistance for integration questions
Professional after-sales response support

Professional FAQ

Why are floating channels important in hazardous-area systems?

Floating channels improve isolation flexibility and reduce shared grounding risks.

What detector types commonly work with MTL5561?

Conventional smoke, heat, and fire detectors typically integrate successfully.

How can engineers reduce false alarm transmission issues?

Use shielded detector cables and maintain stable grounding practices.

What should engineers verify during interface selection?

Confirm detector current requirements and hazardous-area certification compatibility.

Why does low temperature drift matter in fire monitoring systems?

Low drift improves detection consistency across changing environmental temperatures.
