MTL5546 MTL Instruments Smart Valve Positioner Driver | MTL5500
Manufacturer: MTL
Product No.: MTL5546
Condition： In stock
Product Type: Valve Positioner Driver
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout

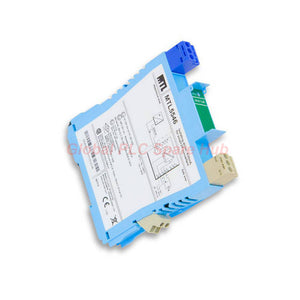

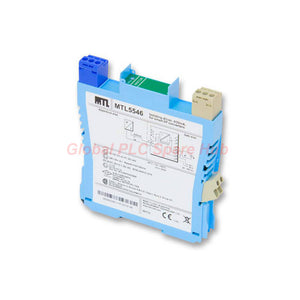

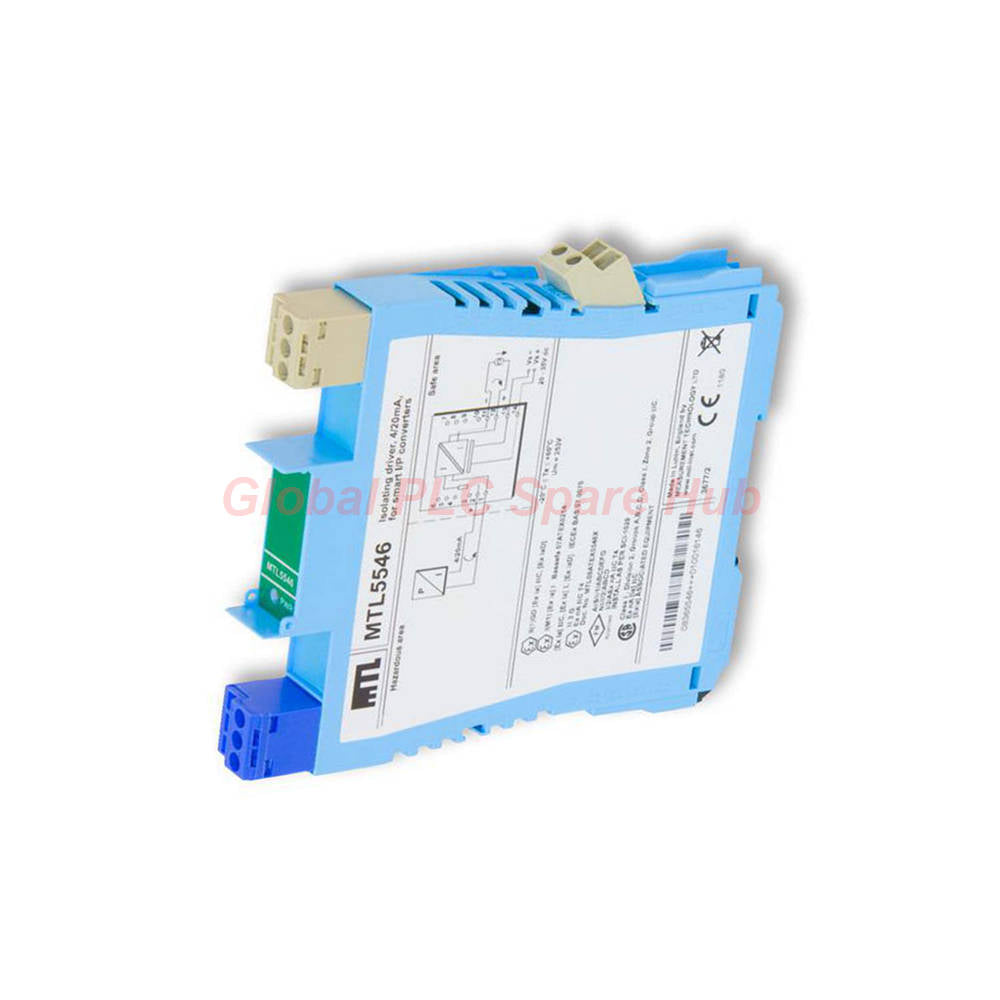

MTL5546 Smart Valve Positioner Interface Module
MTL5546 from the MTL5500 Series delivers isolated 4-20mA control for hazardous process environments.
The module drives smart valve positioners and I/P converters with high loop stability.
Integrated HART communication support enables simultaneous analogue control and digital diagnostics.
The design supports hazardous Zone 0 installations with dependable intrinsic safety performance.
MTL5546 combines signal isolation, line fault monitoring, and low ripple output in one compact interface.
Engineered for Critical Process Control
- Stable 4-20mA output for smart valve positioning
- Bi-directional HART signal transparency
- Continuous field wiring integrity monitoring
- Fast response during loop condition changes
- High immunity against industrial electrical noise
- Supports long-distance instrumentation loops
- Reliable operation in harsh process environments
Global PLC Spare HUB Review
MTL5546 performs exceptionally well in distributed control architectures using intelligent valve instrumentation.
The module maintains stable current delivery during HART communication activity.
Process engineers often deploy this isolating driver in refinery, LNG, chemical, and pharmaceutical systems.
The integrated line fault detection significantly reduces troubleshooting time during commissioning.
The module also improves signal integrity in high-noise cabinet environments.
Its low ripple characteristics help stabilize sensitive valve positioning applications.
Technical Operating Characteristics
- Brand: Eaton MTL Instruments
- Series: MTL5500 Series
- Model: MTL5546
- Module Type: Isolating Driver
- Application Type: Smart valve positioner interface
- Signal Range: 4-20mA
- Under Range Capability: 1mA
- Over Range Capability: 24mA
- Maximum Load Resistance: 800Ω
- Minimum Load Resistance: 90Ω
- Short Circuit Detection: Less than 50Ω
- Digital Communication Bandwidth: 500Hz to 10kHz
- Communication Protocol: HART
- Transfer Accuracy: Better than 20µA
- Temperature Drift: Less than 1.0µA/°C
- Ripple Performance: Less than 40µA peak-to-peak
- Response Time: Within 100ms
- Output Resistance: Greater than 1MΩ
- Current Consumption: 35mA at 24VDC
- Power Dissipation: 0.8W at 24VDC
- Safety Output: Vo=28V
- Output Current: Io=93mA
- Output Power: Po=651mW
- Maximum Voltage: Um=253V RMS or DC
- LED Indicator: Green power status LED
- Hazardous Area Rating: Zone 0, IIC, T4-T6
- Hazardous Location Approval: Div.1 Group A
Terminal Assignment
- Terminal 1: Output negative
- Terminal 2: Output positive
- Terminal 11: Input negative
- Terminal 12: Input positive
- Terminal 13: Supply negative
- Terminal 14: Supply positive
Recommended Equipment Compatibility
- Smart valve positioners
- Electro-pneumatic I/P converters
- Distributed control systems
- PLC analogue output modules
- HART field communicators
- Process automation controllers
- Industrial actuator systems
- Refinery instrumentation panels
Industrial Application Scenarios
- Oil and gas process skids
- Chemical dosing systems
- Steam control valve networks
- Tank farm instrumentation loops
- Pharmaceutical production lines
- Power station flow regulation systems
- Hazardous chemical transfer stations
- Remote process valve control systems
Diagnostic Capability
- Detects field wiring open-circuit conditions
- Detects loop short-circuit conditions
- Supports controller readback diagnostics
- Improves maintenance response efficiency
- Enables HART communication diagnostics
- Provides real-time loop condition visibility
Installation and Commissioning Notes
- Install inside certified industrial control cabinets
- Use shielded instrumentation cables for HART stability
- Maintain correct loop polarity during wiring
- Verify hazardous area certification before energizing
- Confirm load resistance compatibility before startup
- Separate signal cables from motor power circuits
Logistics and Warranty Support
- 12-month warranty support included
- Professional anti-static industrial packaging
- Fast dispatch within 24-48 hours
- FedEx international shipping available
- UPS expedited delivery supported
- DHL worldwide logistics service available
- Export-grade protective packing provided
Advanced Technical FAQ
Why does HART communication remain stable during analogue signal transmission?
The module supports simultaneous analogue and digital signal transfer through dedicated bandwidth handling.
What loop resistance should engineers verify before deployment?
Confirm total loop resistance remains below 800Ω during full-scale operation.
Why do some valve positioners show unstable feedback during startup?
Improper grounding or unshielded cabling often introduces communication interference.
How does line fault detection improve maintenance planning?
The controller immediately detects abnormal loop conditions before process interruption occurs.
What selection factors matter when replacing similar isolating drivers?
Check hazardous approvals, HART transparency, load capacity, and controller compatibility carefully.
