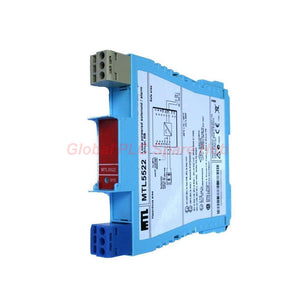

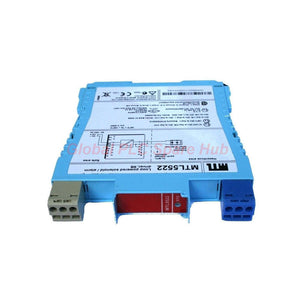

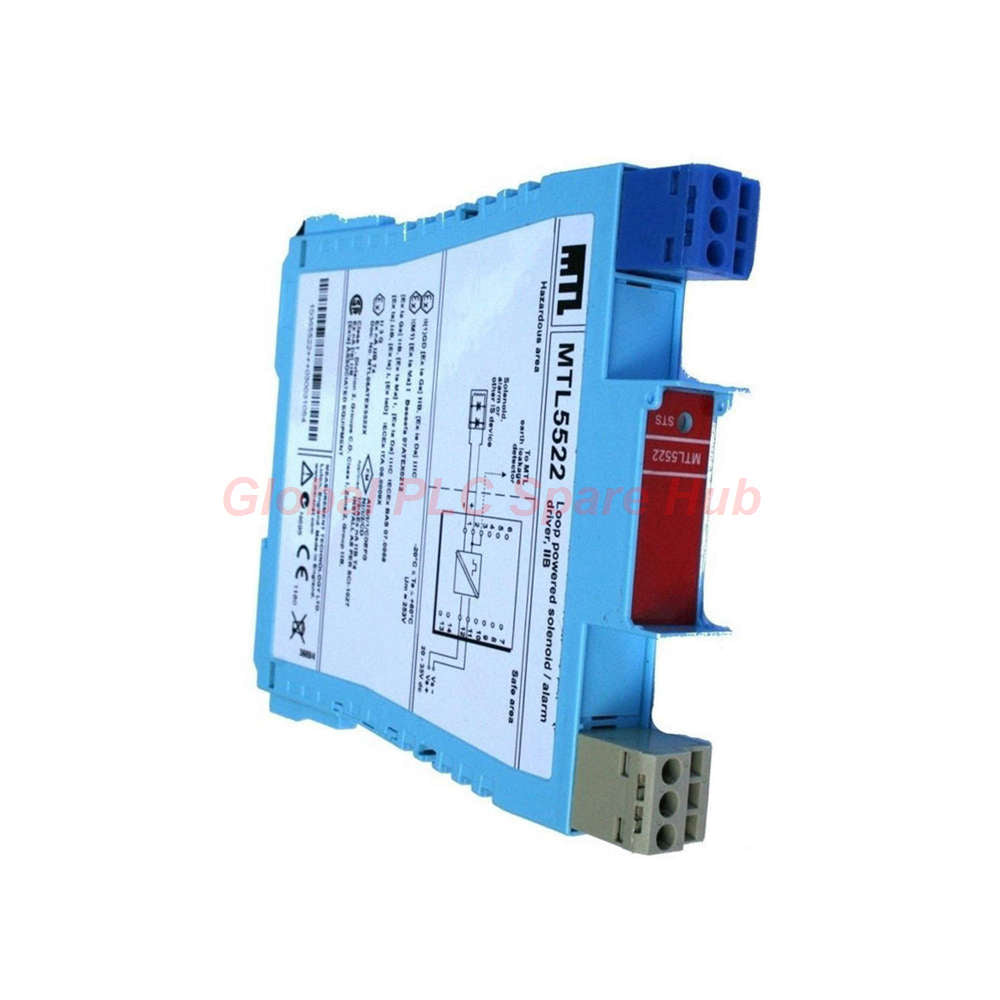

MTL5522 Eaton MTL5500 Solenoid Alarm Driver Hazardous Area Module

Manufacturer: MTL
Product No.: MTL5522
Condition： In stock
Product Type: Solenoid Alarm Driver
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

MTL5522 Industrial Interface Module Overview

MTL5522 belongs to the trusted Eaton Crouse-Hinds intrinsic safety portfolio.

The module delivers controlled digital output for hazardous process environments.

Its loop-powered architecture reduces external interface complexity.

The compact body supports high-density industrial cabinet layouts.

The design focuses on stable field signal transmission and safe-area isolation.

MTL5500 Series modules support long-term industrial reliability.

The module suits critical alarm and solenoid switching applications.

Core Engineering Advantages

Single-channel digital output architecture
Loop-powered operational structure
High EMC resistance for industrial cabinets
250V rms galvanic isolation protection
Fast output stabilization performance
Low ripple signal characteristics
DIN rail integration capability
Hazardous location certified design
Functional safety support up to SIL3

Technical Configuration

Brand: Eaton Crouse-Hinds
Series: MTL5500 Series
Model: MTL5522
Module Type: Solenoid / Alarm Driver
Signal Category: Digital Output
Channel Quantity: 1 Channel
Operating Supply: 20-35 VDC
Maximum Input Voltage: 20-35 VDC
Current Consumption: 125mA at 24V
Minimum Current Limit: 70mA
Minimum Output Voltage: 10.7V at 70mA
Maximum Output Voltage: 24V from 158Ω
Power Dissipation: 1.4W at 24V
Response Speed: Within 100ms
Ripple Control: Less than 0.5% peak-to-peak
Isolation Rating: 250V rms
Mounting Method: 35mm DIN Rail
Connection Method: Crimp Ferrules
Terminal Capacity: Up to 2.5mm² conductors
Hazardous Area Rating: Zone 0
Safety Integrity: SIL1 and SIL3
EMC Standard: EN61326
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 80°C
Humidity Tolerance: 5-95% RH
Dimensions: 109.8 × 118.8 × 15.8 mm
Weight: 150g

Global PLC Spare HUB Review

MTL5522 demonstrates strong compatibility with modern process automation architectures.

The loop-powered structure simplifies engineering deployment.

The module performs well in vibration-prone industrial environments.

Its narrow housing benefits high-density control cabinet designs.

The stable output response improves actuator consistency.

Maintenance engineers appreciate the straightforward wiring structure.

The module fits safety-oriented industrial automation strategies.

Recommended Equipment Compatibility

Distributed Control Systems (DCS)
Programmable Logic Controllers (PLC)
Intrinsic safety barrier systems
Industrial shutdown systems
Process valve control assemblies
Alarm annunciation systems
Hazardous area field panels
Refinery process instrumentation

Industrial Application Environments

Oil refining facilities
Petrochemical production plants
Offshore process platforms
Gas compression stations
Chemical storage terminals
Industrial burner management systems
Process safety instrumented systems
Tank farm automation systems

Operational Diagnostic Features

Yellow LED simplifies operational state confirmation.
Fast switching response improves troubleshooting efficiency.
Low ripple performance stabilizes connected field devices.
Isolation design reduces external interference risks.
Stable power behavior improves continuous operation reliability.

Installation Recommendations

Install on grounded DIN rail structures.
Use shielded wiring near high-frequency equipment.
Separate signal and power cable routing paths.
Verify cabinet airflow before commissioning.
Inspect terminal torque during scheduled maintenance.

Compliance and Certifications

IEC Certified
IECEx Approved
ATEX Approved
EN61326 EMC Compliance
Zone 0 Hazardous Area Support
IEC61508 SIL1 and SIL3 Compliance

Shipping and Delivery

24-48 hour order processing
FedEx international delivery service
UPS global logistics support
DHL express shipment available
Secure industrial export packaging

Warranty Information

12-month warranty coverage
Technical support during warranty period
Industrial application assistance available

Professional FAQ

Why do engineers prefer loop-powered alarm drivers?

Loop-powered modules simplify cabinet wiring and reduce auxiliary power requirements.

How does MTL5522 improve signal reliability?

The isolation structure minimizes electrical noise from industrial equipment.

What should engineers verify before selecting hazardous area drivers?

Check area classification, current demand, and connected field device specifications.

Can this module support long cable runs in process plants?

Yes. Proper shielding and grounding improve transmission stability over longer distances.

What maintenance practice improves operational lifespan?

Regular terminal inspection and cabinet temperature management improve long-term reliability.
