MTL5513 Eaton MTL5500 Switch Interface | Proximity Detector Isolator
Manufacturer: MTL
Product No.: MTL5513
Condition： In stock
Product Type: Dual Channel Isolator
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout

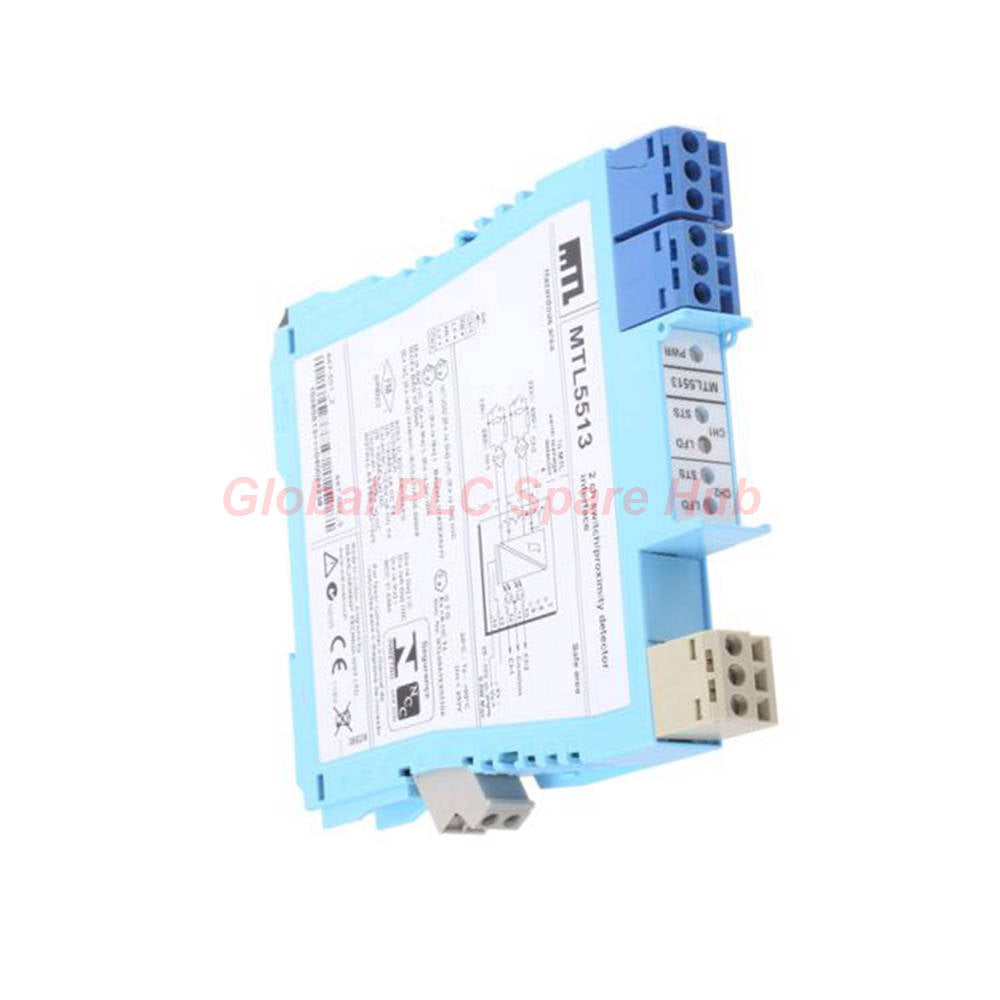

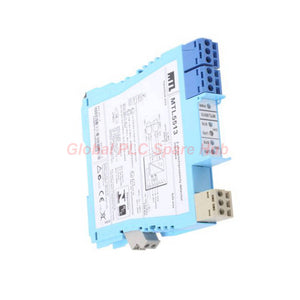

MTL5513 Dual-Channel Switch & Proximity Detector Interface
MTL5513 from the MTL5500 Series provides isolated digital input interfacing for hazardous process environments.
The module connects NAMUR sensors, switches, and proximity detectors to safe-area control equipment.
Its dual-channel architecture improves cabinet density without compromising signal reliability.
User-selectable line fault detection and phase reversal functions increase installation flexibility.
The isolator delivers dependable switching performance under harsh industrial electrical conditions.
Designed for Reliable Field Signal Isolation
- Supports proximity detectors and dry contact switches
- Two independent signal channels in one housing
- User-configurable line fault monitoring
- Independent phase reversal per channel
- Fast digital switching response up to 500Hz
- High galvanic isolation against electrical interference
- Compact DIN rail footprint for control cabinets
Global PLC Spare HUB's Insight
MTL5513 performs effectively in distributed I/O systems requiring stable hazardous area signal transmission.
The independent channel configuration simplifies mixed sensor installations during system upgrades.
Maintenance teams benefit from immediate line fault indication through dedicated diagnostic LEDs.
The module handles noisy environments commonly found near motors, drives, and process skids.
Engineers frequently install this interface in refinery automation, packaging systems, and process shutdown circuits.
Electrical and Functional Characteristics
- Brand: Eaton Crouse-Hinds
- Manufacturer: MTL Instruments
- Series: MTL5500 Series
- Model: MTL5513
- Module Type: Switch/proximity detector isolator
- Signal Type: Digital input
- Number of Channels: 2
- Switching Frequency: DC to 500Hz
- Sensor Supply Voltage: 7-9VDC
- Load Resistance: 25Ω
- Current Consumption: 30mA at 24VDC
- Current Limit: ±50mA
- Maximum Safe Voltage: ±35V
- Power Supply: 20-35VDC
- Power Dissipation: 0.65W typical
- Hysteresis: 200µA nominal
- Input Open Condition: Below 1.2mA
- Input Closed Condition: Above 2.1mA
- Input Resistance Threshold: 10kΩ / 2kΩ
- Phase Reversal: User-selectable per channel
- Line Fault Detection: User-selectable per channel
- Isolation Rating: 250V RMS galvanic isolation
- EMC Compliance: EN61326
- Hazardous Area Rating: IECEx/ATEX Zone 0
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +80°C
- Humidity Range: 5-95% RH
- Mounting Style: 35mm DIN rail
- Terminal Capacity: Up to 2.5mm² conductors
- Connection Method: Crimp ferrules
- Status LEDs: Green, yellow, and red indicators
- Dimensions: 109.8 × 118.8 × 15.8mm
- Weight: 150g
Suitable Equipment Integration
- NAMUR proximity sensors
- Mechanical limit switches
- Emergency shutdown systems
- PLC digital input cards
- Distributed control systems
- Packaging line sensor networks
- Rotating machinery interlocks
- Process safety instrumentation systems
Typical Industrial Deployment
- Oil and gas processing facilities
- Chemical reactor monitoring loops
- Tank farm level switch interfaces
- Hazardous conveyor monitoring systems
- Factory automation control cabinets
- Material handling protection circuits
- Industrial burner management systems
- Remote instrumentation marshalling panels
Integrated Diagnostic Capability
- Red LED provides immediate line fault indication
- Supports rapid wiring fault identification
- Detects open-circuit sensor conditions
- Improves preventive maintenance efficiency
- Independent diagnostics for each channel
- Enhances process availability during troubleshooting
Installation and Engineering Notes
- Install on grounded DIN rail assemblies
- Separate digital signal wiring from power cables
- Verify sensor compatibility before energizing
- Configure line fault settings during commissioning
- Inspect terminal tightness periodically
- Maintain adequate cabinet airflow for thermal stability
Logistics and Service Support
- 12-month warranty coverage included
- Fast dispatch within 24-48 hours
- FedEx global shipping available
- UPS expedited delivery supported
- DHL international logistics available
- Industrial-grade anti-static packaging provided
Engineering FAQ
Why does independent phase reversal matter in dual-channel applications?
It simplifies mixed sensor polarity installations without additional rewiring.
How can technicians reduce nuisance line fault alarms?
Verify correct sensor impedance and inspect terminal connections for resistance buildup.
What advantages does galvanic isolation provide in automation systems?
Isolation prevents unwanted ground loops and improves signal integrity near high-power equipment.
What should buyers confirm before selecting a proximity detector interface?
Check sensor voltage requirements, switching frequency, hazardous approvals, and PLC compatibility.
Why do engineers prefer compact dual-channel isolators in modern cabinets?
Higher channel density reduces panel space requirements and simplifies wiring organization.
