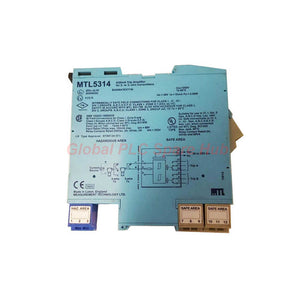

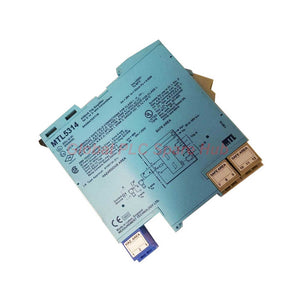

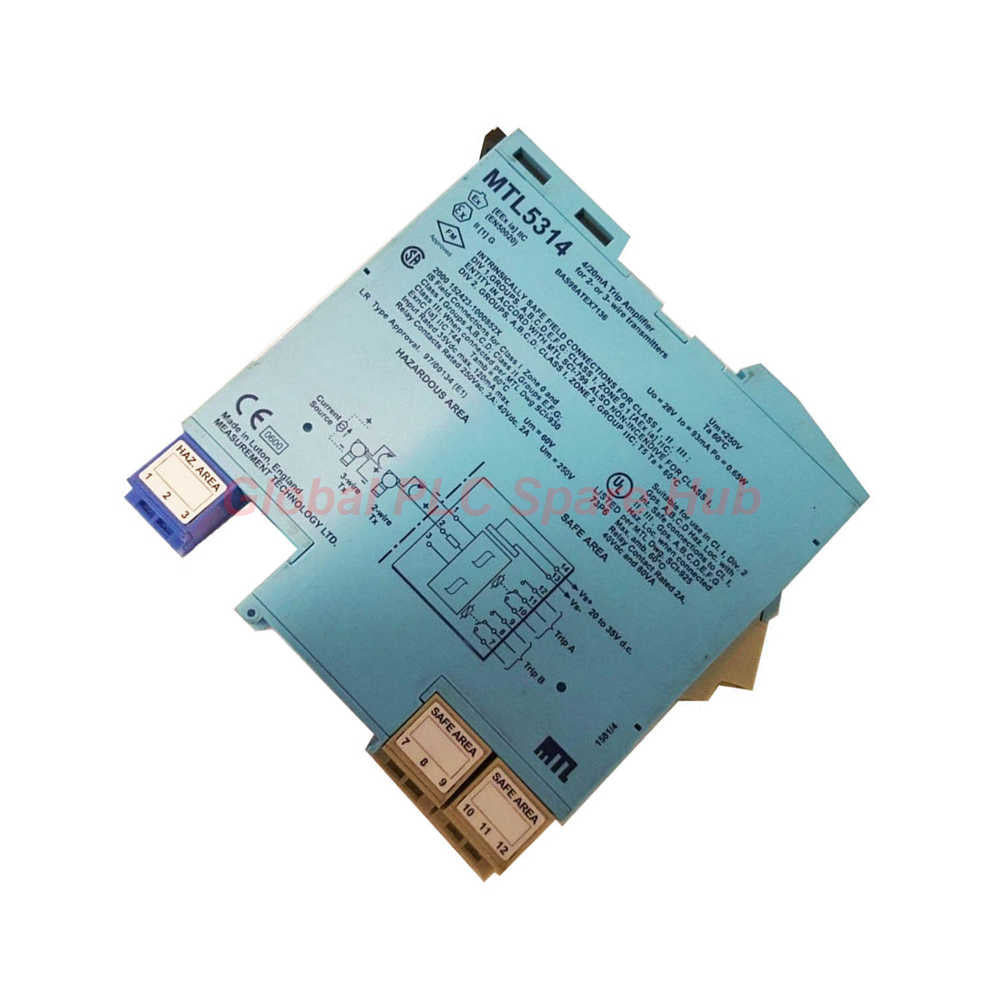

MTL5314 MTL Instruments Trip Amplifier | 4-20mA Alarm Relay Module
Manufacturer: MTL
Product No.: MTL5314
Condition： In stock
Product Type: Alarm Relay Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
MTL5314 Dual-Relay Trip Amplifier for Hazardous Process Signals
MTL5314 provides precision alarm monitoring for hazardous-area 4-20mA transmitter loops.
The module converts analogue process signals into independent relay alarm outputs for control and protection systems.
Two configurable trip channels allow flexible alarm handling for high-level or low-level process conditions.
The design maintains transparent HART communication while monitoring live transmitter current.
MTL5314 integrates stable switching performance with compact DIN rail installation.
Process Alarm Control Architecture
- Supports 2-wire and 3-wire transmitters
- Dual configurable alarm relay outputs
- Independent trip point adjustment capability
- Maintains uninterrupted HART communication
- Fast analogue-to-relay response characteristics
- Suitable for hazardous Zone 0 environments
- High relay durability for continuous process duty
Global PLC Spare HUB's Insight
MTL5314 performs reliably in applications requiring stable process alarm monitoring without interrupting transmitter communication.
Instrumentation engineers often deploy this amplifier in safety shutdown loops and analogue trip systems.
The dual relay arrangement simplifies alarm separation between warning and shutdown conditions.
The module also supports direct integration with repeater power supplies such as the MTL5541.
Its precise trip-point resolution improves process accuracy during narrow control window applications.
Technical Performance Parameters
- Brand: Eaton Crouse-Hinds
- Manufacturer: MTL Instruments
- Series: MTL5000 Series
- Model: MTL5314
- Product Type: Trip Amplifier
- Supported Transmitters: 2-wire and 3-wire
- Input Signal Range: 0-24mA
- Trip Point Adjustment Range: 0.5-22mA
- Trip Point Resolution: 20µA
- Trip Drift: 1.5µA/°C maximum
- Input Resistance: 25Ω maximum
- Response Time: Less than 75ms
- Relay Quantity: Two changeover relays
- Relay Type: Single pole changeover
- Relay Contact Rating: 250VAC, 2A
- DC Contact Rating: 40VDC, 2A resistive
- Relay Life Expectancy: 3.3 × 10⁵ operations
- Hysteresis: 1% to 1.7% of trip range
- Transmitter Supply Voltage: Greater than 17V at 20mA
- Supply Voltage: 20-35VDC
- Current Consumption: 85mA at 24VDC
- Maximum Power Dissipation: 1.7W at 24V
- LED Indicators: Green power, yellow relay status
- Hazardous Area Rating: Zone 0, IIC, T4-T6
- Hazardous Location Approval: Div.1 Group A
- Intrinsic Safety Parameters: 28V, 93mA, 300Ω
Terminal Assignment Overview
- Terminal 1: Current input
- Terminal 2: Transmitter supply positive
- Terminal 4: Common
- Terminal 7: Trip B normally closed
- Terminal 8: Trip B common
- Terminal 9: Trip B normally open
- Terminal 10: Trip A normally closed
- Terminal 11: Trip A common
- Terminal 12: Trip A normally open
- Terminal 13: Supply negative
- Terminal 14: Supply positive
Recommended Equipment Pairing
- 4-20mA pressure transmitters
- Level measurement transmitters
- Flow instrumentation loops
- Temperature transmitter systems
- MTL5541 repeater power supplies
- PLC alarm monitoring panels
- Distributed control systems
- Emergency shutdown systems
Typical Industrial Applications
- High-pressure shutdown systems
- Tank overfill protection circuits
- Critical pump protection loops
- Boiler process alarm systems
- Hazardous chemical dosing systems
- Compressor monitoring installations
- Refinery instrumentation cabinets
- Process safety interlock networks
Integrated Diagnostic Capability
- Visual relay status indication through LEDs
- Precise trip-point calibration monitoring
- Stable alarm operation during HART communication
- Supports predictive maintenance inspections
- Improves abnormal process condition visibility
- Enhances field troubleshooting efficiency
Engineering Installation Notes
- Install inside grounded industrial control cabinets
- Use shielded signal wiring near variable speed drives
- Suppress inductive relay loads during switching
- Verify transmitter loop voltage before commissioning
- Calibrate trip points using precision loop simulators
- Maintain separation between signal and power circuits
Supply Chain and Warranty Support
- 12-month warranty service included
- 24-48 hour dispatch available
- FedEx express shipping supported
- UPS international delivery available
- DHL worldwide logistics service provided
- Industrial anti-static export packaging included
Professional FAQ
Why do engineers use separate trip points in process alarm systems?
Independent thresholds support staged warning and shutdown protection strategies.
How can technicians improve relay lifespan in switching applications?
Use suppression components when controlling inductive or reactive field loads.
What advantages does HART transparency provide during maintenance?
Technicians can access transmitter diagnostics without interrupting process monitoring.
Which factors matter most when selecting a trip amplifier?
Verify relay ratings, hazardous certifications, response speed, and transmitter compatibility.
Why is low trip-point drift important in critical instrumentation loops?
Stable drift performance improves alarm consistency during long-term temperature variation.
