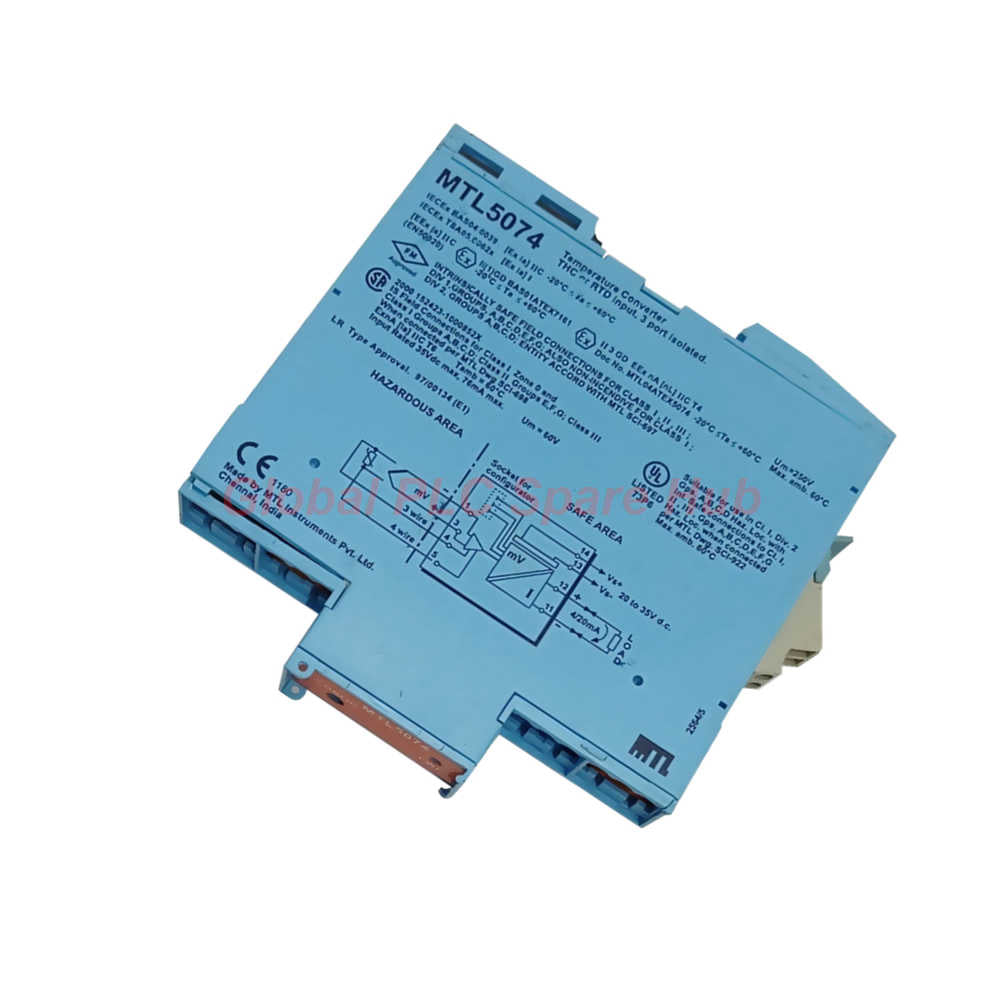

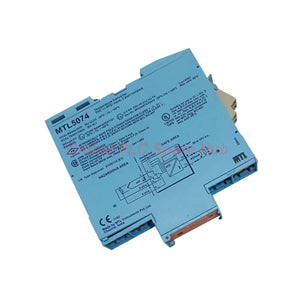

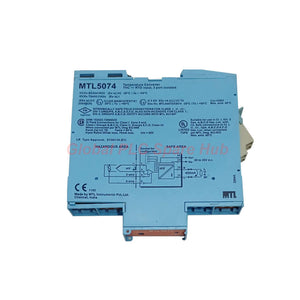

MTL5074 Temperature Transmitter | Isolated RTD & Thermocouple Converter

Product Overview

The MTL5074 is an advanced, intrinsically safe temperature converter designed to interface low-level signals from hazardous zones (Zone 0/Div. 1) with safe-area control systems. This single-channel transmitter accepts a wide variety of thermocouple (THC) and RTD inputs, providing a linearized 4-20mA output. The unit is fully software-configurable, allowing engineers to calibrate ranges, damping, and failure modes via PC-based PCS45 software.

Technical Performance Matrix

• Brand/Model: MTL (Schneider Electric) MTL5074
• Sensor Compatibility: Thermocouples (J, K, T, E, R, S, B, N) and 2/3/4-wire Pt100 RTDs.
• Output Signal: 4-20 mA (Direct or Reverse).
• Conversion Precision: Calibration accuracy ±15µV (THC) / ±80mΩ (RTD).
• Isolation: 250V AC safety isolation between hazardous and safe zones.
• Thermal Stability: Drift as low as ±0.6µA/°C on the output signal.
• Configuration: Software-defined linearisation, monitoring, and tagging.

Global PLC Spare HUB's Insight

The MTL5074 excels in high-precision process industries where signal integrity is hampered by electromagnetic noise. Its 120dB common-mode rejection makes it the preferred choice for environments with heavy power cabling proximity.

• Diagnostic Capability: The integrated "Safety Drive" functionality allows for user-defined sensor burnout responses (upscale/downscale), which ensures the control system can immediately detect and respond to probe failures.
• Equipment Compatibility: Standardized for DIN-rail mounting; seamlessly integrates with common process controllers and SCADA systems.
• Application Scope: Critical for petrochemical reactors, gas turbine monitoring, and temperature-sensitive food processing lines located within hazardous atmosphere zones.

Logistics and Support

• Global Shipping: Expedited transit via FedEx, UPS, or DHL.
• Processing: 24-48 hour dispatch window.
• Quality Assurance: Includes a comprehensive 12-month quality guarantee on all units.

Professional FAQ

• Q: What is the specific role of the HAZ-CJC plug in this unit?
  A: The HAZ-CJC plug contains an integral sensor that provides real-time cold-junction compensation data; it is mandatory for high-accuracy thermocouple measurements.
• Q: How do I reconfigure the MTL5074 in the field?
  A: You must connect a PC running the MTL PCS45 software to the unit’s front configuration socket using a PCL45 interface cable.
• Q: Can the unit handle both 2-wire and 4-wire RTD setups?
  A: Yes, the module’s software settings can adapt to 2, 3, or 4-wire RTD inputs, but ensure the terminal wiring (4 and 5) matches the configuration profile for compensation accuracy.
• Q: What should I check if the Green LED status indicator is flashing?
  A: A flashing status LED often indicates a configuration error or an active failure alarm (e.g., open circuit); review your current transmitter status using the PCS45 software.
• Q: Selection Tip: When is a non-CJC plug variant sufficient?
  A: If you are primarily measuring RTD signals or using an external cold-junction reference, the standard HAZ1-3 plug is sufficient; use the HAZ-CJC variant only for direct thermocouple loop connection.

Expert Selection Guide

Select the MTL5074 if your process loop requires high-accuracy signal conversion with galvanic isolation. For hazardous area compliance, verify that your loop certification matches the provided safety descriptions. Ensure your power supply provides at least 20V to maintain the full 600Ω load capability for the 4-20mA loop.
