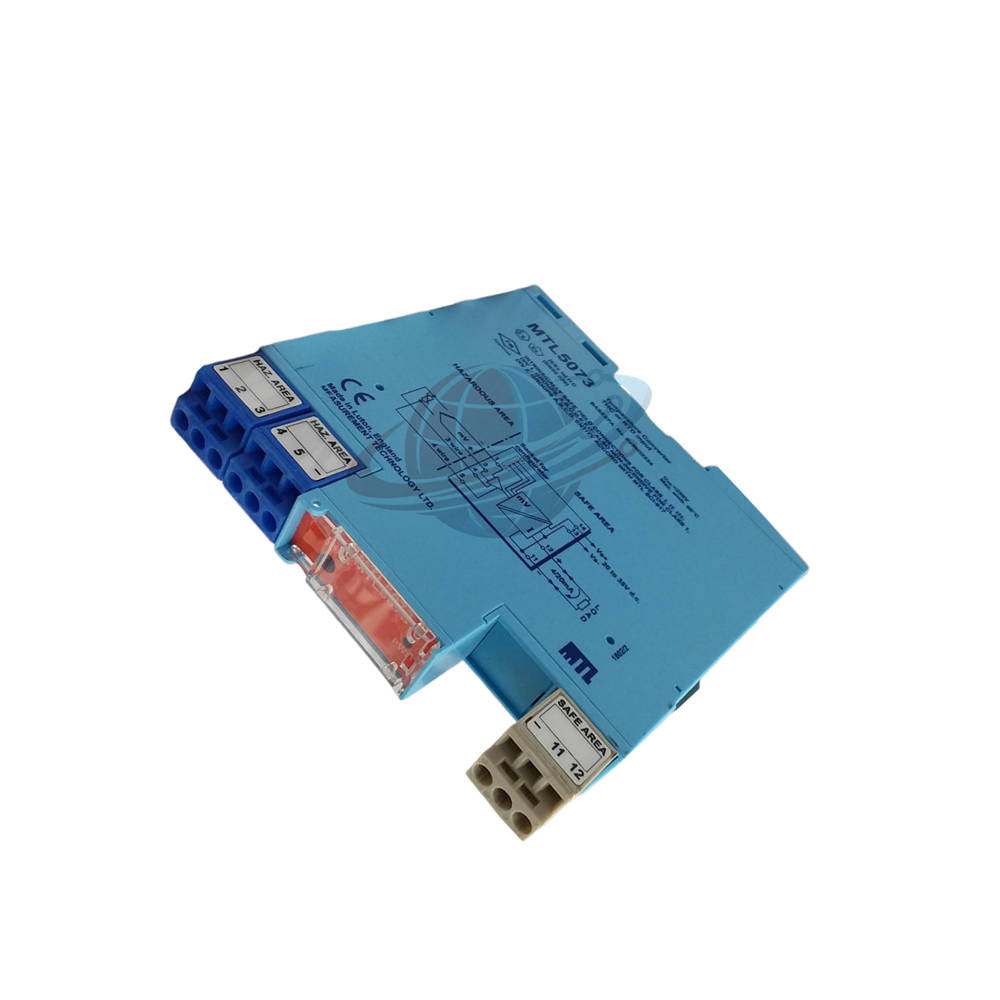

MTL5073 Temperature Signal Converter THC RTD Input Module

Engineering Signal Integrity & Architecture

• The MTL5073 is a high-performance temperature converter designed for critical process control.
• It converts low-level signals from thermocouples or RTDs into standardized 4-20mA loop signals.
• Features 3-Port Isolation to electrically separate input, output, and power circuits.
• This architecture effectively suppresses common-mode noise and prevents disruptive ground loops.

Detailed Technical Specifications

• Brand: MTL Instruments (Eaton)
• Model: MTL5073
• Series: MTL5000 Industrial Signal Conditioners
• Input Support: Thermocouple Types J, K, T, E, R, S, B, N and EMF
• RTD Wiring: 2, 3, or 4-wire Platinum RTD compatibility
• Isolation: 3-Port (Input / Output / Supply)
• Output Signal: 4-20mA Current Loop
• Maximum Voltage: 35V DC Rated
• Temperature Range: -20°C to +60°C Operating Ambient
• Mounting: DIN Rail (35mm)

Global PLC Spare HUB's Insight

• The MTL5073 is highly regarded for its universal sensor compatibility.
• It serves as an essential "all-in-one" spare part for plants using diverse temperature sensing technologies.
• The high-integrity isolation barrier ensures that field faults do not propagate to the PLC backplane.
• Integrated cold-junction compensation ensures measurement precision even in fluctuating cabinet temperatures.

Diagnostic Capabilities & Application Scenarios

• Fault Detection: Provides internal diagnostics for open-circuit sensors and wiring failures.
• Signal Conditioning: Ideal for distillation columns, industrial furnaces, and boiler monitoring.
• Inter-system Isolation: Used to bridge devices with different local ground references safely.
• Compatibility: Perfectly suited for gas turbine exhaust temperature monitoring and chemical reactors.

Shipping and Warranty Protection

• Warranty: 12-month standard functional warranty.
• Dispatch: Ready for shipment within 24–48 hours of order.
• Express Delivery: Global shipping via FedEx, UPS, and DHL.
• Package Contents: One (1) MTL5073 Temperature Converter.

Expert FAQ & Selection Guide

• Question: Does the MTL5073 support lead-wire resistance compensation?
• Answer: Yes, by utilizing the 3-wire or 4-wire RTD input modes, lead-wire errors are electronically canceled.
• Question: Can I change the thermocouple type after installation?
• Answer: Yes, the MTL5073 can be reconfigured to support different THC types as process needs evolve.
• Question: Is this module suitable for intrinsically safe loops?
• Answer: The MTL5073 is designed for high-integrity signal conditioning often found in IS architectures.
• Experience Tip: Always use shielded twisted pair cabling for input signals to maximize the benefit of the module's 3-port isolation.
• Selection Guide: Verify your total loop impedance is within the 4-20mA drive capability before final system integration.
