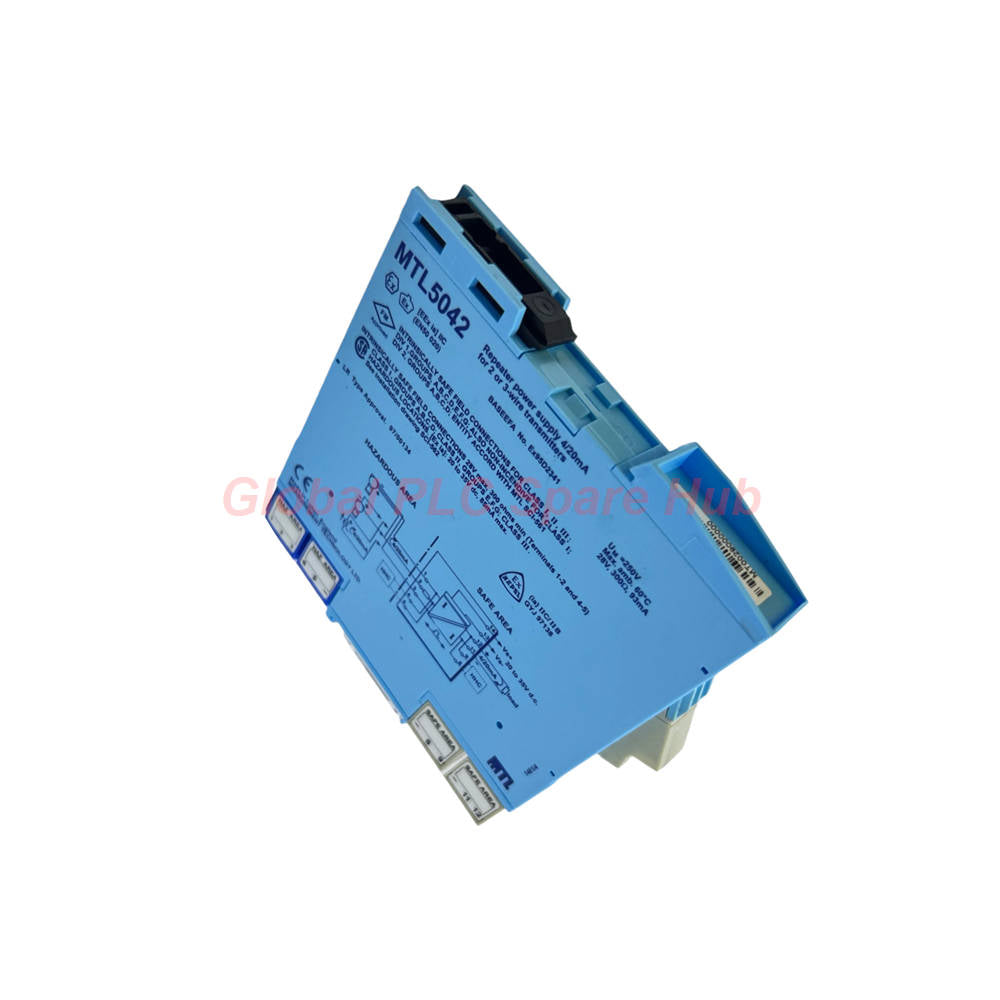

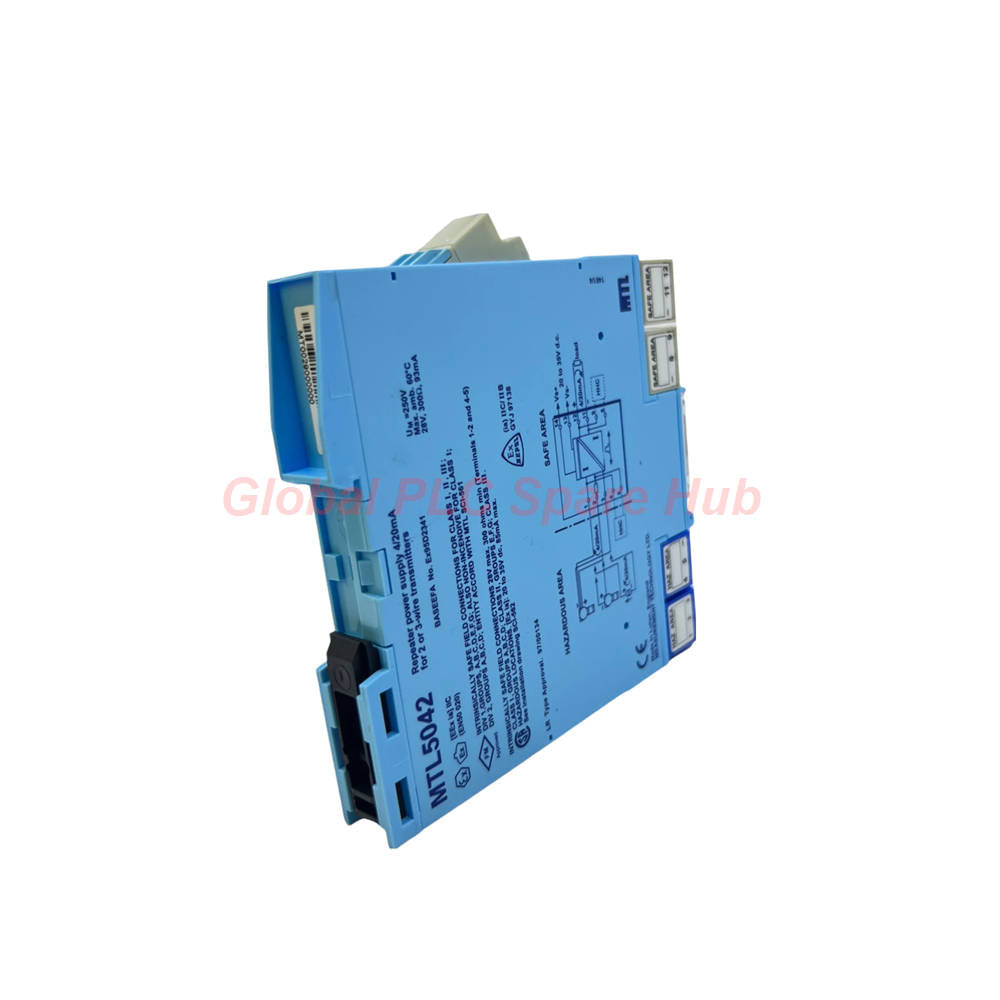

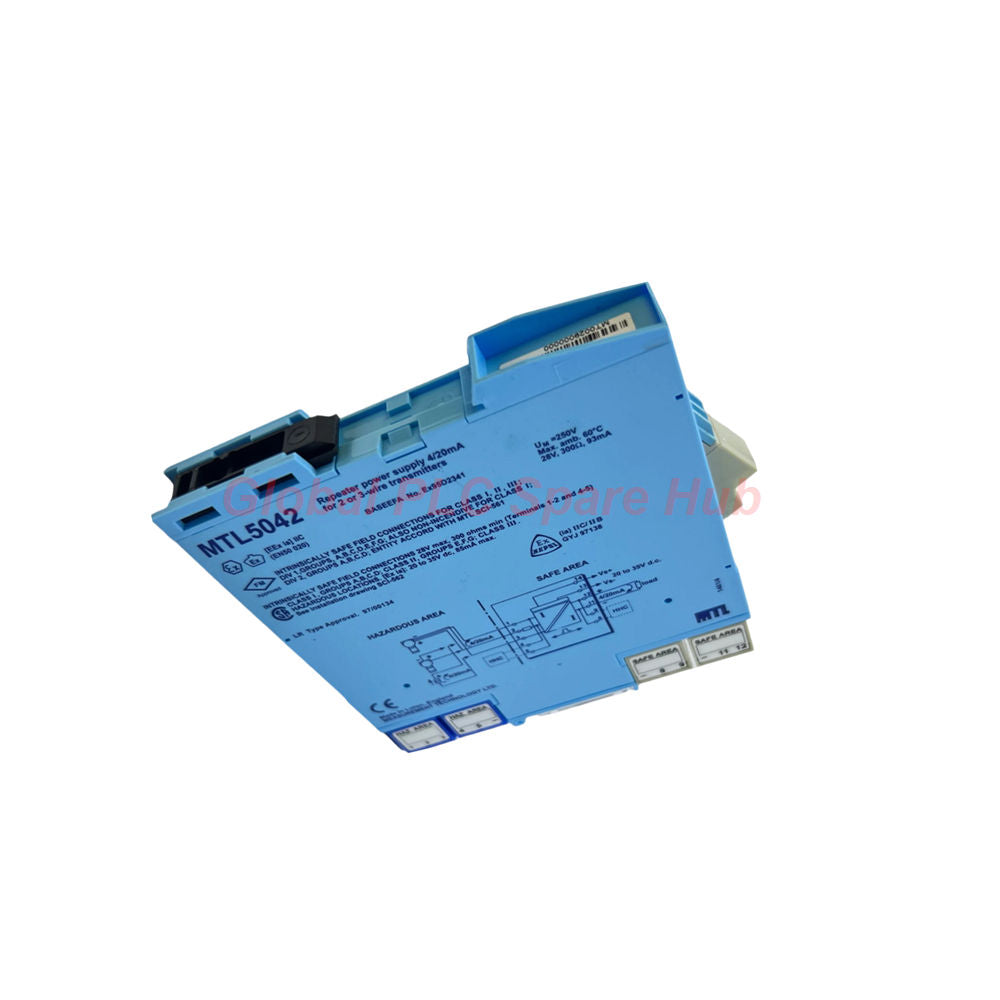

MTL5042 Repeater Power Supply for 4-20mA Transmitters

System Architecture Overview

The MTL5042 serves as a high-precision, fully-floating DC supply designed for energizing 2-wire or 3-wire 4/20mA transmitters stationed in hazardous environments (Zone 0/Div 1). This repeater unit isolates and repeats the input signal into a secondary floating circuit for safe-area loading. Built for smart instrumentation, it supports bi-directional HART, Honeywell DE, Foxboro, and Yokogawa Brain digital communication protocols superimposed on the analog loop.

Precision Technical Specifications

• Brand & Model: MTL MTL5042
• Channels: Single-channel galvanic isolation
• Signal Range: 4–20mA input/output (0–24mA over-range support)
• Accuracy: <10µA transfer accuracy at 20°C
• Thermal Stability: <0.5µA/°C drift
• Response Speed: Settles within 10% in <40µs
• Loop Impedance: 0 to 600Ω safe-area load resistance
• Bandwidth: 10Hz to 12kHz digital signal support
• Supply Requirement: 20V to 35V DC input

Advanced Diagnostic & Visual Cues

Troubleshooting is simplified through the integrated green Power LED. This indicator confirms the availability of the auxiliary supply voltage to the module. The unit’s galvanic isolation design minimizes ground loop errors that typically plague conventional signal conversion, ensuring your safety-area control system receives an accurate, low-ripple (<40µA) signal.

Industrial Applications

• Petrochemical & Refineries: Essential for Zone 0 transmitter power and signal repetition.
• Flow & Pressure Monitoring: High-bandwidth support for smart (HART) sensors.
• Hazardous Material Handling: Integrated safety barriers prevent electrical energy discharge.

Global PLC Spare HUB's Insight

The MTL5042 is a staple in intrinsically safe (IS) design. Our engineers appreciate its transparent communication capability; it is one of the few repeaters that maintains digital signal bandwidth without degrading HART protocol packets. When maintaining legacy loops, replacing old barriers with this model often cleans up signal noise instantly. It is the premier choice for process automation where precision is as vital as safety.

Logistics and Quality Assurance

• Shipping: Expedited worldwide delivery via FedEx, UPS, and DHL.
• Lead Time: Fast fulfillment within 24-48 hours.
• Quality Guarantee: Full 12-month performance warranty on all units.

Expert Frequently Asked Questions

How do I connect a Handheld Communicator (HHC) for HART diagnostics?
You can connect your HART communicator across terminals 4 and 5 (or 8 and 9), which provides a dedicated tapping point without interrupting the primary 4-20mA control signal.

Does the MTL5042 consume significantly more power if the field device pulls 20mA?
At 24V supply voltage, the module consumes approximately 75mA, maintaining stable power dissipation around 1.3W even under full-load conditions.

Can this barrier be used for non-HART sensors?
Yes, it is backward compatible with all conventional 2-wire and 3-wire 4-20mA sensors, providing an isolated, regulated DC supply regardless of the signal protocol.

Why is the signal ripple limited to <40µA?
This low-ripple threshold is critical for high-resolution PLC analog input cards, preventing jitter in your control loop readings.

Purchasing Advice: Should I use screw or spring-clamp connectors?
If your cabinet is subject to vibration, the spring-clamp option provides superior mechanical retention; otherwise, standard screw terminals are sufficient for fixed installation scenarios.

Selection Guidance

• Ensure that your transmitter’s voltage requirement is compatible with the 16.5V supply at 20mA provided by the MTL5042.
• If you are using digital protocols other than HART, double-check the bandwidth compatibility to ensure the unit does not attenuate the high-frequency diagnostic packets.
• Always verify the safety loop parameters to confirm the <28V open-circuit voltage restriction is met.
