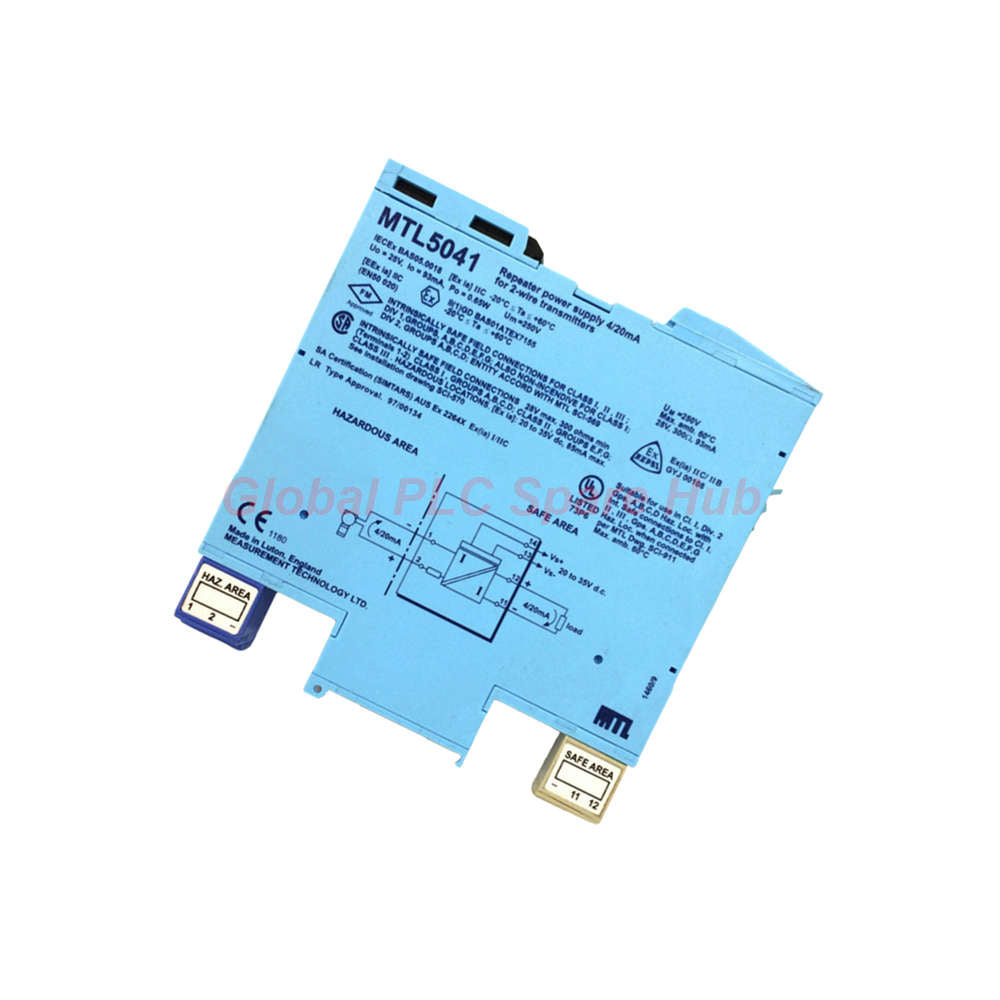

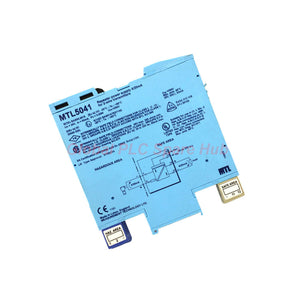

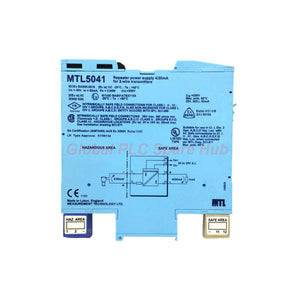

MTL5041 MTL Instruments 1-Channel 4-20mA Galvanic Isolator Module

MTL5041 Architectural Overview

The MTL5041 is a high-integrity, single-channel intrinsically safe galvanic isolator designed by MTL Instruments. This rail-mounted module provides a fully floating DC power supply to energize a conventional 2-wire 4/20mA transmitter positioned within explosive hazardous areas. Concurrently, the hardware repeats the analog current signal through an independent, fully isolated floating circuit to drive safe-area control system loads. By providing robust galvanic isolation between the input, output, and power supply pathways, this instrument eliminates ground loop currents and clamps fault energy, ensuring comprehensive explosion protection for hazardous process loops.

Technical Specifications

• Brand: MTL Instruments
• Model Number: MTL5041
• Product Series: MTL5000 Series
• Module Type: Intrinsically Safe Galvanic Isolator / Transmitter Power Supply
• Number of Channels: 1 Independent Channel
• Safe-Area Output Signal Range: 4 to 20 mA Linear Processing
• Safe-Area Over/Under-Range Capacity: 0 to 24 mA Absolute Extended Scale
• Maximum Safe-Area Load Resistance: 0 to 1000 Ohms (1 kΩ)
• Safe-Area Circuit Output Resistance: Greater than 2 MΩ High-Impedance Drive
• Safe-Area Circuit Ripple Generation: Less than 125 µA Peak-to-Peak Noise
• Hazardous-Area Input Signal Range: 0 to 24 mA (Accommodates Full Over-Range States)
• Available Transmitter Voltage: 16.5 V Stabilized at a full 20 mA Current Load
• Transfer Accuracy at 20°C: Better than 20 µA (Typical Calibration Performance at 5 µA)
• Temperature Induced Drift: Less than 1 µA per Degree Celsius Thermal Shift
• Transient Response Time: Settles to within 10% of final steady value within 250 µs
• Main Power Input Supply Range: 20 to 35 V DC Continuous Utility Inputs
• Maximum Internal Current Consumption:
  • 70 mA measured at 24 V DC Power Rails
  • 85 mA measured at 20 V DC Power Rails
  • 55 mA measured at 35 V DC Power Rails
• Maximum Internal Thermal Power Dissipation: 1.2 W at 24 V DC with an active 20 mA Signal Load

Intrinsic Safety & Entity Parameters

• Hazardous Area Location Suitability: Zone 0, IIC, T4–T6 Atmospheric Classifications if certified
• North American Division Classification: Class I, Division 1, Groups A, B, C, and D Hazardous Environments
• Safety Description Entity Limits: 28 V Maximum Voltage, 300 Ω Impedance, 93 mA Maximum Short Current
• Maximum Safe-Area Safety Voltage (Um): 250 V rms or DC Volts Maximum Fault Tolerances

Terminal Interface Configuration

• Terminal 1: Hazardous Area Input Negative Connection (-ve)
• Terminal 2: Hazardous Area Input Positive Connection (+ve)
• Terminal 11: Safe Area Output Negative Connection (-ve)
• Terminal 12: Safe Area Output Positive Connection (+ve)
• Terminal 13: Main DC Power Supply Negative Input (-ve)
• Terminal 14: Main DC Power Supply Positive Input (+ve)

System Integration & Equipment Suitability

• Field Transmitters: Conventional 2-wire smart or analog 4-20mA pressure, temperature, and level transmitters
• Control System Interfaces: Distributed Control System (DCS) Analog Input cards and Programmable Logic Controller (PLC) loop inputs
• Mounting Hardware: Standard 35mm symmetrical DIN rail profiles inside safe-area control enclosures

Application Scenarios

• Powering and isolating hazardous-area oil refinery tank level instrumentation loops.
• Isolating hazardous zone offshore gas platform pressure transmitters from safe-area DCS controllers.
• Chemical processing plant flow control loops requiring strict electrical fault containment between boundaries.
• Water and wastewater digester gas monitoring stations needing explosion-proof safety parameters.
• Pharmaceutical sterile processing infrastructure requiring precise loop isolation to eliminate electrical noise interference.

Diagnostic Capabilities

• PWR LED (Green): Located on the front fascia; illuminates solid when the DC voltage input stays within the 20 to 35 V window.
• Loop Integrity Monitoring: The high 2 MΩ safe-area output resistance allows control systems to track deep signal drops below 4mA.
• Over-range Tracking: Linear tracking up to 24mA allows diagnostic software to easily spot field sensor saturation or short-circuit faults.

Packaging List & Warranty Terms

• One New MTL Instruments MTL5041 Galvanic Isolator Module
• Official Factory Installation and Wiring Data Sheet
• 12-Month Comprehensive Warranty Protection Plan covering all manufacturing and component defects

Shipping Logistics

• Global Air Freight Express Networks: Expedited worldwide shipment via FedEx, UPS, and DHL.
• Fulfillment Speed: Materials leave the central fulfillment hub within 24 to 48 hours of order processing.

Global PLC Spare HUB's Insight

The MTL5041 is a benchmark product for galvanic isolation technology. Unlike standard zener barriers that require a dedicated, low-resistance network ground system, this isolator features an internal transformer layout. This allows it to float the field loop completely without extra grounding costs. Its ultra-fast 250 µs response time makes it an excellent choice for critical surge protection loops and fast-acting pressure tracking systems. When replacing or updating these units, engineers should note that the MTL5000 series uses a compact side-plugging design. This layout requires adequate finger clearance between adjacent DIN rail modules during routine field maintenance.

Procurement Selection Matrix

• Verify that the field-side transmitter can operate reliably on the 16.5 V DC at 20 mA power level provided by this module.
• Select this model when your loop drawings demand a high-impedance safe-area drive capable of handling loop resistances up to 1000 Ohms.
• Ensure your control cabinet ventilation plan accounts for the 1.2 W power dissipation rating when grouping multiple isolators closely on a rail.
• Choose alternative multi-channel variants if your automation cabinet requires maximum I/O density per linear inch of DIN rail space.

Frequently Asked Questions

How does this module differ from a zener barrier regarding installation grounding requirements?

This module uses transformer-based galvanic isolation to isolate the field signals from the control room loops. Because the circuit is fully floating, you do not need to run a high-maintenance, dedicated IS earth ground connection to the cabinet rail.

Can this module pass digital HART communication signals to and from the field transmitter?

No. The module is engineered specifically for conventional analog 4-20mA current paths. If your system requires HART pass-through diagnostics, you should select the specialized HART-compatible isolator models within the same series lineup.

What does a completely dark green PWR LED indicate when the loop shows 0mA output?

A dark power LED indicates the module is not receiving sufficient voltage across terminals 13 and 14. Check your safe-area power distribution lines with a multimeter to ensure the supply stays within the required 20 to 35 V DC window.

Why is the high 2 MΩ safe-area circuit output resistance an important parameter for engineers?

The 2 MΩ output resistance ensures the module behaves as a near-perfect constant current source. This lets it drive varying load impedances up to 1000 Ohms without causing signal drop or accuracy losses in the reading circuit.

What are the consequences if the safety entity parameters of 28V and 93mA are exceeded by the field device?

Exceeding these safety boundaries violates the intrinsic safety certification for the zone. If a field component stores too much energy, it can create a spark hot enough to ignite explosive atmospheres if a wire shorts out or breaks.
