MTL5015 MTL5000 Series Proximity Detector Interface | Dual-Channel LFD Module

MTL5015 Dual-Channel Interface Module Overview

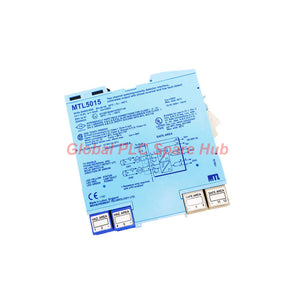

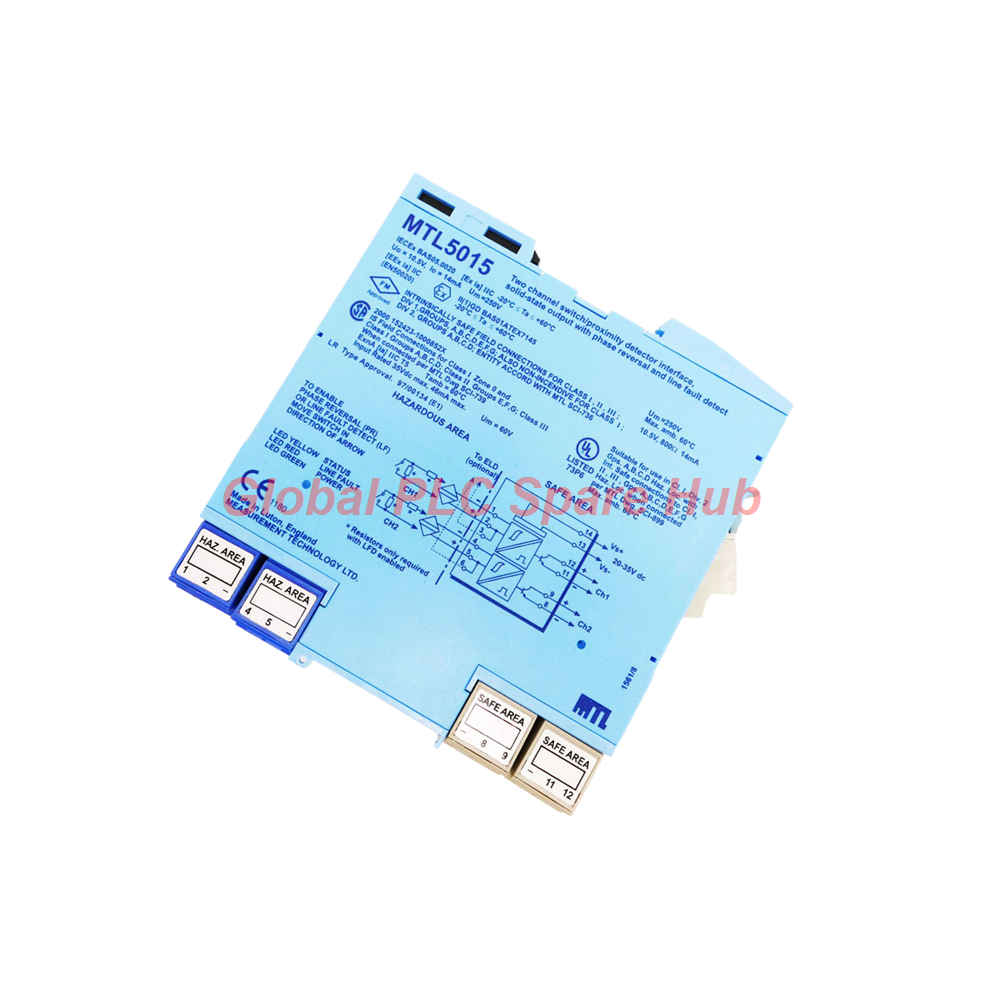

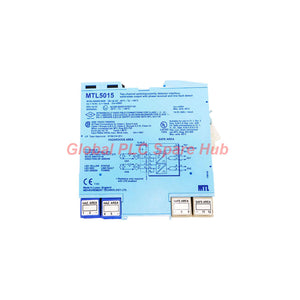

The MTL5015 is a dual-channel switch and proximity detector interface from the MTL interface module range. It transfers two independent hazardous-area input signals to floating solid-state outputs in the safe area.

Each channel supports independent phase reversal and line fault detection (LFD). This design helps control engineers configure separate signal logic and identify field wiring faults without combining both channels into one diagnostic state.

Unlike relay-based interfaces, the MTL5015 uses solid-state outputs. Its specified operating frequency reaches 5 kHz, making it suitable for compatible high-speed discrete signals as well as conventional status monitoring.

01 | Engineering Highlights

• Two independent channels: Accepts signals from two compatible switches or NAMUR proximity detectors.
• Floating solid-state outputs: Interfaces field signals with compatible safe-area logic circuits.
• Independent phase selection: Configures each channel for normal or reverse operation.
• Channel-specific LFD: Detects field wiring faults and switches off the affected output.
• High switching frequency: Supports DC signals through 5 kHz within the specified output characteristics.
• LED-based diagnostics: Provides separate channel status and line fault indications.
• Electrical isolation: Provides specified isolation between the supply, hazardous-area circuits, and each output.

02 | Technical Data at a Glance

03 | Input Logic and Switching Behavior

The module interprets input current and resistance to determine each channel's output state. Engineers can configure phase reversal independently to match the required control logic.

The 200 μA typical hysteresis helps prevent rapid state changes near the switching threshold. The intermediate region between the stated thresholds requires interpretation using the manufacturer's detailed input characteristics.

04 | Line Fault Detection and Fault Thresholds

The MTL5015 provides channel-specific fault detection. When LFD is enabled, a detected line fault switches off the corresponding solid-state output.

These separate alarm and reset thresholds provide hysteresis for fault detection. For contact inputs, install 500–1,000 Ω in series with the switch and 20–25 kΩ in parallel when using LFD.

05 | Terminal Layout and Wiring Reference

Terminals 10 and 11 both serve the Channel 1 output negative connection according to the supplied specification. Confirm the manufacturer's terminal diagram before wiring.

06 | LED Status and Troubleshooting

• Green LED: Indicates that the module has power.
• Yellow Channel 1 LED: Illuminates when Channel 1 output is on.
• Yellow Channel 2 LED: Illuminates when Channel 2 output is on.
• Red Channel 1 LED: Indicates a detected Channel 1 line fault.
• Red Channel 2 LED: Indicates a detected Channel 2 line fault.

Use the LEDs to separate supply problems, input logic issues, and wiring faults. A lit fault LED points toward the field circuit, but technicians should verify the wiring before replacing the interface.

07 | Installation and Commissioning Procedure

1. Check identification: Confirm the model and terminal markings before installation.
2. Verify the system design: Check detector compatibility, hazardous-area requirements, and safe-area logic input specifications.
3. Isolate the circuit: Follow site procedures before connecting or disconnecting wiring.
4. Wire both inputs: Connect Channel 1 to terminals 1 and 2. Connect Channel 2 to terminals 4 and 5.
5. Connect the outputs: Follow the terminal diagram for each channel and the receiving logic circuit.
6. Connect the supply: Use terminals 13 and 14 within the approved supply range.
7. Configure the channels: Set phase reversal and LFD independently as required.
8. Verify operation: Test normal switching, reverse logic where applicable, and fault detection under an approved procedure.

Confirm the complete supply range in the common specification. The consumption figures alone do not establish the permitted operating limits.

08 | Equipment Compatibility and Selection

The MTL5015 is intended for discrete field signals, not conventional analog process measurements. Select it according to input type, switching speed, output load, isolation requirements, and fault monitoring needs.

• NAMUR proximity detectors: Suitable devices that comply with the specified input interface and hazardous-area requirements.
• Mechanical switches: Supported contact circuits, with the required resistor network when LFD is enabled.
• PLC digital inputs: Compatible logic inputs that accept the module's voltage, current, polarity, and floating-output behavior.
• DCS discrete inputs: Suitable receiving channels for status, alarm, and control signals.
• Speed-related detection: Compatible discrete sensors operating within the DC-to-5-kHz specification.

Do not assume universal PLC compatibility. Check the receiving input's minimum ON current, OFF-state leakage tolerance, voltage thresholds, and common reference arrangement.

09 | Typical Applications

• Oil and gas facilities: Transfer two hazardous-area switch signals to separate safe-area logic inputs.
• Chemical processing: Monitor valve limit switches and detect field cable faults.
• Tank farms: Interface discrete level or position switches where the detector and protection design meet the requirements.
• Packaging machinery: Pass compatible proximity detector signals to PLC inputs.
• Rotating equipment monitoring: Interface suitable pulse-producing proximity detectors for discrete speed-related signals within the rated frequency.
• Process interlocks: Separate two status channels with independent logic and fault indications.

For safety-related trips, confirm the complete safety design and approvals. Do not treat this module alone as proof of a certified safety function.

10 | Global PLC Spare HUB's Insight

Field experience shows that solid-state interface problems often originate from load compatibility rather than input detection. A PLC input may show an unexpected state if its ON threshold is too high or its OFF-state leakage tolerance is too low.

Practical example: Channel 1 detects a valve position correctly, but the receiving PLC input remains off. The yellow LED indicates that the interface output is on.

• Measure the output voltage under the connected load.
• Check the PLC input's minimum ON current and voltage threshold.
• Compare the output voltage drop with the module's specified formula.
• Check wiring polarity and the floating-output circuit arrangement.
• Test the receiving input using an approved procedure before replacing the interface module.

The specified on-state voltage drop increases with output current. Engineers should calculate the expected voltage drop before pairing the module with a high-current logic input.

For example, at 20 mA, the stated formula gives a nominal drop of 3.6 V. The receiving input must still have sufficient voltage to register an ON state.

11 | Certification and Electrical Safety

The supplied specification lists hazardous-area use for switches in Zone 0, IIC, T6 and Division 1, Group A. It lists proximity detectors for Zone 0, IIC, T4–T6 when suitably certified, and Division 1, Group A.

The listed safety parameters for each channel are 10.5 V, 800 Ω, and 14 mA. The maximum stated Um is 250 V RMS or DC.

Confirm the unit's actual approval markings, certificates, installation control drawings, and applicable local requirements. The values above do not replace verification of the complete intrinsic safety circuit.

12 | Packaging, Warranty, and Shipping

• Product supplied: MTL5015 dual-channel switch/proximity detector interface module.
• Packaging: Protective packaging suitable for international transport.
• Accessories and documents: Included only when specified in the confirmed quotation.
• Warranty: 12 months under the agreed sales terms.
• Dispatch target: Typically 24–48 hours after order confirmation, subject to stock and payment verification.
• Courier services: FedEx, UPS, and DHL.
• Order support: Contact Global PLC Spare HUB for stock confirmation, pricing, and delivery estimates.

13 | Frequently Asked Questions

Q1: How can I determine whether the MTL5015 output can drive my PLC input directly?

Compare the PLC input's ON-state voltage and current requirements with the module's maximum 50 mA output current and calculated voltage drop. Also verify the 10 μA maximum off-state leakage and 35 V maximum off-state voltage.

Q2: What should I consider when using the MTL5015 for pulse signals?

Confirm that the signal frequency does not exceed 5 kHz. Check the detector's pulse width, the receiving input's response time, and the system's required counting accuracy through the full signal path.

Q3: Can both channels use different phase settings?

Yes. Each channel supports independent phase reversal. This helps when two field devices use different normal states or when one signal requires inverted logic.

Q4: Why should I check output voltage drop during product selection?

The solid-state output has a load-dependent voltage drop. Calculate the expected drop at the planned current and confirm that the receiving input still receives sufficient voltage for reliable switching.

Q5: What information should I provide when requesting a replacement quotation?

Provide the full model number, input device type, PLC or DCS input specification, supply voltage, switching frequency, LFD requirements, and hazardous-area classification. These details help confirm suitability before ordering.

Request Pricing for MTL5015

Need the MTL5015 for a control system project, field interface replacement, or maintenance inventory? Contact Global PLC Spare HUB for a quotation, availability confirmation, and shipping options through FedEx, UPS, or DHL.
