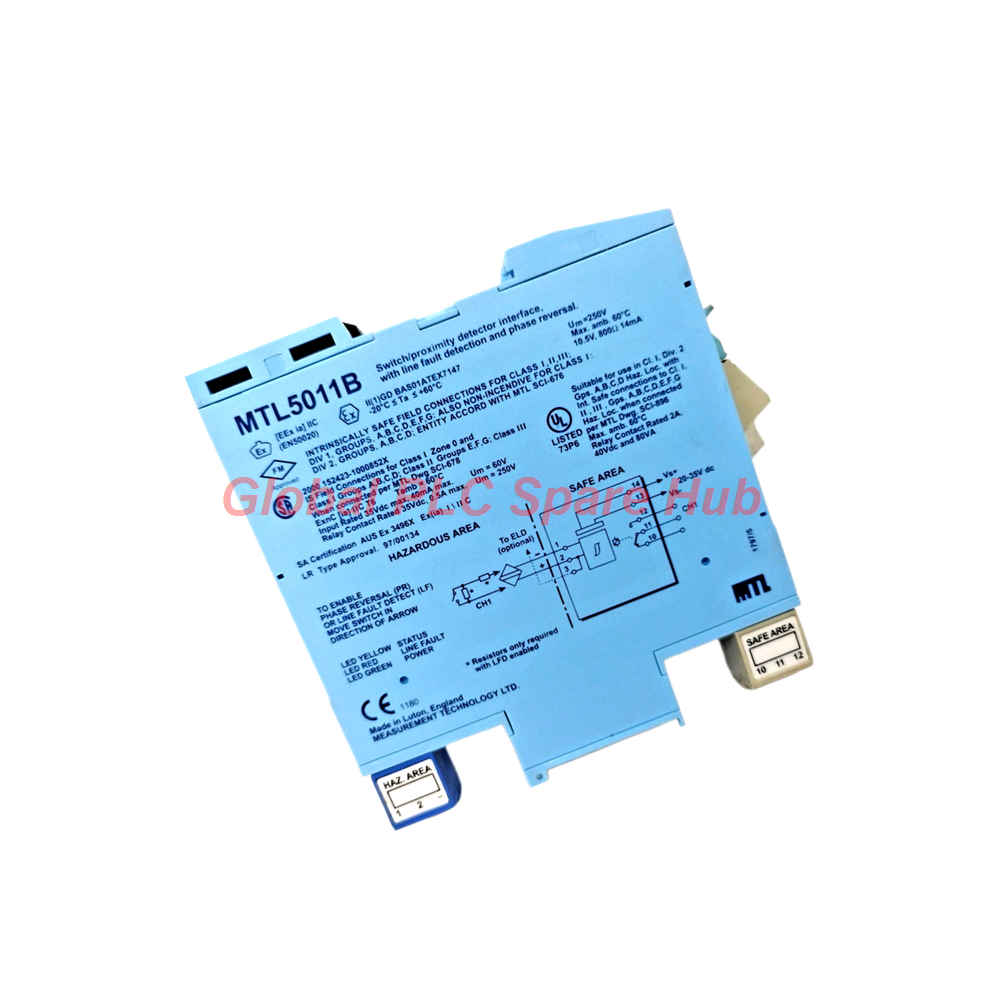

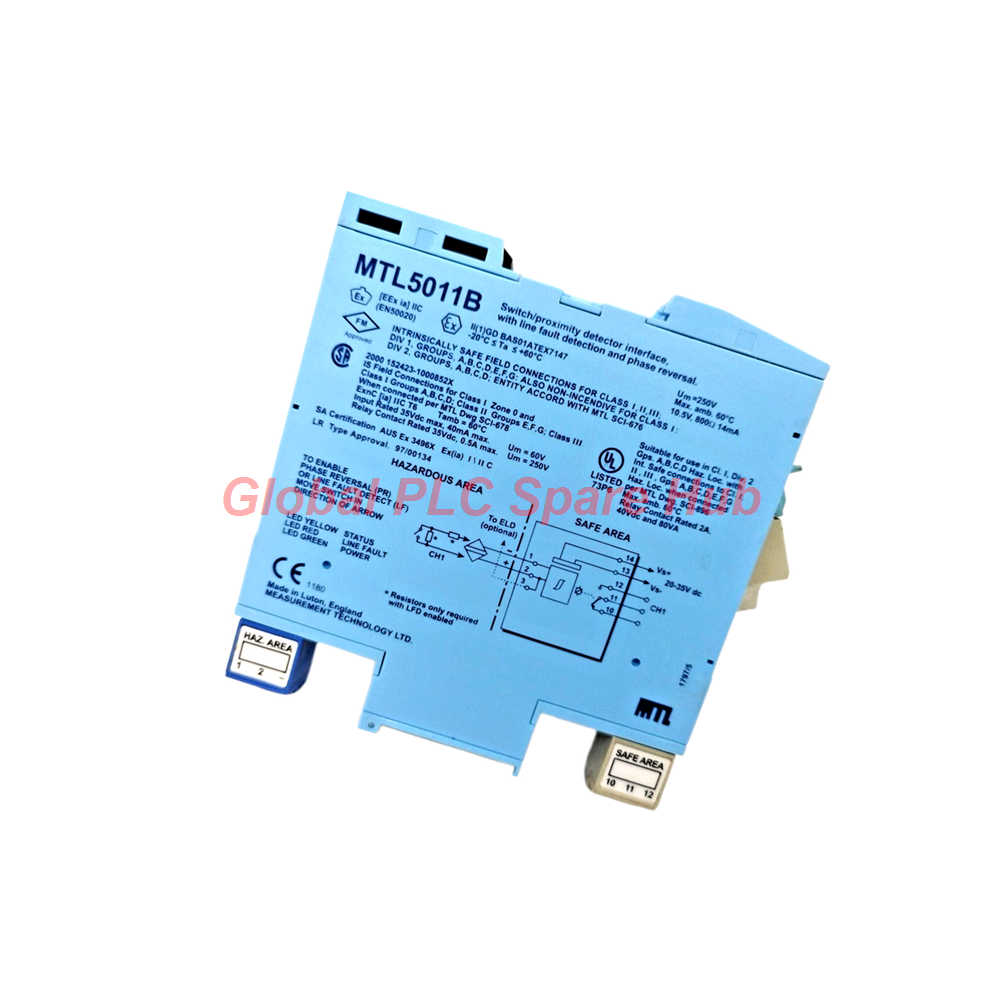

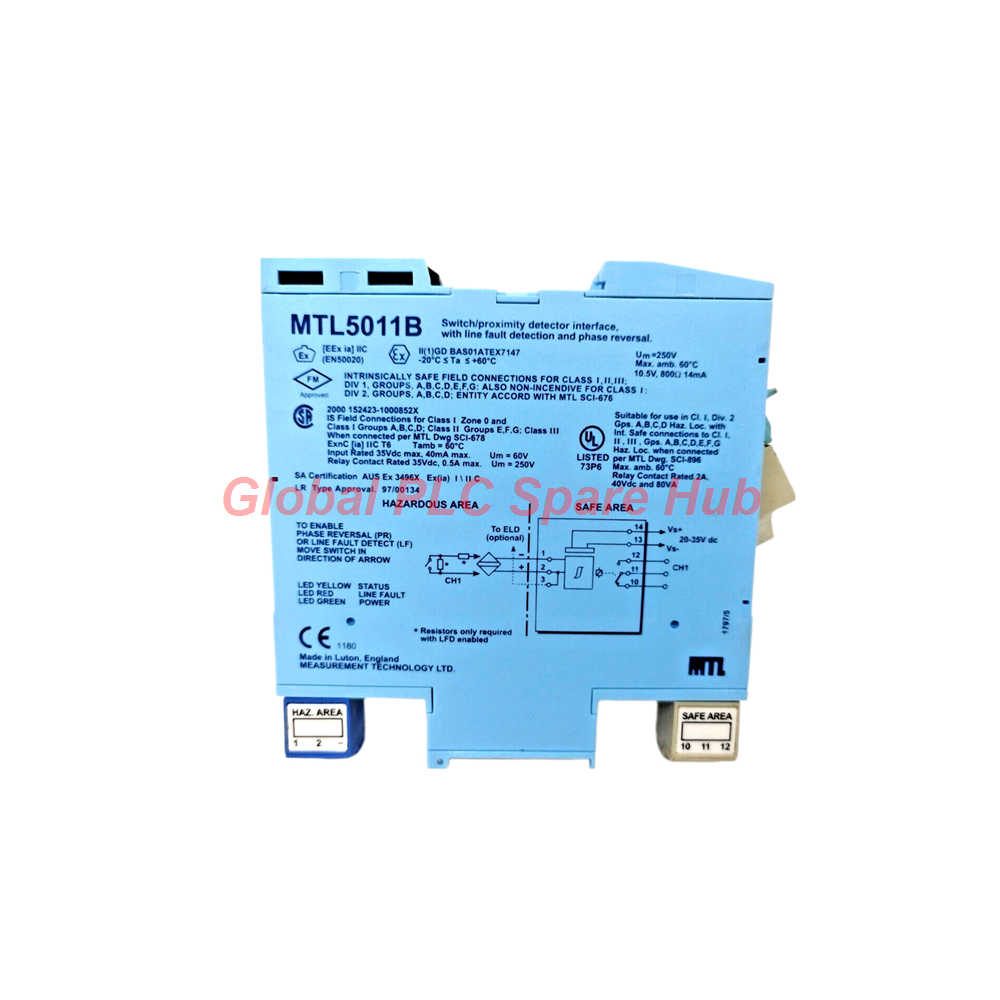

MTL5011B MTL5000 Series NAMUR Input Relay Control Module

Manufacturer: MTL
Product No.: MTL5011B
Condition： In stock
Product Type: Relay Control Module
Product Origin: EN
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Overview

The MTL5011B is an intrinsically safe switch amplifier from the MTL5000 series. It monitors a hazardous-area switch or NAMUR proximity detector. Its relay output controls a load in the safe area. The module supports selectable phase reversal and line fault detection (LFD). Engineers can configure the output response to match the sensor's switching logic. The LFD function identifies open and short circuits in the field wiring. A detected line fault de-energizes the relay. The MTL5011B suits industrial systems that require reliable switching, electrical isolation, and clear fault indication.

Technical Specifications

Brand	MTL
Model	MTL5011B
Series	MTL5000 Series
Product Type	Intrinsically Safe Switch Amplifier / Relay Interface
Number of Channels	1
Input Type	NAMUR proximity detector or compatible switch input
Input Standard	NAMUR / DIN 19234
Sensor Supply	7–9 V through a 1 kΩ ±10% source resistance
Safe-Area Output	One single-pole changeover relay (SPDT)
Phase Reversal	User-selectable through switches on the top of the unit
Line Fault Detection	User-selectable; detects open and short field circuits
Maximum Response Time	10 ms
Relay Contact Rating	250 V AC, 2 A, cos φ > 0.7; 40 V DC, 2 A resistive
Maximum Current Consumption	40 mA at 20 V; 35 mA at 24 V; 25 mA at 35 V
Maximum Power Dissipation	0.75 W at 24 V; 0.8 W at 35 V
Isolation	250 V AC or DC between supply, hazardous-area circuits, and relay outputs
Green LED	Power indication
Yellow LED	Channel status; illuminates when outputs energize
Red LED	Line fault indication
Operating Temperature	Confirm the permitted ambient range in the applicable manufacturer's common specification
Protection Parameters	10.5 V, 800 Ω, 14 mA; Um = 250 V RMS or DC

Engineering note: The supplied specifications do not state measurement range, frequency response, sensitivity, linearity, resolution, or environmental ratings. These parameters do not define this switching interface's primary function. Confirm installation limits against the applicable manufacturer's documentation.

Input Switching Characteristics

The MTL5011B evaluates the sensor current or resistance. The selected phase determines the relay's response.

Normal phase: The output energizes when input current exceeds 2.1 mA or input resistance falls below 2 kΩ.
Normal phase: The output de-energizes when input current falls below 1.2 mA or input resistance exceeds 10 kΩ.
Reverse phase: The relay response reverses for the corresponding input states.
Typical hysteresis: 200 μA.

Line Fault Detection and Diagnostics

The LFD function helps technicians distinguish wiring faults from normal sensor switching.

Diagnostic Condition	Detection Threshold
Open-circuit alarm activates	Input current below 100 μA
Open-circuit alarm clears	Input current above 250 μA
Short-circuit alarm activates	Input resistance below 100 Ω
Short-circuit alarm clears	Input resistance above 360 Ω
Relay response to detected fault	Relay de-energizes
Fault indication	Red LED illuminates

Contact input requirement: Fit a 500 Ω to 1 kΩ resistor in series with the switch. Fit a 20 kΩ to 25 kΩ resistor in parallel with the switch. These resistors support line fault monitoring for contact inputs.

Terminal Configuration

Terminal	Function
1	Input negative
2	Input positive
3	Earth leakage detection
10	Relay normally closed (NC)
11	Relay common (COM)
12	Relay normally open (NO)
13	Power supply negative
14	Power supply positive

Hazardous-Area Compatibility and Safety

The MTL5011B supports specified hazardous-area switching applications when the complete installation meets applicable certification requirements.

Switch location: Zone 0, IIC, T6; Class I, Division 1, Group A, as specified.
Proximity detector location: Zone 0, IIC, T4–T6, when the detector has suitable certification.
Input compatibility: NAMUR-compatible proximity detectors conforming to DIN 19234.
Relay interface: Provides changeover contacts for safe-area control circuits.
Electrical isolation: Separates the supply, hazardous-area input, and relay output circuits to the stated rating.

Important: Verify the exact certification markings, control drawing, entity parameters, installation method, and local hazardous-area requirements before commissioning. The listed protection parameters alone do not establish approval for every installation.

Installation Guide

Confirm the model number and inspect the unit before installation.
Check the supply voltage against the manufacturer's common specification.
Connect the sensor to terminals 1 and 2 with correct polarity.
Connect the relay circuit to terminals 10, 11, and 12 as required.
Connect the supply to terminals 13 and 14 with correct polarity.
Configure phase reversal and LFD using the top-mounted switches.
Install the required resistors when using LFD with a contact input.
Verify wiring, earthing, isolation, and hazardous-area compliance before energizing.
Test normal switching and fault responses before returning the system to service.

Suppress reactive relay loads adequately. Follow the manufacturer's wiring diagrams and approved installation instructions.

Commissioning and Maintenance

Power check: Confirm that the green LED illuminates after energizing.
Input check: Operate the field sensor and observe the yellow channel LED.
Relay check: Verify the NO and NC contact states with a suitable test instrument.
LFD check: Use an approved test procedure to verify open- and short-circuit detection.
Configuration check: Confirm the selected phase matches the required alarm logic.
Routine inspection: Check terminals, wiring condition, and relay operation during scheduled maintenance.

Field troubleshooting example: A proximity detector changes state, but the control system receives no signal. First, check the green power LED. Then inspect the yellow status LED and red LFD indicator. If the red LED illuminates, isolate the circuit safely and inspect the field wiring for an open circuit or short circuit. Confirm the phase selection before replacing components.

Typical Industrial Applications

Process plants: Transfer switch states from hazardous process areas to safe-area control systems.
Oil and gas: Interface compatible proximity detectors with relay-based monitoring circuits.
Chemical processing: Monitor equipment positions and discrete process conditions in classified areas.
Rotating machinery: Relay compatible position or proximity signals to alarms and interlocks.
Tank farms: Transfer discrete switch signals from suitable hazardous-area equipment.
Industrial alarm systems: Use selectable phase reversal to match required alarm logic.

Compatibility and Selection Guidance

The MTL5011B is suitable for compatible NAMUR sensors and supported contact inputs. Confirm the following points before ordering:

Sensor output type and NAMUR compatibility.
Hazardous-area classification and sensor certification.
Required relay contact configuration and load rating.
Power supply voltage and available control panel space.
Whether line fault detection is necessary.
Whether contact-input resistors are required for LFD operation.
Required switching logic and alarm state during a fault.

Do not assume compatibility with analog transmitters or high-speed pulse measurement. The MTL5011B is a discrete switching interface, not a general-purpose analog signal conditioner.

Packaging, Shipping, and Warranty

Product: MTL5011B switch amplifier relay interface.
Packaging: Protective packaging suitable for transport.
Included items: One module. Accessories and documentation depend on the confirmed supply package.
Warranty: 12-month warranty, subject to the seller's applicable terms.
Shipping carriers: FedEx, UPS, and DHL.
Dispatch: Shipping within 24–48 hours, subject to stock confirmation and order processing.
Order support: Contact Global PLC Spare HUB to confirm availability, condition, packaging, and delivery options.

Global PLC Spare HUB's Insight

In field applications, a relay interface must do more than transfer a sensor state. It must also provide predictable switching logic and useful fault information. Consider a hazardous-area proximity detector that monitors a valve position. If the field cable breaks, the receiving control system may otherwise interpret the signal incorrectly. The MTL5011B can identify supported open- and short-circuit conditions when LFD is configured correctly. Its relay then de-energizes, while the red LED indicates the detected fault. During commissioning, engineers should test both sensor states and simulate approved wiring faults. They should also confirm the selected phase and the control system's response to relay de-energization. This process helps identify wiring and configuration errors before normal operation.

Frequently Asked Questions

Q1: What does the MTL5011B do?

The MTL5011B interfaces a compatible hazardous-area switch or proximity detector with a safe-area relay circuit. It also provides selectable phase reversal and line fault detection.

Q2: Can the MTL5011B detect a broken sensor cable?

Yes. Its selectable LFD function detects specified open-circuit and short-circuit conditions. Correct configuration and suitable field wiring are essential. Contact inputs also require the specified series and parallel resistors.

Q3: Why does the relay de-energize during a line fault?

The module de-energizes the relay when it detects a supported line fault. This response can help the control system identify an abnormal field circuit. Engineers must verify the resulting alarm logic during commissioning.

Q4: What should engineers check before replacing a faulty MTL5011B?

Check the supply voltage, sensor wiring, terminal polarity, LED indications, phase selection, and relay contacts. Test for open or short circuits when LFD is enabled. Replace the module only after external wiring and configuration checks.

Q5: How should buyers select the correct replacement or spare module?

Match the complete MTL5011B model number and verify the input type, hazardous-area requirements, relay rating, supply voltage, and LFD needs. Confirm terminal compatibility and certification requirements with the existing system. Contact Global PLC Spare HUB with the nameplate details and application requirements before ordering.

Contact Global PLC Spare HUB

Need the MTL5011B for maintenance, replacement, or project inventory? Contact Global PLC Spare HUB for pricing, availability, warranty terms, and shipping options. Our team can help verify the model against your application requirements.
