MTL4541S MTL Repeater Power Supply | 1-Channel Isolated Barrier Module

MTL4541S Repeater Power Supply Overview

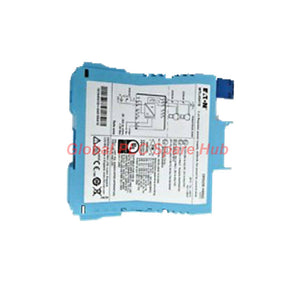

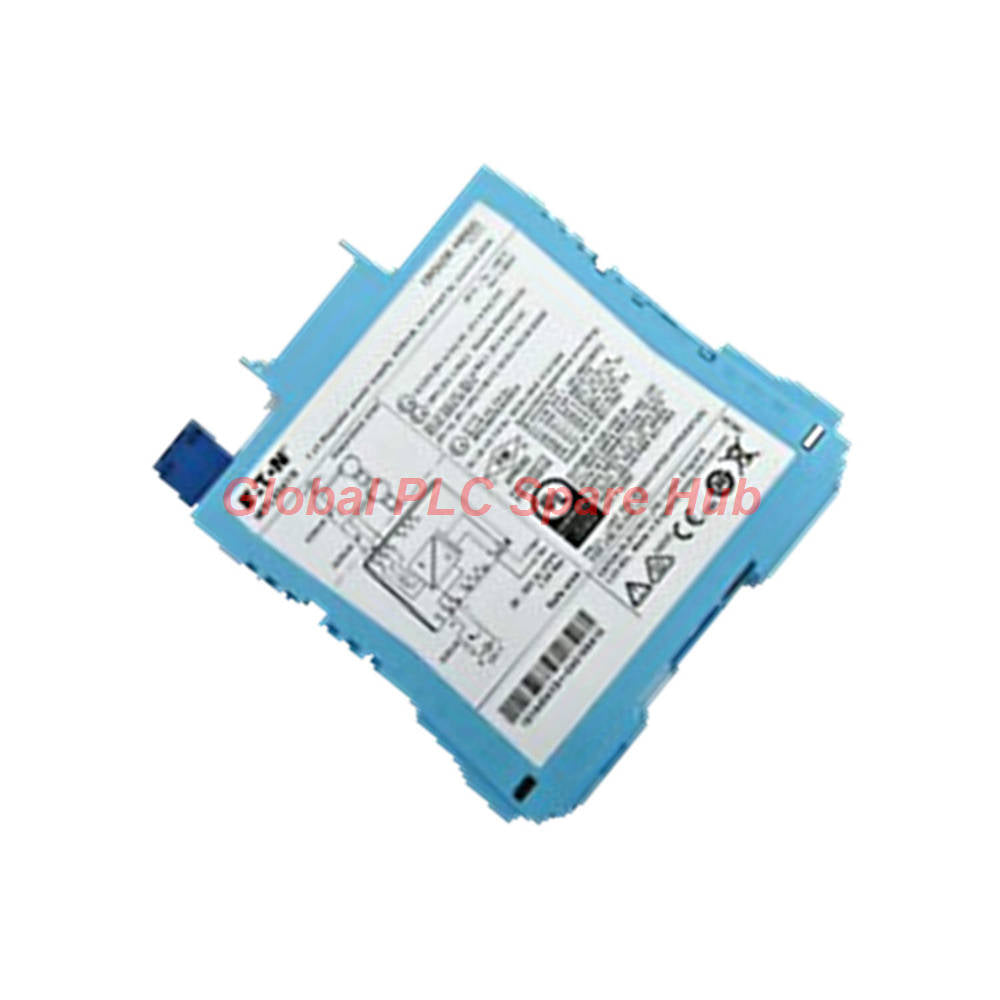

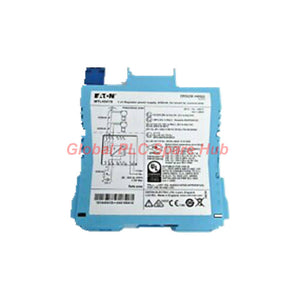

The MTL4541S by MTL is a high-performance, single-channel isolated repeater designed for hazardous area applications. Engineered for the MTL 4500 series, this unit serves as a current sink, facilitating seamless integration with safe-area systems. It supports HART communication on specific terminals, ensuring data transparency in critical process loops. Technicians favor this module for its rapid response time and minimal thermal drift in demanding industrial environments.

Technical Performance Metrics

• Brand & Model: MTL MTL4541S
• Channel Configuration: Single-channel, isolated barrier
• Hazardous Area Input: 0–24 mA range; 16.5 V transmitter supply at 20 mA
• Safe-Area Output: Current sink; up to 600 Ω load; 24 V max voltage source
• Transfer Accuracy: Better than 15 µA at 20°C
• Thermal Stability: Drift less than 0.8 µA/°C
• Dynamic Response: Settles within 10% in under 50 µs
• Safety Compliance: Uo=28V, Io=93mA, Po=651mW; suitable for Zone 0/Div 1 environments

Operational Intelligence & Diagnostics

The MTL4541S features an integrated green LED for immediate power status monitoring. Its sophisticated internal circuitry allows for precise signal conditioning with ripple suppressed below 50 µA. For diagnostic purposes, the unit maintains high output resistance (>1 MΩ), preventing signal loading issues. It is the preferred choice for instrumentation loops requiring robust isolation from electrical noise.

Global PLC Spare HUB Insight

Our engineering team identifies the MTL4541S as a critical asset for HART-enabled process control. It is ideally suited for pressure transmitters, valve positioners, and temperature converters in petrochemical and refinery sectors. Unlike generic barriers, its current-sink architecture provides a cleaner signal path for DCS inputs that lack active loop power.

Logistics and Warranty Excellence

• Quality Assurance: All units backed by a 12-month comprehensive warranty.
• Logistics: Secure shipping via FedEx, UPS, or DHL.
• Turnaround: Expedited dispatch within 24-48 hours of order confirmation.
• Integrity: Delivered in factory-standard protective industrial packaging.

Expert FAQs and Selection Guidance

Q: Does the MTL4541S allow HART signals to pass through all terminals?
A: No, HART communication is exclusively supported via terminals 1 and 2. Ensure your wiring conforms to this layout for successful device configuration.

Q: Can I connect a 4-wire transmitter to this unit?
A: Yes, you can connect separately powered sources, but note that the MTL4541S will act as a sink and will not support HART digital overlay in this specific configuration.

Q: What should I check if the output signal appears unstable?
A: Verify that your load resistance does not exceed 600 Ω and check for potential ground loops. The MTL4541S requires stable DC input to maintain its < 50 µA ripple specification.

Q: Is this module suitable for SIL-rated safety loops?
A: The MTL4541S is widely used in intrinsic safety applications; however, always cross-reference your specific Safety Requirement Specification (SRS) with the module's safety description data.

Q: Selection Guide: When should I choose the S-suffix version?
A: Choose the MTL4541S when your automation system requires a current-sink interface to process 4-20mA signals without providing active loop power from the barrier itself.
