MTL3052 MTL 3000 Series Digital Isolator – Data Highway Barrier

Engineering Profile & High-Frequency Performance

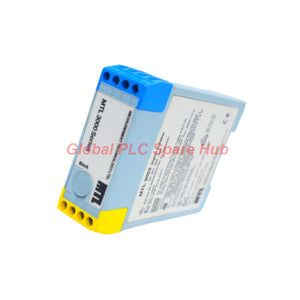

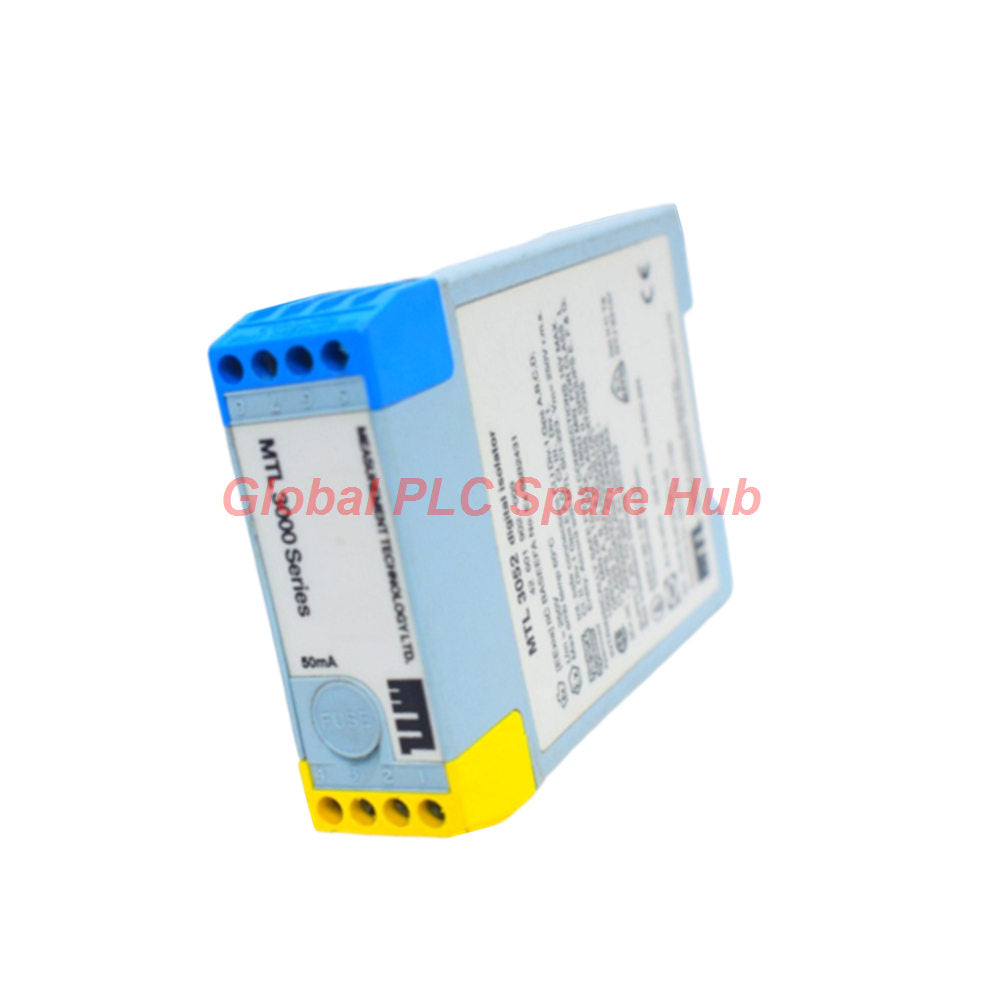

The MTL3052 serves as a specialized, fully floating single-channel isolator engineered for high-frequency digital signal transmission. Unlike standard barriers, this module is optimized for the rigorous timing requirements of MTL800 Series multiplexer systems, providing essential intrinsic safety (IS) protection without degrading signal fidelity. Its dual-output architecture allows engineers to select between a 180Ω or 100Ω safety circuit, providing the flexibility needed to compensate for additional line impedance introduced by field-mounted surge protection components.

Performance Specifications

• Signal Bandwidth: DC to 10kHz for high-speed data integrity.
• Dual Output Configuration:
  • 15V / 100Ω (150mA)
  • 15V / 180Ω (83.3mA)
• Input Range: 4 to 12V DC.
• Safety Entity Parameters: Uoc=15V, Isc=83.3mA, Ca=0.75µF, La=5.2mH.
• Power Efficiency: < 160mW dissipation at max load (12V/20mA).
• Fuse Protection: Replaceable 50mA semi-time-lag (M) glass fuse (DIN 41571).

Global PLC Spare HUB's Insight

The MTL3052 is a niche, high-performance tool critical for legacy system reliability. Our team at Global PLC Spare HUB finds this unit indispensable for environments where "off-the-shelf" isolators fail due to signal bandwidth limitations. It is the premier choice for complex data highway layouts where loop resistance management is the deciding factor between a stable link and intermittent data dropouts.

Applications & Diagnostic Capabilities

• Primary Use: Data highway protection for MTL800 multiplexers.
• Switch Interface: Status monitoring for mechanical, optotransistor, and magnetic shaft encoders.
• Diagnostics: The fully floating design significantly reduces common-mode noise issues. Field status can be reliably translated to the safe area, and the replaceable fuse design allows for rapid field maintenance without module replacement.

Logistics & Quality Assurance

• Delivery: Rapid dispatch within 24-48 hours via FedEx, UPS, or DHL.
• Warranty: Comprehensive 12-month quality assurance guarantee.

Expert Frequently Asked Questions

Q: Why would I choose the 100Ω output circuit over the 180Ω?
A: Select the 100Ω circuit when your field loop includes added components like surge protectors; the lower resistance ensures the signal voltage at the load remains sufficient for stable communication.

Q: Are there limitations to using the 100Ω output on dual-highway systems?
A: Yes. Utilizing low-resistance outputs on both channels of a dual-highway system restricts the multiplexer transmitter installation to IIB-rated atmospheres.

Q: How is the signal bandwidth maintained across such a range?
A: The circuit is specifically tuned for frequencies up to 10kHz, ensuring that rapid digital pulses from multiplexers are not rounded or delayed by internal capacitance.

Q: Can I use this for non-multiplexer digital switches?
A: Absolutely. It is excellent for magnetic shaft encoders, provided you calculate the necessary series resistance to keep the loop current within the safety limits of the connected encoder.

Q: What is the benefit of the replaceable fuse on this module?
A: It provides a cost-effective diagnostic path; if a field short-circuit occurs, you can often restore the module by simply replacing the 50mA glass fuse rather than decommissioning the entire barrier.
