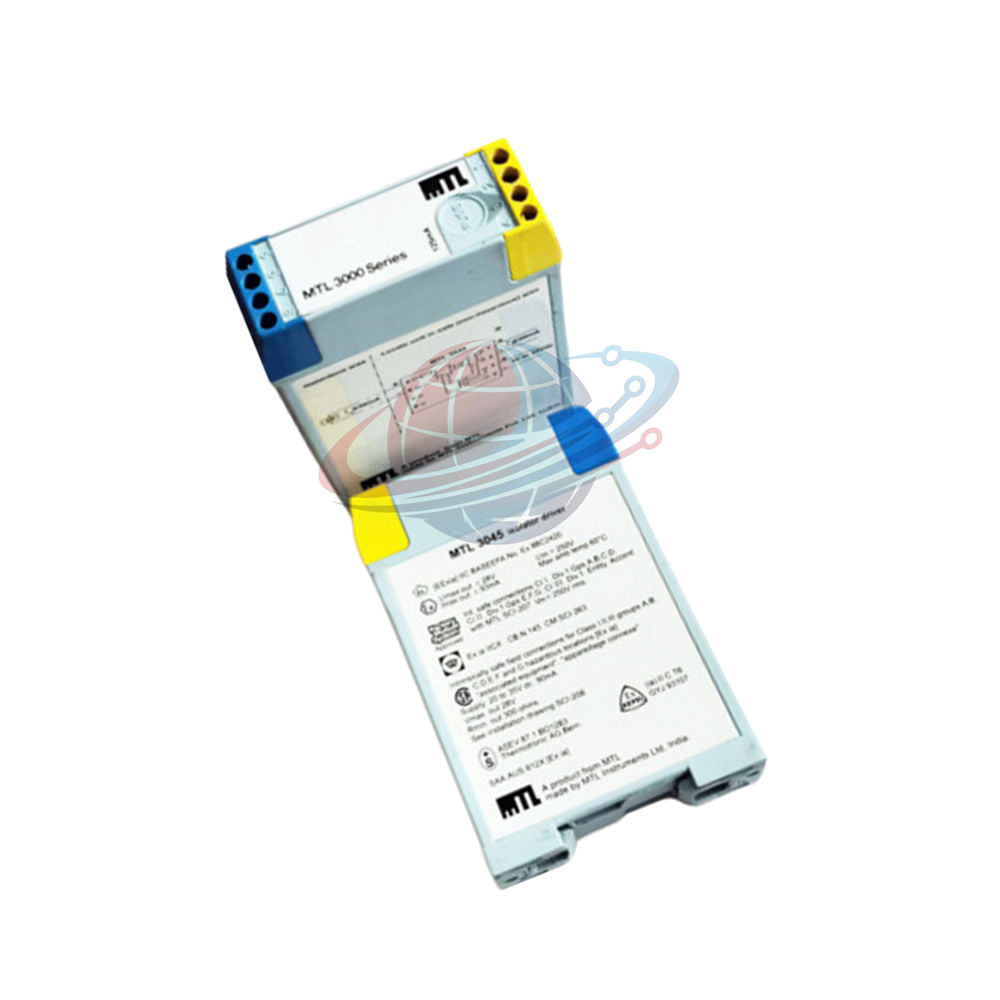

MTL3045 EATON Signal Isolating Driver for 4-20mA Control Systems

MTL3045 EATON Isolating Driver

MTL3045 provides intrinsically safe 4-20mA signal isolation for hazardous process environments.

The module transfers analog control signals from safe areas into hazardous locations.

EATON MTL3045 supports high-integrity signal transmission for industrial automation systems.

The isolating driver combines low input voltage drop with strong output drive capability.

Its floating channel architecture improves signal stability in complex grounding environments.

The module suits process control systems requiring reliable hazardous area analog communication.

Signal Interface Advantages

• Supports 4-20mA and 0-20mA analog signal transmission.
• High 16V output capability drives demanding field loads.
• Low 4V input drop improves controller compatibility.
• Fully floating channel architecture reduces grounding interference risks.
• Intrinsic safety design supports Zone 0 hazardous installations.
• Stable analog transfer improves process control accuracy.
• Compact architecture simplifies cabinet integration.
• Excellent signal precision supports critical instrumentation loops.

Technical Specification Profile

• Brand: EATON
• Model: MTL3045
• Product Type: Isolating Driver
• Channel Configuration: One fully floating channel
• Signal Range: 0-20mA / 4-20mA
• Input Resistance: ≤200 Ω
• Maximum Load Resistance: 800 Ω
• Output Capability: 16V at 20mA
• Output Resistance: Greater than 2 MΩ
• Ripple: Less than 40 µA peak-to-peak
• Transfer Accuracy: Better than 20 µA at 20°C
• Temperature Drift: Less than 1 µA/°C
• Response Time: Typically 55 ms
• Power Requirement: 65 mA typical at 24V
• Maximum Power Requirement: 90 mA at 20-35V
• Power Dissipation: 1.5W typical at 24V
• Maximum Dissipation: 2.3W at 35V
• Fuse Type: 125mA glass fuse
• Safety Description: 28V, 300Ω, 93mA
• Hazardous Area Rating: Zone 0, IIC, T4-T6
• FM Entity Parameters: Voc 28V, Isc 93mA
• Weight: Approx. 150 g

Hazardous Area Integration Capability

• Supports intrinsically safe process instrumentation systems.
• Compatible with I/P converters and position actuators.
• Suitable for hazardous chemical process environments.
• Supports analog signal transmission across safety barriers.
• Integrates effectively into refinery automation systems.
• Supports signal transfer between separated safe zones.

Recommended Industrial Applications

• Oil and gas process instrumentation
• Refinery valve positioning systems
• Chemical process control loops
• Hazardous area actuator control systems
• Intrinsic safety analog communication networks
• Industrial pressure converter applications
• Distributed process automation infrastructures

Diagnostic And Operational Performance

• Floating isolation improves signal integrity in grounded systems.
• Low ripple improves analog transmission stability.
• High output capability supports long-distance loop performance.
• Stable temperature drift improves process measurement consistency.
• Intrinsic safety architecture improves hazardous area reliability.
• Replaceable fuse simplifies maintenance procedures.

Global PLC Spare HUB's Insight

MTL3045 performs effectively in hazardous process automation environments requiring accurate analog isolation.

The module suits facilities using I/P converters and process valve actuators.

Engineers value its low voltage drop and strong output driving capability.

The floating design improves stability in electrically noisy industrial systems.

Its intrinsic safety compliance supports reliable hazardous area deployment.

The isolating driver integrates efficiently into critical process control architectures.

Engineering Installation Recommendations

• Verify hazardous area certification requirements before installation.
• Maintain proper grounding practices during wiring procedures.
• Inspect loop resistance before commissioning the signal path.
• Use compatible intrinsically safe field devices only.
• Check fuse condition during scheduled maintenance cycles.

Shipping And Warranty Support

• Fast order dispatch within 24-48 hours.
• Worldwide delivery available through FedEx, UPS, and DHL.
• Industrial protective packaging improves transportation safety.
• Export-ready handling supports international automation projects.
• 12-month warranty service included.
• Technical support available for integration assistance.

Professional FAQ

Why does floating isolation improve analog signal stability?

Floating channels reduce grounding interference between connected systems.

This architecture improves measurement consistency in complex installations.

How should engineers select isolating drivers for hazardous areas?

Review intrinsic safety ratings and loop load requirements carefully.

Output voltage capability also influences field device compatibility.

Which applications benefit most from high output drive capability?

I/P converters and long cable loops require stronger output performance.

High drive capability improves overall loop stability significantly.

What maintenance practice improves long-term signal reliability?

Routine loop resistance inspection helps identify wiring degradation early.

Periodic fuse inspection also improves operational continuity.

How should users evaluate analog isolation accuracy requirements?

Critical process control loops require low drift and stable ripple performance.

Accurate signal isolation improves process response precision.

Selection Recommendations

• Choose MTL3045 for hazardous area analog signal isolation.
• Select this module for intrinsically safe process control systems.
• Use floating channel designs in noise-sensitive environments.
• Choose high-output isolators for actuator-driven applications.
• Verify hazardous area certification compatibility before deployment.
• Confirm loop resistance requirements during system design.
