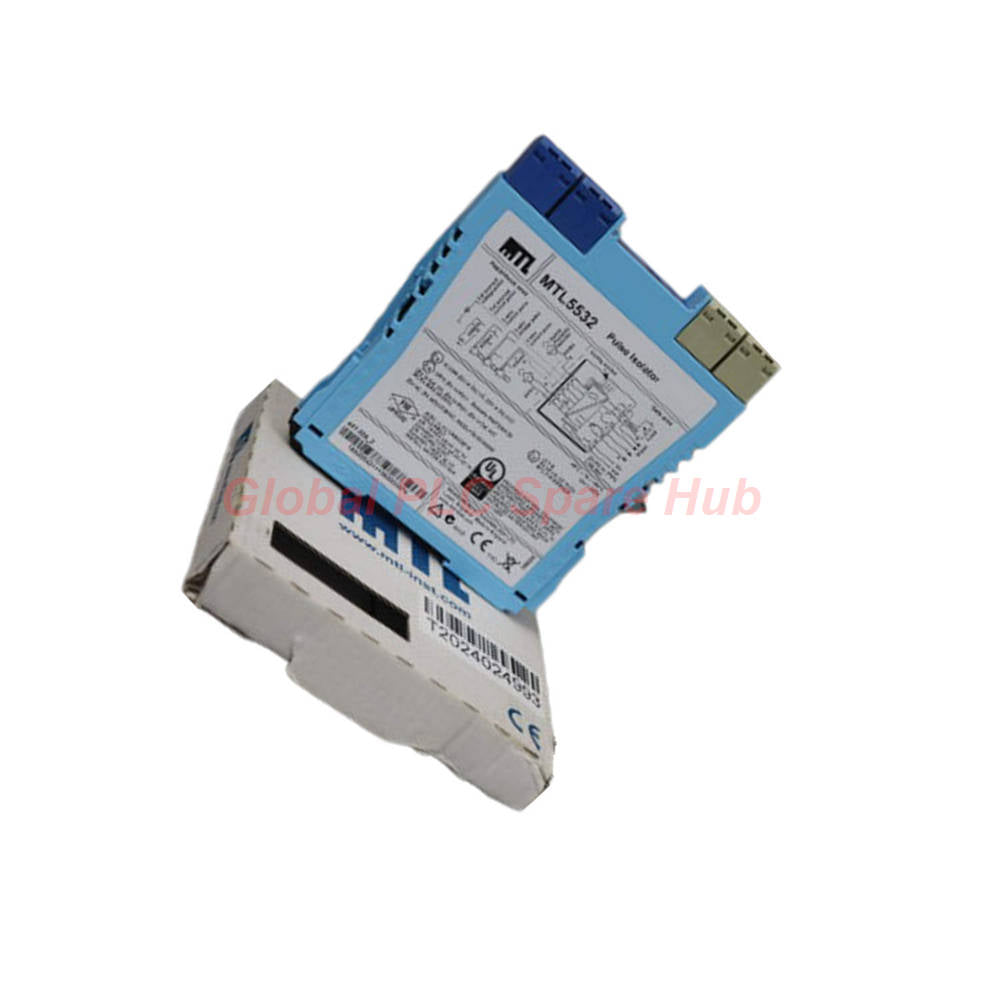

MTL Instruments MTL5532 Pulse Isolator | Hazardous Area Module

MTL5532 Pulse Isolator Product Overview

Eaton Crouse-Hinds MTL5500 Series MTL5532 is a high-performance pulse isolator for hazardous industrial environments.

The module isolates pulse and vibration signals between field devices and control systems.

It supports pulse output and 4-20mA analogue transmission in one compact DIN rail module.

MTL5532 delivers stable signal conversion with excellent noise immunity and galvanic isolation.

The compact housing suits dense cabinet installations in process automation systems.

The device operates reliably in oil, gas, chemical, power generation, and manufacturing applications.

Global PLC Spare HUB's Insight

MTL5532 provides dependable signal isolation for vibration monitoring and pulse transmission systems.

The module performs well in high-noise industrial environments with stable signal integrity.

Engineers often select this model for turbine monitoring, rotating machinery diagnostics, and hazardous area instrumentation.

The fast switching response supports accurate pulse transfer in critical automation processes.

The integrated LED indicators simplify field troubleshooting and commissioning procedures.

This module fits vibration transmitters, pulse sensors, PLC systems, DCS platforms, and monitoring racks.

Key Features of MTL5532

• Supports pulse and vibration signal isolation
• Provides pulse and 4-20mA current outputs
• Designed for hazardous Zone 0 environments
• High switching frequency capability up to 50kHz
• Compact 15.8mm slim DIN rail housing
• Excellent EMC protection and signal stability
• Fully floating single-channel configuration
• Integrated LED diagnostics for quick monitoring
• Reliable galvanic isolation between circuits
• Simple PC-based configuration support

Technical Specifications

• Brand: Eaton Crouse-Hinds
• Manufacturer: MTL Instruments
• Series: MTL5500 Series
• Model: MTL5532
• Product Type: Pulse Isolator
• Signal Type: Pulse and vibration
• Output Type: Pulse and 4-20mA current outputs
• Number of Channels: 1 fully floating channel
• Switching Frequency: 0-10kHz analogue mode
• Pulse Frequency Response: 0-50kHz pulse output mode
• Transfer Accuracy: Better than 20µA
• Temperature Drift: Less than 1.0µA/°C
• Ripple Performance: Less than 50µA peak-to-peak
• Hysteresis: 0.2mA at 650Ω
• Input Impedance: Greater than 10kΩ
• Output Signal Range: 4-20mA
• Current Range: 0-22mA
• Load Resistance: 0-450Ω at 20mA
• Minimum Load Resistance: Greater than 1MΩ
• Power Supply: 20-35VDC
• Maximum Current: 24mA
• Power Dissipation: 1.75W maximum at 35V
• Isolation Protection: 250V RMS galvanic isolation
• Response Time: 60ms
• EMC Compliance: EN61326
• Mounting Method: 35mm DIN rail
• Electrical Connection: Crimp ferrules
• Terminal Capacity: Up to 2.5mm² conductors
• Status Indicators: Green, yellow, and red LEDs
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +80°C
• Humidity Range: 5-95% relative humidity
• Dimensions: 109.8 × 118.8 × 15.8mm
• Weight: 150g

Diagnostic and Monitoring Capability

• Green LED indicates power condition
• Yellow LED shows operating status
• Red LED supports line fault detection diagnostics
• Fast indication improves maintenance efficiency
• Stable output simplifies system troubleshooting

Installation Guidelines

• Install the module on a standard 35mm DIN rail
• Keep adequate ventilation inside control cabinets
• Use shielded cables for improved EMC performance
• Confirm correct power supply polarity before energizing
• Secure wiring connections using approved ferrules
• Separate signal wiring from high-voltage cables

Configuration and Maintenance

• Configure the module using MTL PCS45 software
• Use the PCL45USB interface for parameter adjustment
• LED indicators simplify commissioning procedures
• Low maintenance design reduces downtime
• Compact construction supports easy module replacement

System Compatibility

• Compatible with PLC and DCS control systems
• Supports vibration transmitters and pulse sensors
• Suitable for turbine monitoring applications
• Works with industrial signal conditioning systems
• Integrates with hazardous area instrumentation networks

Certifications and Compliance

• IEC certified
• IECEx compliant
• ATEX approved
• Suitable for Zone 0 hazardous locations
• EMC standard EN61326 compliant

Typical Application Scenarios

• Rotating machinery monitoring systems
• Industrial vibration monitoring applications
• Turbine protection systems
• Oil and gas automation platforms
• Hazardous process control environments
• Power plant instrumentation systems
• Petrochemical signal isolation networks
• Factory automation and safety systems

Packing List

• 1 × MTL5532 Pulse Isolator
• Product inspection and packing verification
• Protective industrial packaging

Shipping and Warranty

• 12-month warranty coverage
• 24-48 hour fast dispatch available
• Worldwide shipping support
• FedEx international delivery available
• UPS express logistics available
• DHL global shipping available
• Professional export packaging protection

FAQ

What is the primary function of MTL5532?

The module isolates pulse and vibration signals in hazardous industrial systems.

Can this module support analogue output signals?

Yes. The device supports stable 4-20mA current output transmission.

Which environments commonly use this isolator?

Engineers use it in oil, gas, power generation, and chemical automation systems.

Does the module support hazardous area installations?

Yes. It carries IECEx and ATEX approvals for Zone 0 applications.

How does the module improve signal reliability?

Galvanic isolation reduces electrical interference and improves signal integrity.

What installation method does the module require?

The module mounts directly onto a standard 35mm DIN rail.

Can the module handle high-frequency pulse signals?

Yes. Pulse output mode supports frequencies up to 50kHz.

What should engineers consider during model selection?

Verify signal type, output requirements, hazardous ratings, and system compatibility.

How can maintenance teams identify operational status quickly?

The front-panel LEDs provide immediate power, status, and fault indications.

Which systems commonly integrate with MTL5532?

The module integrates with PLCs, DCS systems, vibration monitors, and process instrumentation.
