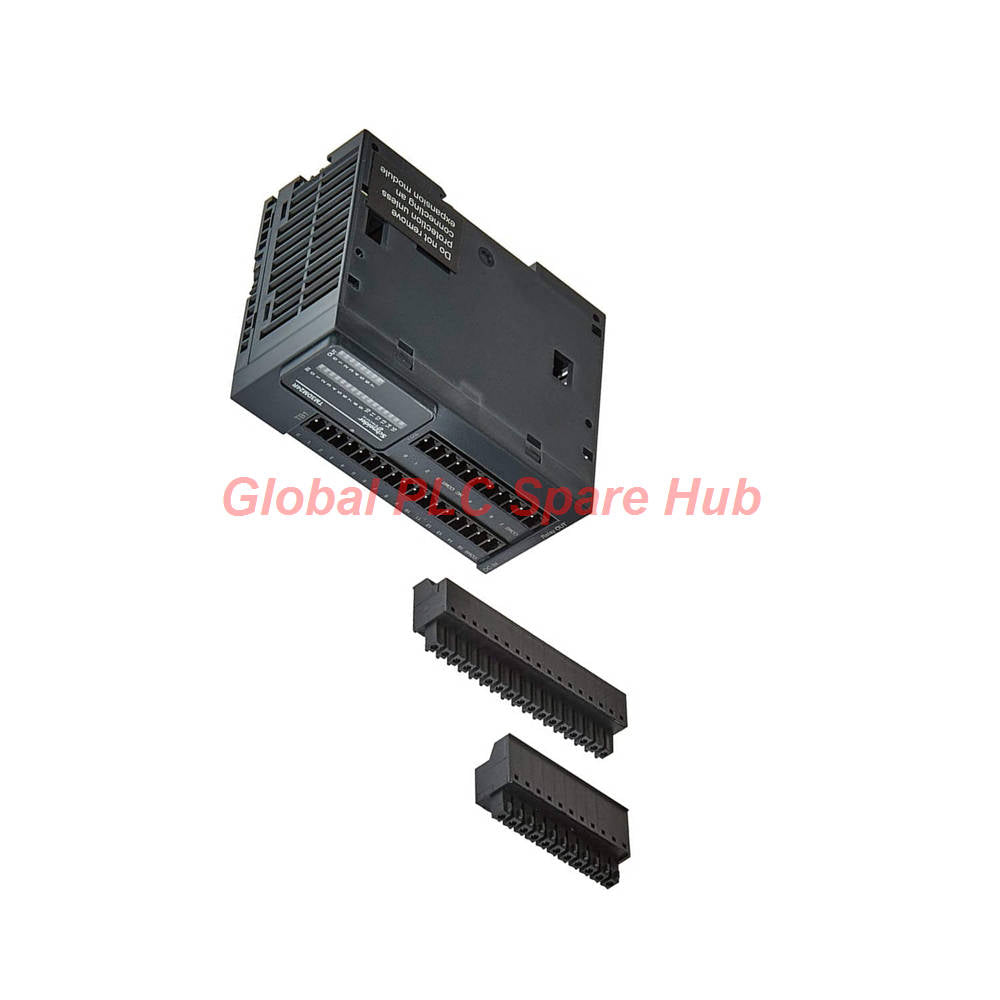

Modicon TM3DM24R Discrete I/O Module 24VDC - Schneider Electric

Product Overview

The Schneider Electric Modicon TM3DM24R serves as a high-performance discrete I/O expansion module. It integrates seamlessly into the Modicon TM3 range, providing 16 digital inputs and 8 relay outputs. This module supports complex control architectures within industrial automation environments. Engineers utilize this unit to enhance signal processing capabilities for Modicon M221, M241, and M251 logic controllers. Its robust design ensures consistent operation in demanding manufacturing settings.

Technical Specifications

• Brand: Schneider Electric
• Model: TM3DM24R
• I/O Count: 16 inputs (Type 1, 24VDC) and 8 relay outputs.
• Input Logic: Configurable as sink or source (positive/negative).
• Output Load: Relay outputs support 24VDC or 240VAC; 2000mA capacity.
• Operating Temperature: -10 to 55°C (horizontal installation).
• Storage Temperature: -25 to 70°C.
• Mechanical Durability: 20,000,000 cycles for reliable long-term usage.
• Response Time: 4ms for both turn-on and turn-off cycles.
• Electromagnetic Compliance: High resistance to ESD (8kV air/4kV contact) and electromagnetic fields.
• Ingress Protection: IP20 rating when used with the provided protective cover.

Installation, Compatibility and Maintenance

• Mounting: Supports standard 35mm TH35-15 or TH35-7.5 DIN rails.
• Connection: Features removable screw terminal blocks with 3.81mm pitch.
• Compatibility: Fully compatible with Modicon M221, M241, and M251 controllers.
• Diagnostics: Local green LED indicators provide real-time I/O state monitoring.
• Maintenance: Modular design allows for rapid replacement via removable terminals.

Applications and Certification

• Typical Applications: Material handling, packaging machinery, and assembly line automation.
• Global Standards: Compliant with EN/IEC 61131-2 and EN/IEC 61010-2-201.
• Certifications: CE, cULus, and C-Tick certified for global market deployment.
• Sustainability: Green Premium certified product.

Logistics and Warranty

• Shipping Partners: We utilize FedEx, UPS, and DHL for secure global delivery.
• Processing Time: Orders are dispatched within 24 to 48 hours.
• Warranty: This product includes a comprehensive 12-month quality warranty.
• Included: The package contains the TM3DM24R unit and necessary terminal blocks.

Frequently Asked Questions

Can I use this module for high-speed counter inputs?
No, the TM3DM24R is designed for standard discrete I/O and does not support high-speed pulse train inputs.

What is the maximum cable length for the inputs?
You can use unshielded cables up to 30 meters for standard discrete inputs.

Is this module suitable for harsh electrical environments?
Yes, it features robust surge protection and high resistance to radio frequency disturbances.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we recognize the TM3DM24R as a vital component for scaling Modicon systems. It offers an excellent balance between digital input density and relay output flexibility. This module is ideal for equipment requiring mixed signal types, such as interfacing sensors with high-voltage loads. Its reliability makes it a preferred choice for system integrators aiming to maintain uptime in critical control loops.

Buying Guide

• Verify your controller's current bus capacity before adding multiple modules.
• Ensure the power supply provides a stable 24VDC for input logic.
• Check the load requirements of your actuators to ensure they remain within the 2000mA relay limit.
• Consider ordering a spare terminal block set if you anticipate frequent rewiring during commissioning.
