Modicon Quantum 140NOC78100 Ethernet Control Network Module Schneider

Product Overview

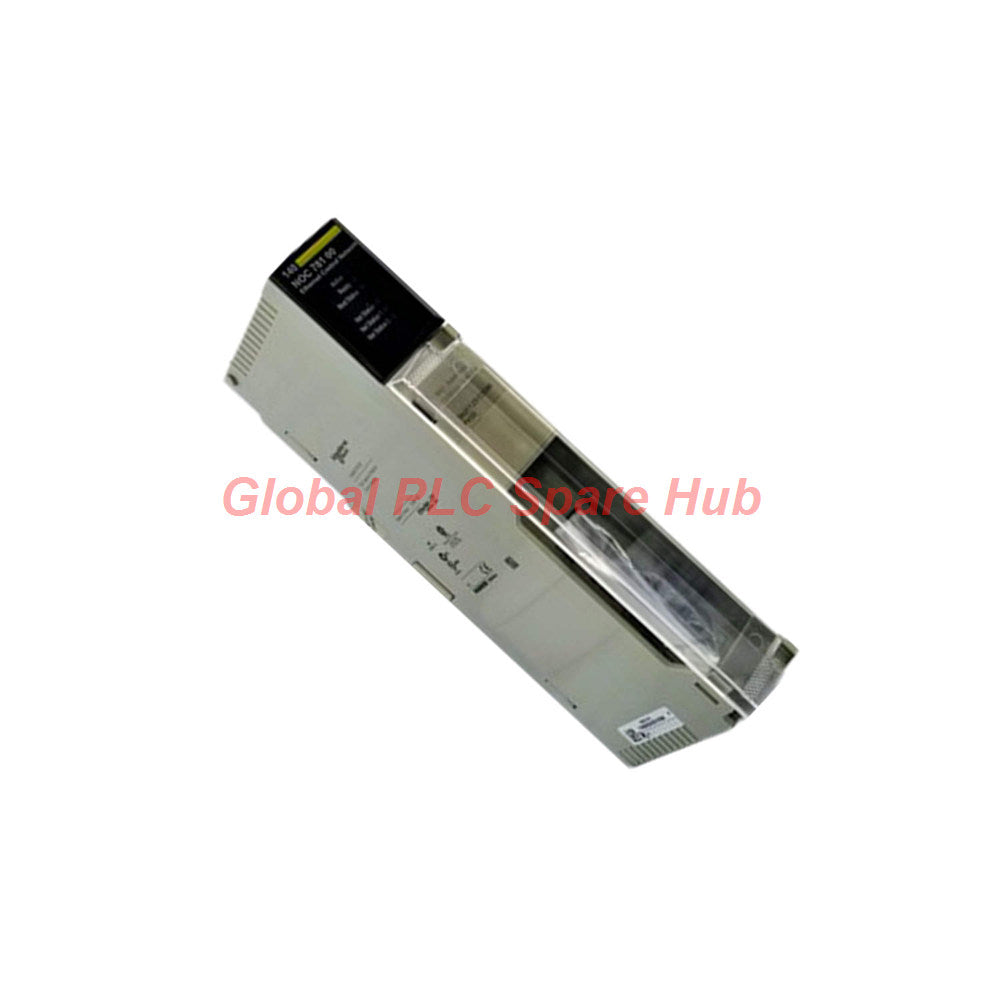

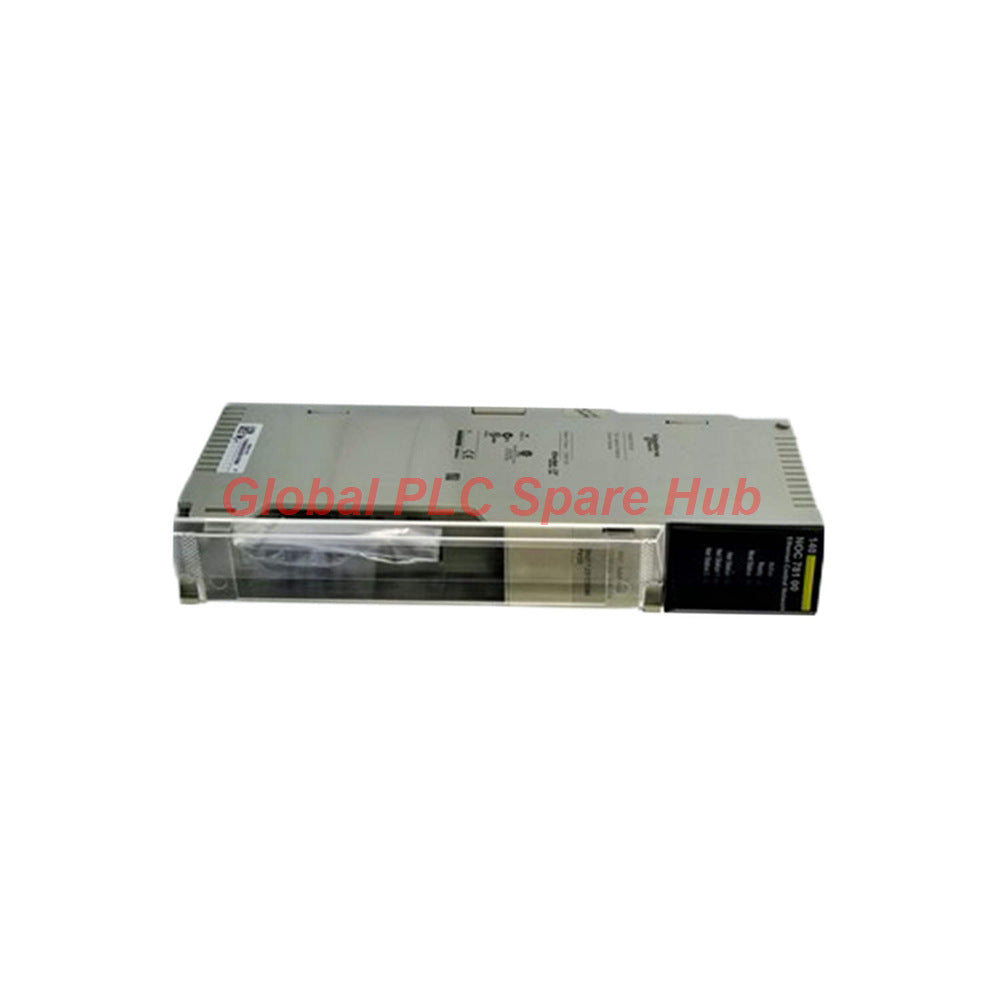

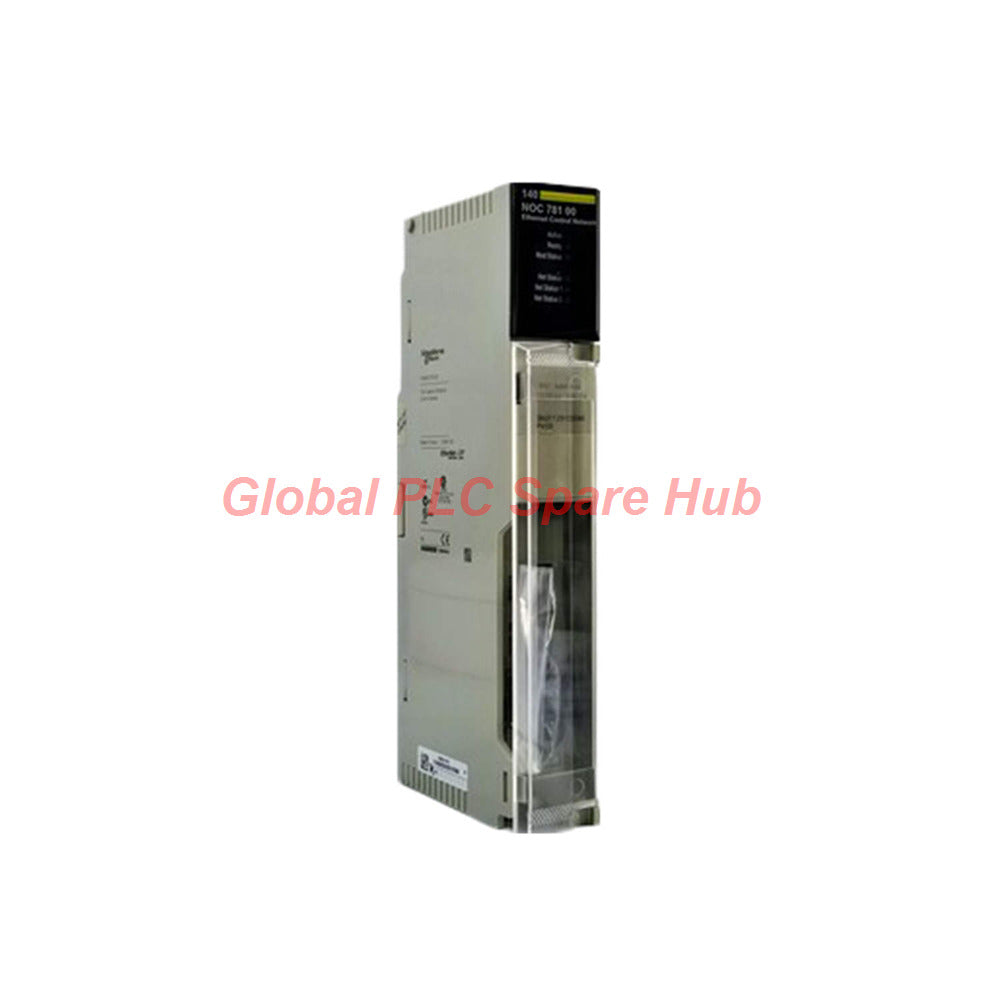

The Schneider Electric Modicon Quantum 140NOC78100 Ethernet Control Network Module delivers high-performance communication for demanding industrial automation setups.

Engineered for the Modicon Quantum platform, this module bridges control networks using Modbus TCP and EtherNet/IP protocols seamlessly.

It features an embedded 4-port switch and supports hot-standby redundant architectures to keep critical industrial processes running continuously.

Technical Specifications

System Integration & Core Capabilities

• Redundancy Support: Operates natively inside Modicon Quantum Hot Standby configurations to prevent operational downtime.
• Embedded Services: Features an integrated Web Server, FDR Server, DHCP/BootP Server, and SNMP Agent.
• Timing & Messaging: Provides NTP time synchronization, SMTP email alerts, and Quality of Service (QoS) prioritization.
• Device Management: Utilizes Device Type Manager (DTM) software tools for simplified parameter setup and network monitoring.

Installation & Practical Maintenance Guidance

• Rack Mounting: Insert the module directly into standard Modicon Quantum backplane slots without external wiring power taps.
• Hot Swapping: Hot Standby architecture allows module replacement while keeping the control loop active.
• Cable Management: Use shielded Category 5e or better twisted-pair RJ45 cables to maintain EMC immunity.
• Commissioning Convenience: Assign network parameters quickly using standard DHCP/BootP services or the embedded web interface.

Diagnostic LED Capabilities

The front panel of the 140NOC78100 includes six detailed status LEDs for rapid field troubleshooting:

• Active LED (Green): Indicates active bus communication status.
• Ready LED (Green): Confirms proper module configuration and healthy startup.
• Mod Status LED (Green/Red): Shows internal module system health.
• Net Status LED (Green/Red): Displays overall Ethernet network connection state.
• Net Status 1 LED (Green/Red): Monitors local device network status.
• Net Status 2 LED (Green/Red): Signals extended Distributed I/O (DIO) network connection status.

Typical Application Scenarios

• Hybrid Process Control: Connecting Modicon Quantum PLCs to field instruments via EtherNet/IP and Modbus TCP networks.
• High-Availability Systems: Power plants and water treatment facilities requiring redundant ring network topologies with RSTP.
• Distributed I/O Architectures: Managing real-time Deterministic CIP Implicit Messaging across complex manufacturing lines.

Certifications & Standards Compliance

• Safety Standards: UL 508, CSA C22.2 No 142, EN 61131-1, EN 61131-2.
• Hazardous Locations: FM Class 1 Division 2, Hazardous Location Class 1 Division 2 certified.
• Marine & Regional Markings: CE, C-tick, GOST, Merchant Navy, and Lloyd's Register (LR) approved.

Global PLC Spare HUB's Insight

From field engineering experience, the Schneider Electric 140NOC78100 module simplifies network integration significantly. It eliminates the need for separate external Ethernet switches in small-to-medium control cabinets. For example, during a retrofitting project at a municipal wastewater plant, using the embedded 4-port switch reduced cabinet wiring complexity by 30%. However, technicians must verify that the 140CPU6xxxx processor firmware matches the minimum DTM library requirements before commissioning. This prevents unexpected protocol handshaking delays on CIP Implicit networks.

Selection & Procurement Guide

• Processor Matching: Verify your target rack contains a compatible Modicon Quantum 140CPU6xxxx CPU.
• Topology Requirements: Ensure network cabling plans support daisy-chain or RSTP ring structures for maximum uptime.
• Bandwidth Planning: Check that total connected field devices remain within the 64-connection limit per module.

Packaging List & Warranty Terms

• Package Contents: 1 x Schneider Electric 140NOC78100 Ethernet Control Module, protective packaging.
• Warranty Coverage: Includes a comprehensive 12-Month Warranty from the date of dispatch.
• Shipping Express: Dispatched within 24 to 48 hours worldwide via premium carriers (FedEx, UPS, DHL).

Frequently Asked Questions (FAQ)

Q: Is the 140NOC78100 compatible with older Modicon Quantum CPUs?

A: It is specifically designed for 140CPU6xxxx series processors. Always verify processor hardware family compatibility prior to installation.

Q: Does this network module require an independent power cable connection?

A: No, the module receives operational power directly through the Modicon Quantum rack backplane assembly.

Q: How can engineers quickly diagnose network faults on the factory floor?

A: Use the six bi-color status LEDs on the module front panel to isolate internal, bus, or network layer faults immediately.

Q: Field Experience Tip: What causes the "Net Status" LED to flash red during initial power-up?

A: In practice, this usually indicates an IP address collision or an unconfigured FDR (Fast Device Replacement) address on the network subnet.
