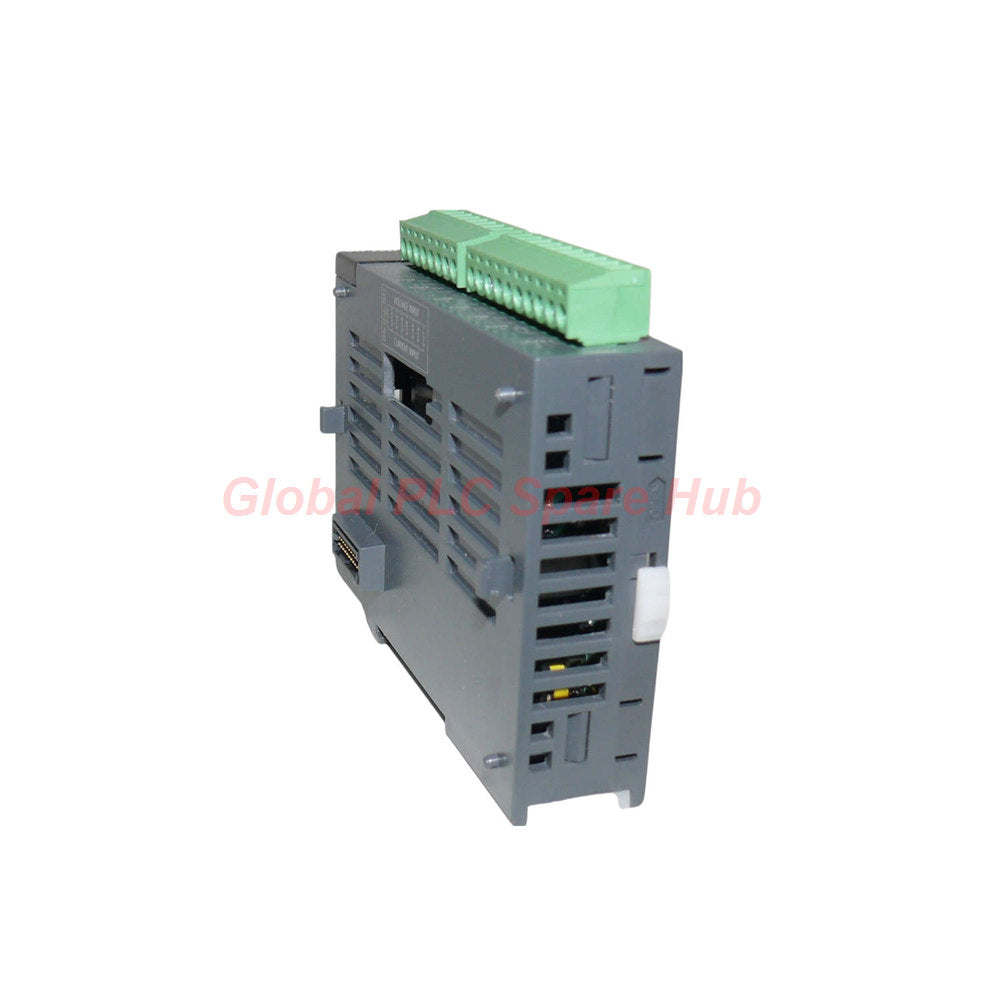

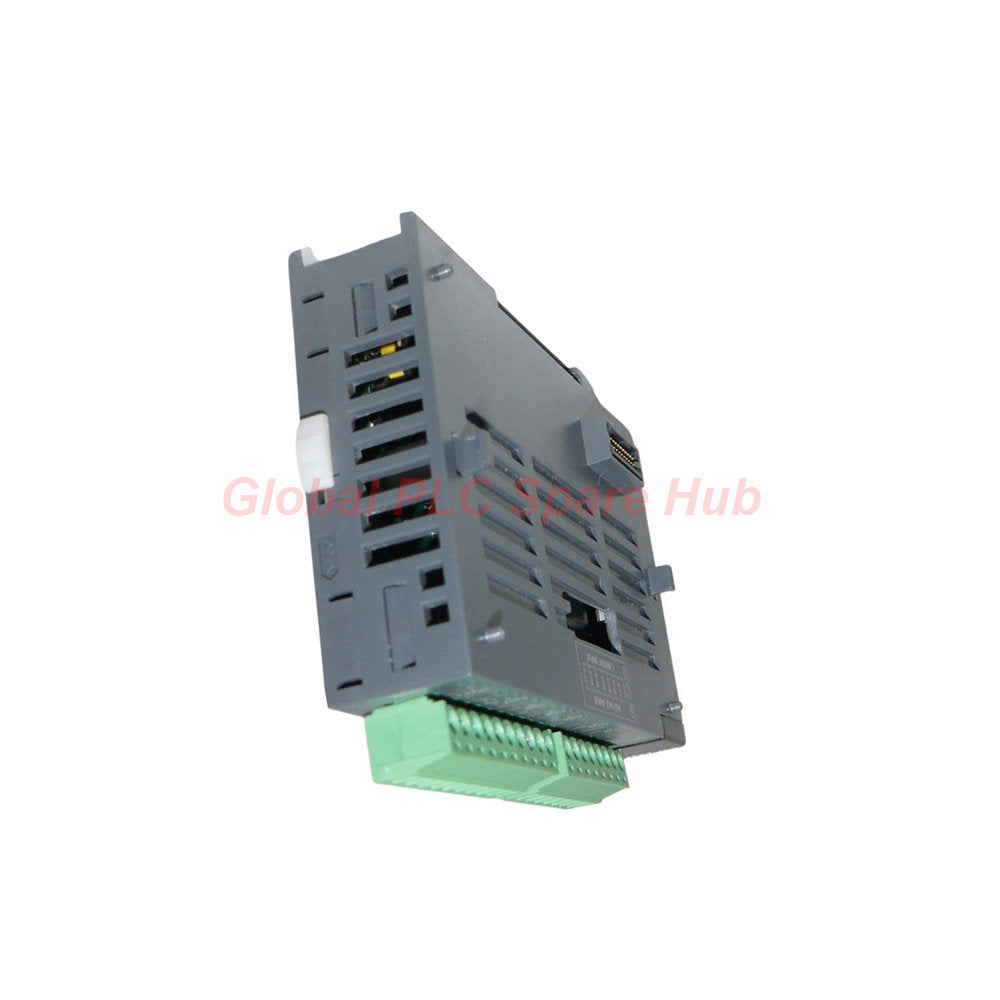

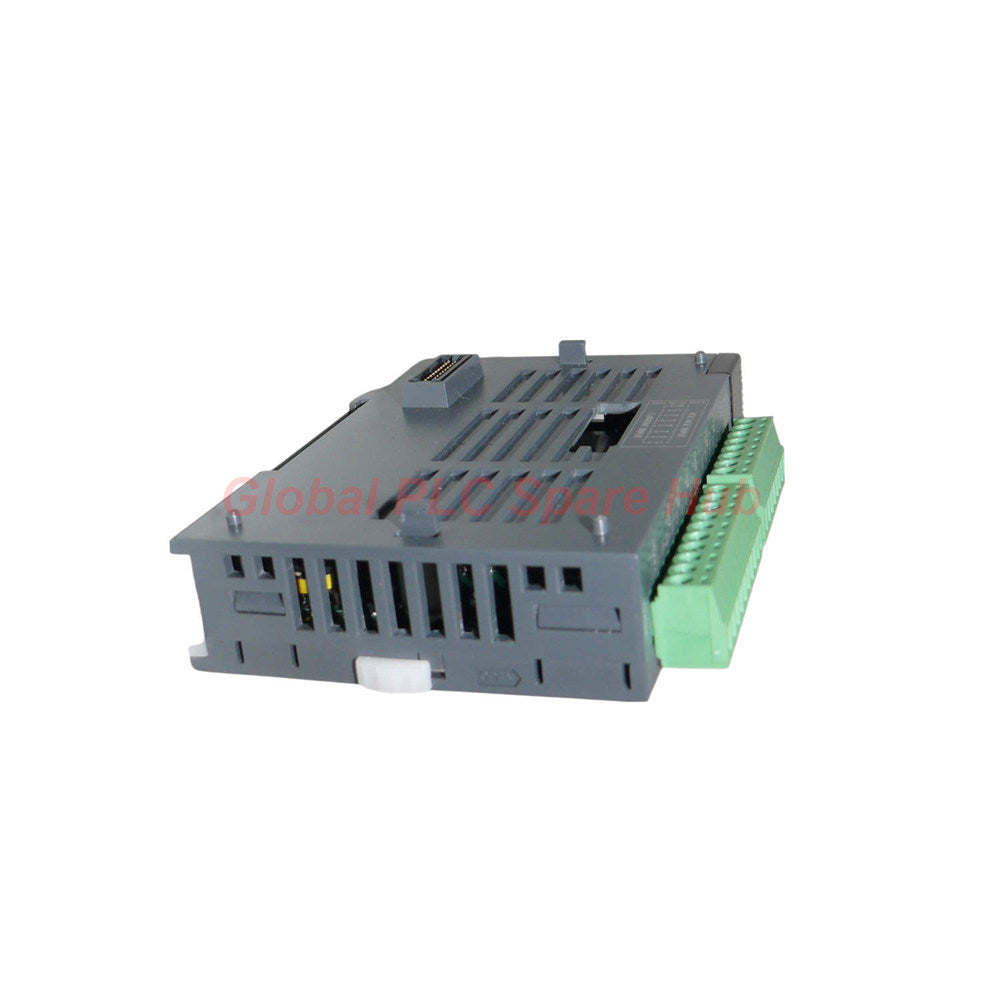

MLF-DC04A Honeywell MasterLogic Analog Output 4-Ch Current Module

Global PLC Spare HUB's Insight: Specialized Control

• The Honeywell MLF-DC04A is a dedicated high-speed current output module for the MasterLogic series.
• It excels in driving industrial actuators and valves with a maximum load resistance of 510 Ω.
• Engineers select the MLF-DC04A for its ±0.5% accuracy, ensuring tight control in critical PID loops.
• The 1ms per channel conversion rate allows for near-instantaneous response to PLC logic changes.
• Integrated photo-coupler insulation protects the system core from external field interference.

Technical Performance Portfolio

• Brand & Model: Honeywell MLF-DC04A
• Series Type: MasterLogic PLC Analog Output Module
• Output Range: DC 4~20mA / DC 0~20mA (Software Selectable)
• Output Channels: 4 High-Precision Channels
• Resolution: 1/4000 (5 μA per increment)
• Conversion Speed: 1.0 ms / channel
• System Accuracy: ≤ ±0.5% of full scale
• Load Impedance: ≤ 510 Ω (Strong driving capability)
• Absolute Max Output: ±25mA (Over-current protected)
• Data Formats: Unsigned, Signed, Precise (400-2000), or Percentile
• Power Consumption: 110mA (DC 5V) / 120mA (DC 24V)
• Connection Method: 11-point removable terminal block
• Net Weight: 124g

Diagnostic & Operational Intelligence

• Individual channel parameters allow for "Hold" or "Reset" output states during CPU errors.
• Real-time monitoring of module health via the MasterLogic backplane diagnostics.
• Configurable data formats (like "Precise Value") simplify scaling and engineering unit conversion.
• Hardened photo-coupler isolation ensures signal purity between field loops and the PLC rack.

Target Equipment & Field Applications

• Primary Host: Exclusively for Honeywell MasterLogic 200/200R I/O systems.
• Actuator Control: Direct driving of electronic control valves and pneumatic positioners.
• VFD Integration: Providing speed reference signals to Variable Frequency Drives.
• Process Dosing: Controlling proportional pumps in water treatment and chemical injection.

Global Logistics & 12-Month Warranty

• Quality Assurance: 12-month comprehensive warranty on all Honeywell MLF-DC04A modules.
• Shipping Partners: Express global delivery via FedEx, UPS, and DHL.
• Dispatch Timeframe: Ready for shipment within 24-48 hours of order confirmation.
• Packaging List: 1x MLF-DC04A Output Module and technical manual.

Expert Purchasing Guide & FAQ

• Can I configure the MLF-DC04A to maintain output if the PLC stops?
• Yes, you can set the module to "Hold Last Value" in the I/O parameters to prevent sudden valve closure during a CPU stop.
• What is the benefit of the 510 Ω load resistance rating?
• This higher rating allows the MLF-DC04A to drive devices over longer cable runs without signal degradation or loss.
• How do I debug a channel that isn't outputting the correct current?
• First, verify the "Precise Value" mapping in your code. Then, use a multimeter in series to check if the loop resistance is within the 510 Ω limit.
• Is the MLF-DC04A compatible with 0-10V actuators?
• No, this is a current-only module. For voltage outputs, please select the MLF-DV series modules.
• Experience Tip: Shielding and Grounding
• For maximum accuracy (±0.5%), always use shielded twisted pair cables for current loops and ground the shield at the PLC end only.
