MLE-TP32A Honeywell Master Logic 32-Channel Transistor Output Module

MLE-TP32A Honeywell Master Logic 32-Channel Transistor Output Module

Product Architecture & Engineering Overview

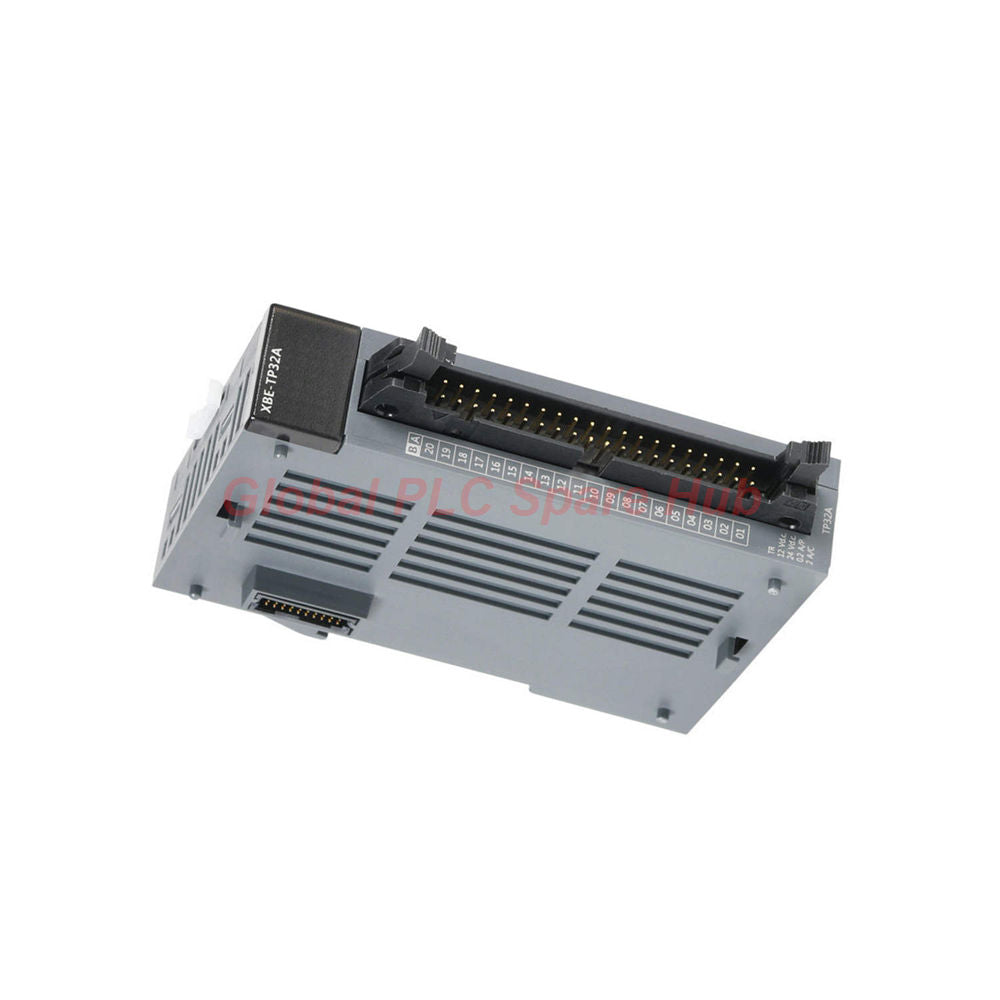

• The Honeywell MLE-TP32A is a high-density digital output module designed for the Master Logic PLC series.
• This MLE-TP32A unit features 32 channels of open collector outputs, optimized for high-speed switching and precision control.
• Engineers utilize the MLE-TP32A in applications where mechanical relay wear is unacceptable and sub-millisecond response is critical.
• The solid-state design ensures long-term reliability in rapid-cycle automation environments.

Core Technical Specifications

• Brand: Honeywell
• Model: MLE-TP32A
• Series: Master Logic ML System
• Output Type: Transistor Open Collector (Sink Type)
• Channel Count: 32 Output Points
• Rated Load Voltage: DC 12V / 24V (Range: 10.2V to 26.4V)
• Max Load Current: 0.2A per point / 2.0A per Common (COM)
• Response Time: ≤ 1ms (Off to On / On to Off)
• Max Voltage Drop: ≤ 0.4VDC (On State)
• Off Leakage Current: ≤ 0.1mA
• Insulation Resistance: ≥ 10MΩ (Megger tested)
• Internal Power Consumption: 120mA
• External Power Supply: DC 12/24V ± 10% (Ripple ≤ 4 Vp-p)
• Module Weight: 100g

Global PLC Spare HUB's Insight

• The Honeywell MLE-TP32A is the definitive choice for high-frequency pulse-width modulation (PWM) or driving high-speed solenoid banks.
• Its semiconductor-based switching eliminates EMI (Electromagnetic Interference) issues often associated with relay-based modules.
• For technicians, the 32-point density of the MLE-TP32A allows for massive I/O expansion while maintaining a minimal cabinet footprint.

Diagnostic & Environmental Resilience

• Status Matrix: Integrated LED array provides real-time logical state verification for all 32 channels.
• Ripple Tolerance: Advanced power filtering accommodates up to 4 Vp-p ripple on external DC supplies.
• Signal Integrity: Low on-state voltage drop ensures compatibility with sensitive TTL and electronic interfaces.
• Isolation: Robust dielectric strength protects internal PLC bus logic from field-side voltage spikes.

Typical Application Scenarios

• High-Speed Packaging: Controlling manifold-mounted solenoid valves with sub-millisecond precision.
• Semiconductor Processing: Interfacing with TTL-level digital logic for cleanroom automation tools.
• Labeling Equipment: Driving high-speed stepper motor indexers and optical trigger systems.
• Sortation Systems: Managing rapid-fire pneumatic divert gates in high-throughput logistics hubs.

Shipping & Warranty Terms

• Dispatch Time: Ready for global shipment within 24-48 hours of order processing.
• Express Logistics: Worldwide delivery via FedEx, UPS, and DHL Express.
• Warranty: Comprehensive 12-month quality guarantee for all MLE-TP32A units.
• Packing List: 1x MLE-TP32A Module, technical datasheet, and protective industrial packaging.

Expert FAQ & Purchasing Guide

• Can the MLE-TP32A handle inductive loads directly? While it supports 0.2A per point, we strongly recommend adding external flyback diodes when driving inductive loads to prevent semiconductor degradation.
• What is the maximum current for the entire module? The 32 points are grouped into a single common. Ensure the total simultaneous load current does not exceed the 2.0A COM limit.
• Does this module support AC loads? No, the MLE-TP32A is designed strictly for DC 12/24V open collector logic. Use relay modules for AC switching requirements.
• How do I diagnose a channel that stays "On" regardless of PLC state? This typically indicates a transistor failure due to overcurrent or a short circuit. Check load resistance before replacing the MLE-TP32A module.
• Selection Advice: When should I choose the MLE-TP32A over a relay module? Opt for the MLE-TP32A if your switching frequency exceeds 1Hz or if you require high-density I/O (32 points) in a single rack slot.
