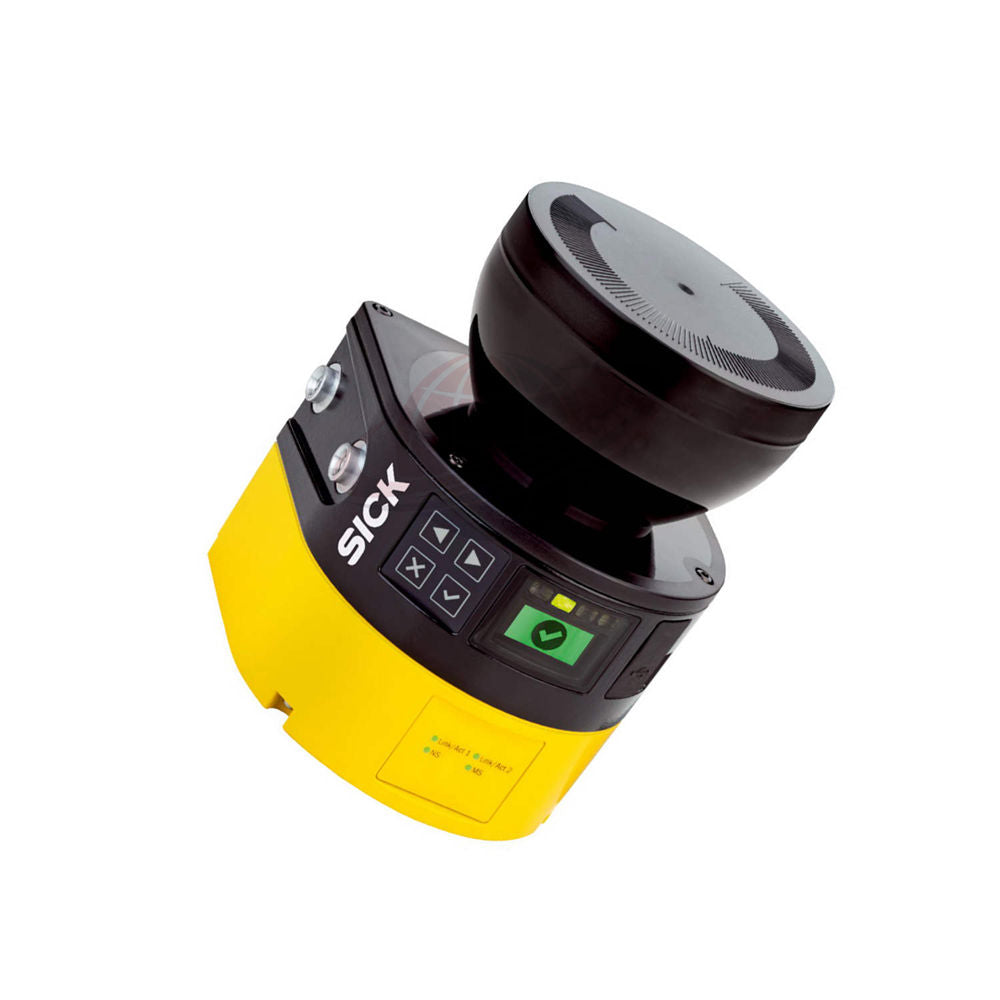

MICS3-ABAZ90PZ1P01 SICK microScan3 Core PROFINET Safety Laser Scanner

Product Introduction

The SICK MICS3-ABAZ90PZ1P01 represents the pinnacle of optical safety technology within the microScan3 Core series. This high-performance safety laser scanner is specifically engineered for PROFINET/PROFIsafe environments, integrating seamlessly into industrial networks to provide a massive 9-meter protective field and a 64-meter warning field. Utilizing safeHDDM® scanning technology, it maintains exceptional resistance to ambient light and dust, ensuring Type 3 (SIL 2/PL d) safety compliance even in challenging indoor industrial landscapes.

Configuration Hierarchy & Interface Breakdown

• MICS3-ABAZ90PZ1P01 — Core PROFINET Safety Scanner
  • └─ Optical Engine: safeHDDM® (High-Definition Distance Measurement)
  • └─ Safety Logic: 8 Fields / 8 Monitoring Cases (Simultaneous monitoring ≤ 4)
  • └─ Network Architecture: PROFINET V2.3 / PROFIsafe V2.6.1 (Conformance Class C)
  • └─ Physical Connectivity: 1x M12 Power (A-coded) / 2x M12 Fieldbus (D-coded)
  • └─ Hardware Build: Aluminum Housing with Scratch-Resistant Polycarbonate

Core Engineering Specifications

• Brand: SICK Sensors
• Model: MICS3-ABAZ90PZ1P01
• Safety Rating: SIL 2 (IEC 61508) / PL d (EN ISO 13849) / Type 3
• Protective Field Range: 9.0 Meters (275° Scanning Angle)
• Warning Field Range: 64.0 Meters
• Resolution: Configurable (30mm, 40mm, 50mm, 60mm, 70mm, 150mm, 200mm)
• Response Time: 115 ms
• Power Consumption: Typical 7.2 W @ 24 V DC
• Enclosure Rating: IP65 (IEC 60529)
• Diagnostics: Graphic color display, LEDs, and TCI Acyclic services

Global PLC Spare HUB's Insight

The MICS3-ABAZ90PZ1P01 is a "Networked Sentinel" for modern Smart Factories. Unlike older scanners that rely on physical OSSD pairs, this PROFINET-native version transmits all safety data over the network, drastically reducing the cabling footprint and complexity. Its 275° scanning angle is a critical feature; by mounting it on a corner, you can protect two sides of a machine with a single device. From an engineering standpoint, the integrated graphic color display is a significant advantage during commissioning, providing immediate visual feedback on field infringements without needing to tether a laptop.

Field Application & Diagnostic Power

• Target Machinery: Automated Guided Vehicles (AGV/AMR), robotic work cells, high-speed palletizers, and large-scale manufacturing bays.
• Application Advantage: High ambient light immunity (up to 40 klx) allows stable operation under bright overhead LEDs or near large industrial windows without nuisance tripping.
• Diagnostic Capability: Advanced I&M (Identification & Maintenance) data sets 0–5 and PROFINET alarms allow the PLC to pinpoint exactly why a field was breached or if the optics cover requires cleaning, reducing MTTR.

Commercial Logistics & Quality

• Condition: New & Original (Factory Sealed Sensor & System Plug)
• Warranty: 12 Months Comprehensive Factory Warranty
• Dispatch Window: Ships within 24-48 hours
• Global Express: Priority shipping via FedEx, UPS, or DHL

Technical FAQ (Field Engineering Guide)

• Q: How does the "Safe state" manifest in a PROFIsafe network for this model?
• A: In the event of a fault or field breach, the safety outputs transmitted via the PROFINET network are set to logic 0. This allows the F-CPU (Safety PLC) to execute a controlled stop across the entire network cluster.
• Q: Can I replace the optics cover in the field if it becomes excessively scratched?
• A: Yes. SICK provides replacement covers. However, you must recalibrate the device using "Safety Designer" software to ensure the remission factors remain within the specified 1.8% to 1000% range for safe detection.
• Q: Is the 9m protective range affected by the resolution setting (e.g., 30mm vs 150mm)?
• A: For a full 9m range, engineers typically configure the resolution for "Leg detection" or "Body detection" (70mm+). Higher resolutions like 30mm (hand detection) may reduce effective range in extremely dusty conditions due to signal-to-noise ratios.
• Q: Selection Advice: Why choose the PROFINET version over the standard I/O (OSSD) version?
• A: Choose the MICS3-ABAZ90PZ1P01 if you are using a Siemens S7-1500F or similar safety PLC. The ability to switch monitoring cases (8 fields) dynamically via software commands over PROFINET is far more flexible than using physical binary inputs.
• Q: Does the system plug come included with this specific model?
• A: Yes, this model includes the sensor head and the system plug pre-mounted. This is critical for maintenance; you can replace the scanner head without removing the wiring from the system plug, preserving network configuration and IP65 integrity.
