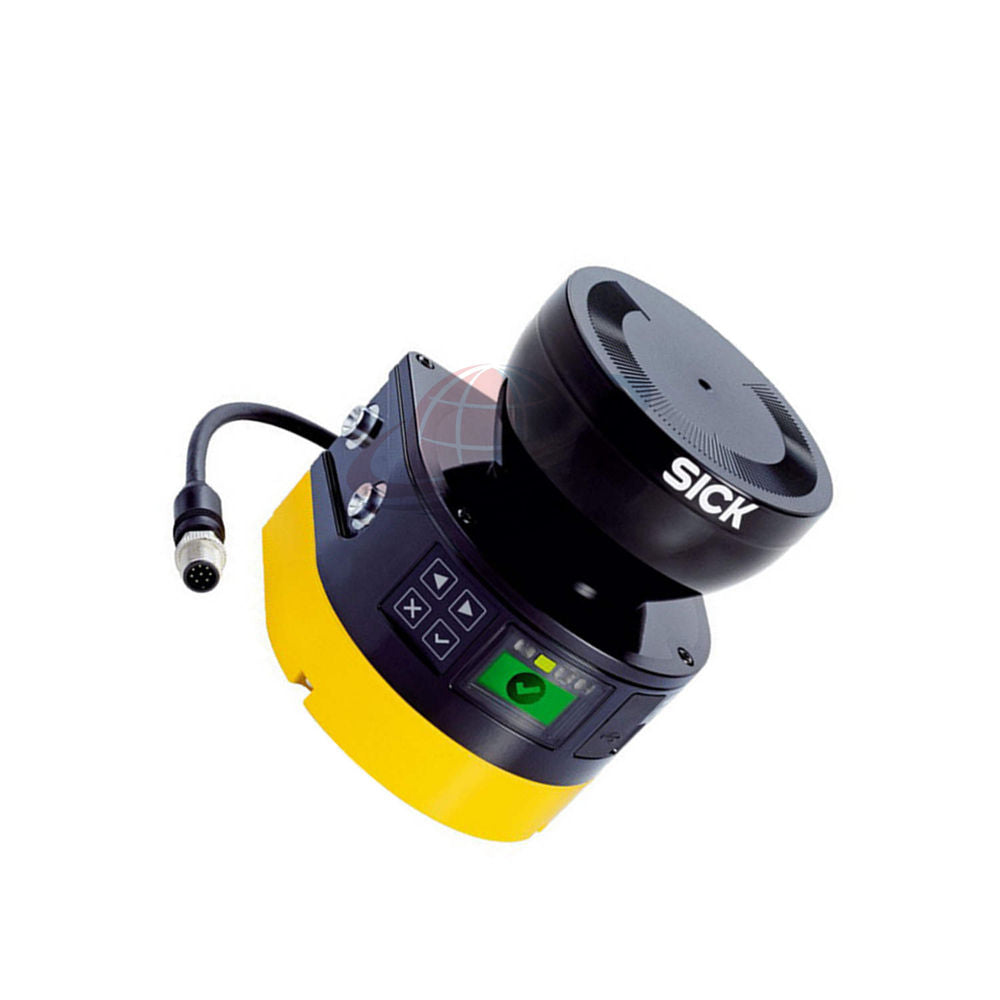

MICS3-AAAZ40AZ1P01 SICK microScan3 Safety Scanner 4m SIL 2 Type 3

Product Overview

• The MICS3-AAAZ40AZ1P01 serves as a flagship safety solution for modern industrial environments.
• As part of the microScan3 Core I/O series, it offers a perfect balance of durability and precision.
• It delivers a reliable 4m protective field with a wide 275-degree coverage angle.
• The MICS3-AAAZ40AZ1P01 is hardened for industrial shock, vibration, and ambient light interference.
• Engineers prefer this model for its simplified configuration and high performance-level (PL d) safety integration.

Technical Specifications

• Brand: SICK
• Model: MICS3-AAAZ40AZ1P01
• Series: microScan3 Core I/O
• Safety Standards: Type 3, SIL 2, PL d (IEC 61508 / EN ISO 13849).
• Field Range: 4m Protective / 40m Warning field capacity.
• Resolution: Selectable settings from 30 mm to 200 mm.
• Response Time: 70 ms high-speed detection.
• Housing: Aluminum die-cast with scratch-resistant polycarbonate lens.
• Interface: M12 8-pin connector for robust power and I/O connections.
• Operating Temp: -10 °C to +50 °C for diverse climate adaptability.

Diagnostic Capabilities

• Graphic Interface: On-device color display for quick operational checks.
• Advanced LED Feedback: Instant visual identification of protective field status.
• Software Diagnostics: USB-based configuration and diagnostic log export via SICK Safety Designer.
• Fail-Safe Logic: Automatic OSSD switch to OFF state during fault detection.

Logistics & Warranty

• Carrier Options: Rapid transit via FedEx, UPS, or DHL.
• Shipping Lead Time: Fast dispatch within 24-48 business hours.
• Warranty: 12-month standard manufacturer warranty.
• Packaging: Original factory-sealed, safe for global transit.

Global PLC Spare HUB's Insight

• The MICS3-AAAZ40AZ1P01 is engineered for high-uptime industrial applications.
• We recommend this for mobile AMR platforms requiring consistent field sensing under high shock loads.
• It integrates seamlessly into high-safety PLC architectures from leading global manufacturers.
• Its scratch-resistant optics design reduces long-term maintenance costs in dusty plant environments.

Frequently Asked Questions (FAQ)

• Question: What is the primary advantage of the 275-degree scanning angle?
• Answer: It allows the MICS3-AAAZ40AZ1P01 to monitor around corners or alongside machinery without dead zones.
• Question: Is this scanner suitable for outdoor use?
• Answer: No, the series is specifically rated for indoor applications to maintain safety integrity.
• Question: How can I clone settings from one unit to another?
• Answer: Use the SICK Safety Designer software to save your profile and upload it to the new MICS3-AAAZ40AZ1P01 unit.
• Question: Selection Guide: When is 30mm resolution recommended?
• Answer: Choose 30mm for human hand/arm detection requirements in hazardous work cells.
• Question: Does it support external device monitoring (EDM)?
• Answer: Yes, the microScan3 Core I/O series supports essential monitoring features for compliant safety loops.
