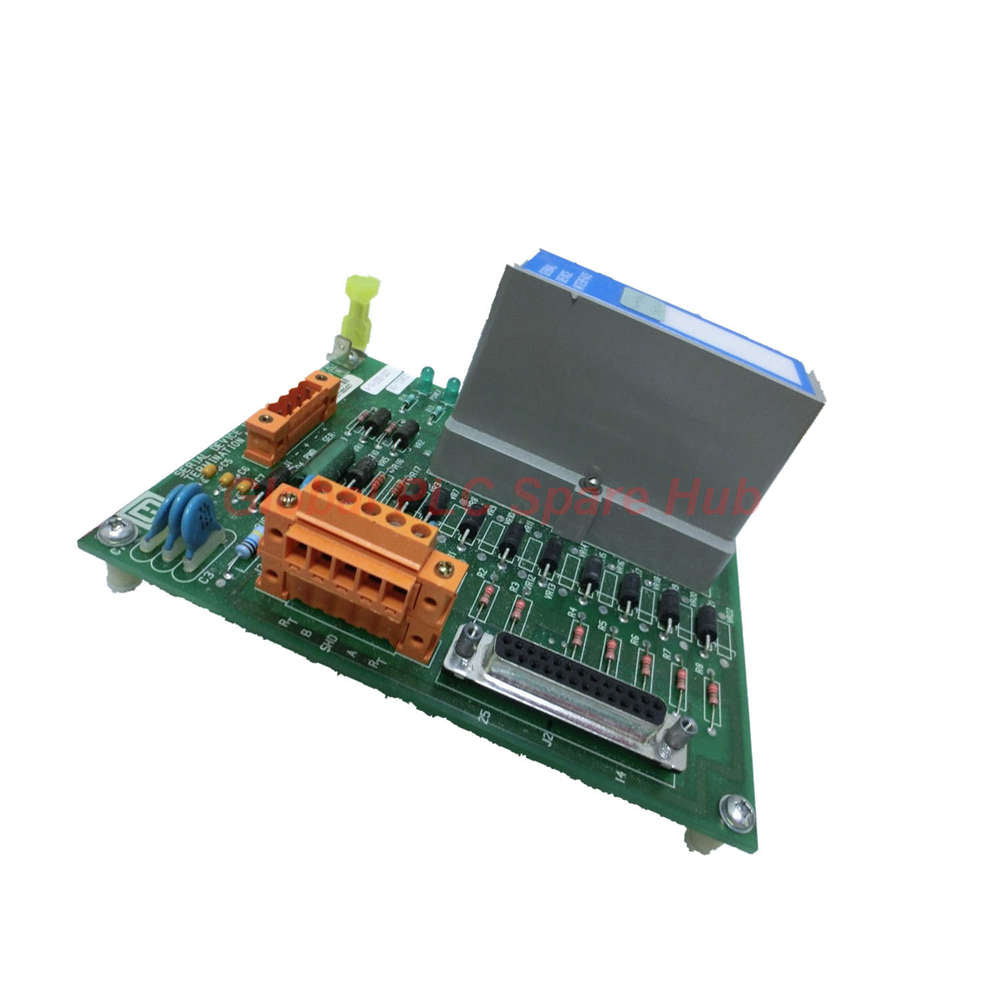

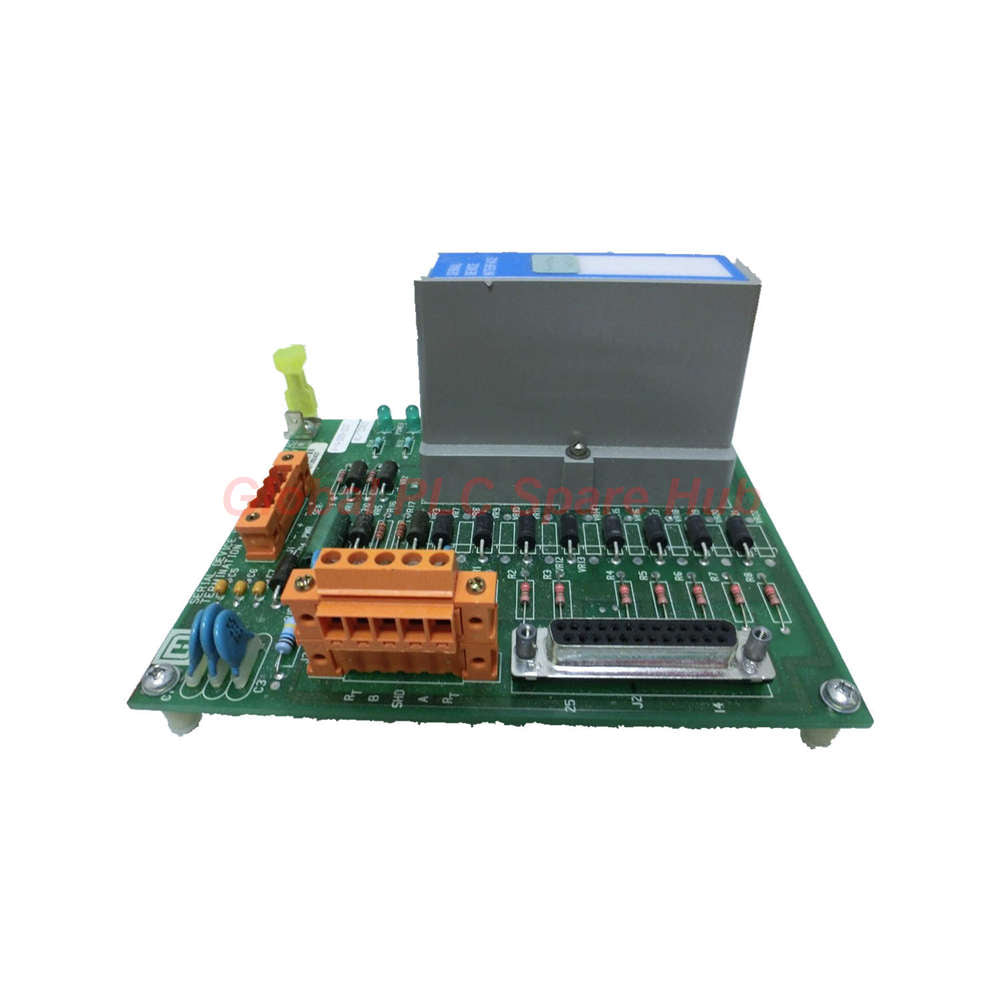

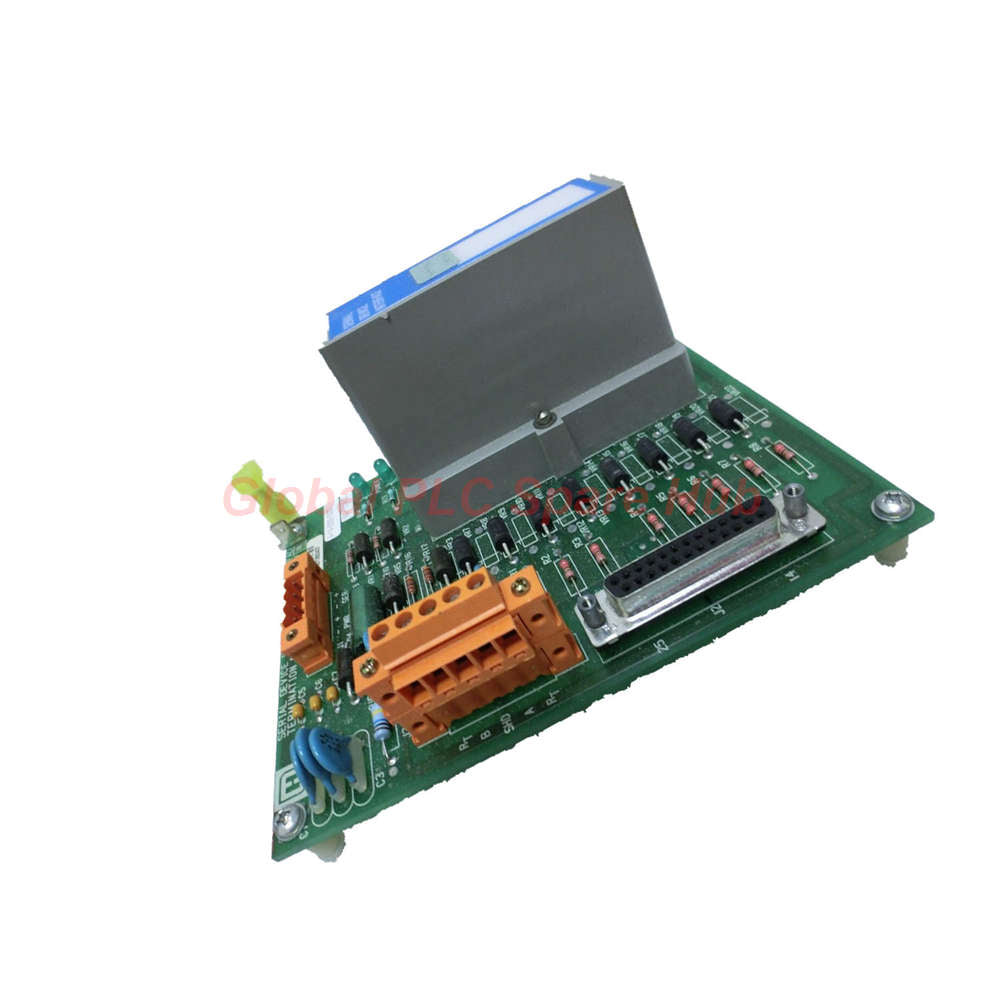

MC-TSIA12 Honeywell 51303932-478 Analog Input FTA Module

Product Overview

• The MC-TSIA12 (P/N: 51303932-478) is a robust serial communication module.
• It facilitates high-performance data exchange within Honeywell TDC 3000 and Experion PKS systems.
• Designed for extreme environments, it maintains stability from -40°C to +70°C.


Technical Specifications

• Brand: Honeywell
• Model: MC-TSIA12 (51303932-478)
• Interface: Dual-channel serial I/O per processor.
• Max Distance: Reliable signal transmission up to 300 meters.
• Data Rate: Optimized for 19.2 kbps serial throughput.
• Data Format: 8 data bits with integrated parity support.
• Isolation Voltage: High-grade 1500 V rms field-to-logic protection.
• Common Mode: 250 V rms continuous voltage tolerance.
• Power Consumption: Energy-efficient design with max 1.4 watts dissipation.

Configuration Tree

• MC-TSIA12 Serial I/O Assembly
  • ∟ Safety Logic: 1500V Galvanic Isolation Barrier
    • ∟ Environment: Industrial-hardened wide-temp chassis
  • ∟ Field Compatibility: Field Termination Assembly (FTA) integration
• ∟ Connector: Standard DB9 or equivalent serial interface

Global PLC Spare HUB's Insight

• The MC-TSIA12 is a "legacy bridge" critical for integrating flow computers and analyzers into DCS networks.
• Its wide temperature range makes it the first choice for remote offshore or desert-based cabinets.
• The 51303932-478 is renowned for its 250V common-mode tolerance, preventing ground loops in large plants.
• Engineers prefer this module for its "set and forget" reliability in 24/7 continuous process industries.

Diagnostic Capabilities & Applications

• Signal Verification: Integrated parity bit check monitors for serial data frame corruption.
• Ground Protection: High isolation prevents field-side electrical surges from reaching the controller.
• Typical Scenarios: Lab analyzer links, weigh scale integration, and PLC-to-DCS serial bridging.
• Equipment Fit: Compatible with Honeywell Process Manager and Advanced Process Manager I/O racks.

Installation & Maintenance

• Cabling: Always use shielded twisted-pair (STP) for runs approaching the 300-meter limit.
• Ambient Limits: Ensure the mounting cabinet does not exceed 70°C to preserve the module's lifespan.
• Connection: Secure the serial connector to prevent vibration-induced data drops.
• Grounding: Tie cable shields to the plant ground at the FTA end only to avoid ground loops.

Commercial Logistics

• Warranty Policy: Includes our full 12-month comprehensive industrial warranty.
• Priority Shipping: Express worldwide delivery via FedEx, UPS, and DHL.
• Dispatch Window: Orders are processed and shipped within 24-48 hours.
• Quality Assurance: Guaranteed authentic Honeywell hardware in optimized industrial packaging.

FAQ and Selection Guidance

• What is the primary application for the MC-TSIA12?
• It is used to connect field-level serial devices like flow computers directly to the Honeywell DCS I/O processor.
• Does the 51303932-478 support high-speed RS-485?
• This specific model is optimized for 19.2 kbps serial communication; check your device protocol for compatibility.
• Expert Selection Tip: Why is isolation voltage important?
• The 1500V isolation protects your expensive DCS hardware from field-side lightning strikes or massive motor-induced surges.
• What is the maximum cable length for reliable transmission?
• Honeywell specifies 300 meters; exceeding this without a repeater may result in baud rate mismatch or data loss.
• How do I troubleshoot "parity errors" on this module?
• Check for loose connections at the DB9 terminal and verify that the field device's parity setting matches the MC-TSIA12's 8-bit+parity format.
