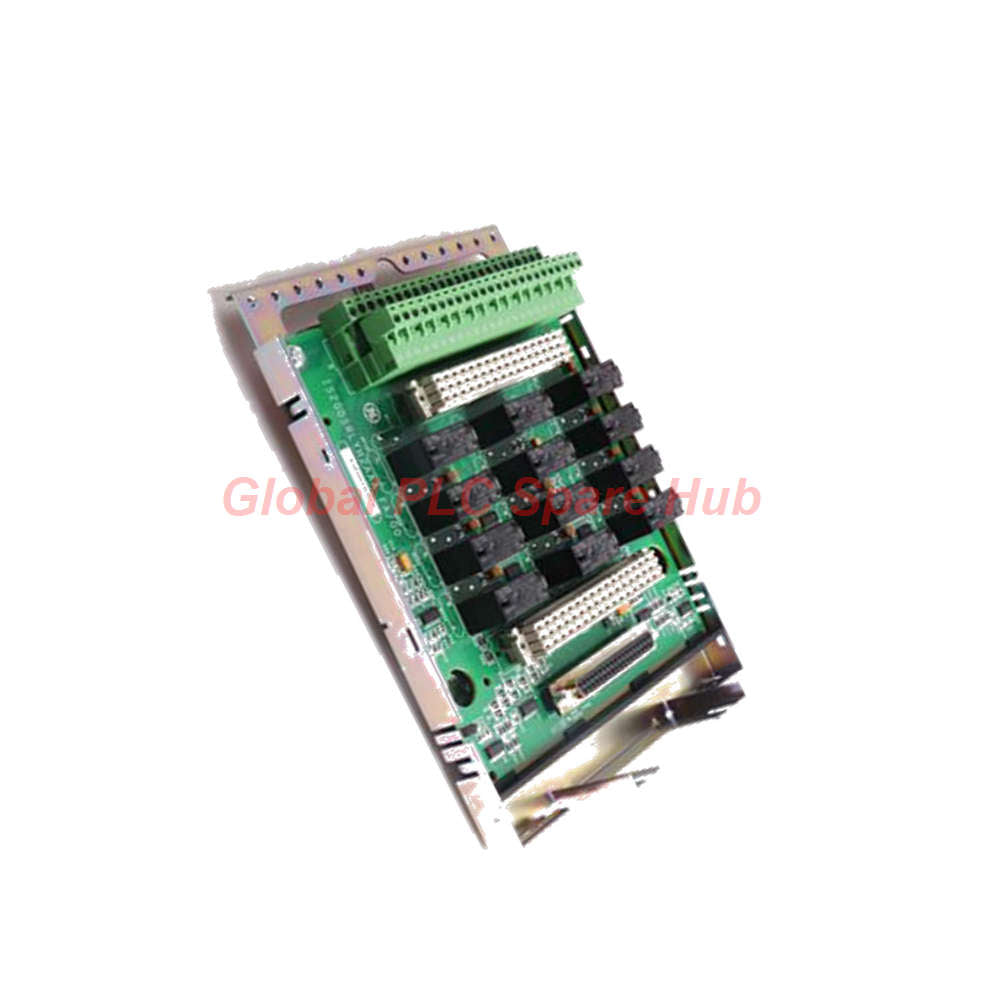

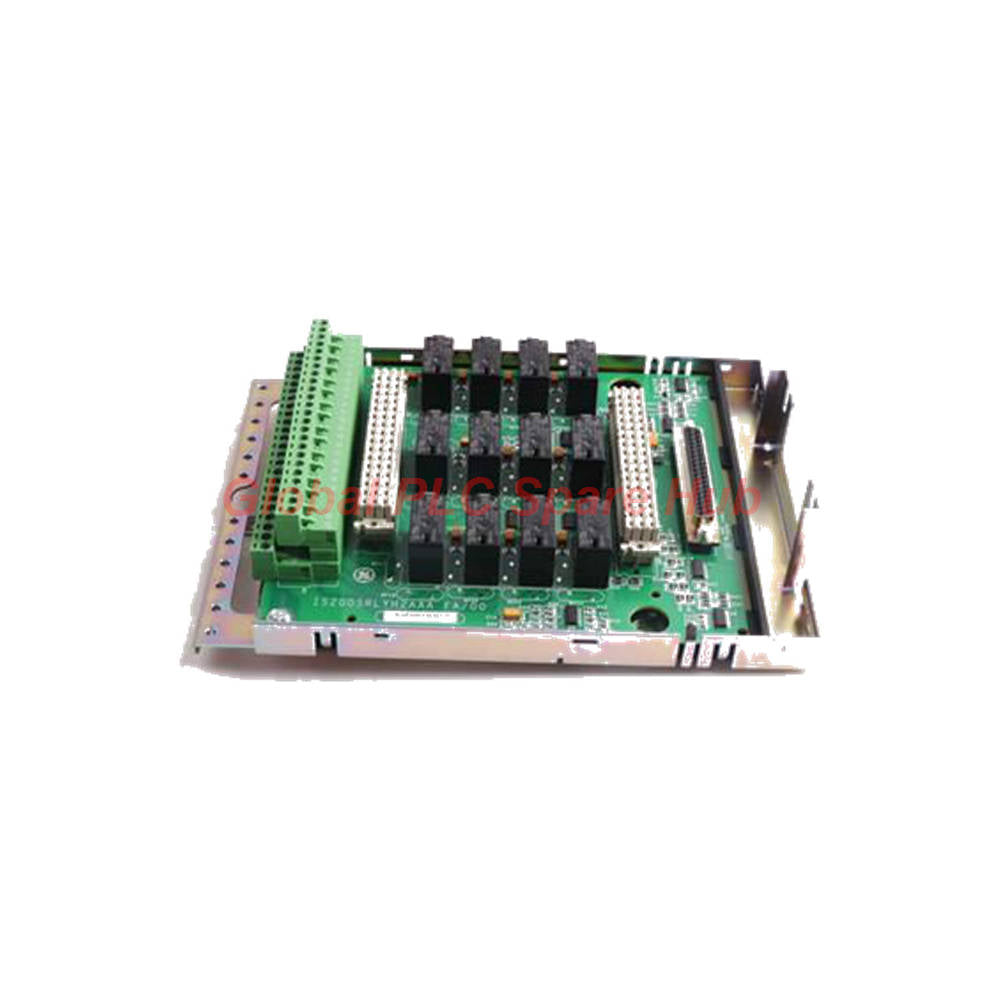

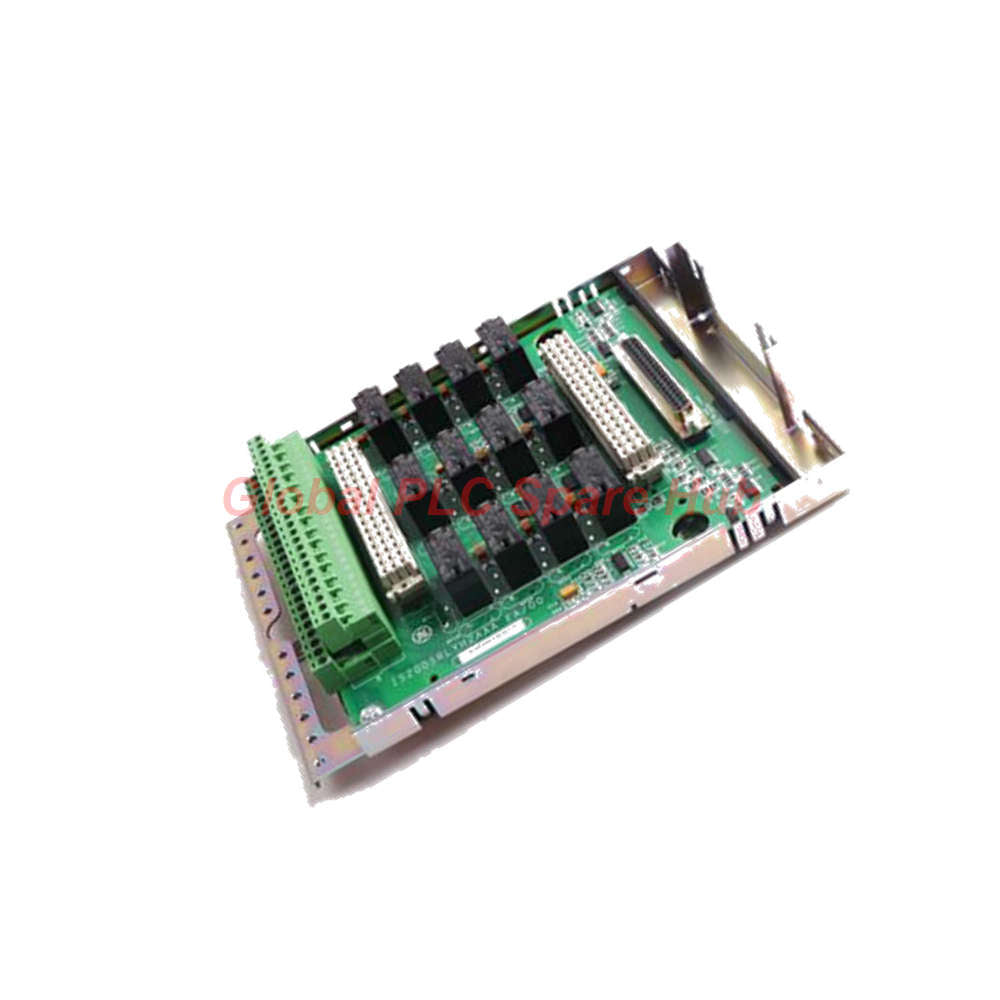

Mark VIe IS200SRLYH2AAA Output Module 12-Channel Relay Board

Overview

The IS200SRLYH2AAA serves as a critical Simplex Relay Output (SRLY) terminal board within the General Electric Mark VIe distributed control ecosystem. Engineered for high-density turbine management, this PCB manages 12 independent Form C relay circuits. Its design facilitates integration with PDOA or YDOA I/O packs while maintaining a compact physical footprint suitable for cabinet double-stacking.

Engineering Specifications

• Board Architecture: S-type Simplex Relay Output
• Relay Capacity: 12 Form C circuits
• Customer Interface: 48-terminal Euro-style pluggable blocks
• Max Operational Current: 5 A (application-limited by relay specs)
• Voltage Rating: Greater than 250 V AC clearance
• Physical Dimensions: 15.9 cm x 17.8 cm
• Thermal Tolerance: -30°C to 65°C
• Mounting: Sheet metal carrier with plastic insulation

Operational Capabilities

The IS200SRLYH2AAA utilizes isolated contact pairs for real-time position feedback to the I/O pack. The board architecture eliminates the need for manual jumpers, relying instead on integrated fixed terminals. By leveraging specific common-point terminal selection, engineers can toggle between including or excluding series fuses, allowing the system to function as a dedicated voltage detector when necessary.

Global PLC Spare HUB's Insight

Our technical analysis identifies the IS200SRLYH2AAA as a cornerstone for legacy turbine modernization. Its ability to provide physical position feedback via isolated contacts is invaluable for safety-critical interlocking. We recommend this board for facilities upgrading older Mark VI infrastructure to the more robust Mark VIe standard, particularly in environments where space-constrained cabinet mounting is required.

Deployment Applications

• Exhaust gas control systems for industrial gas turbines.
• Bearing temperature and lubrication relay logic.
• Emergency shutdown (ESD) path activation for steam turbines.
• Distributed I/O signal conditioning in power generation arrays.
• Voltage detection and monitoring in auxiliary control loops.

Logistics & Quality Assurance

• Shipping: Expedited global delivery via FedEx, UPS, and DHL.
• Dispatch: Order processing completed within 24-48 hours.
• Warranty: Every IS200SRLYH2AAA unit is backed by a 12-month performance warranty.

Technical FAQ

Q: How does the IS200SRLYH2AAA facilitate feedback in a control loop?
A: Each relay provides an isolated contact pair. The I/O pack monitors these contacts to verify the physical state of the relay, ensuring command execution matches actual contact position.

Q: Can I use this board for dry contact switching?
A: Yes, if the application requires dry contacts, simply ensure no external power distribution is routed through the relay common. If using an option board, ensure the corresponding jumpers are removed to isolate the circuit.

Q: What are the primary diagnostic limitations of this board?
A: The board itself is passive. Diagnostics rely on the I/O pack's ability to sense voltage at the relay common. If a fuse blows, the I/O pack will detect an open circuit, signaling a potential relay or load fault.

Q: Is this module backward compatible with older Mark VI systems?
A: While designed for Mark VIe, physical dimensions and terminal layouts are aligned with previous S-type standards. However, consult your specific firmware version before cross-compatibility installation.

Q: Selection Advice: When should I choose the YDOA vs. PDOA I/O pack?
A: Choose the PDOA for applications requiring specific high-speed switching requirements, while the YDOA is generally preferred for standard output multiplexing. Verify your specific turbine control logic requirements before pairing.
