LC1G2654KUEN Schneider TeSys Giga Contactor | 4P 385A Switch

Engineering Overview: The Schneider LC1G2654KUEN

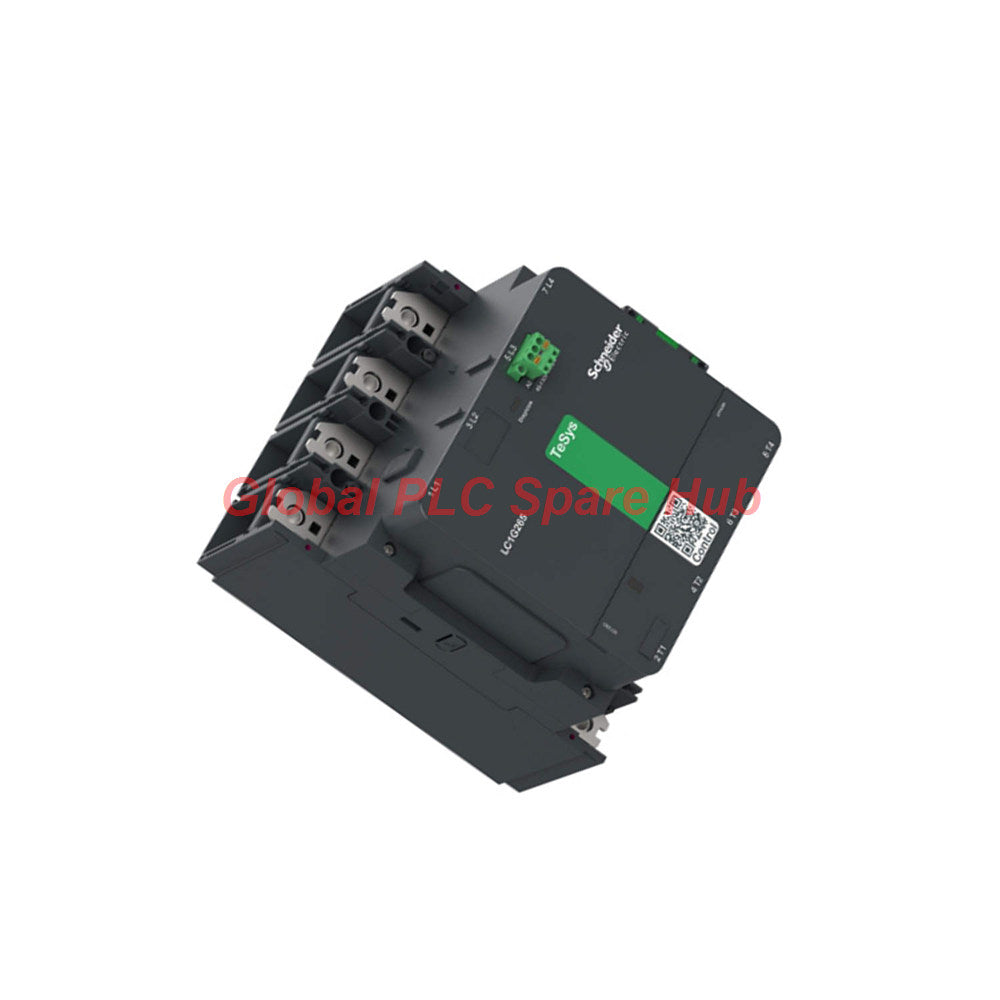

The LC1G2654KUEN is a flagship high-power contactor from the TeSys Giga Series, engineered specifically for rigorous heavy-duty power switching. This LC1G2654KUEN unit features a robust 4-pole (4NO) configuration capable of handling currents up to 385A (AC-1). Designed with a wide-band 100-250V AC/DC coil, it ensures reliable actuation across fluctuating industrial power grids. It integrates built-in bidirectional peak limiting for enhanced electrical durability.

Technical Performance Specs

• Model Identification: LC1G2654KUEN (TeSys Giga Series)
• Pole Configuration: 4P (4 NO contacts)
• Operational Ratings: 385A (AC-1) at <40°C; 265A (AC-3) at <60°C
• Coil Flexibility: 100–250V AC/DC wide-band operation
• Switching Capacity: Rated for up to 1000V AC insulation voltage
• Mechanical Endurance: 8 million cycles; B10d safety rating (up to 3M cycles)
• Terminal Interface: Bar/Busbar (32x10mm) and high-gauge ring terminals

Diagnostic Intelligence and Operational Safety

• Diagnostic Feedback: Auxiliary 1 NO + 1 NC contacts provide real-time status telemetry to PLC safety controllers.
• System Protection: Integrated peak-limiting technology shields the control circuit from transient surges.
• Environmental Hardening: Rated for harsh industrial environments (-25°C to 60°C) with high vibration/shock resistance (up to 15 gn).
• Service Promise: We provide a 12-month quality warranty on all hardware; expedited 24-48h dispatch via FedEx, UPS, and DHL.

Global PLC Spare HUB Insight

In our technical assessment, the LC1G2654KUEN stands out for its extreme reliability in power-critical infrastructure. The TeSys Giga Series is uniquely built for easy maintenance, with removable components that minimize downtime. We identify this module as the industry benchmark for high-current motor control and heavy-duty resistive heating bank switching.

Professional Expert FAQ

Q: Why is the wide-band coil technology crucial for this specific contactor?
A: It eliminates the need for separate coil inventory for AC vs. DC applications and provides immunity to voltage dips, ensuring the contactor remains closed during unstable power events.

Q: How does the LC1G's impedance (0.000144 Ohm) affect long-term power dissipation?
A: The extremely low impedance minimizes heat generation during sustained loads, extending the life of the internal silver-alloy contacts and reducing overall cabinet cooling requirements.

Q: Selection Guide: How do I choose the correct fuse for this contactor?
A: Always match the fuse to your application class. Use 315A aM fuses for motor-starting duties to allow for inrush, or 400A gG fuses for general power distribution to ensure maximum thermal protection.

Q: Can the push-in terminals handle flexible, high-vibration cabling?
A: Yes, the control circuit push-in terminals are specifically designed for high-vibration industrial environments; however, we recommend utilizing ferrules (cable ends) for optimal pull-out resistance.

Q: What is the benefit of the 4-pole configuration compared to standard 3-pole units?
A: The 4th pole allows for seamless switching of neutral lines or secondary power sources in multi-phase power systems, providing complete isolation for safety-critical maintenance.

Typical Applications

• Large-scale industrial motor starting (AC-3/AC-3e)
• Critical power distribution and switching (AC-1)
• Heavy-duty HVAC and ventilation control systems
• Automated load management for data centers
