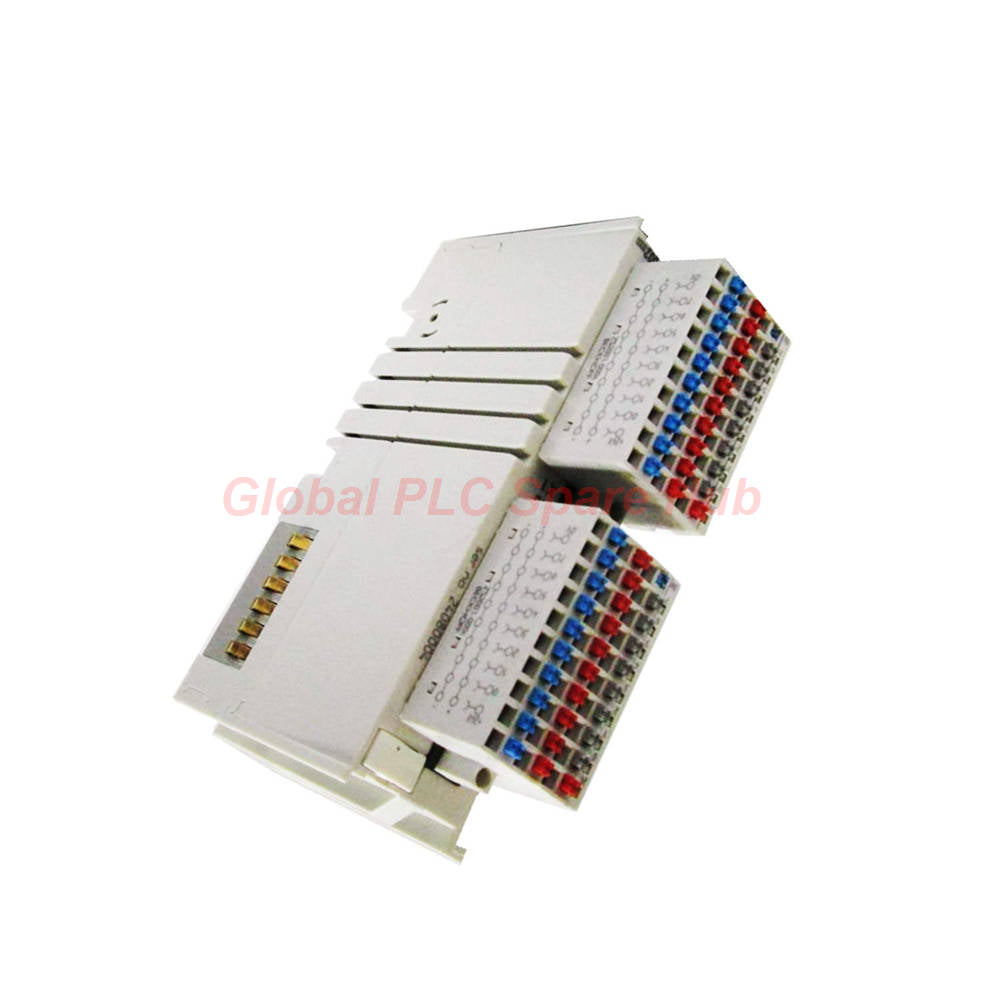

KM1002 Beckhoff Terminal Module: 16-Channel 24V DC Digital Input

Engineering Overview

The KM1002 is a high-performance terminal module engineered for precise 24V DC binary signal acquisition. It bridges field-level sensors and master controllers via the proven Beckhoff I/O system. The architecture features dual 8-channel connector blocks, streamlining density in space-constrained panels. This module guarantees electrical isolation, ensuring signal integrity across complex industrial networks.

Technical Specifications

• Manufacturer: Beckhoff
• Part Reference: KM1002
• Input Architecture: 16-channel (arranged as 2 x 8 blocks)
• Logic Levels: Type 1 (EN 61131-2 compliant)
• Switching Thresholds: "0" signal: -3 to +5 V; "1" signal: 15 to 30 V
• Debounce Filter: 3 ms typical delay for mechanical contact stability
• Current Draw: 5 mA input current; 3 mA K-bus consumption
• Mounting Standard: 35 mm DIN rail (EN 60715)
• Operational Range: 0°C to +55°C (Storage: -25°C to +85°C)
• Housing Dimensions: 26.5 mm x 100 mm x 71 mm
• Connection Type: Pluggable connector with spring-clamp technology

Deployment and Diagnostic Capabilities

• Connectivity Strategy: Employs pluggable wiring levels, simplifying field installation and module hot-swapping.
• Diagnostic Features: Status-LED integrated connectors offer visual, real-time troubleshooting for each channel.
• Signal Validation: The hardware-level 3 ms filter ignores transient voltage spikes and mechanical contact chatter.
• Reliability: Conforms to stringent EMC emission/immunity standards (EN 61000-6-2/4) for heavy-duty industrial noise environments.

Global PLC Spare HUB Insight

Engineers at Global PLC Spare HUB identify the KM1002 as a versatile solution for modular machine retrofits. Its pluggable interface allows for rapid deployment without rewiring individual sensors, significantly reducing downtime.

• Ideal Equipment: CNC machinery, conveyor control systems, and automated packaging lines.
• Application Fit: Best suited for high-density input clusters where frequent maintenance or modular sensor configuration is required.

Logistics and Service

• Guarantee: Full 12-month quality assurance warranty.
• Global Logistics: Reliable express shipping via FedEx, UPS, or DHL.
• Dispatch: Expedited processing with shipments leaving within 24-48 hours.

Expert Frequently Asked Questions (FAQ)

How does the 2 x 8 channel design impact wiring logic?
The split architecture allows you to isolate sensor groups or power domains across different connectors, reducing the need for external terminal blocks.

Are there specific selection criteria for the 1-pin versus 3-pin connector versions?
Select 1-pin connectors for minimal space applications; choose 3-pin versions if you require local ground/shield termination directly at the module input.

Can I swap the KM1002 while the I/O system is powered?
The pluggable interface supports fast disconnection, but always verify your specific controller's hot-swap policy before disconnecting active field signals.

What is the primary indicator of a failed input channel?
If the sensor is active but the status LED remains dark, check the connector seating and confirm the field voltage is within the 15-30 V DC range.

When should I prioritize the KM1002 over a standard high-density terminal?
Choose this module when your machine design demands field-side serviceability, as the pluggable connectors allow for "cable-harness" maintenance rather than individual wire removal.
