KL1862 Input Module Beckhoff 24V DC High-Density Solution

Product Overview

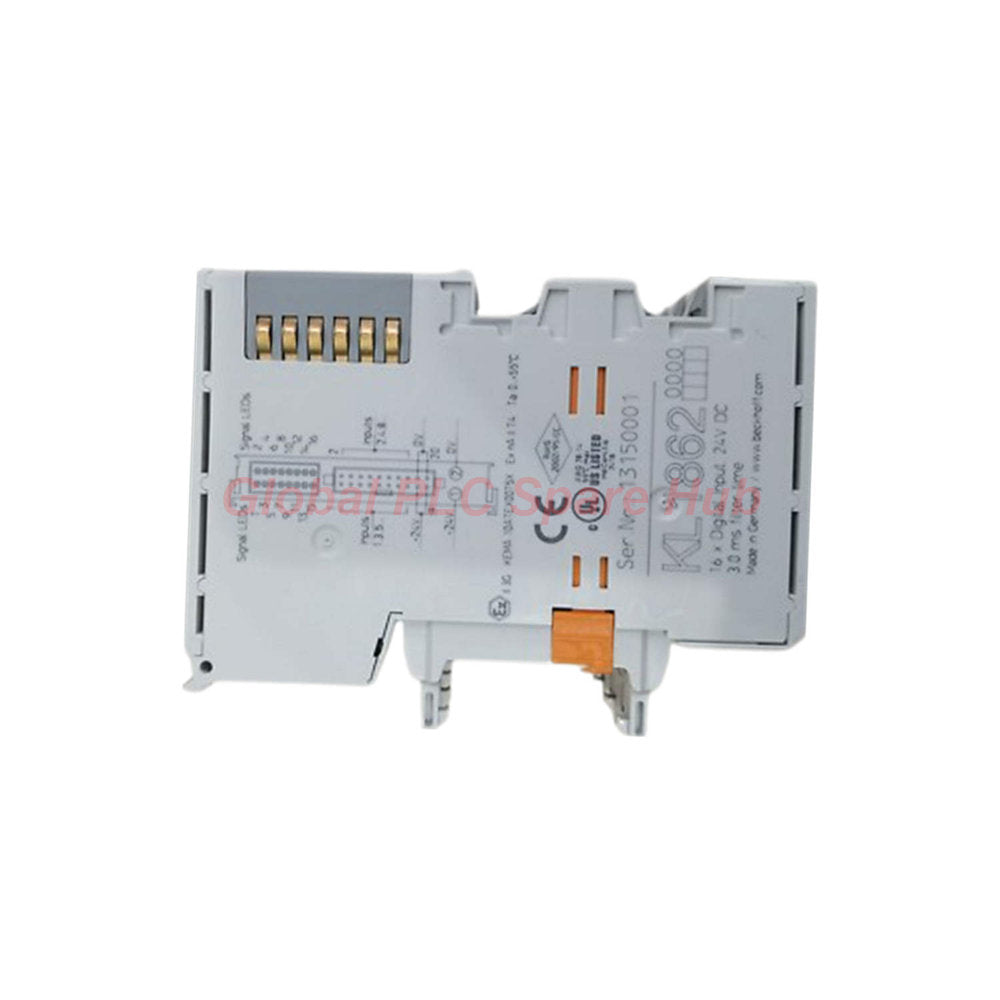

The KL1862 by Beckhoff is a specialized 16-channel digital input terminal optimized for high-density signal acquisition. Unlike standard modular terminals, this unit features a 20-pin interface designed for flat-ribbon cable connectivity, utilizing insulation displacement contact (IDC) technology. This design significantly accelerates deployment speed in large-scale control cabinets. Integrated 3ms input filters ensure signal integrity by effectively suppressing contact bounce, making the KL1862 an ideal choice for stable digital signal processing in demanding industrial environments.

Technical Engineering Specifications

• Brand: Beckhoff
• Model: KL1862
• Series: Bus Terminal Digital Input
• Input Configuration: 16 channels, Type 1/3 (EN 61131-2)
• Signal Voltage (0-Signal): -3V to +5V DC
• Input Filter: Fixed 3.0 ms for bounce suppression
• Connection Interface: 20-pin flat-ribbon cable (IDC)
• Supply Voltage: 24V DC (-15% / +20%)
• Current Consumption: K-bus: 3mA; Power contacts: 4mA
• Galvanic Isolation: 500V (K-bus to field potential)
• Temperature Range: 0°C to +55°C (Operating)
• Compliance: CE, UL, ATEX, IECEx (Ex ec IIC T4 Gc)

Global PLC Spare HUB Insight

The KL1862 simplifies complex wiring architectures common in multi-axis machinery and packaging automation. By replacing individual wire terminations with ribbon cables, engineers can reduce assembly time by up to 60%. We recommend this for high-density I/O clusters where rapid signal termination is required. Its diagnostic capability is supported by per-channel LED indicators, allowing immediate visual verification of signal states without needing external probes.

Deployment Applications

• High-Density Control Panels: Perfect for space-saving designs in compact machinery.
• Packaging Machines: Ideal for sensor-heavy arrays requiring organized cabling.
• Automation Hubs: Suited for industrial systems needing fast-track digital input expansion.
• Relay Logic Interfaces: Effectively manages control signals where bounce prevention is critical.

Logistics and Warranty

• Shipping: Expedited global delivery via FedEx, UPS, or DHL.
• Lead Time: Dispatched within 24–48 hours.
• Warranty: 12-month performance guarantee on all units.

Expert Technical FAQ

Why is the 3ms input filter significant for my application?
The 3ms filter acts as a hardware-level debouncer. It is essential when using mechanical switches or push-buttons, as it prevents the controller from interpreting transient contact noise as multiple rapid input signals.

Can I use standard round cables with the KL1862?
Yes, the 20-pin connector is designed for standard insulation displacement (IDC) ribbon cables and specific multi-core round cables, provided they match the 1.27mm spacing standard.

What is the difference between the KL1862 and the KL1862-0010?
The base KL1862 is a standard digital input terminal, whereas the KL1862-0010 variant is specifically engineered for ground-switching (negative logic) input requirements.

How does the lack of configuration settings affect deployment?
The terminal is "address-less," meaning it is automatically mapped into the process image via the Bus Coupler. This plug-and-play capability drastically reduces commissioning time compared to configurable modules.

Selection Guide: What should I consider for high-vibration environments?
Ensure the ribbon cable assembly is properly secured with strain relief. While the KL1862 itself is rated for industrial shock and vibration (EN 60068), the reliability of the IDC connection depends entirely on using high-quality cables and ensuring they are fully seated in the terminal block.
