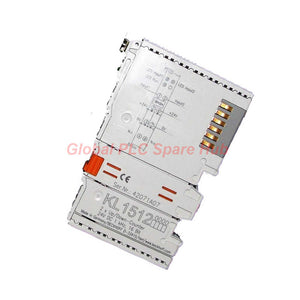

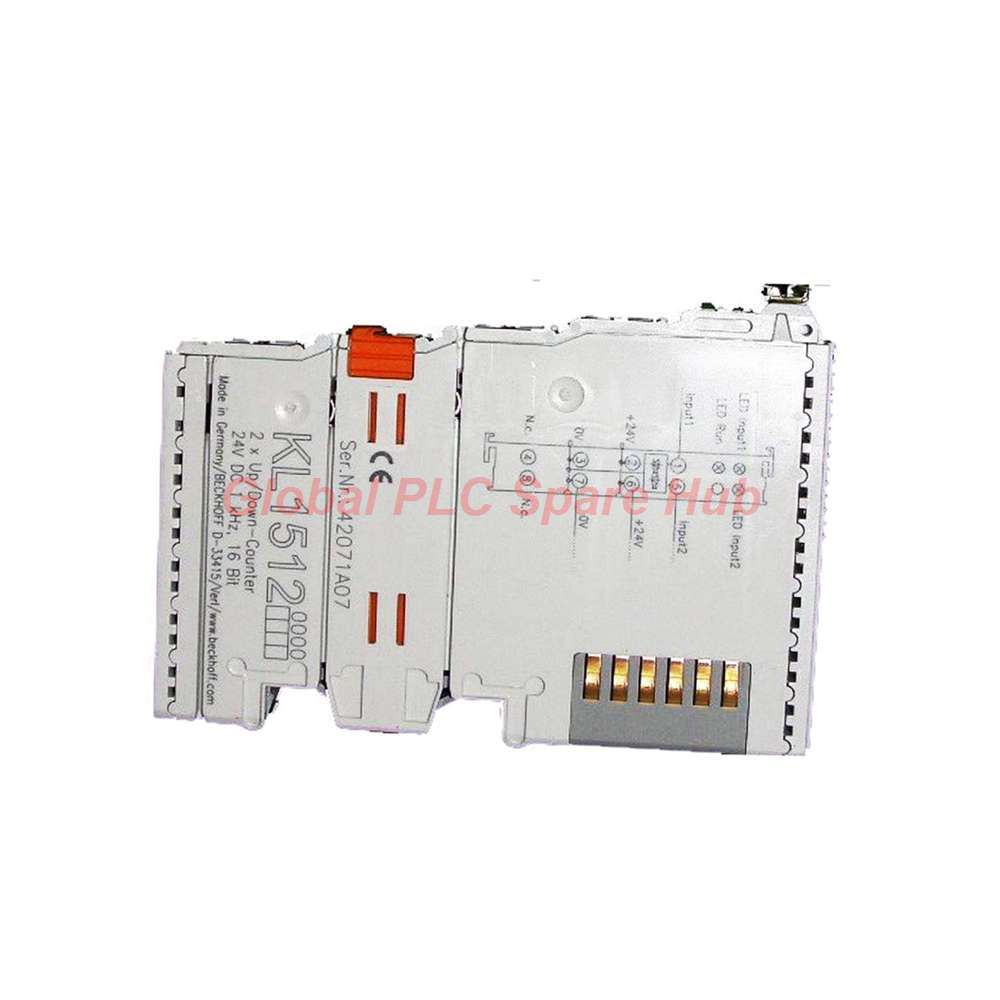

KL1512 Beckhoff 2-Channel Up/Down Counter Bus Terminal Module

KL1512 Beckhoff 2-Channel Up/Down Counter Module | 24 V DC 16-Bit Terminal

Oiltech Controls provides precision-engineered industrial automation hardware to stabilize critical field measurements globally. The KL1512 Beckhoff Bus Terminal serves as a dedicated digital processing interface for capturing high-reliability pulse data streams. This compact 16-bit infrastructure module delivers smooth execution of pulse tracking, directional measurement, and continuous flow telemetry.

Global PLC Spare HUB's Insight

• The KL1512 microprocessor architecture converts incoming binary field pulses into structured process image data.
• Optocoupler components provide up to 500 V of robust electrical galvanic isolation between the K-bus logic and field operating potentials.
• The hardware features an integrated 0.2 ms digital hardware input filter to effectively suppress high-frequency mechanical contact bounce.
• Flexible parameter mapping lets system integrators configure each independent channel as a dedicated up or down counter register.
• Pluggable connection terminals on the matching KS1512 variation allow rapid module hot-swaps without disconnecting existing field loops.

Target Equipment and Field Application Scenarios

• Industrial Liquid Flow Meters: Capturing continuous high-precision pulse trains generated by turbine meters, positive displacement devices, or vortex sensors.
• Rotational Velocity Tracking: Monitoring incremental output shafts using digital proximity switches or basic optical encoder wheels.
• Part Counting and Packaging: High-speed component tracking lines across optical retro-reflective sensors or inductive array fields.
• Material Feed Systems: Measuring exact linear travel distances in volumetric dosing units or mechanical conveyor assembly systems.

Diagnostic Capabilities and Signal Mapping

• Two localized front-panel LED indicators display the immediate real-time physical switching states of the incoming field loops.
• The digital data width maps inside the active K-bus process image using 16 bits of clear data alongside 8 bits of control/status register tracking.
• The input channel structure processes standard 24 V DC voltage sweeps, operating cleanly with a 5 mA nominal signal draw.
• Low-level signal states transition predictably with a "0" logic rating spanning -3 to +5 V boundaries.
• High-level logic states switch definitively with a "1" logic rating covering 15 to 30 V tolerances.

Technical Parameters and Specifications

• Brand Name: Beckhoff
• Model Identifier: KL1512 / KS1512
• Product Classification: 2-Channel Up/Down Counter Bus Terminal
• Nominal Operational Voltage: 24 V DC (-15% / +20% grid fluctuation range)
• Maximum Counting Frequency: 1 kHz total pulse processing ceiling
• Internal Register Register Depth: 16-bit binary counter capacity
• Internal Logic Power Demand: Typically 50 mA drawn straight from the internal K-bus line
• Environmental Vibration/Shock Metrics: Conforms fully to EN 60068-2-6 and EN 60068-2-27 regulatory benchmarks
• Electromagnetic Interference Compliance: Standardized under EN 61000-6-2 and EN 61000-6-4 industrial codes
• Ingress Protection Code / Mounting Layout: IP 20 standard / Variable vertical or horizontal rail alignment
• Physical Weight Profile: Approximately 55 grams net
• Enclosure Thermal Range: 0 to +55 °C operation / -25 to +85 °C structural storage limits
• Regulatory Approvals: CE, UL, and Ex hazardous location compliance certifications

Frequently Asked Questions and Engineering Buying Guide

What happens to the internal register values if the 16-bit counter depth limit is exceeded?

When the counter exceeds its maximum 16-bit depth limit (65,535 decimal steps), the value rolls over naturally to zero during up-counting sequences. Alternatively, it will cycle backward from zero to the top value when configured for down-counting routines. Your PLC application code must continuously track this rollover status byte via the 8-bit control/status process image.

How does the 0.2 ms internal filter limit the practical maximum sensor pulse speed on this terminal?

The integrated 0.2 ms digital filter acts as a physical hardware propagation delay to keep contact bounce from causing phantom counts. This limit restricts the input to a maximum counting frequency of 1 kHz. If your field sensor generates narrow pulse widths or operates at frequencies above 1 kHz, you must select a specialized high-speed encoder interface terminal instead.

Is it possible to power 5V or 12V digital proximity sensors directly with this counter module?

No, this model is engineered specifically for standard 24 V DC industrial digital control logic signals. An input signal must reach at least 15 V DC to toggle the internal register to a true "1" state. Connecting lower-voltage sensors will result in missed pulses because the signal cannot cross the minimum turn-on voltage threshold.

What is the difference between the standard model number and its pluggable twin?

The standard model features fixed tension clamp terminal blocks built straight into the main housing structure. The alternative variation incorporates a modular, pluggable wiring strip design. This option allows technicians to disconnect the entire wiring loom simultaneously, accelerating terminal swaps during maintenance overhauls.

Which software tools are needed to configure the operational counting modes of this terminal?

Configuration parameters are modified using TwinCAT or alternative master PLC engineering utilities via your main bus coupler interface. Through this software environment, engineers can designate the counting direction, manage register presets, and read out the combined 16-bit data words alongside the active status flags.
