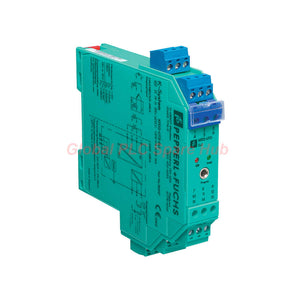

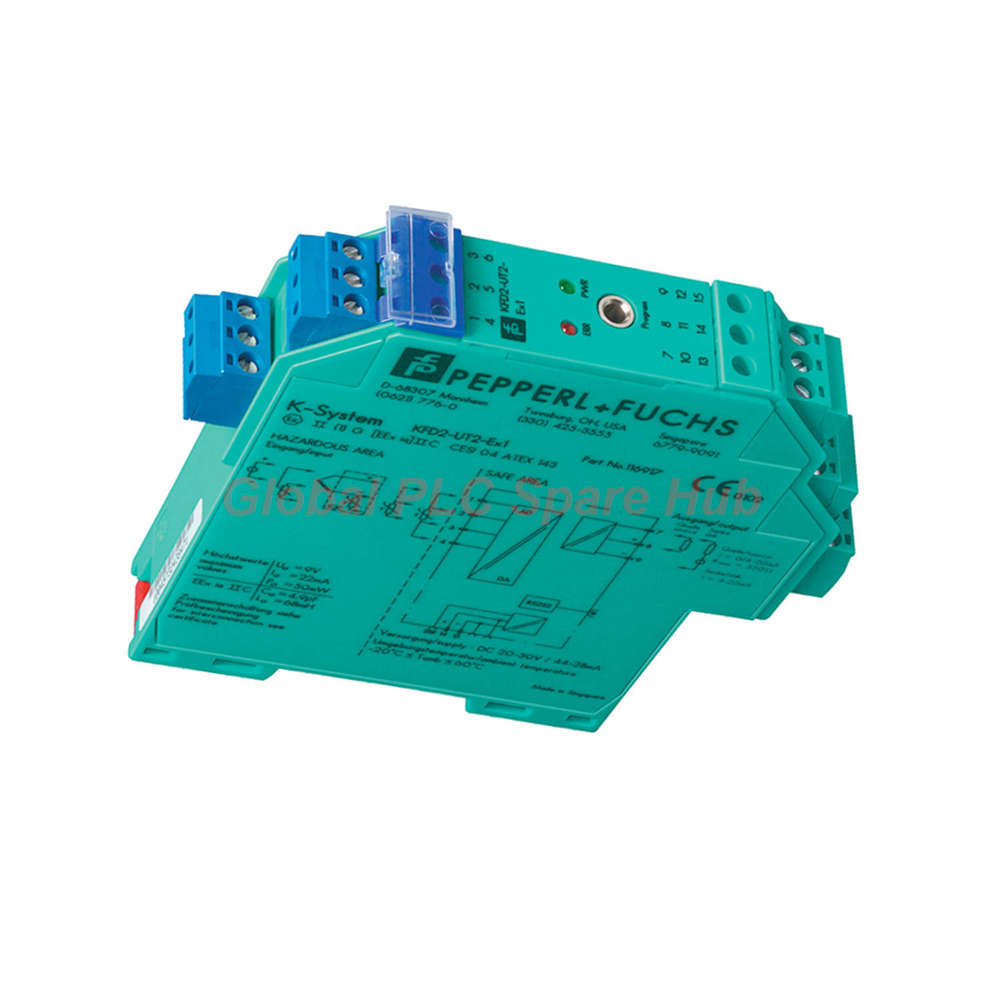

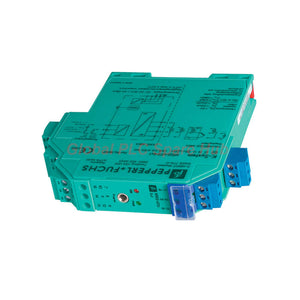

KFD2-UT2-EX1 Pepperl+Fuchs Temperature Converter | SIL 2 Signal Conditioner

Global PLC Spare HUB Insight

The KFD2-UT2-EX1 by Pepperl+Fuchs is engineered for high-precision thermal data acquisition in hazardous environments. Unlike standard signal isolators, this unit functions as a sophisticated, programmable bridge between diverse field sensors (TC, RTD, Potentiometer) and control systems. We recommend the KFD2-UT2-EX1 for legacy system retrofits where input flexibility is paramount, as it eliminates the need for stocking multiple discrete transmitter types. Its ability to operate in both sink and source output modes provides unmatched installation versatility in complex control loops.

Technical Performance Matrix

• Manufacturer: Pepperl+Fuchs
• Part Number: KFD2-UT2-EX1
• Category: Universal Temperature Converter / Isolated Barrier
• Input Versatility: Thermocouple (TC), Resistance Temperature Detector (RTD), Potentiometer, and Voltage signals.
• Output Signal: Linearized 0/4 mA to 20 mA (Configurable).
• Operational Mode: Sink or Source output capability.
• Functional Safety: SIL 2 certified per IEC 61508.
• Supply: 20 V to 30 V DC (Power Rail compatible).
• Diagnostics: Real-time line fault detection (LFD) and sensor burnout monitoring.
• Configuration: Software-driven via PACTware™ for precision calibration.
• Dimensions: 20 mm x 119 mm x 115 mm.

Operational Diagnostics & Versatility

• Intelligent Monitoring: The module continuously monitors for sensor burnout and wire breaks, providing immediate feedback to the controller.
• Precision Signal Conditioning: Advanced internal circuitry ensures high-resolution conversion of non-linear thermocouple/RTD curves into a strictly linear 4-20 mA industrial signal.
• Configuration Flexibility: Use the PACTware™ interface to adjust measurement ranges, sensor types, and damping settings, effectively future-proofing your instrument loop.

Core Applications

• Refining & Petrochemical: Ideal for monitoring reactor temperatures where KFD2-UT2-EX1 isolation prevents ground loops and potential ignition risks.
• HVAC & Building Automation: Efficiently converts high-ohm RTD inputs from remote areas into centralized PLC-readable analog signals.
• Process Automation: Perfectly suited for batch processing units requiring dynamic, programmable signal conditioning.
• Energy Management: Monitors turbine and generator exhaust temperatures with high accuracy in safety-critical loops.

Logistics & Quality Assurance

• Global Shipping: Rapid dispatch via FedEx, UPS, or DHL.
• Lead Time: 24 to 48-hour order processing cycle.
• Reliability: Every unit is backed by a 12-month full performance warranty.
• Package Contents: 1x KFD2-UT2-EX1 unit and standardized technical documentation.

Professional FAQ

Question: Does the KFD2-UT2-EX1 require a specific software interface for initial calibration?

Answer: Yes, the unit utilizes the PACTware™ software suite via a compatible programming adapter to define sensor types and measurement ranges before deployment.

Question: Can this barrier be used with both 3-wire and 4-wire RTD configurations?

Answer: The unit is highly adaptable; however, consult the specific connection diagram in the manual to ensure the correct terminal bridge is applied for your specific RTD wiring scheme.

Question: Why would I choose this universal model over a fixed-range transmitter?

Answer: The universal capability reduces spare parts inventory costs, as a single KFD2-UT2-EX1 unit can be reconfigured to replace virtually any temperature transmitter in your facility.

Question: How does the device handle a broken sensor wire during operation?

Answer: The unit features active line fault detection (LFD). Upon detecting an open circuit or burnout, it drives the output signal to a pre-configured safe state (typically < 3.6 mA or > 21 mA) to alert the PLC.

Question: What is the benefit of the sink/source output mode?

Answer: The ability to toggle between sink and source modes allows the barrier to interface directly with both passive and active PLC analog input cards without requiring additional external power supplies or modifications.

Procurement Advisory

• Matching Impedance: When configuring for a 4-20 mA loop, ensure your PLC input card load resistance is within the technical limits specified for the sink/source mode chosen.
• Calibration Verification: Always perform a dry-run calibration using PACTware™ before integrating the unit into a live safety-instrumented system (SIS).
• Power Rail Utilization: For high-density cabinets, utilize the Power Rail to reduce wiring clutter and enable collective error messaging across multiple modules.
