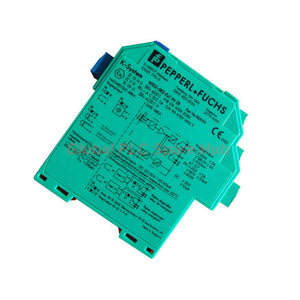

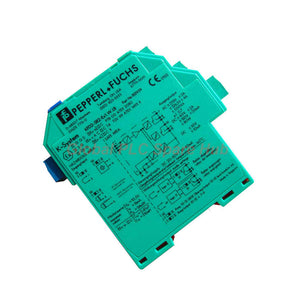

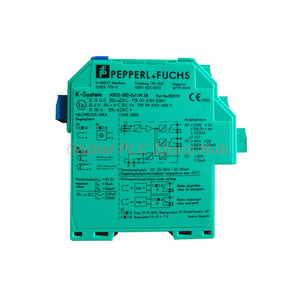

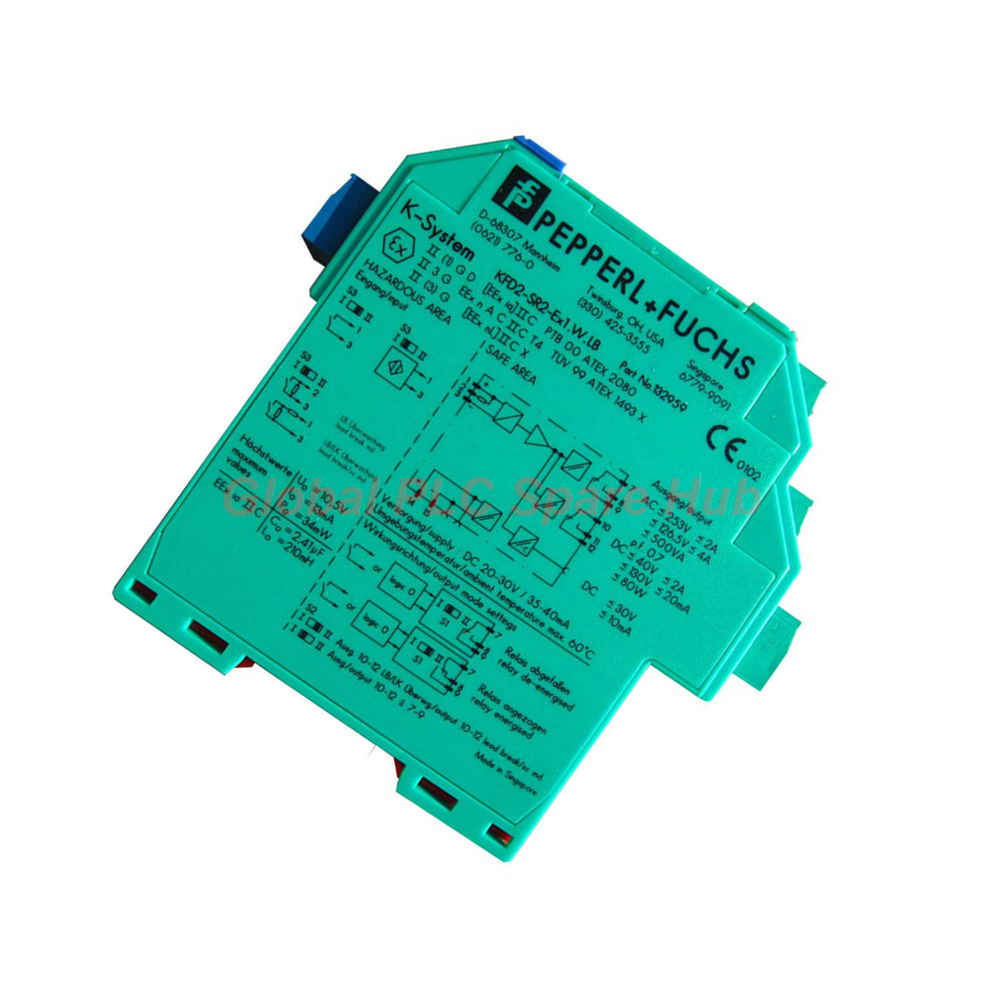

KFD2-SR2-EX2.2S Pepperl+Fuchs Isolated Switch Amplifier

KFD2-SR2-EX2.2S is a high-reliability isolated switch amplifier designed for hazardous area signal interfacing applications.

This module supports NAMUR sensors and dry contact inputs. It provides galvanic isolation between field devices and control systems.

The compact DIN rail housing simplifies cabinet integration in industrial automation environments. Its SIL 2 functional safety capability supports critical process protection architectures.

The design targets stable signal transmission in petrochemical, power generation, and process control systems.

Functional Structure Overview

Core Electrical Characteristics

• Power Supply Parameters
  • Operating voltage: 20 to 30 V DC
  • Maximum ripple: ≤10%
  • Rated current: ≤50 mA
  • Power consumption below 1.3 W
  • Power dissipation: 1 W
• Input Signal Interface
  • Supports NAMUR sensors according to EN 60947-5-6
  • Open circuit voltage approximately 8 V DC
  • Short-circuit current approximately 8 mA
  • Switching threshold: 1.2 to 2.1 mA
  • Integrated line fault detection capability
  • Detects wire break and short-circuit conditions
• Relay Output Performance
  • Four relay output channels available
  • Relay contact rating: 50 V AC / 1 A
  • DC resistive load capability: 40 V DC / 1 A
  • Minimum switching current: 1 mA / 24 V DC
  • Switching frequency up to 10 Hz
  • Mechanical life reaches 10⁸ switching cycles
• Isolation Protection
  • 300 V reinforced insulation between input and output
  • Safe electrical isolation according to IEC/EN 60079-11
  • 375 V peak isolation capability
  • Integrated galvanic isolation architecture

Hazardous Area Compliance

Mechanical and Installation Details

• Dimensions: 20 × 119 × 115 mm
• Weight: approximately 150 g
• Protection class: IP20
• Mounting method: 35 mm DIN rail
• Configuration via integrated DIP switches
• Front labeling area simplifies maintenance identification
• LED indicators provide channel status visibility

Global PLC Spare HUB's Insight

KFD2-SR2-EX2.2S is widely deployed in hazardous process automation systems requiring reliable isolation and stable relay switching.

The module performs especially well in refinery instrumentation panels and burner management systems. Its low power consumption improves thermal management inside dense control cabinets.

Field engineers value the fast fault identification capability. Integrated line monitoring reduces troubleshooting time during commissioning and maintenance.

Compared with standard relay isolators, this model offers stronger hazardous area integration flexibility and higher functional safety coverage.

Recommended Equipment Compatibility

• DCS distributed control systems
• PLC digital input interfaces
• NAMUR proximity sensors
• Emergency shutdown systems
• Process alarm systems
• Gas detection signal interfaces
• Hazardous area instrumentation cabinets
• Refinery automation systems

Application Scenarios

• Intrinsic safety signal isolation
• Hazardous area switching applications
• Digital status signal transfer
• Process interlock systems
• Industrial relay interface expansion
• Safety instrumented systems
• Remote field sensor monitoring

Diagnostic and Monitoring Capability

• Wire break detection support
• Short-circuit fault indication
• Relay switching state monitoring
• Channel status indication through LEDs
• Improved fault localization efficiency
• Supports preventive maintenance workflows

Environmental Specifications

• Operating temperature: -20°C to +60°C
• Designed for industrial indoor applications
• Suitable for industrial EMC environments
• Stable performance under continuous operation
• Supports high-density cabinet installation layouts

Shipping and Warranty Information

• Original factory-packed product
• 12-month warranty support
• Fast shipping within 24–48 hours
• Worldwide delivery service available
• Courier support via FedEx, UPS, and DHL
• Industrial protective export packaging included

Professional FAQ

• Why are NAMUR interfaces preferred in hazardous areas?

  NAMUR signaling reduces power levels and improves intrinsic safety compatibility in explosive environments.

• What advantage does galvanic isolation provide?

  Isolation prevents ground loops and protects control systems from field-side electrical disturbances.

• How can engineers reduce relay wear during operation?

  Maintain switching frequency within specifications and avoid inductive overload conditions.

• Which applications benefit most from SIL 2 capability?

  Emergency shutdown systems and critical interlock circuits commonly require SIL-rated signal interfaces.

• What installation practice improves long-term reliability?

  Separate signal wiring from high-voltage power cables to minimize electromagnetic interference exposure.
