KFA5-SR2-EX1.W.LB Pepperl+Fuchs Switch Amplifier | SIL2 Rated Barrier

Product Overview

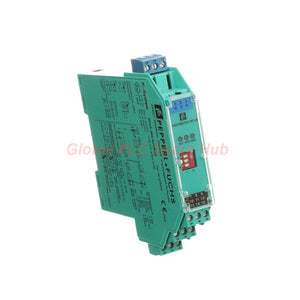

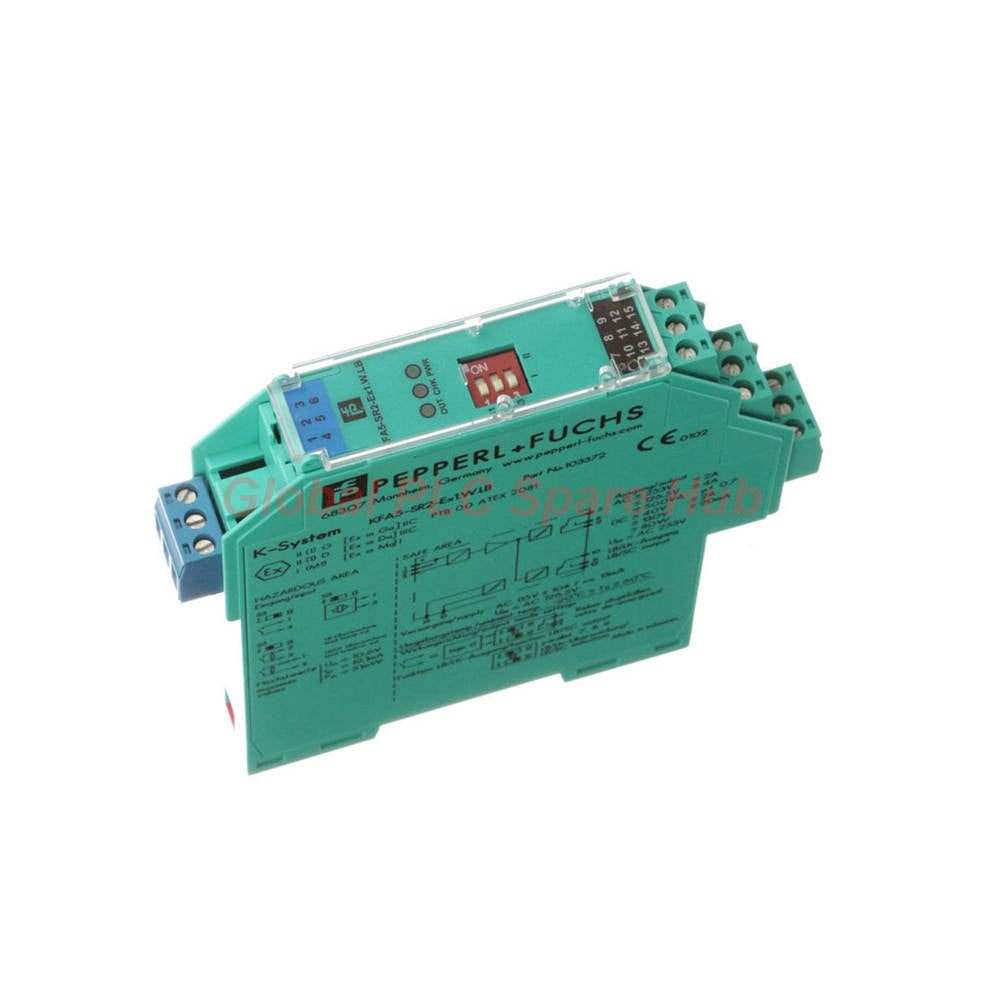

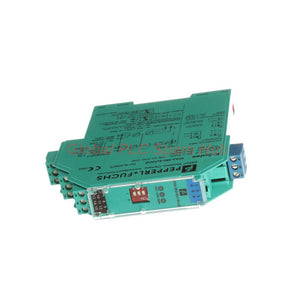

The KFA5-SR2-EX1.W.LB is a sophisticated 1-channel isolated barrier designed for intrinsic safety in hazardous industrial environments. As a core component of the Pepperl+Fuchs K-System, this switch amplifier facilitates seamless signal transmission between field devices and control systems while maintaining electrical isolation. Engineered to support both NAMUR sensors and dry contacts, the KFA5-SR2-EX1.W.LB ensures process reliability through high-speed relay contact outputs and active line fault transparency.

Technical Engineering Specifications

• Brand/Series: Pepperl+Fuchs K-System
• Device Type: Isolated Switch Amplifier
• Model Number: KFA5-SR2-EX1.W.LB
• Supply Voltage: 115 V AC (103.5 ... 126 V AC range)
• Input Signal: NAMUR sensors or mechanical dry contacts
• Output Configuration: Relay contact + dedicated Fault relay contact
• Safety Integrity: Up to SIL2 compliance per IEC 61508
• Operational Modes: Field-reversible logic settings
• Monitoring Capability: Advanced Line Fault Detection (LFD)
• Frequency Response: Optimized for 45 ... 65 Hz operation

Deployment & Maintenance

• Installation: Mount on a standard 35 mm DIN rail; ensure proper clearance for thermal dissipation.
• Wiring: Utilize color-coded terminals for error-free field device termination.
• Diagnostics: Onboard LED arrays provide real-time operational status and loop health feedback.
• Flexibility: Integrated DIP switches allow for precise adjustment of signal phase and fault logic.
• Maintenance: Modular hardware footprint permits rapid component extraction during planned facility maintenance.

Logistics & Terms

• Shipping Carriers: Reliable global transit via FedEx, UPS, or DHL.
• Lead Time: Rapid order processing; dispatched within 24-48 hours.
• Warranty: 12-month comprehensive quality assurance guarantee.
• Package Contents: 1 x KFA5-SR2-EX1.W.LB Switch Amplifier unit.

Industry Applications

• Oil & Gas: Tank level monitoring and hazardous area valve control.
• Chemical Processing: Intrinsic safety loops for remote instrumentation signaling.
• Pharmaceuticals: Precision flow and pressure switch monitoring in sterile/controlled zones.
• Water Management: Robust automation of pump stations and filtration cycle sequencing.

Global PLC Spare HUB Insight

According to Global PLC Spare HUB's review, the KFA5-SR2-EX1.W.LB distinguishes itself through superior noise immunity and diagnostic transparency. Engineers prefer this module for its ability to isolate erratic field signals before they compromise PLC logic controllers. It acts as a robust firewall for instrumentation, significantly reducing the risk of false trips in mission-critical safety loops.

Professional FAQ

How does the Line Fault Detection (LFD) function assist in troubleshooting?
The LFD monitors for short circuits or open wires in the field loop. If a fault is detected, the separate fault relay triggers, allowing your control system to isolate the problem area instantly.

Can I swap this module while the system is under power?
While many K-System modules support hot-swapping, we recommend verifying your cabinet’s specific hazardous area permit requirements before removing or inserting the unit under load.

What is the primary advantage of selecting this model over standard relays?
Unlike standard relays, this unit provides galvanic isolation and intrinsic safety protection, which is essential for preventing ignition in potentially explosive atmospheres.

How should I choose the right signal input setting for my sensor?
Review your sensor’s data sheet for NAMUR compliance. If using a standard dry contact, ensure the input DIP switches are set correctly to avoid signal inverted logic or chatter.

Is there a specific orientation required for DIN rail mounting?
For optimal thermal performance and long-term reliability, the device should be mounted vertically to facilitate natural convection airflow through the cooling slots.
