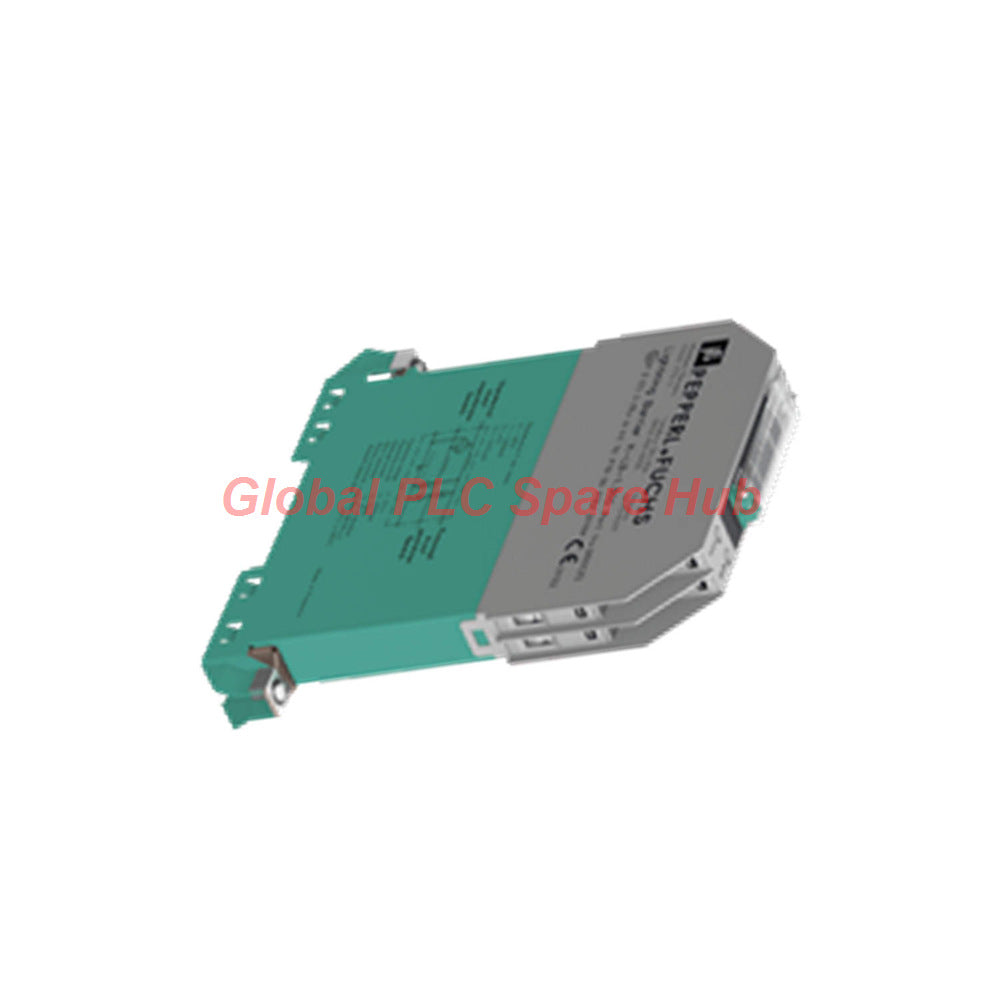

K-LB-2.6 Pepperl+Fuchs Surge Barrier 2-Channel 6V Protection Module

Product Overview: Precision Transient Suppression

The K-LB-2.6 by Pepperl+Fuchs is an advanced, high-density surge protection barrier engineered for 6V signal loops. Operating as a dual-channel module, it provides a sophisticated defense mechanism against lightning strikes and switching transients. The K-LB-2.6 ensures your field devices maintain operational integrity by clamping voltages at a safe 12V level while providing a 500V ground breakdown isolation.

Technical Engineering Specifications

• Manufacturer: Pepperl+Fuchs
• Part Number: K-LB-2.6
• Device Type: 2-Channel DIN Rail Surge Barrier
• Operating Voltage (Un): ≤ 6V
• Maximum Surge Capacity (Imax): 20kA per core
• Response Speed: 1ns (Symmetrical); 100ns (Asymmetrical)
• Loop Resistance: ≤ 0.3 Ω per conductor
• Bandwidth Capacity: ≥ 40 kHz
• Isolation Integrity: 500V DC breakdown voltage
• Environmental Rating: IP20 (Indoor)
• Temperature Range: -30 °C to 80 °C

Integration and Hazardous Area Compliance

• Hazardous Certification: PTB 00 ATEX 2176X; Ex ia IIC T6.
• International Approval: IECEx BAS 14.0010X and CSA Control Drawing 116-0187.
• Installation: Designed for 35mm DIN rail mounting; utilizes standardized screw terminals.
• Compatibility: Fully compatible with intrinsically safe (IS) and non-intrinsically safe instrumentation loops.

Logistics and Operational Support

• Shipping: Worldwide delivery via FedEx, UPS, or DHL.
• Lead Time: Expedited processing within 24-48 hours.
• Quality Assurance: Backed by a comprehensive 12-month industrial performance warranty.
• Package Includes: K-LB-2.6 unit, installation documentation.

Global PLC Spare HUB's Insight

Engineers at Global PLC Spare HUB classify the K-LB-2.6 as the "gold standard" for low-voltage signal conditioning protection. Its unique 1ns response time is critical for preventing damage to high-speed communication processors and sensitive RTD inputs.

Recommended Applications: Distributed Control Systems (DCS) I/O cards, Intrinsically safe field instruments in refineries, and high-frequency signal processing/telemetry equipment.

Diagnostic Capability: While the module functions as a passive clamp, its automatic reset mechanism prevents "nuisance trips," allowing for continuous monitoring of system health without the need for manual inspection after every minor electrical disturbance.

Professional Frequently Asked Questions

Q: When selecting a surge barrier, why is the "Clamping Voltage" more important than the "Rated Voltage"?
A: While Rated Voltage defines the operating range, the Clamping Voltage determines the energy level reaching your instrument during a spike. The K-LB-2.6’s 12V limit is specifically tuned to protect low-voltage electronics from over-stress that would otherwise cause latent semiconductor damage.

Q: Can the K-LB-2.6 be used in a network with existing Zener Barriers?
A: Yes, it is designed for use in conjunction with other safety barriers. Because it offers 500V ground isolation, it acts as a secondary layer of protection, shielding the internal circuitry of IS barriers from high-energy external transients.

Q: What does the difference between 1ns and 100ns response times mean for my application?
A: The 1ns response time handles high-speed longitudinal spikes, ensuring high-frequency digital signal integrity. The 100ns response time manages the slower, high-energy surge common in common-mode ground potential shifts.

Q: How do I know if the K-LB-2.6 has reached its end-of-life?
A: Unlike sacrificial protectors that fail-short, this module is designed for repeated operations. However, if your signal loop shows consistent voltage drop or high baseline leakage current >10 µA during routine maintenance, it indicates the internal discharge components have reached their cycle limit.

Q: What is the benefit of the 0.3 Ω series resistance?
A: In low-voltage loops (6V), excessive resistance can cause signal loss or span errors in analog transmission. The low 0.3 Ω resistance ensures minimal voltage drop, maintaining high precision for sensitive 4-20mA or digital communication loops.
