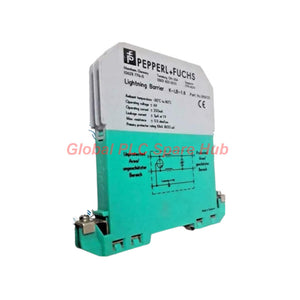

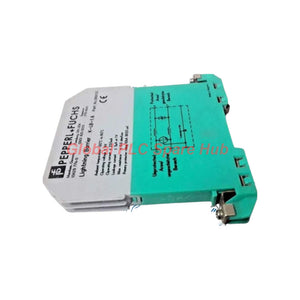

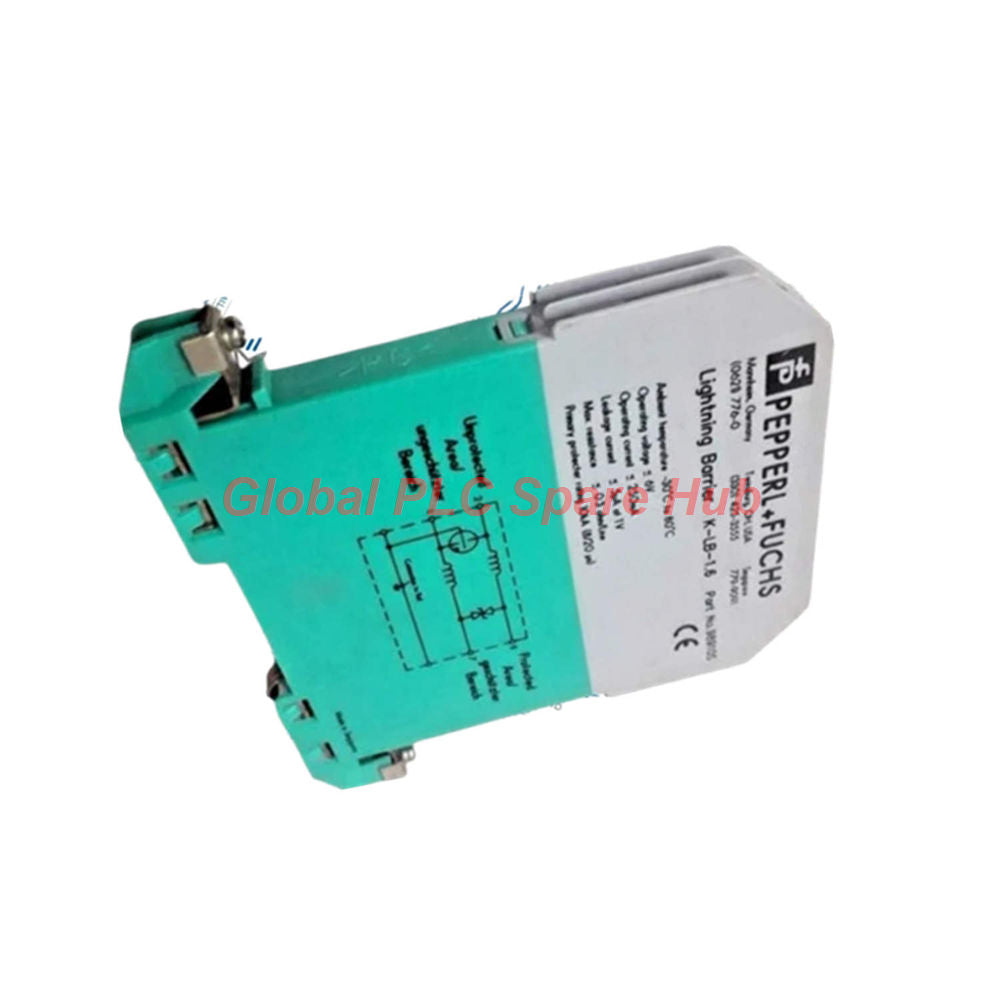

K-LB-1.6 Surge Protection Barrier: Pepperl+Fuchs K-System Surge Guard

Engineering Overview

The K-LB-1.6 from the Pepperl+Fuchs K-System family is a high-density, 1-channel surge protection barrier. It is engineered for robust transient suppression in demanding industrial environments. The unit shields field and control inputs against high-energy transients like lightning strikes and switching surges. Unlike basic protectors, the K-LB-1.6 features a 500V DC breakdown voltage for ground insulation. This provides superior protection for sensitive signal conditioners and intrinsic safety isolated barriers. Its design maintains signal integrity with a 40kHz bandwidth, ensuring high-speed data transmission remains stable.

Technical Performance Matrix

• Brand/Series: Pepperl+Fuchs / K-System
• Model: K-LB-1.6
• Rated Voltage (Un): ≤ 6V DC
• Rated Current (In): ≤ 250mA
• Max. Surge Current (8/20): 20kA (peak), 10kA (nominal)
• Isolation Voltage: 500V DC ground breakdown threshold
• Response Time: 1ns (Symmetrical), 100ns (Asymmetrical)
• Series Resistance: ≤ 0.3 Ω per conductor
• Operating Temperature: -30 °C to +80 °C
• Dimensions: 12.5 x 114 x 110 mm

Deployment & Field Integration

• Mounting: Quick snap-in installation on standard 35mm DIN rail.
• Wiring: Terminals 1 and 2 for unprotected field input; Terminals 7 and 8 for protected system output.
• Equipotentiality: Mandatory ground connection must match the potential of the protected instrument.
• Compatibility: Ideal for PLC analog I/O, transmitters, and signal conditioning equipment requiring < 6V protection.

Compliance & Safety Protocols

• Hazardous Area Rating: II 2(1)G Ex ia IIC T6.
• Certifications: ATEX (PTB 00 ATEX 2176X), IECEx (BAS 14.0010X), CSA (116-0187).
• Operational Benefit: Self-resetting circuitry permits continuous operation after transient events.

Global PLC Spare HUB's Insight

The K-LB-1.6 is our recommended choice for environments where high-frequency switching noise threatens PLC input accuracy. We find this module indispensable for field-mounted transmitters and sensitive signal conditioning racks. Its 500V ground isolation provides a distinct advantage in complex grounding architectures where standard modules often fail due to leakage. It effectively bridges the gap between field-level surge entry and critical control room hardware, ensuring high reliability in process automation.

Diagnostics and Maintenance

• Status Monitoring: Use a multimeter to check leakage; values above 10µA may indicate degradation.
• Grounding Check: Periodically verify the grounding rail connection for sub-1 ohm resistance.
• Fault Analysis: The auto-reset feature minimizes downtime. If signal loss occurs, verify loop continuity at the barrier output terminals.

Logistics & Terms

• Shipping: Express dispatch via FedEx, UPS, or DHL within 24-48 hours.
• Warranty: 12-month manufacturer warranty covering all functional defects.
• Package Contents: 1x K-LB-1.6 Surge Protection Barrier, Technical Instruction Manual.

Expert Professional FAQ

How does the 500V isolation benefit my loop?
It prevents ground loops and high-voltage breakdown from damaging internal components of intrinsically safe barriers during severe electrical storms.

What is the best way to determine if this barrier fits my application?
Evaluate your loop's maximum operating voltage; if it is 6V or below, this module provides the most robust protection within the K-System range.

Should I place the surge protector at the field end or the control room end?
For maximum protection, deploy the barrier as close as possible to the point where field cables enter the safe area, typically at the terminal block rack.

Will the 0.3 ohm resistance significantly drop my signal?
In standard 4-20mA loops, this resistance is negligible, ensuring high-accuracy data transmission with no measurable calibration shift.

Is there a visual indicator when the device has reached its surge limit?
The K-LB-1.6 is a maintenance-free, auto-resetting device. If you suspect a surge, verify loop continuity at the barrier outputs to confirm performance.
