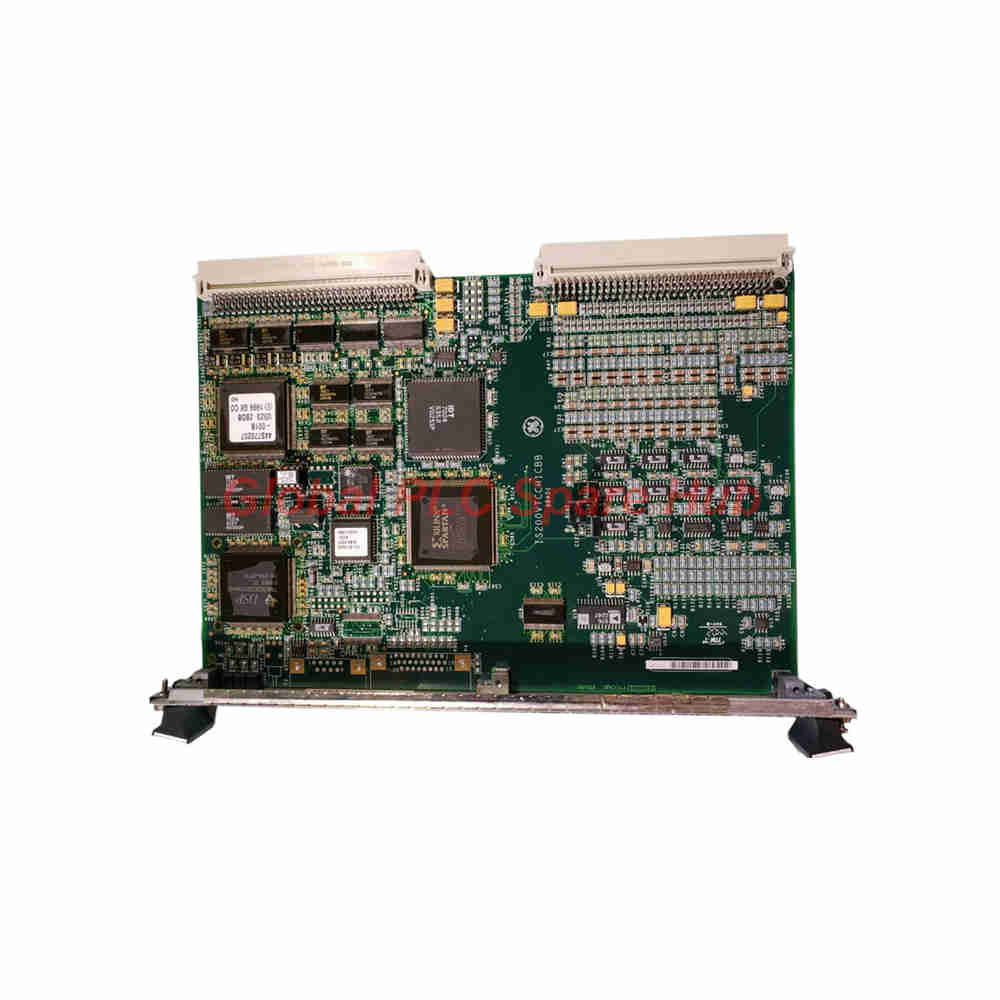

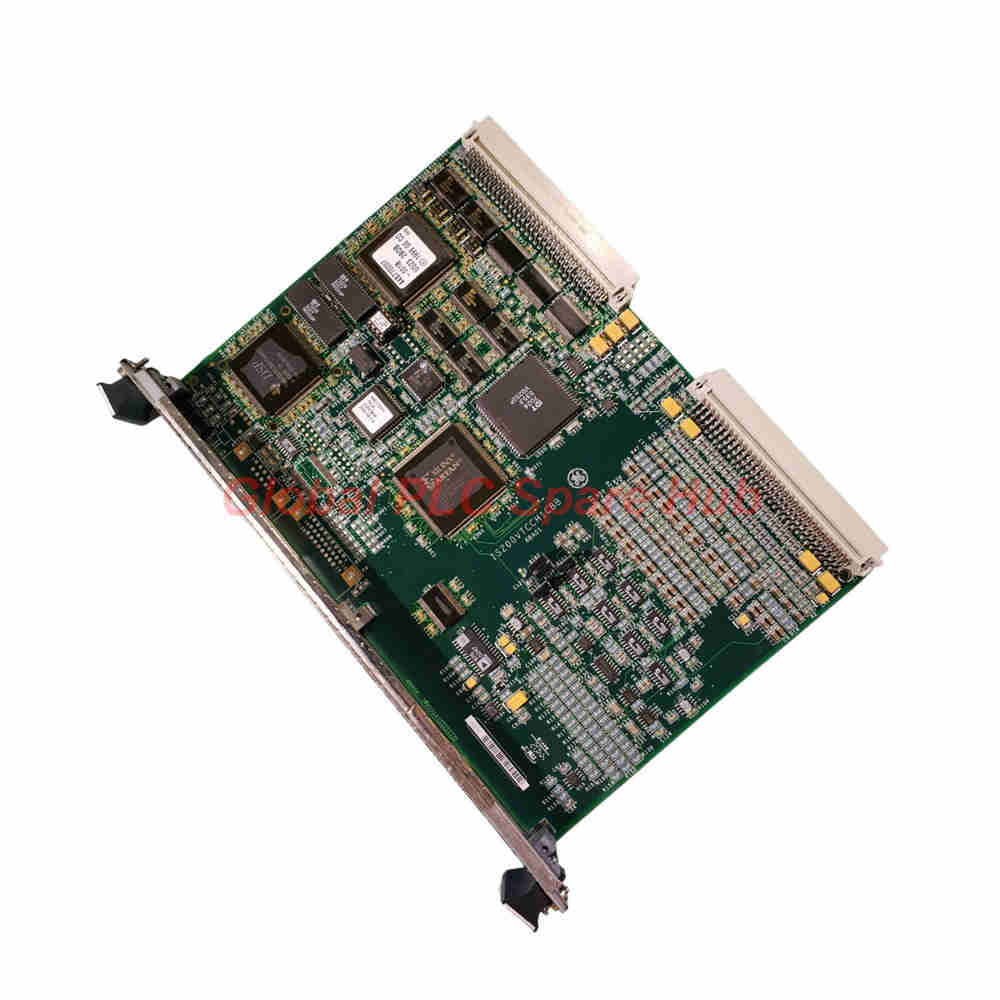

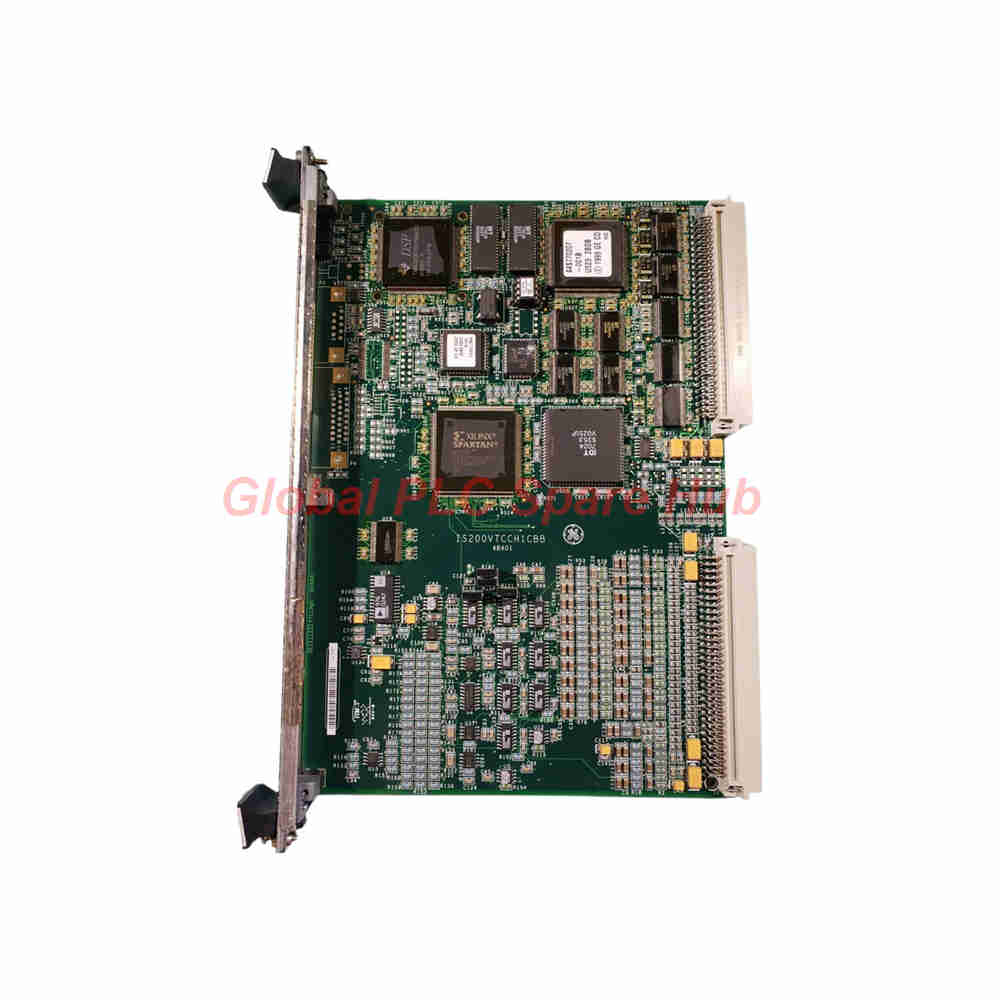

IS200VTCCH1C GE Mark VI Thermocouple Processor Board | High-Precision I/O

Product Overview

The IS200VTCCH1C is a high-performance Thermocouple Processor Board engineered by General Electric (GE) for the Mark VI Speedtronic turbine control system. This module serves as a critical interface for gas and steam turbine management, converting low-level thermal signals into precise digital data for the central control module. Its robust design ensures reliable operation in demanding industrial environments.

Technical Specifications

• Manufacturer: General Electric (GE)
• Series: Mark VI Speedtronic
• Model Number: IS200VTCCH1C
• Module Type: Thermocouple Input Board
• Channel Capacity: 24 isolated thermocouple inputs
• Supported Thermocouple Types: E, J, K, S, and T
• Millivolt Input Range: -8 mV to +45 mV
• A/D Converter Resolution: 16-bit
• Cold-Junction Accuracy: ±2°F
• Environmental Protection: Conformal coated PCB

Installation and Compatibility

• Rack Compatibility: Designed for standard Mark VI VME processor racks.
• Terminal Boards: Compatible with TBTC (Simplex) and TBTCH1B (TMR) boards.
• Mounting: Uses top/bottom levers for secure seating with captive screws.
• Wiring: Supports grounded/ungrounded thermocouples; max lead resistance 450 Ω.
• Distance: Cable length up to 300 meters (984 ft) from the control cabinet.

Maintenance and Diagnostics

• Indicators: Front-faceplate LEDs (Green: RUN, Red: FAIL, Orange: STATUS).
• Calibration: Automatic self-calibration using zero-voltage references.
• Fault Tolerance: Automatic bypass of channels exceeding hardware limits.
• CJC Logic: Dual reference sensors with automatic averaging for high accuracy.

Shipping and Warranty

• Fast Dispatch: Orders processed and shipped within 24-48 hours.
• Logistics: Secure shipping via FedEx, UPS, and DHL.
• Warranty: This IS200VTCCH1C component includes a 12-month quality warranty.

Typical Application Scenarios

The IS200VTCCH1C is essential for heavy-duty power generation, specifically in gas turbine exhaust monitoring, steam turbine metal temperature sensing, and critical thermal feedback loops.

Global PLC Spare HUB's Insight

The IS200VTCCH1C upgrades legacy systems with 16-bit resolution. This enhances precision during startup and cooling sequences, improving the overall reliability of Mark VI controlled assets.

Frequently Asked Questions

Q: How do I know if I need the IS200VTCCH1C or the VTCCH2?
A: The IS200VTCCH1C supports E, J, K, S, and T types. For B, N, or R types, you must use the VTCCH2 board.

Q: Is manual calibration required upon installation?
A: No, the board performs continuous automatic self-calibration during operation.

Q: What does the "FAIL" LED indicate?
A: It typically signifies a loss of communication with the VME backplane or an internal hardware diagnostic error.

Q: What is the benefit of the conformal coating?
A: The coating provides essential protection against humidity, dust, and corrosive elements in industrial environments.
