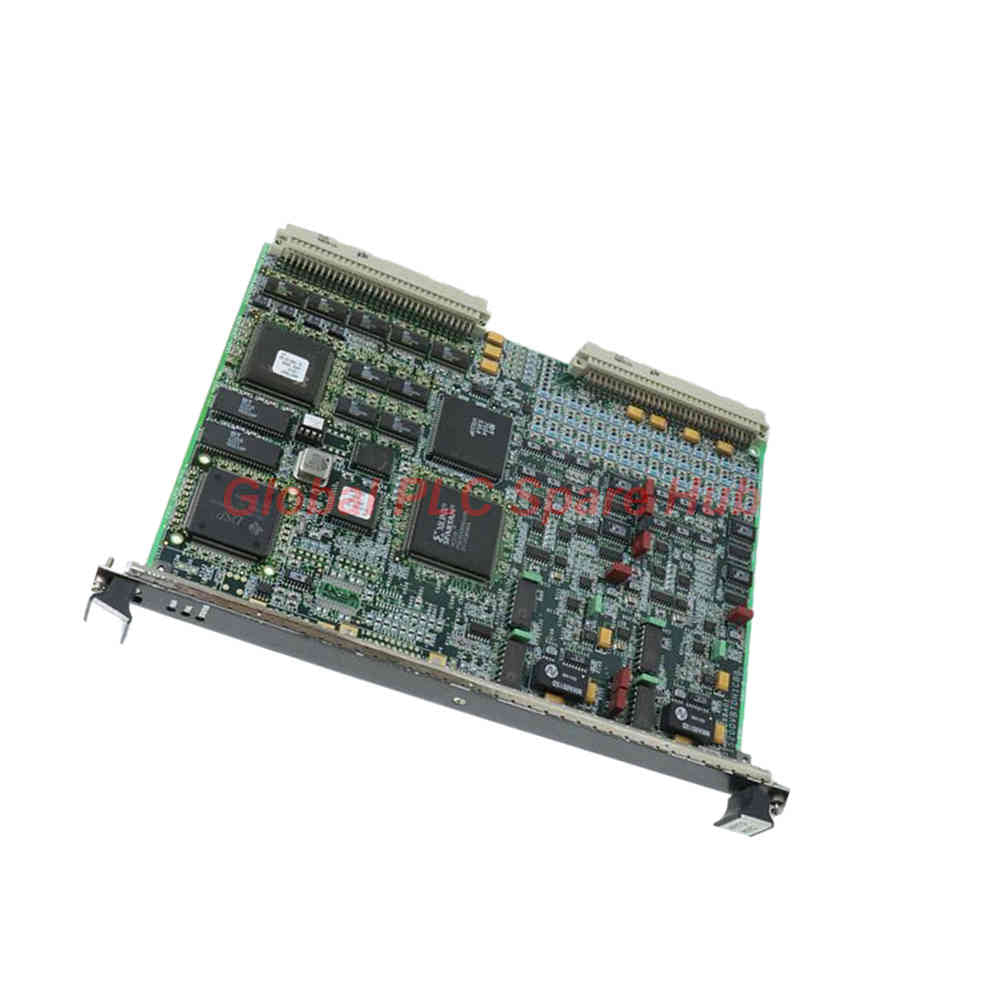

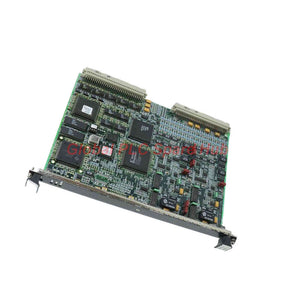

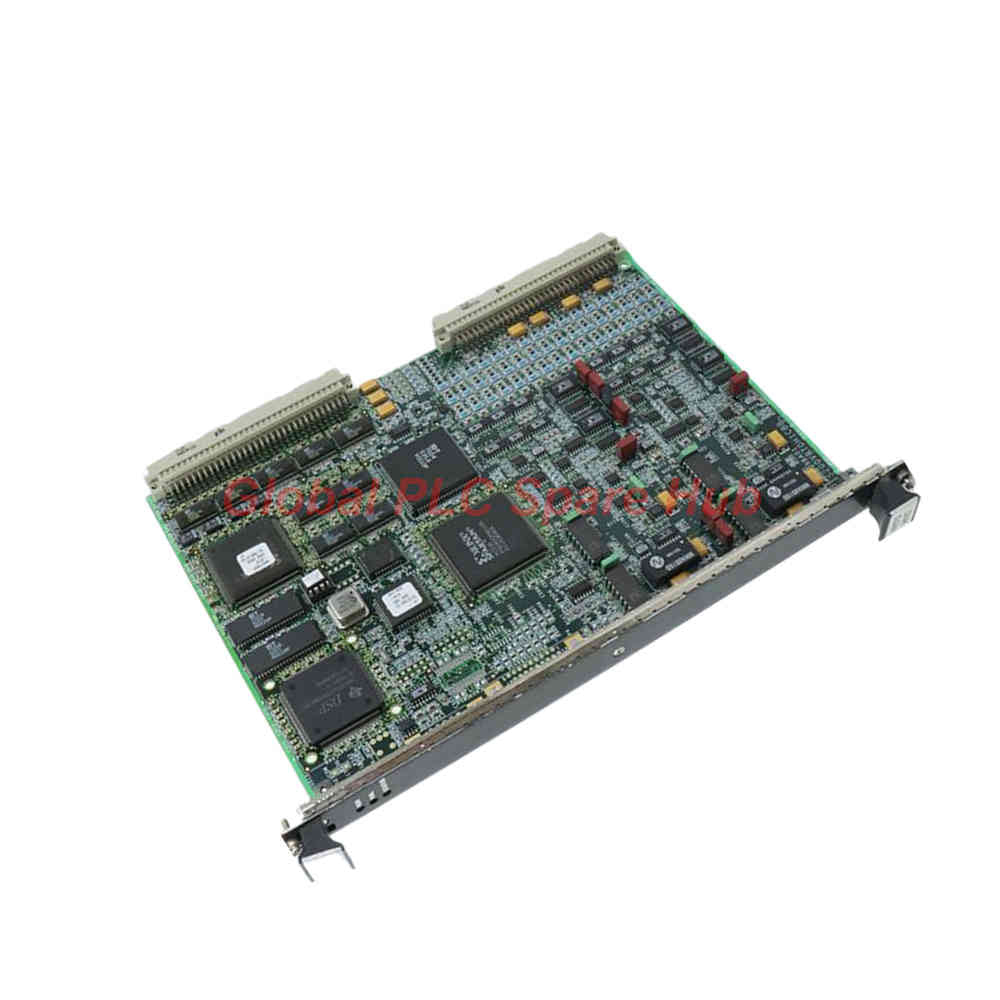

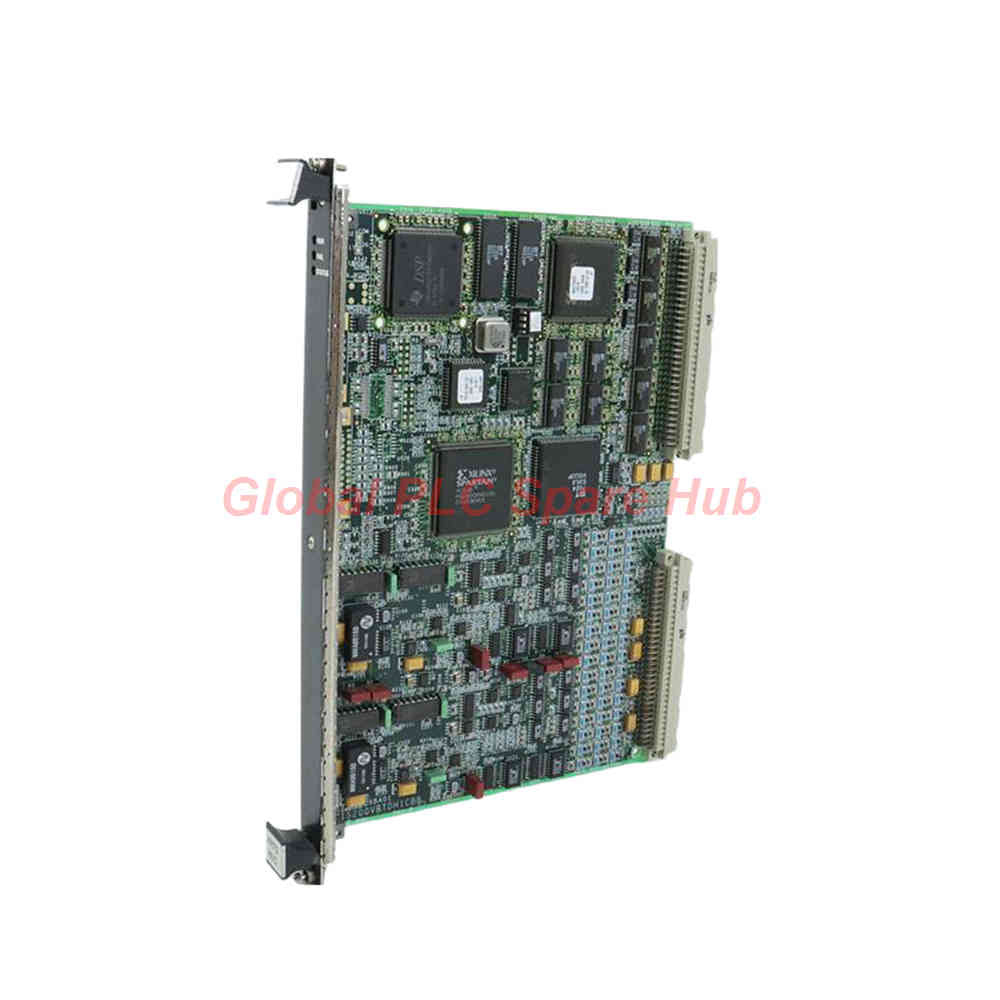

IS200VRTDH1DAB GE Mark VI Resistance Temperature Device Processor

Overview

The IS200VRTDH1DAB is a high-performance Resistance Temperature Device (RTD) processor board developed by General Electric. As a core component of the Mark VI turbine control system, it provides accurate temperature sensing and signal monitoring for heavy-duty gas and steam turbines. This module utilizes advanced signal excitation and digital conversion to ensure optimal data precision within the Mark VI control environment.

Technical Specifications

• Manufacturer: General Electric
• Model: IS200VRTDH1DAB
• Series: Mark VI
• Channel Count: 16 isolated input channels
• Measurement Span: 0.3532 V to 4.054 V
• Common Mode Voltage Range: 5 V
• Maximum Lead Resistance: 15 ohm
• Fast Scan Rate: 40 ms (25 Hz)
• Power Consumption: Less than 12 W
• Environmental Resistance: High-frequency signal decoupling for noise immunity
• Data Interface: VME backplane communication to VCMI

Features and Operational Benefits

• Signal Integrity: On-board high-frequency decoupling minimizes electromagnetic interference and ensures stable temperature readings.
• Fault Tolerance: Redundant pacemakers synchronize multiplexing to prevent data loss during single-component failures.
• Data Accuracy: A strategic skewing mechanism prevents simultaneous excitation of the same RTD, eliminating signal conflict between modules.
• Self-Diagnostics: The module automatically detects open or short circuits by identifying out-of-range inputs and excluding them from the scan list.
• Automatic Recovery: Out-of-range inputs recover automatically within 20 seconds once signals return to valid hardware limits.

Compatibility and Installation

• Mounting: Designed for standard Mark VI VME rack assemblies with front faceplate security.
• Integration: Fully compatible with Mark VI architecture, including seamless HMI communication.
• Installation: Mount the module in the designated VME slot, secure the three-screw faceplate, and ensure backplane connectors are fully seated.

Maintenance and Logistics

• Maintenance: The system supports manual reinstatement of diagnostics and automatic fault clearing for streamlined operation.
• Shipping: We provide fast global shipping via FedEx, UPS, and DHL.
• Lead Time: Orders are processed and dispatched within 24 to 48 hours.
• Warranty: This product includes a comprehensive 12-month quality assurance warranty.
• Package Includes: IS200VRTDH1DAB module, documentation reference guide, and protective industrial packaging.

Typical Application Scenarios

The IS200VRTDH1DAB is ideal for critical temperature monitoring in:

• Heavy-duty gas turbine exhaust gas temperature (EGT) management.
• Steam turbine bearing and lubricant temperature monitoring.
• Power generation facilities requiring triple-redundant control reliability.

Global PLC Spare HUB's Insight

Our engineering team evaluates the IS200VRTDH1DAB as a high-reliability hardware standard for the Mark VI series. Its design emphasizes signal isolation and redundant synchronization, which are vital for preventing unscheduled downtime in power plants. This module is essential for operators managing thermal stresses in large-scale turbine environments.

Frequently Asked Questions (FAQ)

Q: What should I do if my IS200VRTDH1DAB shows an out-of-range error?
A: Check the field wiring for open or short circuits. The module will automatically attempt to resume scanning every 20 seconds once the fault is cleared.

Q: How do I handle signal interference with my IS200VRTDH1DAB?
A: Ensure your cabling follows the Mark VI installation standards. The board’s built-in decoupling handles high-frequency noise, but proper shielding remains best practice.

Q: Can I use this for non-GE systems?
A: No, this module is specifically engineered for the proprietary Mark VI VME backplane architecture and software protocols.

Selection Guide

• Ensure the revision level is compatible with your existing R, S, or T module setup.
• Confirm your VME rack has sufficient power overhead for this 12W module.
• Always match the part number exactly to ensure full functional integration.
