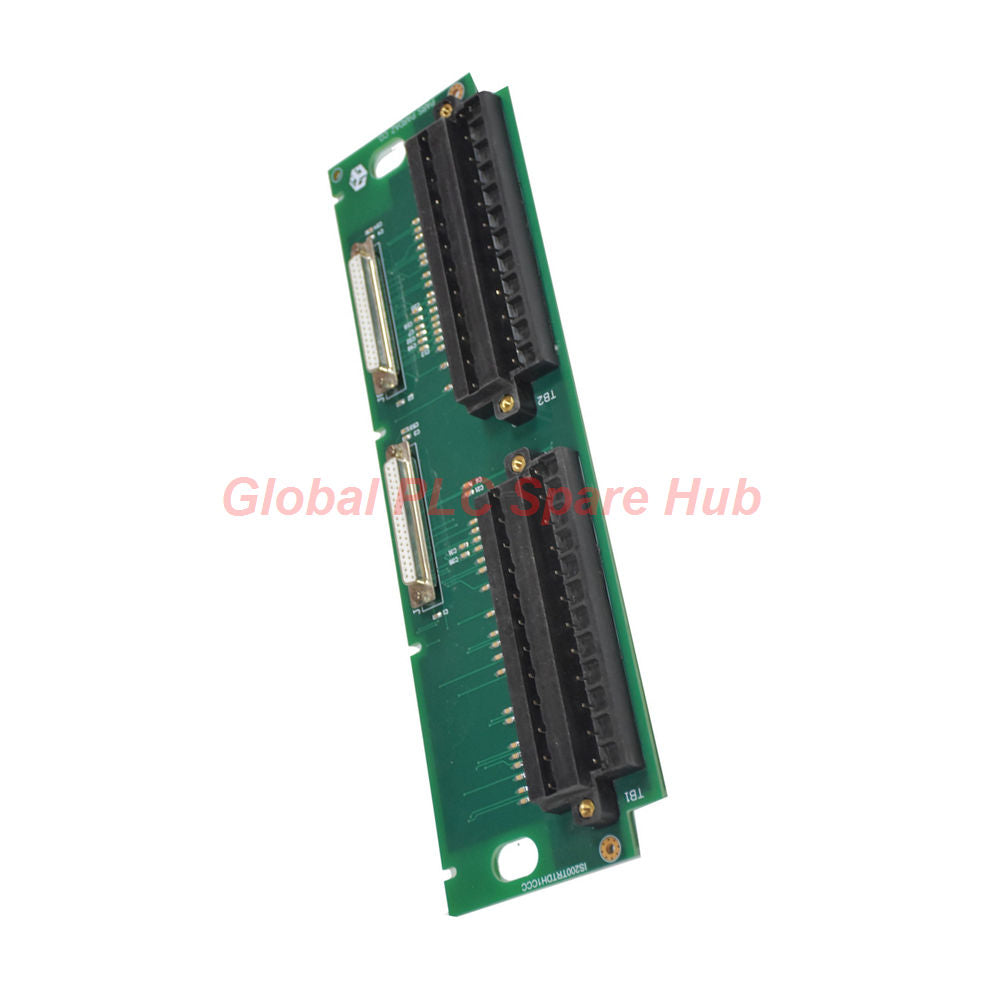

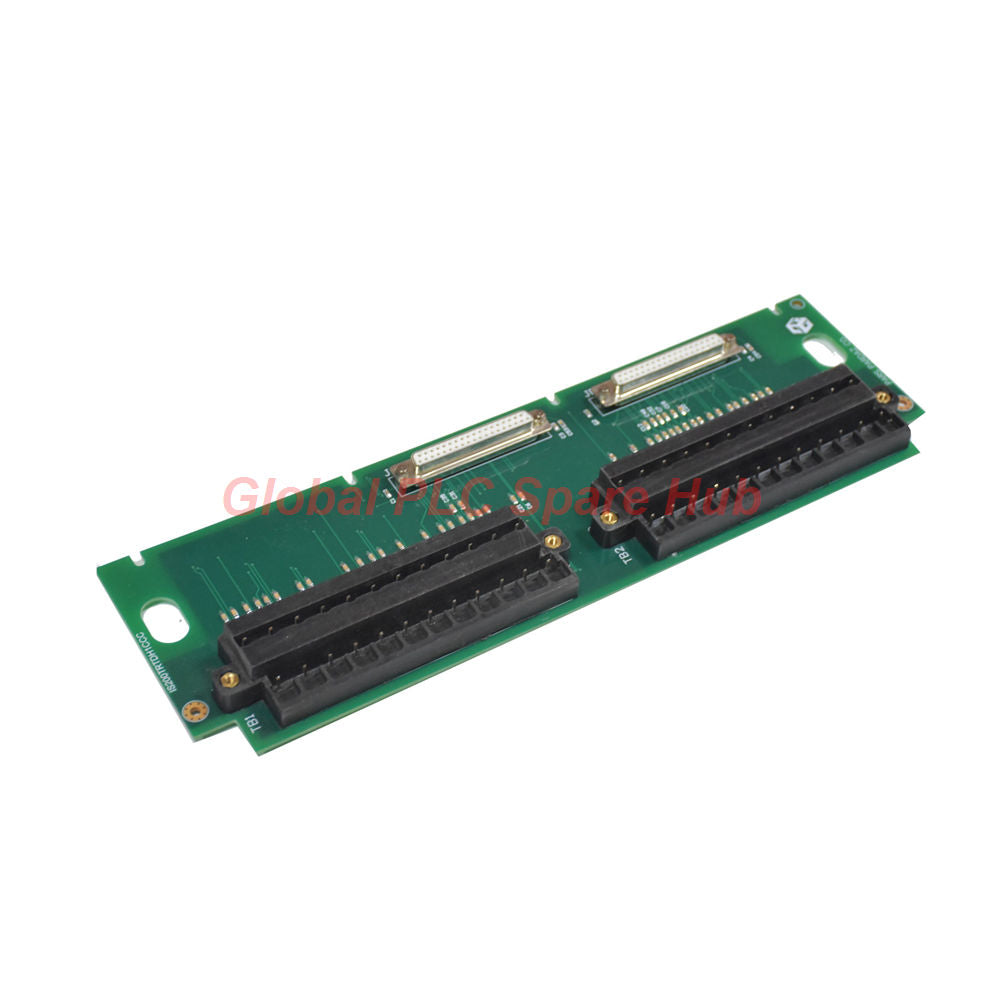

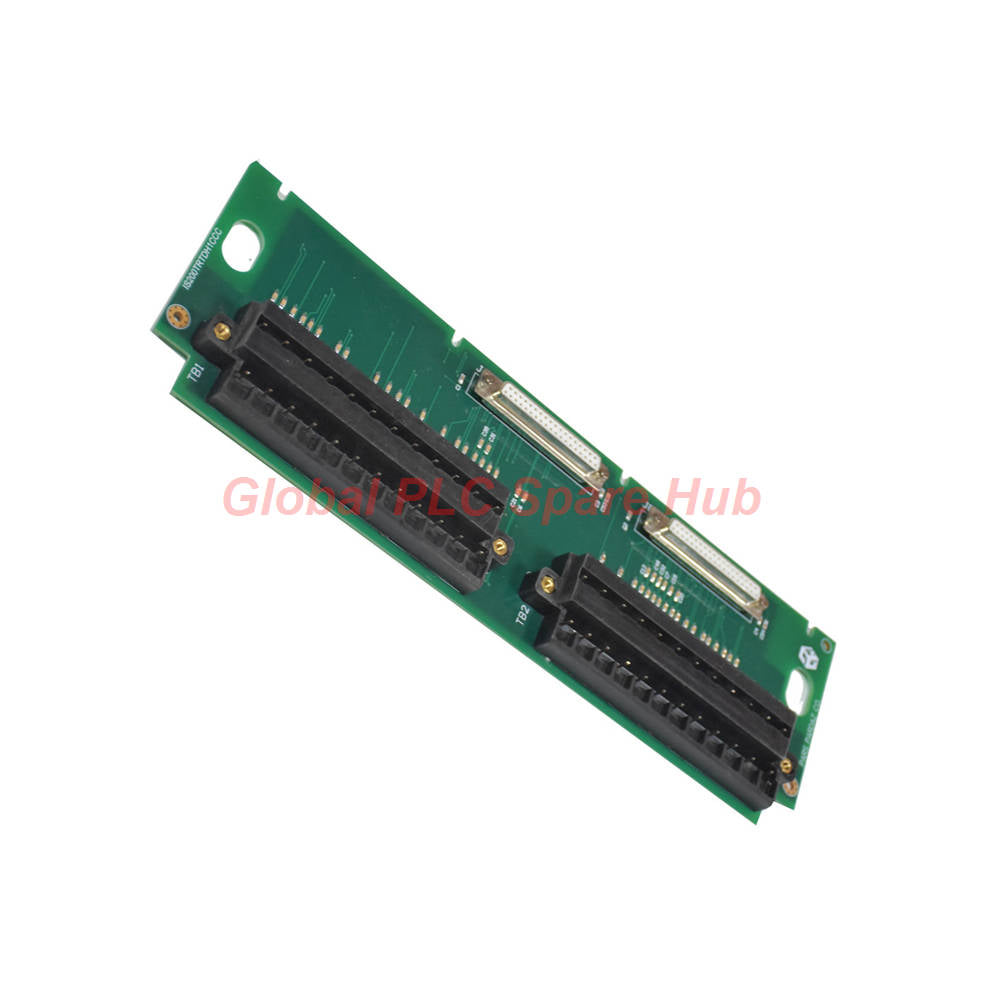

IS200TRTDH1C GE Mark VIe RTD Input Terminal Board

Technical Engineering Profile: IS200TRTDH1C

The IS200TRTDH1C is a mission-critical RTD Input Terminal Board engineered for the GE Mark VIe distributed control architecture. This simplex interface board manages high-precision thermal data acquisition for heavy-duty gas and steam turbines. It serves as the primary bridge between physical field sensors and the digital I/O processor layer.

Core Operational Specifications

• Model Identification: IS200TRTDH1C
• System Platform: General Electric Mark VIe
• Input Capacity: 16 three-wire RTD channels
• Excitation Current: 10 mA DC multiplexed (non-continuous)
• Connectivity: Dual 37-pin female DC-type connectors to VRTD
• Wiring Compatibility: Up to #12 AWG per terminal
• Board Dimensions: 6.25 in x 4.25 in
• Operational Range: 0°C to 60°C
• Input Voltage: 125 V
• Shielding: Integrated chassis-grounded shield strips

Global PLC Spare HUB Professional Insight

Based on Global PLC Spare HUB technical assessments, the IS200TRTDH1C is essential for facilities requiring robust noise immunity in high-EMI environments. We recommend this module for steam turbine bearing monitoring and gas turbine exhaust temperature profiling. Its ability to perform high-frequency decoupling at the point of signal entry significantly reduces spurious trip signals caused by transient electrical surges.

Diagnostic and Maintenance Capabilities

• Limit Monitoring: Integrated hardware and software limit checking for high/low temperature extremes.
• Fault Identification: Automatic RTD open/short circuit detection through resistance verification.
• System Integrity: Each connector features a unique hardware ID device to prevent inter-board connection mismatches.
• Automated Recovery: Inputs outside predefined limits are dynamically masked and restored after 20 seconds to maintain overall system loop stability.

Logistics and Quality Assurance

• Expedited Shipping: 24-48 hour processing for global delivery via FedEx, UPS, and DHL.
• Reliability Promise: Every unit is backed by a 12-month quality assurance warranty.

Advanced Troubleshooting & Selection FAQ

Q: Why does my control system report an incompatibility fault after installing the IS200TRTDH1C?
A: The IS200TRTDH1C uses an ID device on its connectors. Ensure your VRTD cable configuration matches the simplex architecture requirements, as this board is not interchangeable with TMR (TRTDH1B) variants.

Q: What is the maximum allowable cable distance for accurate thermal readings?
A: RTDs can be located up to 300 meters (984 ft) from the cabinet. However, you must maintain a total two-way cable resistance below 15 Ohms to ensure the accuracy of the 10mA excitation current.

Q: Can I use this board for quick-scan applications on a standard turbine?
A: The IS200TRTDH1C is designed for standard scan rates. If your application specifically requires "quick-scan" frequency performance, verify if your system architecture requires the TRTDH2D variant instead.

Q: What should I inspect if my temperature readings appear unstable or noisy?
A: Verify the integrity of the chassis ground connection on the left-side shield terminal strip. High-frequency noise is often coupled into the system if this ground path is compromised or high-impedance.

Q: Selection Guide: How do I choose between different TRTD hardware revisions?
A: Always cross-reference the suffix (H1B, H1C, H1D, H2D) with your specific I/O rack configuration. Selecting a simplex board for a TMR rack will result in immediate configuration errors and potential I/O processor communication failures.
