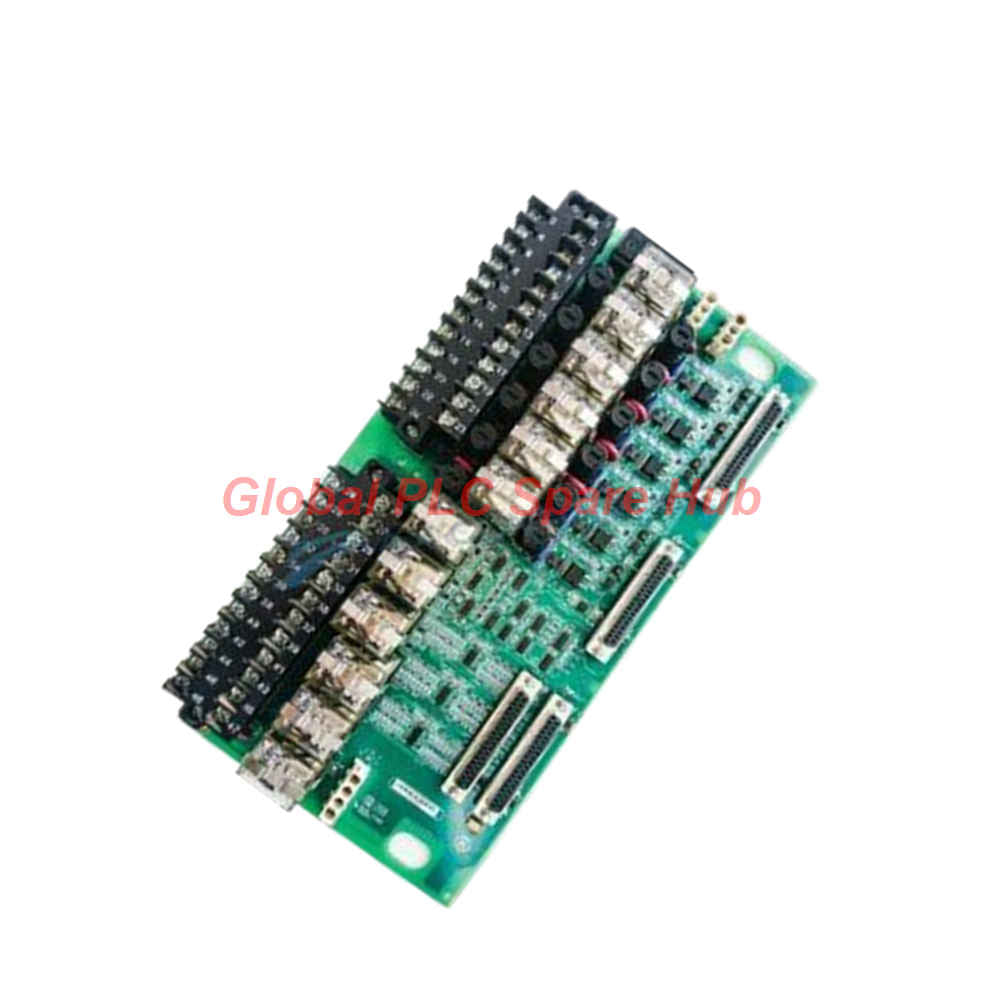

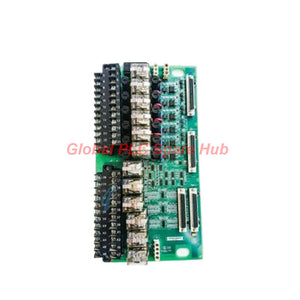

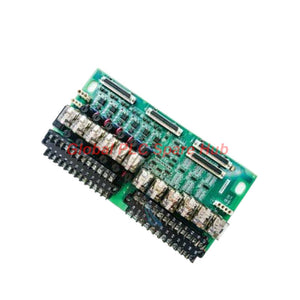

IS200TRLYH1BGF GE Mark VI Relay Output Board – Control Module
Manufacturer: GE
Product No.: IS200TRLYH1BGF
Condition： In stock
Product Type: Relay Output Board
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Global PLC Spare HUB's Insight
Our engineering team at Global PLC Spare HUB identifies the IS200TRLYH1BGF as the backbone of relay-level signal distribution within the Mark VI Speedtronic ecosystem. Unlike standard I/O modules, this board utilizes sophisticated coil current monitoring to bridge the gap between low-voltage logic commands and high-power solenoids. It is the preferred choice for legacy turbine retrofits, offering a seamless physical footprint while providing the robust diagnostic feedback required to preempt solenoid failures in mission-critical power generation environments.
System Configuration and Technical Data
| Metric | Specification Details |
|---|---|
| Model / Part # | IS200TRLYH1BGF |
| Series | Mark VI Speedtronic |
| I/O Density | 12 Plug-in Magnetic Relays |
| Coating Style | Conformal Coating |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
Maintenance and Logistics
Factory Warranty: 12 months from the date of shipment.
Shipping: We utilize FedEx, UPS, and DHL for global delivery.
Processing: We ship all New & Original inventory within 24 to 48 hours.
Application and Diagnostic Capability
The IS200TRLYH1BGF is engineered for high-demand industrial utility:
- Turbine Control: Managing ignition transformers, hydraulic actuators, and fuel control valves.
- Flexibility: Configurable relay circuits support dry contacts or solenoid driving.
- Active Diagnostics: Real-time monitoring of excitation current and command-to-coil agreement.
- Fail-Safe Logic: Automatic de-energization upon communication loss to ensure plant safety.
Frequently Asked Questions
Q: What is the primary function of the jumper-selectable fuses on this board?
A: These allow operators to customize overcurrent protection for specific loads, ensuring safe switching for both low-power signals and high-power solenoids.
Q: How does the TRLY board respond to a communication loss?
A: The board is programmed to force all relays to a de-energized state, immediately isolating outputs if the link with the controller is severed.
Q: Can the IS200TRLYH1BGF replace earlier versions of the TRLY card?
A: It is backward-compatible with the first two revisions; always check I/O software mapping before upgrading.
Q: Why is conformal coating important for this board?
A: In turbine environments, this coating prevents conductive dust or atmospheric moisture from causing short circuits on the PCB.
Q: How do I select Simplex vs TMR configuration?
A: Use Connector JA1 for Simplex systems, and use the JR1, JS1, and JT1 connectors for TMR systems to maintain redundancy.
