IS200JPDSG1ACB Power Distribution Module for Mark VIe Systems

Overview

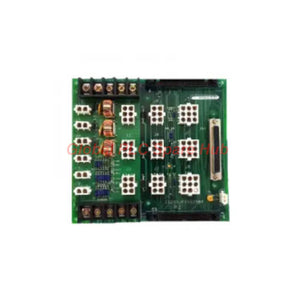

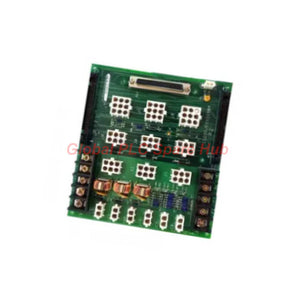

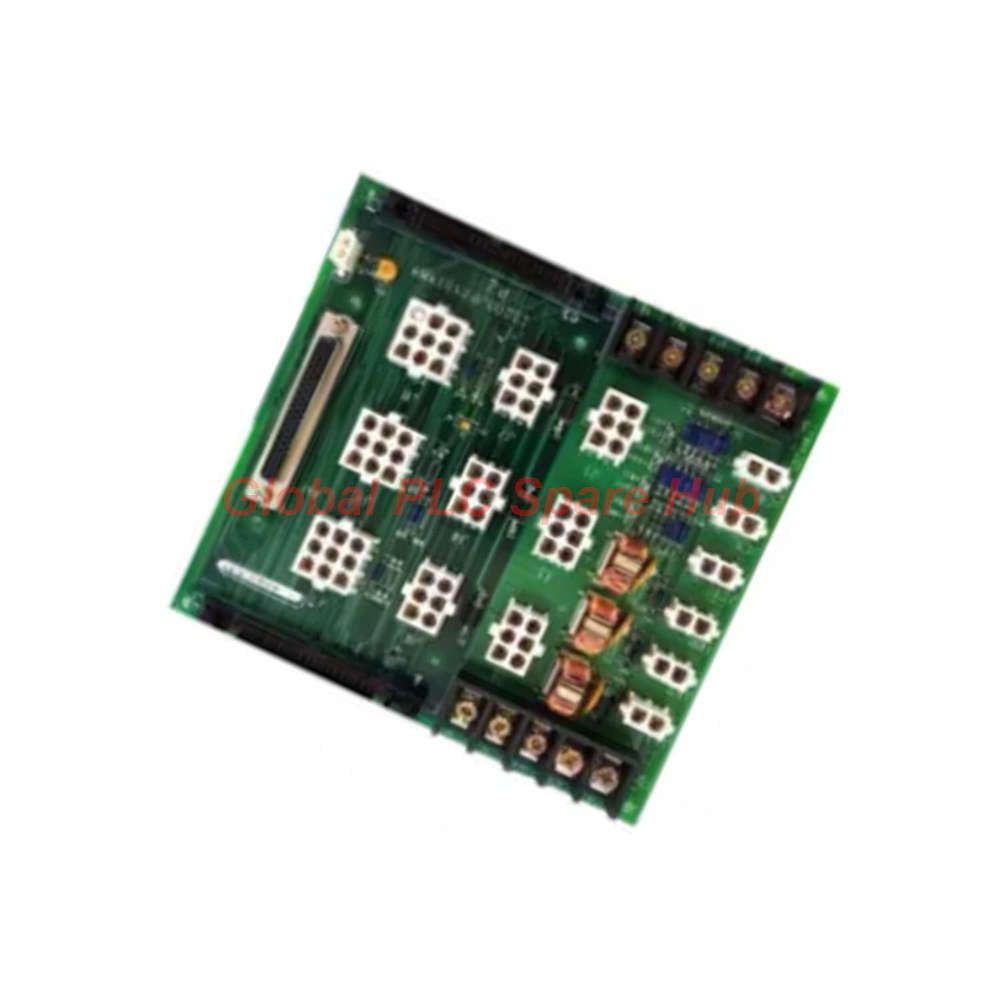

The IS200JPDSG1ACB is a specialized Power Distribution Board engineered for the General Electric Mark VIe platform. Built to support high-reliability turbine control environments, this module facilitates the distribution of 28 V DC power across three isolated buses. By integrating directly with the PPDA I/O pack, it provides comprehensive real-time monitoring and diagnostic feedback, ensuring operational stability in hazardous (Class 1 Division 2) locations.

Engineering Specifications

• Board Type: Power Distribution Board (PDB)
• Input Voltage: 28 V DC (Triple-redundant bus structure)
• Mounting Compatibility: Vertical DIN-rail or direct metal frame
• Environmental Rating: Class 1, Division 2 certified
• Operating Range: -30°C to +65°C
• Dimensions: 16.51 cm x 17.8 cm
• Connectivity: 50-pin diagnostic ribbon cable interface

Technical Capabilities

The IS200JPDSG1ACB manages power flux through dedicated JR, JS, and JT inputs, ensuring that rack control supplies (JCR, JCS, JCT) receive regulated voltage. The module features six dedicated Mate-N-Lok outputs for downstream JPDL board connectivity. To handle noise and overcurrent scenarios, auxiliary outputs (JAR, JAS, JAT) incorporate common-mode chokes and PTC fuses, safeguarding the system against branch circuit faults without the need for traditional manual fuse replacement.

Global PLC Spare HUB's Insight

Our engineering team highlights the IS200JPDSG1ACB as an essential component for power redundancy strategies. In complex Mark VIe installations, the board’s ability to "diode-OR" the P28 power output ensures the PPDA pack remains energized even if individual supply lines fail. We recommend this module specifically for control panels requiring integrated diagnostic signaling for auxiliary power status.

Deployment Applications

• Gas and Steam Turbine Control Power Distribution.
• Hazardous-area I/O rack power management.
• Redundant 28 V DC supply systems for critical safety loops.
• Distributed control systems (DCS) requiring localized diagnostic feedback.
• Integrated power supply monitoring for multiple JPDL expansion boards.

Logistics & Quality Assurance

• Shipping: Secure, tracked transit via FedEx, UPS, and DHL.
• Dispatch: Expedited processing within 24-48 hours.
• Warranty: 12-month performance coverage included on all units.

Technical FAQ

Q: How does the system monitor the health of the 28 V DC buses?
A: The board transmits real-time status via a 50-pin ribbon cable to the PPDA I/O pack, which parses dry contact signals and voltage levels to flag supply health issues.

Q: What are the limits of the internal 28 V bus access terminals (TB1/TB2)?
A: These terminals support a maximum continuous current of 35 A, with ground terminals rated up to 75 A, making them ideal for high-load jumpering between adjacent boards.

Q: Can I use this board without a PPDA diagnostic pack?
A: While the board can distribute power, the primary diagnostic capabilities (voltage feedback/status monitoring) will be lost; integration with the PPDA is highly recommended for system integrity.

Q: How are auxiliary circuits protected against short circuits?
A: The auxiliary outputs feature positive temperature coefficient (PTC) fuses which automatically reset after a fault condition is removed, minimizing maintenance downtime.

Q: Selection Advice: What should I check before replacing an existing PDB?
A: Ensure your current 28 V DC supply capacity matches the consumption of your downstream I/O packs, and verify that your rack configuration supports the specific 3x2 Mate-N-Lok pinout of this board.
