IS200DSPXH2CAA GE EX2100 Digital Signal Processor Module

Global PLC Spare HUB's Insight

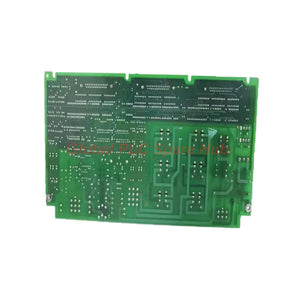

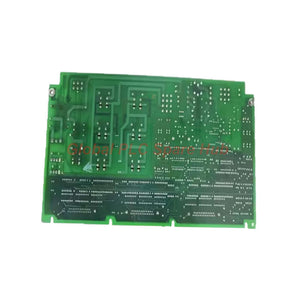

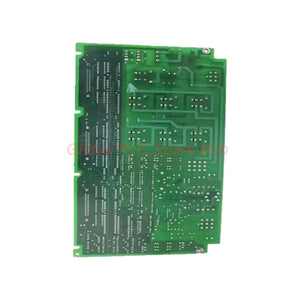

The IS200DSPXH2CAA serves as the computational heart of GE’s Innovation Series and EX2100 excitation systems. By pairing a 60 MHz high-performance DSP with a custom ASIC, this module excels in demanding real-time regulation tasks, such as bridge gating and generator field control. Unlike generic signal processors, the IS200DSPXH2CAA utilizes dedicated hardware-level interrupts to manage inner-loop load pulses, ensuring microsecond-level synchronization of tachometer counters and I/O feedback. For engineers, this board is the gold standard for maintaining precise motor regulator logic and stable power-switching frequency.

Technical Specifications

• Manufacturer: General Electric Industrial Systems
• Series: Innovation / EX2100
• Model Number: IS200DSPXH2CAA
• Architecture: 60 MHz Digital Signal Processor (DSP) with ASIC logic
• Memory Architecture: FLASH, RAM, and NVRAM
• Communication: Dual 5 Mb/s ISBus interfaces (Master/Slave)
• Interrupt Management: Stack overflow detection (INT0), Load pulse handling (INT1-INT3)
• I/O Interface: 12 Channels, P1 (Backplane), P5 (Emulator), P6 (Engineering Monitor)
• Form Factor: DIN-rail mount, 15.9 cm x 17.8 cm
• Operating Temperature: -30 °C to 65 °C

Application & Diagnostic Capability

The IS200DSPXH2CAA is primarily deployed in high-capacity energy generation and industrial drive environments, including gas and steam turbines as well as complex excitation control platforms. Its diagnostic capability is rooted in its real-time monitoring suite:

• Visual Feedback: Faceplate red (fault) and green (status) LEDs provide instant operational insight.
• Hard Reset Protection: The board utilizes an intelligent watchdog timer; if the DSP fails to toggle the timer within the configured interval, a hard reset is triggered to prevent equipment damage.
• Memory Integrity: Advanced stack overflow detection for both foreground (internal) and background (SRAM) memory prevents data corruption during high-frequency processing tasks.

Logistics & Quality Assurance

• Shipping Providers: Reliable international delivery via FedEx, UPS, and DHL.
• Dispatch Time: Orders are processed and ready for shipment within 24-48 hours.
• Warranty Policy: This product includes a 12-month performance warranty, ensuring long-term operational stability.

Professional FAQ

Q: What is the primary function of the onboard Watchdog Timer?

A: The watchdog timer is a critical safety feature that monitors the DSP’s operational health; if the DSP fails to toggle the timer within the configured interval, the card executes a hard reset to prevent invalid control outputs.

Q: Can I use the five HIFI differential inputs for specialized feedback?

A: Yes, these inputs support two quadrature incremental tachometer interfaces or can be configured as application-layer VCO counters for high-speed frequency tracking.

Q: Does the board support field firmware updates?

A: Yes, the board utilizes internal FLASH and NVRAM, allowing for application code and configuration parameter updates to ensure compatibility with evolving EX2100 drive requirements.

Q: Selection Guidance: How do I ensure compatibility with my existing EX2100 setup?

A: Verify that your control rack supports the backplane P1 connector pin configuration and confirm that your system firmware version aligns with the revision history of this DSPX module.

Q: What should I check if the Red Fault LED remains solid?

A: A solid red fault LED usually indicates a critical stack overflow or a watchdog time-out; check your application loop load pulse signals and verify that the foreground/background memory stacks are not being overwhelmed by high-frequency task requests.
