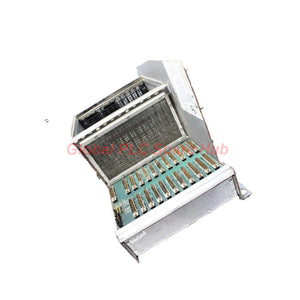

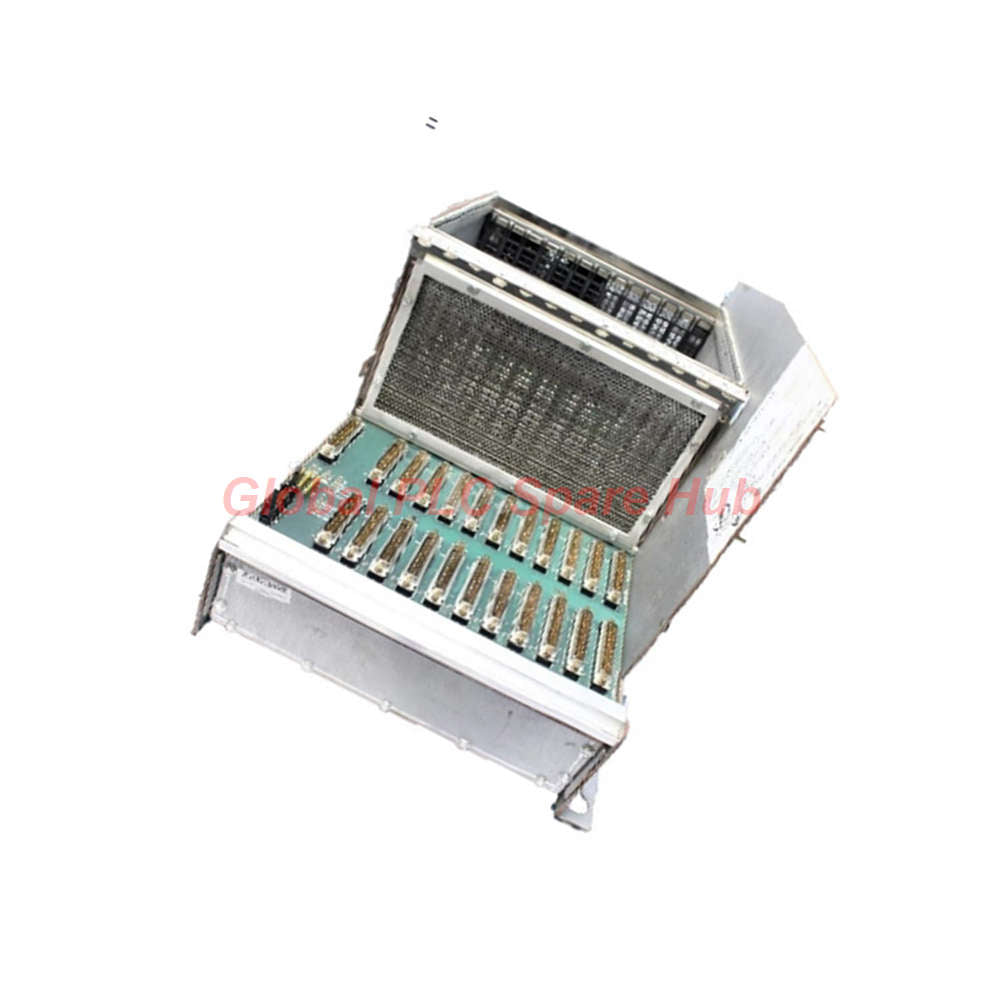

IS200BPVDG1BR1A GE Mark VI System Rack VME Backplane Base Chassis

IS200BPVDG1BR1A General Electric 13-Slot System Rack | Mark VI Control Series

Oiltech Controls provides high-performance hardware architecture to support heavy industrial processing systems globally. The IS200BPVDG1BR1A system rack serves as the central physical and electrical backbone for complex turbine control processing nodes. This ruggedized chassis ensures absolute signal integrity, rigid circuit card alignment, and multi-rail power delivery under continuous thermal stress.

Global PLC Spare HUB's Insight

• The IS200BPVDG1BR1A functions as the foundational mechanical bus framework, hosting high-density computing modules securely.
• An integrated high-reliability backplane layer routes critical power and inter-board communications seamlessly across the parallel slot array.
• The multi-voltage power distribution rails utilize heavy copper planes to suppress transient cross-talk and baseline voltage fluctuations.
• The passive physical ventilation layout maximizes vertical thermodynamic convection currents to mitigate critical hotspot generation.
• Side-mounting power supply configurations enable modular line input transitions without disrupting the internal VME module alignment.

Target Equipment and Field Application Scenarios

• GE Speedtronic Mark VI Core Racks: Main controller, protection, and input/output card assembly for heavy-duty gas turbine networks.
• Steam Turbine Protection Units: Reliable mechanical housing for critical overspeed trip and steam valve positioning loops.
• Thermal Power Generation Plants: Centralized data acquisition and real-time processing hubs in high-capacity utility facilities.
• Heavy Industrial Cogeneration: Distributed control system clusters running synchronization loops within petrochemical or manufacturing complexes.

Diagnostic Capabilities and Power Rail Mapping

• System diagnostics focus on monitoring continuous multi-rail DC voltage outputs delivered straight to the VME backplane configuration.
• The backplane power network distributes stable, isolated voltage baselines of +5 V, ±12 V, ±15 V, and ±28 V to all active module slots.
• An auxiliary 335 V DC power output option can integrate directly to feed remote flame detectors tied to the TRPG terminal board.
• Flexible voltage input paths accept a high-voltage 125 V DC input sourced directly from the facility Power Distribution Module (PDM).
• For low-voltage operation profiles, the power infrastructure accommodates a secondary 24 V DC direct input configuration.

Technical Parameters and Specifications

• Manufacturer: General Electric (GE)
• Model Identifier: IS200BPVDG1BR1A
• Product Family: Mark VI Control System
• Component Type: 13-Slot VME Style System Rack Chassis
• Total Board Capacitance: 13 dedicated spaces for connecting control and I/O cards
• Operational Humidity Range: 5% to 95% relative humidity, strictly non-condensing
• System Operating Temperature: 32 to 113°F (0 to 45°C) ambient environment limits
• Safe Storage Temperature: -40 to +158°F (-40 to +70°C) passive storage threshold
• Input Supply Versatility: Dual capability supporting 125 V DC or 24 V DC input streams
• Country of Manufacture: United States of America (USA)

Procurement Logistics and Warranty Assurance

• Your purchase includes a comprehensive 12-month component integrity and performance warranty.
• We ship this heavy-duty mechanical frame inside reinforced, shock-absorbing transport cases to prevent chassis warping during international handling.
• All international shipments go out through premier expedited logistics networks including Fedex, UPS, and DHL.
• To request a formal commercial quotation or to check live warehouse stock levels, email our technical team at info@oiltechcontrols.com or message via WhatsApp: +86 158 8020 0923.

Frequently Asked Questions and Engineering Buying Guide

What specific electrical safety procedures must engineers follow when checking backplane power rails?

Engineers must utilize isolated differential probes at the test points to verify the +5 V, ±12 V, ±15 V, and ±28 V DC rails. If your specific system setup uses the high-voltage 335 V DC output option for flame detectors, exercise extreme caution during diagnostic routines. Ensure the main input breakers on the Power Distribution Module are tagged out before servicing backplane connections.

How does the non-condensing humidity specification impact cabinet design for outdoor turbine enclosures?

The rack handles 5% to 95% non-condensing relative humidity, meaning localized condensation within the control cabinet will cause trace shorting. For outdoor settings, your team must use climate-controlled NEMA enclosures with anti-condensation space heaters. This environment control keeps the ambient atmosphere within the 32 to 113°F operational limit and prevents moisture tracking on the backplane planes.

Can this 13-slot chassis be split or partitioned to run two independent control loops simultaneously?

No, the integrated backplane shares a common communication bus and power distribution network across all 13 slots. Splitting the bus physically or electrically is not supported by the standard VME design. For fully independent or redundant control loops, you must deploy multiple separate system racks linked through your main control network.

What indicators point to a power supply or backplane bus failure inside the rack assembly?

A drop in the system logic voltage below the +5 V threshold will trigger a processor drop-out fault on your controller modules. Check for localized discoloration along the slot connectors and inspect the side-mounted power supply input fuses if a whole rail drops out. Use your system diagnostic software to isolate communication timeout errors targeting specific slot addressing ranges.

What mechanical details should be checked when swapping a legacy Mark VI rack for a replacement unit?

Always verify the exact alphanumeric suffix version on your active frame to ensure total compatibility with existing card guides and grounding tabs. Ensure that all terminal connections for either the 125 V DC or 24 V DC inputs line up cleanly without tension. Verify that the chassis ground strap connects directly to the master plant earth ground bus to prevent floating-neutral noise interference.
