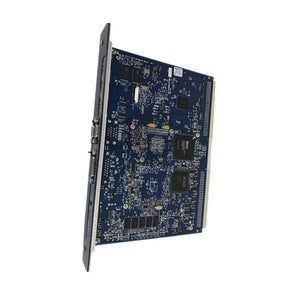

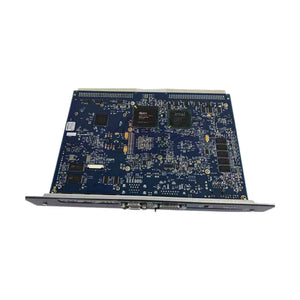

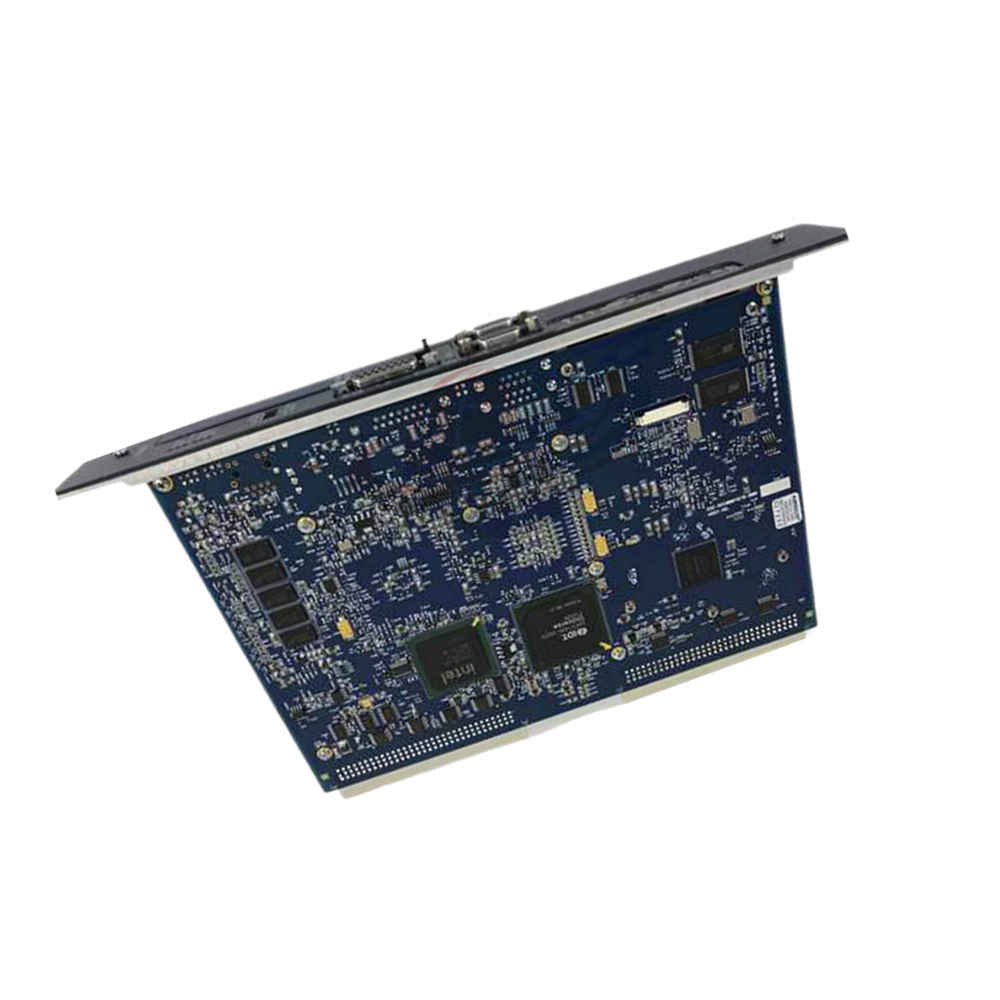

IC698CPE040 GE Fanuc RX7i PACSystem CPU High-Speed PLC Processor

IC698CPE040 GE Fanuc RX7i PACSystem CPU

IC698CPE040 is a high-performance industrial CPU designed for the GE Fanuc RX7i PACSystem platform.

The processor combines fast execution speed, large memory capacity, and advanced communication flexibility for demanding automation systems.

This CPU architecture supports complex process logic, high-speed control tasks, and long-term industrial scalability.

Its Pentium-M processing core improves application responsiveness in critical production environments.

Global PLC Spare HUB's Insight

IC698CPE040 remains a preferred solution for engineers managing large-scale PACSystem infrastructures.

The 1800 MHz processor significantly improves scan performance for data-intensive industrial operations.

Its isolated communication architecture also enhances reliability in electrically noisy plant environments.

The module supports future-oriented system upgrades without requiring complete controller replacement.

Recommended Industrial Integration

• Distributed manufacturing systems
• Power generation automation
• Oil and gas process control
• Water treatment facilities
• High-speed packaging machinery
• Material handling systems
• Process batching applications
• Factory-wide PLC control networks

Core Processing and Diagnostic Functions

• Real-time logic execution
• Advanced process sequencing
• Industrial communication management
• Remote diagnostics access
• Firmware upgrade capability
• Serial device integration
• System fault monitoring
• Production line performance optimization

Hardware Structure and Resource Layout

• CPU Processing Core
  • Pentium-M processor architecture
  • 1800 MHz execution speed
  • Optimized instruction processing capability
• Memory Architecture
  • 64 MB user memory
  • Supports large automation projects
  • Stable data handling performance
• Communication Interface Layout
  • Three isolated serial communication ports
  • Port 1:
    • RS-232 compatible
    • Firmware update support
    • Activity status indication
  • Port 2:
    • RS-485 compatible
    • Shielded cable requirement
    • External device communication
  • Port 3:
    • Dedicated Ethernet station manager port
    • RS-232 compatible
• Power Requirements
  • 5 Vdc load:
    • 6.8 Amps
  • 12 Vdc load:
    • 0.003 Amps
  • -12 Vdc load:
    • 0.003 Amps

Technical Specifications

• Manufacturer: GE Fanuc
• Model: IC698CPE040
• Series: RX7i PACSystem
• Product Type: Central Processing Unit (CPU)
• Processor Type: Pentium-M CPU
• Processor Speed: 1800 MHz
• User Memory: 64 MB
• Serial Ports: 3 isolated ports
• Voltage Type: DC
• Voltage Ratings: -12 Vdc, 5 Vdc, 12 Vdc
• 5 Vdc Load Requirement: 6.8 A
• 12 Vdc Load Requirement: 0.003 A
• -12 Vdc Load Requirement: 0.003 A
• Firmware Upgrade Capability: Supported
• Communication Isolation: Independent isolated ports
• Cable Recommendation: Shielded cables for RS-485 communication
• Front Access Ports: Available
• Industrial Compatibility: RX7i PACSystem PLC platforms

Engineering-Level Advantages

• Fast instruction execution for large control strategies
• Reliable memory allocation for complex applications
• Improved communication integrity through port isolation
• Flexible integration with legacy serial devices
• Supports long operational lifecycle planning
• Suitable for high-density automation environments

Installation and Commissioning Notes

• Verify chassis compatibility before installation
• Use shielded wiring for RS-485 communication channels
• Maintain proper grounding practices inside cabinets
• Check firmware revision compatibility during startup
• Monitor CPU loading during commissioning tests

Maintenance and Serviceability

• Front-facing serial ports simplify diagnostics access
• Supports online firmware maintenance operations
• Isolated interfaces reduce communication fault propagation
• Improves troubleshooting efficiency during field service
• Suitable for long-term industrial maintenance programs

Shipping and Logistics Support

• 24–48 hour dispatch available
• Secure industrial protective packaging included
• Worldwide shipping support:
  • FedEx
  • UPS
  • DHL

Warranty Coverage

• 12-month warranty support
• Functional verification before shipment
• Technical assistance available during warranty period

Professional FAQ

• Why do engineers prefer isolated serial ports in PLC systems?

  Isolation minimizes electrical interference and improves communication stability.

• What should users consider before expanding RX7i applications?

  Evaluate memory allocation, scan time impact, and communication bandwidth requirements.

• How can users improve RS-485 communication reliability?

  Use shielded twisted-pair cables and proper network termination practices.

• Which applications benefit most from the 1800 MHz processor?

  High-speed sequencing, large process databases, and complex motion coordination applications.

• What is an important maintenance recommendation for long-term operation?

  Regularly verify firmware compatibility before adding new field devices or expansion modules.
