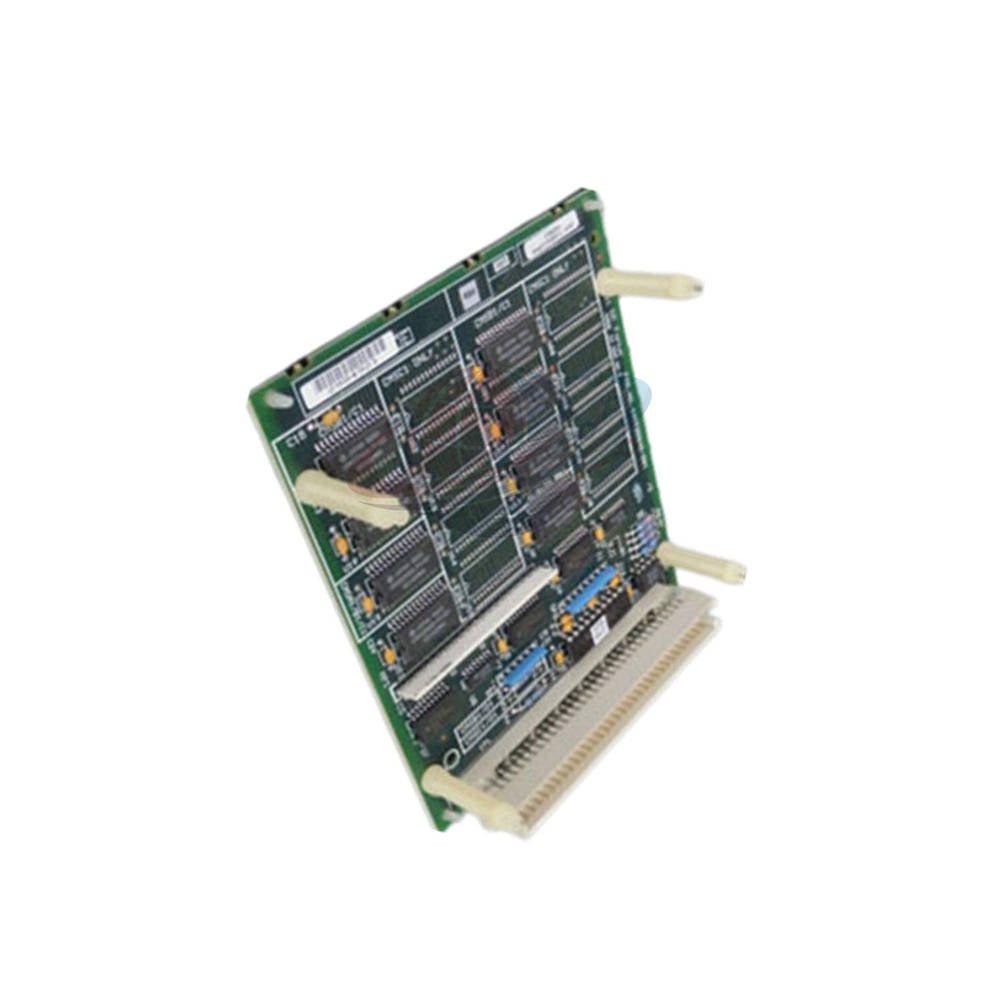

IC697MEM717 GE Fanuc PLC Memory Module Series 90-70

IC697MEM717 | GE Fanuc Series 90-70 Memory Expansion Module

The IC697MEM717 extends memory resources for GE Fanuc Series 90-70 PLC systems.

This module supports program storage, data retention, and daughterboard expansion functions inside industrial automation architectures.

GE Fanuc designed the module for CPU 771 and CPU 772 platforms requiring stable long-term memory operation.

The compact daughterboard structure increases memory capacity without occupying additional rack slots.

Industrial engineers commonly use this module in control systems requiring dependable logic storage and battery-backed retention.

Core Functional Architecture

• Expands PLC logic and application memory
• Supports configurable program and data storage
• Operates as a daughterboard expansion solution
• Maintains retained memory during power interruptions
• Supports battery-backed operation architecture
• Integrates directly with compatible CPU modules
• Reduces rack space consumption
• Supports continuous PLC memory diagnostics
• Designed for industrial automation environments

Technical Specifications

• Manufacturer: GE Fanuc
• Model: IC697MEM717
• Series: Series 90-70
• Product Type: PLC Memory Expansion Module
• Supported CPUs: GE 771 and 772 CPUs
• Memory Capacity Options: 64 KB, 128 KB, 256 KB, 512 KB
• Minimum Storage Capacity: 64 KB
• Program Storage: Supported
• Data Storage: Supported
• Daughterboard Installation: Supported
• Memory Retention: 6 months nominal without power
• Shelf Life: 10 years at 20°C
• Error Checking: Continuous PLC background verification
• Battery Support: Retains user memory and system clock
• Installation Method: Internal daughterboard configuration

Operational Memory Behavior

• Continuously validates logic program integrity
• Performs background memory verification
• Maintains stored data during power cycling
• Supports hard reset and soft reset validation
• Protects PLC application continuity
• Improves long-term system reliability
• Supports stable industrial runtime environments

System Integration Structure

• IC697MEM717 Integration Design
  • Installs directly onto supported CPU or PCM modules
  • Supplements onboard base memory resources
  • Eliminates additional rack slot requirements
  • Supports PCM memory retention functionality
  • Interfaces with Series 90-70 processing systems
  • Supports Windows and MS-DOS configuration tools

Suitable Equipment and System Compatibility

• GE Fanuc Series 90-70 PLC racks
• CPU 771 control systems
• CPU 772 automation systems
• Industrial process controllers
• Machine automation platforms
• Factory process sequencing systems
• Legacy industrial control cabinets
• Programmable coprocessor applications

Typical Industrial Applications

• Manufacturing automation systems
• Continuous process control
• Industrial material handling lines
• Power generation automation
• Water treatment control systems
• Factory logic expansion projects
• PLC modernization maintenance programs
• Industrial backup memory applications

Diagnostic and Reliability Capability

• Detects memory corruption during operation
• Improves PLC fault monitoring efficiency
• Supports stable application recovery after outages
• Maintains accurate calendar clock operation
• Improves controller startup consistency
• Supports preventive maintenance workflows
• Enhances control system operational continuity

Global PLC Spare HUB's Insight

The IC697MEM717 remains valuable in long-life industrial PLC systems.

Its daughterboard structure allows efficient memory expansion without additional chassis modifications.

Engineers appreciate the continuous background memory validation feature during critical runtime operations.

Battery-backed retention also improves recovery speed after unexpected power interruptions.

This module fits facilities operating legacy GE Fanuc Series 90-70 infrastructure with high uptime requirements.

Logistics and Warranty Support

• Warranty Coverage: 12 months
• Courier Services: FedEx, UPS, DHL
• Packaging: Industrial anti-static protective packaging
• Shipping Support: Worldwide delivery available
• Processing: Fast order handling support

Engineering FAQ

• Why does this module not require an additional rack slot?

  The module operates as a daughterboard mounted directly onto the supported host module.

• What causes memory retention problems most frequently?

  Weak backup batteries commonly reduce retention duration during extended power outages.

• How should engineers select the correct memory capacity?

  Evaluate logic size, historical data requirements, and future expansion plans before choosing capacity.

• Can this module improve PLC restart stability after shutdowns?

  Yes. Battery-backed retention helps preserve application integrity during restart conditions.

• What maintenance practice improves long-term memory reliability?

  Regular battery inspection and scheduled memory validation reduce unexpected system interruptions.
