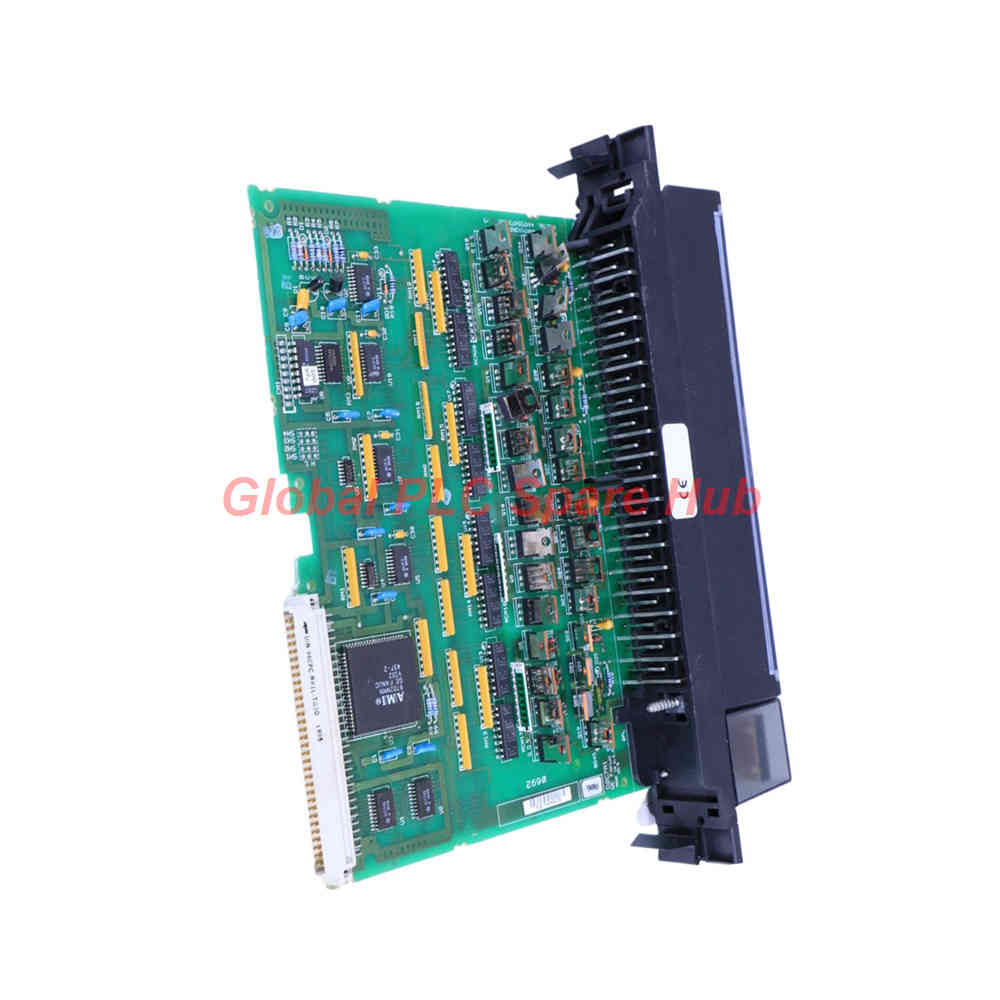

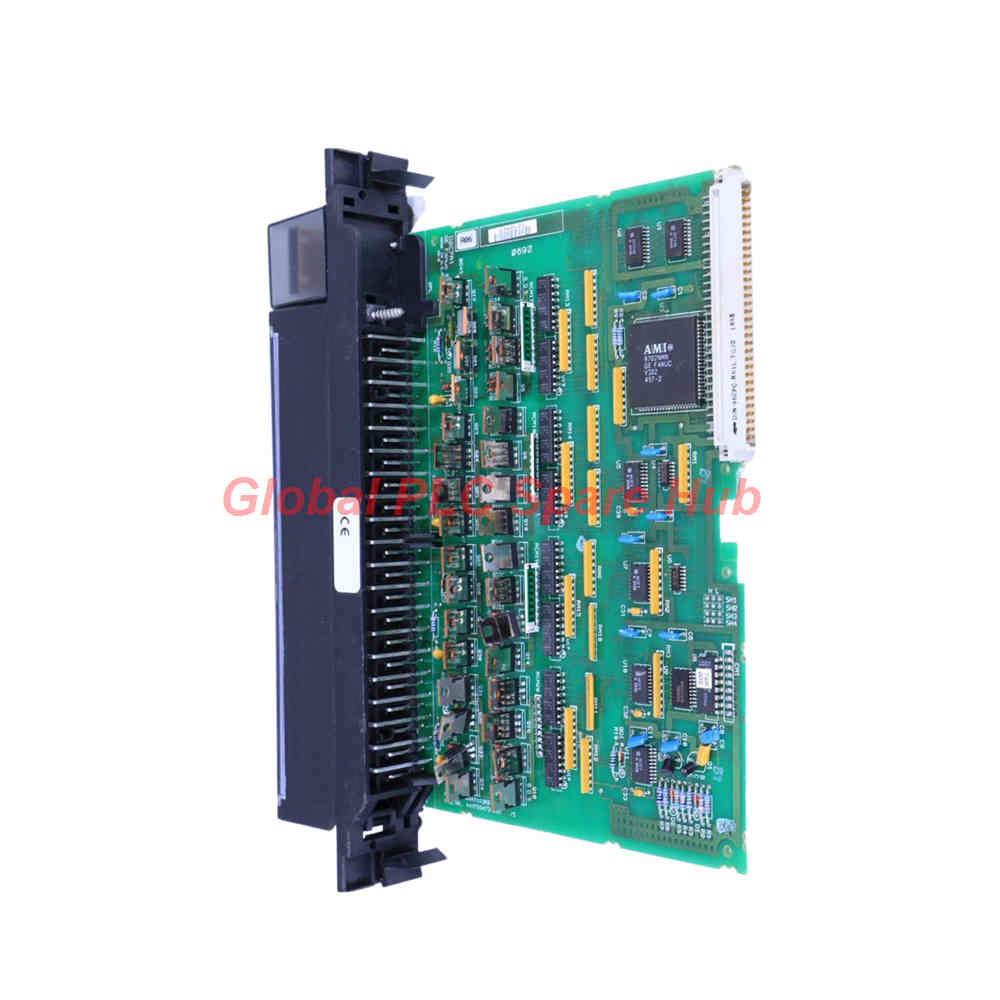

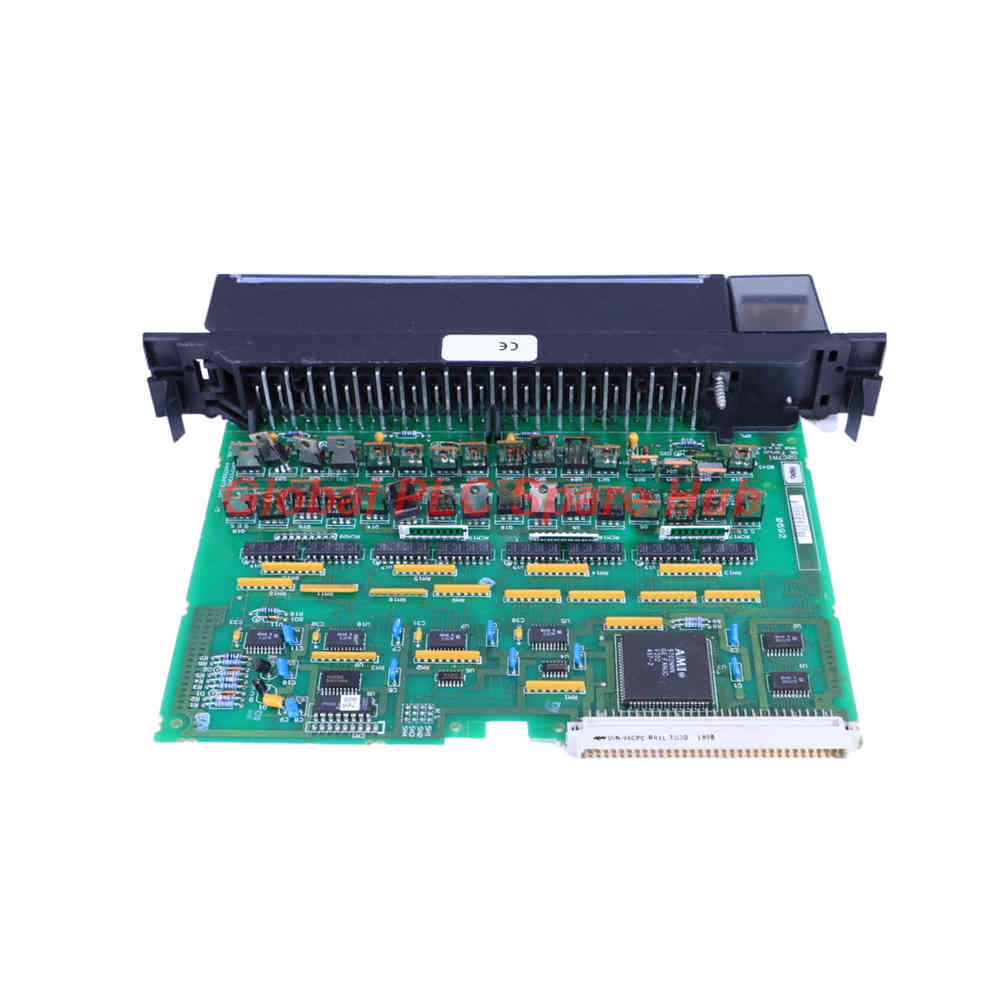

IC697MDL752 GE Fanuc Series 90-70 | 32-Point 12VDC Discrete Output Module

Robust Discrete Output Architecture

The IC697MDL752 is a high-density discrete output module engineered specifically for the GE Fanuc Series 90-70 PLC platform. It provides 32 independent output points, organized into four groups of eight, operating on a 12V DC power architecture. Designed for demanding industrial environments, this positive-logic module ensures rapid response times and consistent signal integrity, facilitating precise control over sophisticated machine systems.

Technical Specifications Overview

• Brand: GE Fanuc
• Series: Series 90-70
• Model: IC697MDL752
• Output Points: 32 (Grouped in 4 sets of 8)
• Operating Voltage: 12V DC (Range: 10–15V DC)
• Current Rating: 0.5A per point / 2A per group
• Response Time: 1ms (On/Off)
• Isolation: 1500V dielectric isolation
• Wiring Compatibility: AWG #22 to #14

Global PLC Spare HUB's Insight

Our engineers identify the IC697MDL752 as a benchmark for reliable legacy automation. It is best suited for large-scale manufacturing process control, automated material handling, and heavy-duty actuator management where high-density I/O is required. Its diagnostic capability is rooted in the module's adherence to VME bus standards, allowing for seamless integration into rack systems. If a group fails, the module’s organized wiring and keying system allow for rapid segment-based troubleshooting, ensuring that maintenance teams can localize faults within specific output banks quickly.

Logistics and Warranty

• Shipping: Expedited dispatch within 24–48 hours of order confirmation
• Logistics: Reliable global delivery via FedEx, UPS, or DHL
• Warranty: Industry-standard 12-month performance guarantee on all modules

Professional FAQ

Q: What is the significance of the 10A inrush current specification?

A: The 10A inrush rating for 20ms accounts for inductive spikes common in relay or solenoid control. Ensure your total load profile does not exceed this to prevent premature internal component aging.

Q: How do I identify a group-level output failure?

A: Since the IC697MDL752 segments outputs into 4 groups, use a multimeter to check the common point for each group. A lack of voltage at the group common, despite an active PLC command, typically indicates a blown internal group fuse or a loose backplane connection.

Q: Can this module interface with non-Series 90-70 backplanes?

A: No, this module is strictly designed for the VME-based Series 90-70 rack architecture. Attempting to force-fit into different PLC series will result in backplane communication errors and potential hardware damage.

Q: Selection Guide: When should I choose this module over a relay-based output card?

A: Select the IC697MDL752 if your application requires high-speed switching (1ms response) and has a lower current load (0.5A per point). Relay cards are better for high-voltage isolation but are limited by mechanical switching speeds and finite contact lifecycles.

Q: Best practice for wiring gauge selection?

A: Always favor AWG #14 for common supply lines to minimize voltage drop, and use AWG #22 for individual point signals to maintain cabinet organization and prevent undue tension on the terminal block.
