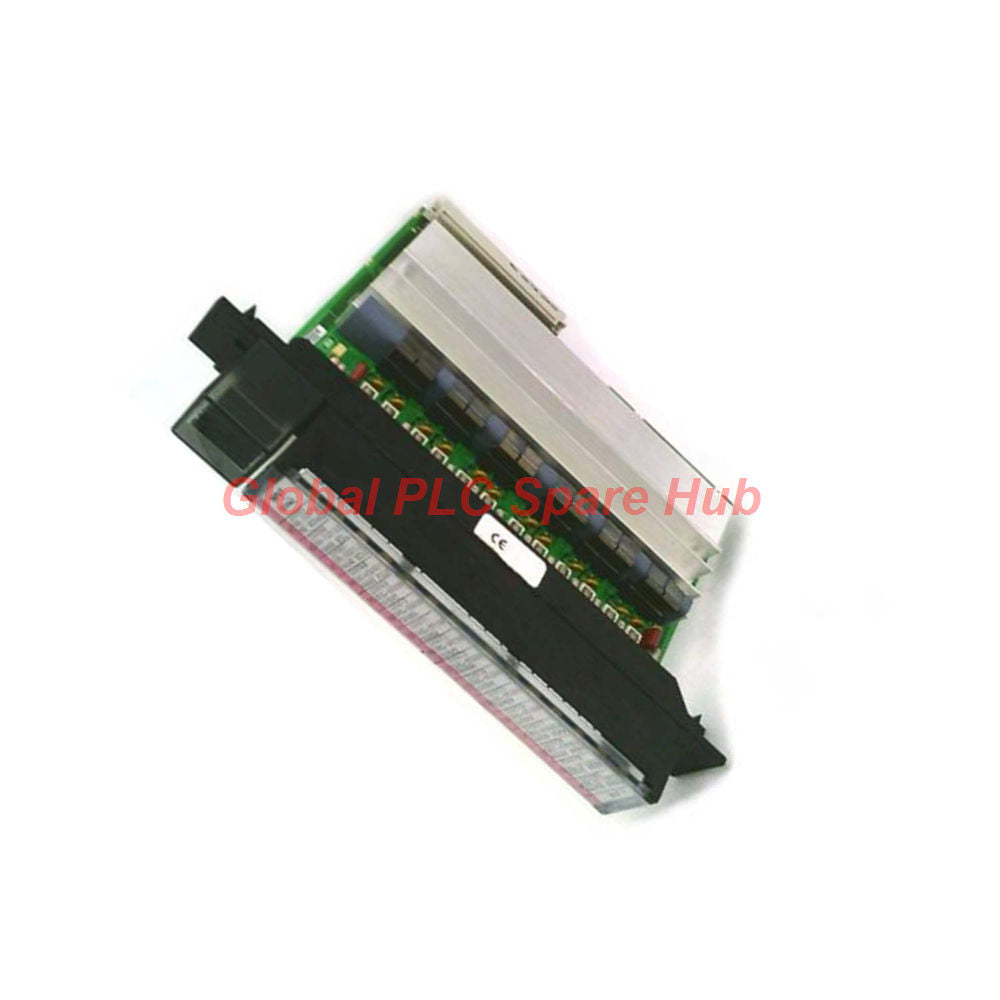

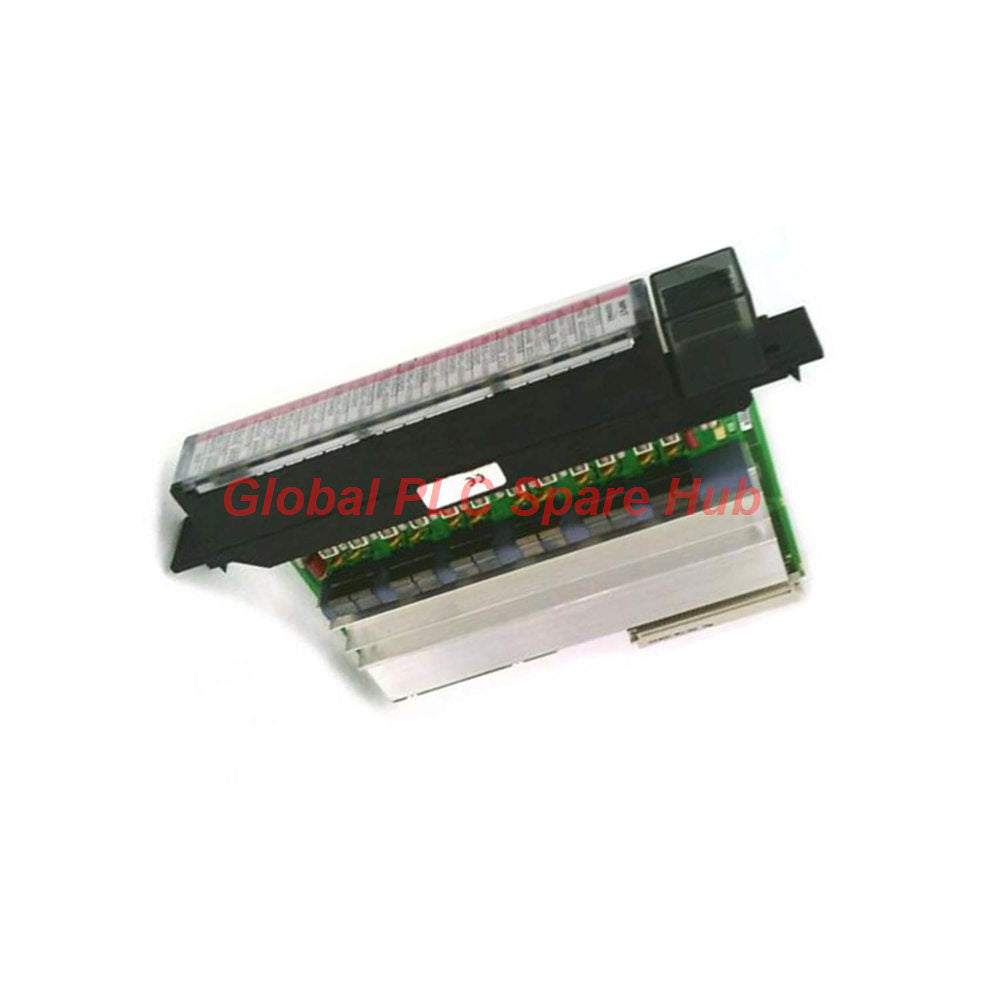

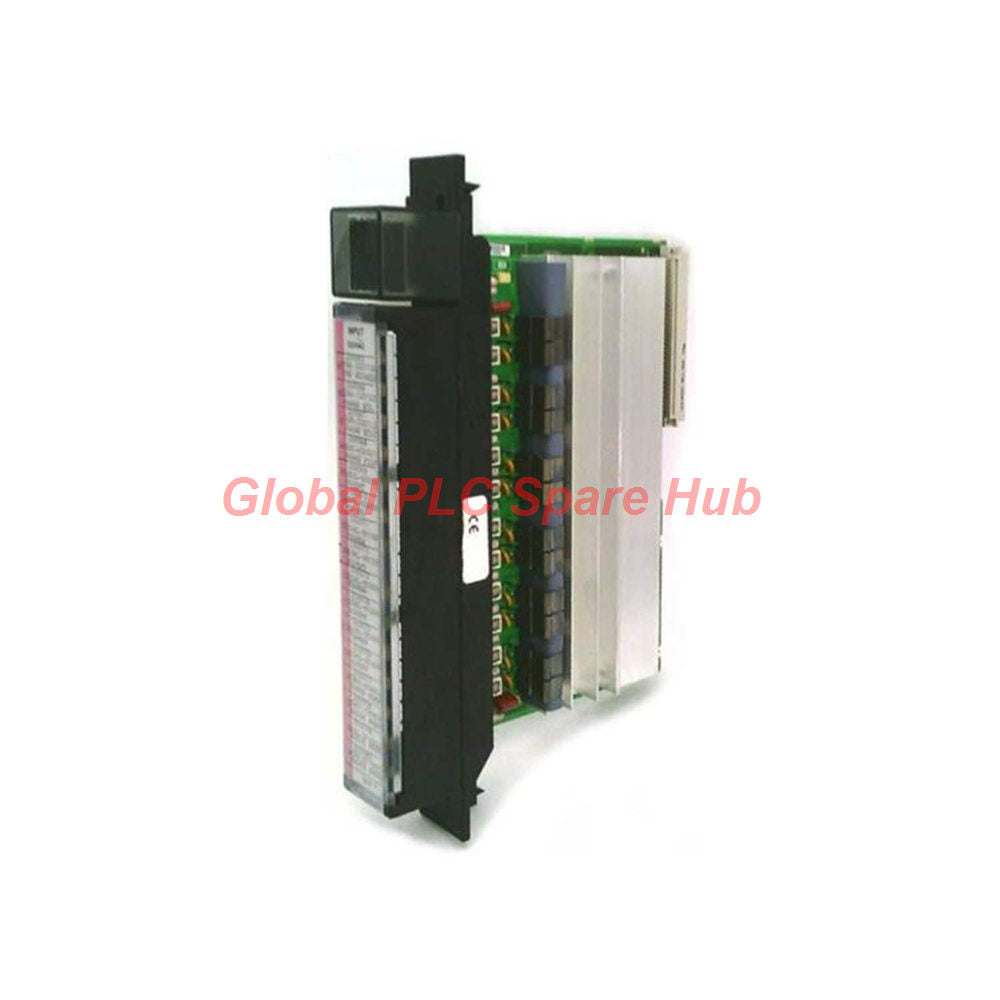

IC697MDL652 GE Fanuc Series 90-70 32-Point 12VDC Input Module

High-Density Logic Sensing: The GE Fanuc IC697MDL652

The IC697MDL652 is a high-performance 32-point input module engineered for the GE Fanuc Series 90-70 platform. Optimized for 12V DC logic, this module features a VME-standard (C.1) architecture, offering robust signal processing for complex automated sequences. With four isolated groups of eight, it provides the versatility required for large-scale industrial I/O management.

Key Technical Specifications

• Input Architecture: 32 points organized in 4 groups of 8.
• Logic Compatibility: Supports both positive and negative logic configurations.
• Voltage Profile: 12V DC nominal (Range: -2.5V to 15V DC).
• Signal Filtering: Selectable 1ms or 10ms input filtering to eliminate noise.
• State Thresholds: ON (7.5V–15V) / OFF (0V–2.5V).
• Isolation: 1500V (Backplane) / 500V (Input group).
• Impedance: 1.12 kΩ typical input impedance.

Global PLC Spare HUB's Insight

Our technical specialists identify the IC697MDL652 as the preferred solution for legacy system retrofits involving high-density proximity switches and push-button arrays. Its unique ability to handle both polarities makes it exceptionally valuable in mixed-logic control cabinets, significantly reducing the requirement for intermediate signal conversion relays.

Diagnostic Capability and Industrial Reliability

Equipped with dedicated faceplate LED status indicators, the IC697MDL652 allows for immediate field verification of input activity. Its industrial-grade construction ensures reliable operation in high-performance PLC environments, while the VME-compliant build guarantees long-term stability in vibration-prone industrial racks.

Logistics and Warranty Commitment

• Shipping Options: Global transit via FedEx, UPS, and DHL.
• Efficiency: Guaranteed processing and dispatch within 24–48 hours.
• Quality Assurance: All modules include a full 12-month performance warranty.

Expert FAQ and Configuration Guide

When should I choose the 1ms vs 10ms input filter?

Select the 1ms filter for high-speed counter or proximity sensors where response time is critical. Use the 10ms setting for pushbuttons or mechanical limit switches to effectively debounce noisy signals.

Is the IC697MDL652 compatible with 24V DC systems?

No, this module is specifically rated for 12V DC nominal systems. Applying 24V directly will exceed the component voltage tolerance and likely lead to module failure.

Can this module handle interrupt-driven tasks?

Yes, the module supports interrupt-capable single inputs, allowing the CPU to execute subroutines immediately upon signal state changes.

How do I handle the positive vs negative logic selection?

The logic type is typically dictated by the wiring configuration to the common terminal; refer to the Series 90-70 installation manual for specific wiring schematics for your desired logic orientation.

Buying Guide: What is the primary maintenance tip?

Always verify the state of your external DC power supply before installation. Given the 1500V isolation rating, ensure that you never exceed the rated input range to prevent damage to the backplane isolation circuitry.
