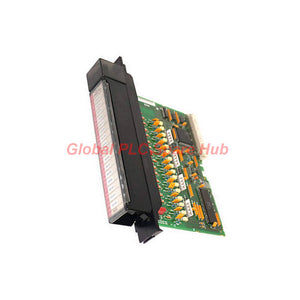

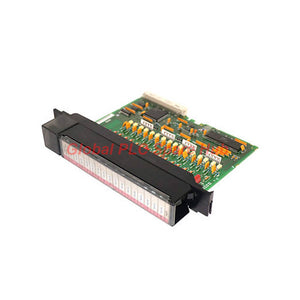

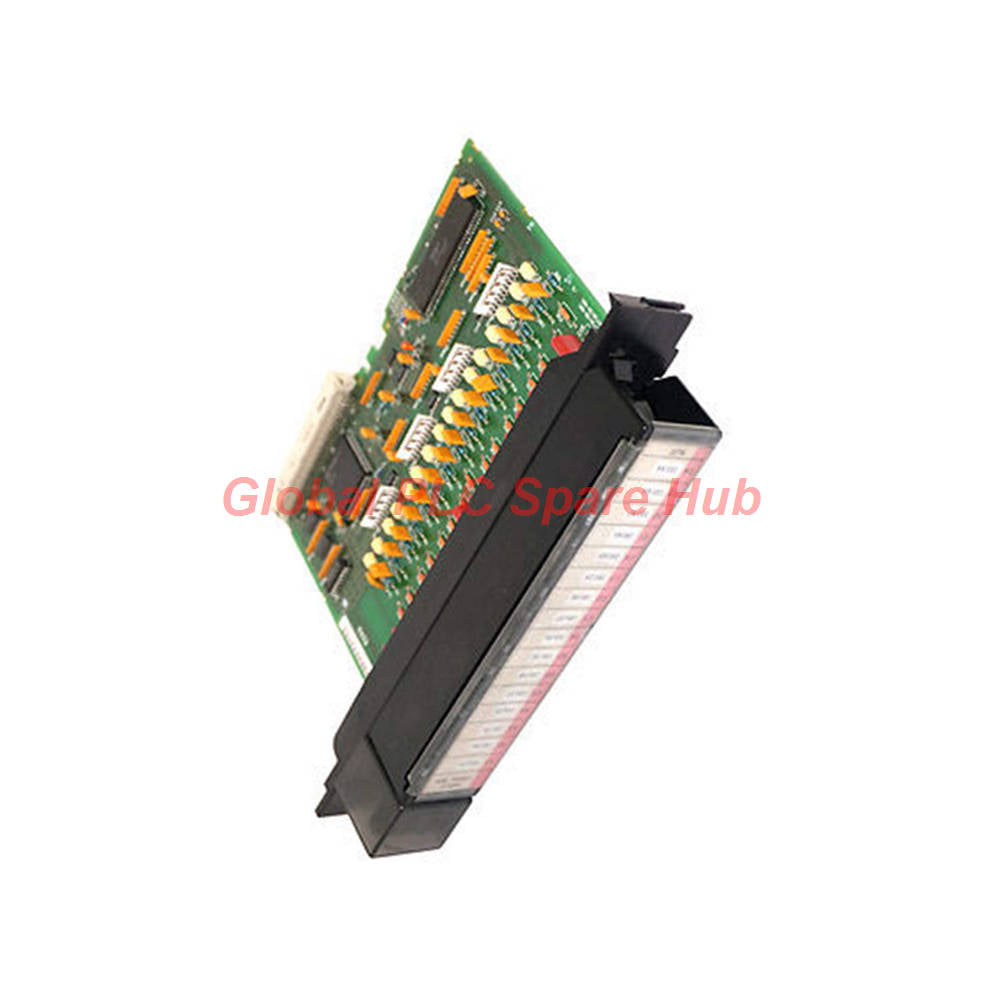

IC697MDL240 GE Fanuc Series 90-70 AC Input Module Guide

IC697MDL240 GE Fanuc Series 90-70 16-Input AC Module IC697MDL240 Sale

Buy the IC697MDL240 GE Fanuc Series 90-70 discrete input module. Review technical specifications, mechanical keying features, and global shipping.

IC697MDL240 Industrial Engineering Audit: Global PLC Spare HUB Review

The IC697MDL240 functions as a high-reliability discrete input interface built for legacy Series 90-70 architectures. This hardware handles multi-point AC signal acquisition using fully isolated channel configurations.

System Architecture & Technical Specifications

• Manufacturer: GE Intelligent Platforms / GE Fanuc
• Brand / Series: GE Fanuc / Series 90-70 IC697
• Catalog Number: IC697MDL240
• Module Classification: Discrete Input Module (16 Isolated Points)
• Rated Voltage: 120 Volts AC (60 Hz)
• Input Current (On-State): 10 mA typical
• Backplane Current Draw (5V Bus): 0.25 Amps (250 mA)
• Input Filter Delay Time: 20 ms
• Off-State Leakage Current Sinking: Up to 4 mA max
• Proximity Switch Compatibility: Supports 2-wire and 3-wire sensor types
• Configuration Method: Windows or MS-DOS programming software via SNP or Ethernet TCP/IP port
• Enclosure & Keying: Mechanical keying system for backplane rail alignment without DIP switches

Global PLC Spare HUB's Insight: Installation & Maintenance Guidelines

Installing the IC697MDL240 requires precise alignment of its mechanical key into the backplane center rail during initial setup. This physical key blocks incorrect module insertion during future replacements, safeguarding the 5V bus. Because the circuit uses capacitive input networks to manage heat dissipation, technicians should inspect backplane current loads to maintain system stability across extended operating cycles.

Diagnostic Capabilities & Fault Management

The IC697MDL240 features top-mounted LED indicators that provide real-time status visibility for all sixteen individual input channels. Control engineers use these visual indicators to verify signal presence instantly during field commissioning. Software-based configuration tools further streamline diagnostics by tracking input parameters through connected communication ports.

Typical Applications & Industrial Environments

Industrial automation professionals integrate this hardware into heavy manufacturing control panels, power generation facilities, and large-scale municipal water treatment systems. It interfaces smoothly with AC pilot devices, limit switches, and standard 2-wire or 3-wire proximity sensors operating on 120VAC networks.

Fulfillment, Warranty & Logistics

• Delivery Couriers: Fast global dispatch via FedEx, UPS, and DHL
• Processing Window: Orders ship within 24 to 48 hours
• Hardware Assurance: Backed by a comprehensive 12-month replacement warranty

Frequently Asked Questions

Question: How does the mechanical keying feature on the IC697MDL240 protect system hardware?

Answer: The specialized mechanical key bolts permanently into the backplane center rail during the initial installation. When replacing units, this key prevents mismatched module insertion, protecting the 5V bus from electrical short circuits.

Question: Can the IC697MDL240 interface with 2-wire AC proximity switches?

Answer: Yes. The module features capacitive input circuitry with specific current-voltage characteristics designed to accommodate a wide range of standard 2-wire and 3-wire proximity sensors without external loading resistors.

Question: What software environments are compatible with configuring the IC697MDL240?

Answer: Configuration is executed via legacy Windows or MS-DOS programming software running on Windows NT or Windows 95 platforms, communicating through the SNP port or an Ethernet TCP/IP network connection.

Question: What causes intermittent input registration errors on isolated channels?

Answer: Intermittent signals often stem from excessive off-state leakage currents exceeding the 4 mA sinking threshold, or mismatched AC supply phases across poorly isolated common lines.

Question: What key verification steps should guide purchasing decisions for a replacement IC697MDL240 module?

Answer: Buyers must verify 5V backplane current availability (0.25A requirement), confirm firmware revision compatibility with the Series 90-70 rack controller, and source units from certified suppliers offering rigorous functional testing and a 12-month warranty.
