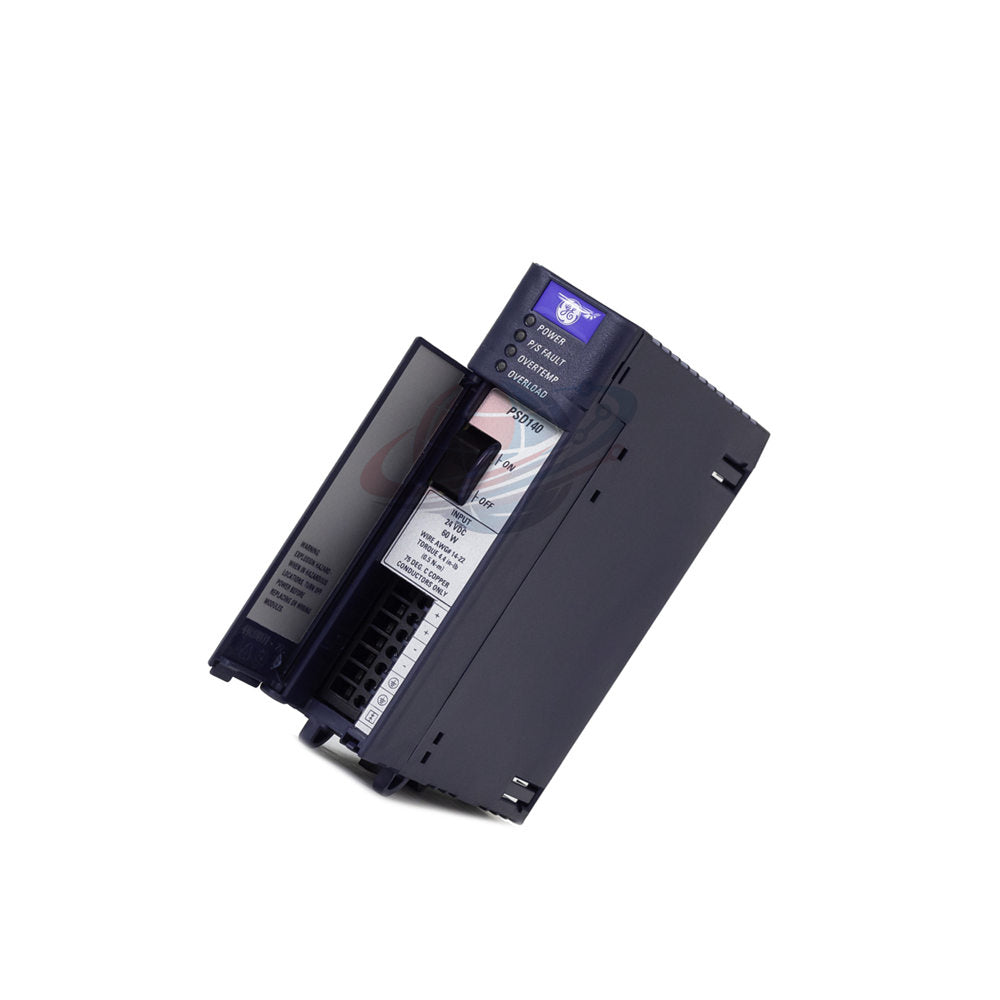

IC695PSD140 GE PACSystems RX3i Power Supply 40W DC Input Module

Technical Engineering Brief

• The IC695PSD140 is a high-performance multipurpose power supply module for the PACSystems RX3i platform.
• Engineered for critical infrastructure, this module facilitates both load-sharing and redundant power architectures.
• It accepts a dedicated input range of 18 to 30 VDC and delivers three regulated output voltages to the backplane.
• The IC695PSD140 features a 20ms ride-through capability to maintain system stability during transient voltage drops.

Global PLC Spare HUB's Insight

• Our technical team highlights the IC695PSD140 as a cornerstone for high-availability industrial systems.
• Unlike standard modules, this unit allows up to four supplies to reside on a single RX3i universal backplane.
• The "multipurpose" design enables engineers to scale power capacity as I/O density increases within the chassis.
• Critical Note: This module is strictly incompatible with PSD040 or PSA040 models in redundant modes to prevent hardware damage.

Hardware Performance Matrix

• Brand: Emerson Automation (Formerly GE Fanuc)
• Model: IC695PSD140
• Series: PACSystems RX3i
• Input Voltage: 18 to 30 VDC (24 VDC Nominal)
• Max Input Power: 60 Watts at full load
• Total Output Power: 40 Watts Maximum
• Internal Rail Outputs: 5.1 VDC (up to 6A) and 3.3 VDC (up to 9A)
• Relay Output: 24 VDC (up to 1.6A)
• Ripple/Noise: 150 mV peak-to-peak
• Ride-Through Time: 20 milliseconds minimum
• Chassis Footprint: Occupies 1 slot on IC695 Universal Backplane
• Terminal Compatibility: #14 - 22 AWG wire size

Advanced Diagnostic Logic

• Power LED: Green indicates normal operation; Amber indicates output is inhibited.
• P/S Fault: Red LED triggers upon internal hardware failure or logic errors.
• Over-temperature: Amber LED warns when internal thermal thresholds are exceeded.
• Overload: Red LED signals that the total backplane current draw exceeds the 40W capacity.

Deployment & Compatibility

• Compatible Equipment: All RX3i CPUs and Universal Backplanes.
• Redundancy Support: Up to 4 units per rack for N+1 or N+N configurations.
• Application Scenarios: Oil & Gas safety systems, high-speed material handling, and water treatment controllers.
• Daisy-Chaining: Supports connection of up to 4 IC695PSD140 modules to the same power source.

Logistics & Protection

• Warranty Status: Includes a professional 12-month quality guarantee for all orders.
• Shipping Partners: Express global dispatch via FedEx, UPS, and DHL.
• Dispatch Time: Guaranteed shipment within 24 to 48 hours of order confirmation.
• Package Contents: One (1) IC695PSD140 Power Supply Module and documentation.

Selection Guide & FAQ

• Selection Advice: Calculate total I/O wattage on the 5.1V and 3.3V rails to ensure it stays under 40W per module.
• Selection Advice: Ensure all redundant IC695PSD140 units are wired to the same primary power source.

• Question: Can I toggle the front-panel On/Off switch during live operation?
• Answer: Only if you have a redundant setup; turning off a non-redundant module will cause an immediate CPU shutdown.

• Question: What happens if I mix this with an IC695PSA040 in a redundant rack?
• Answer: This is strictly prohibited; mixing these different power supply types can cause physical damage to both modules.

• Question: Does the IC695PSD140 provide electrical isolation?
• Answer: This specific module does not provide isolation between the input power and the backplane.

• Question: Why is the 20ms ride-through time important for my facility?
• Answer: It acts as a buffer against brief voltage sags, preventing the PLC from rebooting during minor power fluctuations.

• Question: Is a terminal block included for field wiring?
• Answer: Yes, the module comes with the necessary terminal assembly for #14-22 AWG wiring.
