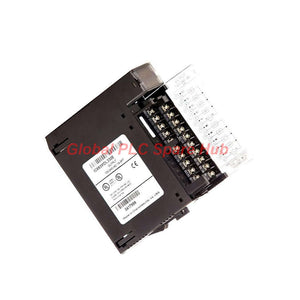

IC693MDL330 Discrete AC Output Module GE Fanuc

Product Overview

The IC693MDL330 is an 8-point high-current AC discrete output module engineered for the GE Fanuc Series 90-30 PLC architecture (manufactured by GE Intelligent Platforms / Emerson). Operating across an AC load voltage spectrum of 85 to 264 Vac (50/60 Hz), the module is arranged into two isolated groups of four output channels each. Designed for switching high-inductance and resistive field loads, each output point on the IC693MDL330 delivers up to 2 A continuous current with an active inrush capacity reaching 20 A peak per cycle.

Because the internal common lines of the two output groups are not tied together, each group can operate on distinct power source phases or independent utility circuits while maintaining 1500 V field-to-logic opto-isolation. Each common circuit incorporates a 5 A protection fuse alongside individual RC snubber suppression networks across each output switch to absorb line transients and contact arc noise. The unit features dual LED status rows (A1–A8 green status lights) plus a dedicated red "F" diagnostic LED that alerts operators instantly upon fuse failure.

Key Features and Benefits

• Dual Isolated Common Groups: 8 output points divided into two 4-channel groups allow mixed-phase or separate power source feeding.
• High Inrush Handling: Withstands up to 20 A peak inrush current per cycle (10x nominal rating) to drive heavy inductive solenoid and lighting loads.
• Integrated RC Snubber Networks: Onboard suppression filters limit high-voltage transients caused by line switching and inductive load collapse.
• Dedicated Fuse Protection: Features individual 5 A fuses per group common to isolate load faults before backplane damage occurs.
• Comprehensive LED Diagnostics: 8 green logic-state LEDs (A1–A8) plus a central red "F" fuse-blown indicator speed up field troubleshooting.
• Low Voltage Drop Performance: Maximum output voltage drop is capped at 1.5 V at full load, maintaining stable terminal delivery.

Technical Specifications

Detailed mechanical, electrical, and performance parameters for the IC693MDL330 are structured below:

Target Equipment and Application Scenarios

• Direct control of high-power AC contactors, motor starters, and heavy industrial solenoids.
• Switching plant incandescent illumination circuits and high-wattage indicator lamp arrays.
• Multi-phase AC load management where Channel Group 1 and Channel Group 2 run on separate power grids.
• Legacy GE Series 90-30 system maintenance and replacement in processing, packaging, and material handling lines.

Diagnostic Capabilities and Operational Indicators

The IC693MDL330 provides immediate visual feedback via its front-panel LED array. During normal operation, green LEDs A1 through A8 mirror logic commands sent from the CPU rack backplane. If an overcurrent event or field short occurs and opens a 5 A common line fuse, the central red "F" LED illuminates immediately. Technicians can diagnose line faults without meter probing by checking whether logic commands fail to produce output current across the corresponding 4-channel group.

Global PLC Spare HUB's Insight & Field Experience

Pay close attention to the minimum load current specification of 100 mA when engineering or replacing loads on the IC693MDL330. Because this AC output card uses solid-state switching elements with onboard RC snubbers, attempting to drive ultra-low-power loads (such as high-impedance interposing relays or micro-pilot lights under 100 mA) may cause leakage current through the snubber to keep the field device continuously energized or flickering when switched OFF.

When operating in high ambient temperature panels (approaching 40 °C or above), remember that total continuous current per 4-point group is thermal-derated to 4.0 A total. Balancing heavy current loads across both isolated groups—rather than concentrating all high-amp loads onto a single common line—prevents nuisance thermal tripping and extends the operating lifespan of the internal output switches.

Compliance, Shipping, and Warranty Terms

• Package Contents: 1 x Original IC693MDL330 AC output module sealed in protective ESD packaging.
• Warranty Coverage: Fully backed by a 12-month replacement warranty effective from the date of purchase.
• Express Global Courier: Ships within 24–48 hours using express DHL, FedEx, and UPS international services.

Frequently Asked Questions (FAQ)

Question: Can DC power loads be connected directly to the output terminals of this Series 90-30 card?

Answer: No, this card is strictly engineered for AC load switching within the 85 to 264 Vac window and will not turn off or operate correctly on DC power.

Question: Is it permissible to connect Phase A power to Group 1 and Phase B power to Group 2 on the same card?

Answer: Yes, because the two group commons are electrically isolated, each 4-channel group can operate on completely distinct AC phases or separate supplies.

Question: What causes a field pilot light to remain faintly illuminated when the output channel is switched OFF?

Answer: Off-state leakage current passing through the onboard RC snubber circuit can illuminate low-current indicators that do not draw the required 100 mA minimum load.

Question: What action should be taken if the red "F" light on the front panel turns ON?

Answer: Inspect field wiring for short circuits or overloaded coils, then replace the open 5 A group common fuse located behind the module door.

Question: How much inrush current can an individual output point handle during cold lamp starting?

Answer: Each point can handle a peak inrush current up to 20 A per cycle to accommodate high initial current demands from incandescent lamps and solenoids.
