IC693CPU364 Ethernet CPU Module – GE Fanuc Series 90-30

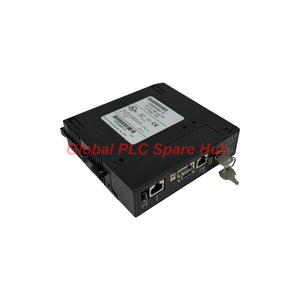

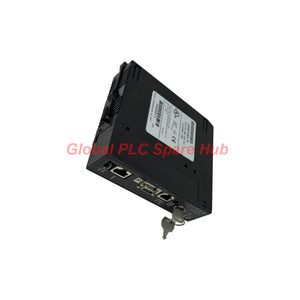

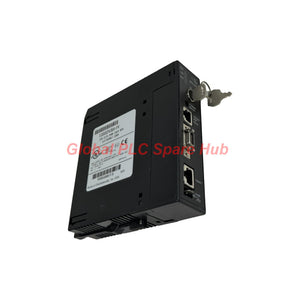

The IC693CPU364 is a single-slot CPU module for the GE Fanuc Series 90-30 PLC platform. It combines an 80386EX microprocessor, 240 KB of user memory, and an integrated Ethernet interface. The processor runs at 25 MHz and delivers a typical Boolean logic scan rate of 0.22 ms per 1K of logic. Its embedded Ethernet interface supports PLC programming and communications through a compatible network connection. The controller also supports serial communication through the RS-485 interface provided by the power supply. This arrangement gives engineers Ethernet and serial communication options within the same PLC architecture. For expandable control systems, the IC693CPU364 supports up to eight baseplates, including the CPU baseplate and seven expansion or remote I/O baseplates. It suits machine control, distributed I/O, and industrial process applications that require a Series 90-30 controller.

01 | CPU Architecture at a Glance

02 | Processing Capacity and Memory Allocation

The IC693CPU364 combines logic execution with configurable data storage. Its practical capacity depends on the application program and memory allocation.

• Discrete inputs: Supports up to 2,048 discrete inputs.
• Discrete outputs: Supports up to 2,048 discrete outputs.
• Global discrete memory: Supports up to 1,280 bits of internal global discrete memory.
• Internal coils: Supports up to 4,096 internal coils.
• Temporary output coils: Supports up to 256 bits.
• Analog input memory: Configurable in 128-word increments. The supplied specifications list 128 to 16,384 words with Logicmaster and 128 to 32,640 words with Control version 2.2.
• Analog output memory: Configurable in 128-word increments. The supplied specifications list 128 to 16,384 words with Logicmaster and 128 to 32,640 words with Control version 2.2.

These figures describe supported configuration capacities, not a guarantee that every limit can be used simultaneously. Check the installed firmware, programming software, and memory allocation before designing a replacement or expansion.

03 | Ethernet and Serial Communication

The integrated Ethernet interface gives the CPU a network communication path without requiring a separate Ethernet CPU module. The available interface option depends on the hardware configuration.

Before connecting the CPU to an existing network, confirm the physical Ethernet interface and required cabling. Also verify network addressing, communication settings, and compatibility with the installed programming environment.

04 | Baseplate Expansion and Installation

The CPU occupies the dedicated CPU position in a compatible modular Series 90-30 baseplate. The CPU baseplate provides a 25-pin female D-type expansion connector on its right side. The expansion connection supports compatible expansion or remote I/O baseplates. The system can use up to eight baseplates in total, including the CPU baseplate. Installation checklist

1. Confirm the baseplate: Verify that the installed rack supports the CPU 364 module and its dedicated slot.
2. Check the power budget: Allow 1.51 A from the +5 V DC supply for the CPU. Include all other modules when calculating the baseplate load.
3. Inspect communication hardware: Identify the Ethernet interface and confirm the required cables and network equipment.
4. Verify serial connections: Check the compatible power supply and its RS-485 interface before wiring serial devices.
5. Inspect expansion connections: Confirm the 25-pin connector and compatible expansion hardware when adding baseplates.
6. Load the approved configuration: Verify the project, I/O assignments, memory allocation, and communication settings.
7. Perform functional testing: Check CPU operation, communications, I/O states, and application logic before returning equipment to service.

Isolate power and follow the site's electrical safety procedures before removing or installing modules. Back up the existing application and configuration before replacing a running controller.

05 | Application Fit and Control-System Integration

The IC693CPU364 is suitable for established Series 90-30 installations that need CPU processing, Ethernet communication, and modular I/O expansion.

• Manufacturing machinery: Executes discrete logic for machine sequencing, interlocks, and production equipment.
• Packaging systems: Coordinates sensor inputs, actuator outputs, and machine-state logic.
• Process equipment: Supports PLC-based control of pumps, valves, and auxiliary equipment through compatible I/O modules.
• Distributed I/O systems: Connects compatible expansion and remote I/O baseplates within the supported architecture.
• Legacy Ethernet networks: Provides an integrated Ethernet interface for compatible supervisory and programming connections.
• Industrial equipment upgrades: Supports controller replacement projects that retain compatible Series 90-30 hardware and application logic.

System suitability depends on the existing rack, I/O modules, programming tools, firmware, and communication requirements. Confirm these details before purchasing a replacement CPU.

06 | Global PLC Spare HUB's Insight

When troubleshooting a Series 90-30 system, engineers should separate CPU processing faults from network, power, and I/O problems. The integrated Ethernet interface does not eliminate the need to check the physical network connection and configuration. Field example: Intermittent PLC communication A production line may continue running its local sequence while a supervisory computer intermittently loses communication. First, check the CPU supply and controller status. Next, inspect the Ethernet cable, physical interface, network configuration, and communication path. If the CPU executes logic normally, investigate the communication path before assuming a processor failure. If the fault affects several baseplates or I/O groups, inspect the rack power budget and expansion connections as well. Memory planning insight: The 240 KB user memory figure should not be treated as entirely available for every application data area. Configured register and analog memory allocations affect the resources available to the project. Review the existing configuration before migrating an application. These checks help engineers narrow down the fault location and avoid unnecessary changes to a working PLC program.

07 | Diagnostic Guide for Maintenance Teams

Use controller diagnostics and the approved programming tools to confirm the fault. Do not replace the CPU solely because one communication link or I/O group has failed.

08 | Compatibility and Replacement Selection

Before selecting a replacement for the IC693CPU364, compare the following details:

• CPU model: Confirm the complete catalog number and hardware revision.
• Baseplate: Verify the dedicated CPU slot and expansion requirements.
• Power capacity: Confirm the +5 V DC supply can support the complete rack load.
• Ethernet interface: Check the physical connector and existing network cabling.
• Serial communication: Verify the power supply interface and connected equipment requirements.
• Program compatibility: Review the programming software, firmware, memory usage, and application configuration.
• I/O architecture: Confirm the existing discrete and analog I/O allocations and remote baseplate configuration.

A similar Series 90-30 CPU may have different communication features, memory limits, or configuration requirements. Verify the complete part number and application compatibility before ordering.

09 | Frequently Asked Questions

Q1: What should engineers check before transferring a program to a replacement CPU? Back up the original project and document the hardware configuration. Confirm software compatibility, firmware requirements, memory allocation, I/O assignments, and communication settings before downloading the application.

Q2: Can the IC693CPU364 support a system with several remote I/O baseplates? Yes. The stated architecture supports up to eight baseplates in total, including the CPU baseplate. Verify the supported expansion hardware, rack power capacity, and system configuration.

Q3: Why might a CPU replacement require changes to network settings? The replacement may use different physical interface arrangements or require the correct network configuration. Check cabling, addressing, communication parameters, and supervisory system settings during commissioning.

Q4: How should a maintenance team investigate a scan-time increase? Compare the current application with its previous configuration. Review program size, logic complexity, communication activity, and any recent changes. The stated 0.22 ms per 1K figure applies to typical Boolean logic scanning, not every instruction or complete application cycle.

Q5: What information should purchasing provide to verify an IC693CPU364 replacement? Provide the full catalog number, CPU baseplate model, power supply details, Ethernet connector type, installed I/O configuration, and available programming environment. These details help confirm hardware fit and application requirements.

10 | Warranty, Packaging, and Shipping

• Product: GE Fanuc Series 90-30 IC693CPU364 CPU module.
• Package contents: One CPU module, subject to the confirmed order configuration.
• Warranty: 12 months, subject to the seller's written warranty terms.
• Shipping carriers: FedEx, UPS, or DHL, subject to destination and service availability.
• Dispatch target: 24–48 hours after order confirmation, subject to stock verification and order processing.

Contact Global PLC Spare HUB for a quotation, stock confirmation, and technical assistance with Series 90-30 CPU compatibility.
