IC200MDL742 GE Fanuc 24VDC PLC Output Solution

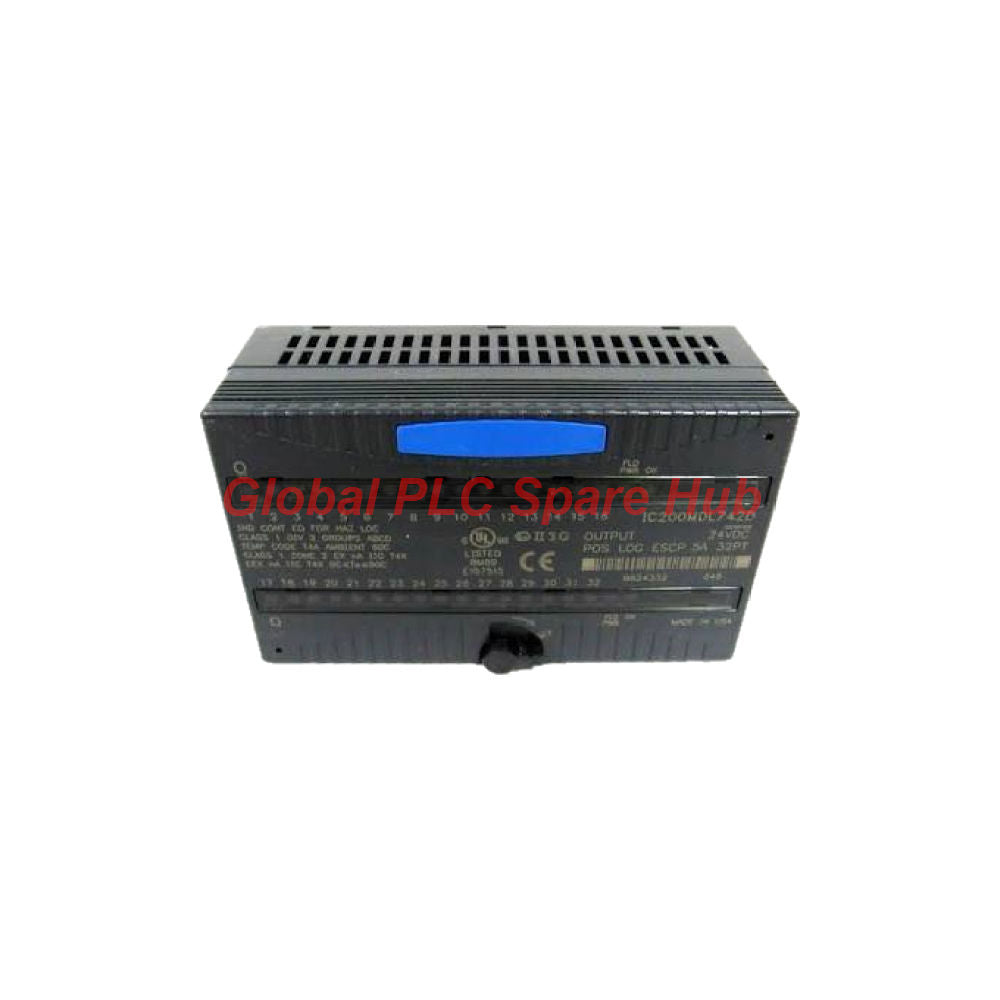

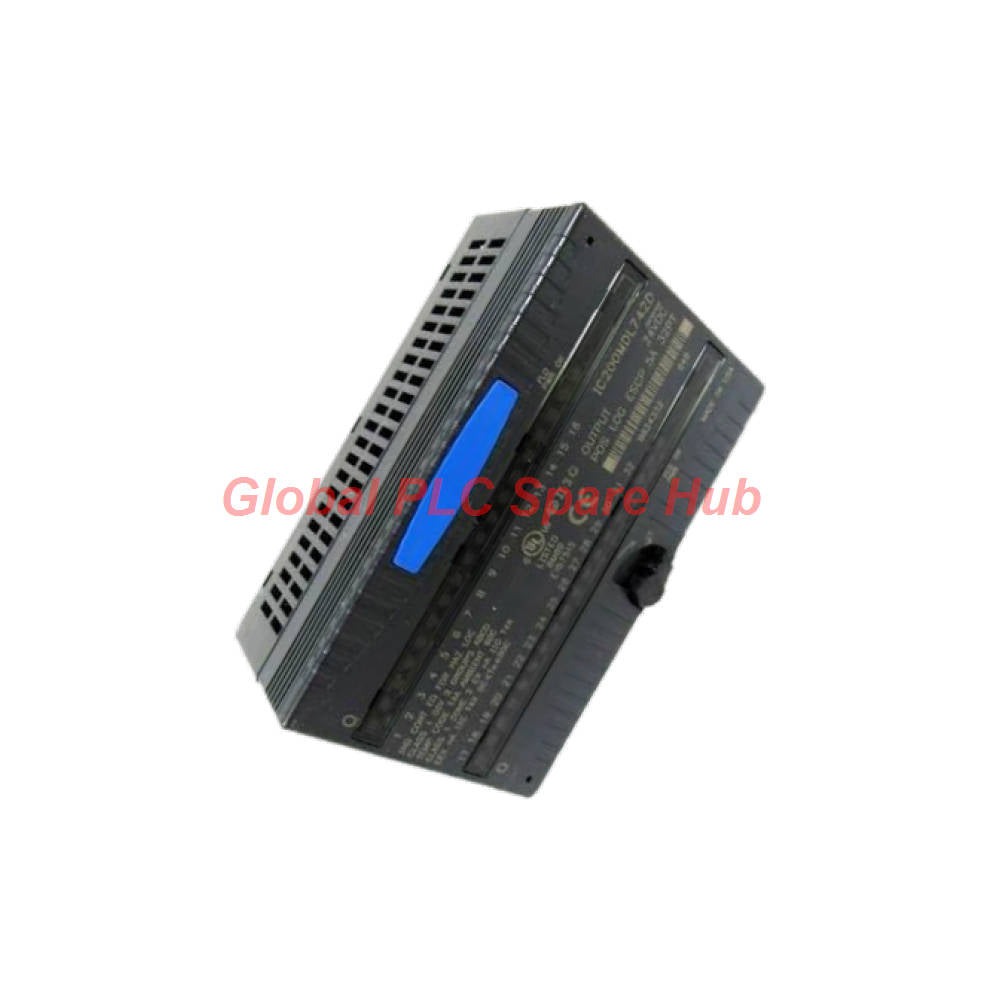

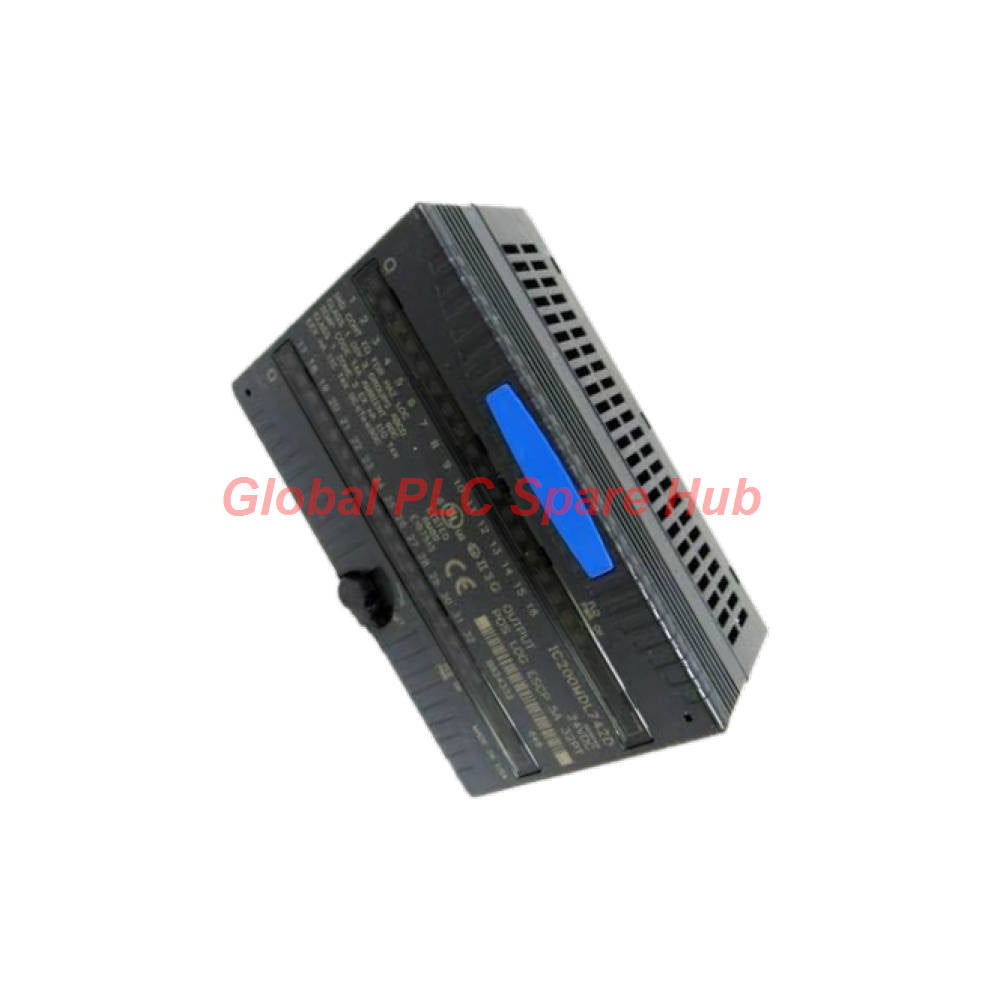

IC200MDL742 | GE Fanuc VersaMax 24 VDC Discrete Output Module

The IC200MDL742 is a GE Fanuc VersaMax discrete output module for industrial PLC control systems. It provides 16 discrete output points and operates with a nominal 24 VDC field supply.

The module converts PLC output commands into electrical switching signals for compatible industrial loads. Its output protection, channel status indicators, and group isolation support practical commissioning and maintenance.

The IC200MDL742 suits applications that require reliable discrete control of solenoids, contactor interface circuits, indicator lamps, and other compatible DC devices. Engineers must verify load current, field power capacity, and wiring polarity before installation.

01 | Module Identity and System Role

Engineering clarification: The supplied information mentions both 16 physical outputs and 32 output points. This description identifies 16 physical outputs. Confirm the controller's data mapping and module configuration before commissioning.

02 | Electrical Performance and Output Capacity

The stated current and response figures come from the supplied product description. Verify their applicable operating conditions and the manufacturer's load derating requirements before designing the output circuit.

03 | Output Protection and Field Power Design

The module includes short-circuit and overcurrent protection for industrial DC switching applications. Free-wheeling diodes help manage inductive load energy during switching.

• Load sizing: Check each device's steady-state current and startup current before assigning an output point.
• Field supply: Provide an appropriate external DC supply for the connected loads.
• Group loading: Calculate the combined current demand across each output group.
• Short-circuit response: Investigate the field wiring and load before resetting or replacing affected equipment.
• Inductive loads: Confirm that the load's switching characteristics match the module's output ratings.

The source describes an external supply arrangement that helps maintain field power during short-circuit conditions. Confirm the required supply capacity and protective-device coordination using the official hardware manual.

04 | LED Diagnostics and Maintenance Workflow

The module's LEDs help technicians identify output states and field-power conditions during troubleshooting.

Practical troubleshooting sequence:

1. Check the controller's output command and verify the configured module address.
2. Inspect the module's OK indicator and confirm that the controller recognizes the module.
3. Compare the commanded output with the corresponding point LED.
4. Check field supply voltage at the relevant group terminals.
5. Measure the load circuit and inspect terminal connections for loose wiring or short circuits.
6. Disconnect the affected load under approved isolation procedures and test the circuit separately.
7. Restore the circuit only after correcting the fault and verifying normal operation.

An illuminated output LED does not prove that the load receives sufficient voltage or operates mechanically. Check the field circuit independently before replacing the module.

Global PLC Spare HUB Review

During PLC maintenance, an output fault can originate from the controller logic, field supply, wiring, load, or output channel. Replacing the module before checking these elements can introduce unnecessary downtime.

Field example: A PLC commands a solenoid valve, but the valve does not energize. The corresponding output LED illuminates. The technician should measure the field voltage under load, inspect the group supply, and check the solenoid coil and return path. A voltage drop under load may reveal a supply or connection problem that an unloaded voltage check would miss.

If one output repeatedly trips, isolate its load and inspect for short circuits or excessive startup current. If several outputs in one group fail together, investigate the shared field supply and group wiring first.

These checks help distinguish individual channel faults from common power problems. They also reduce unnecessary module replacement and improve the accuracy of maintenance records.

05 | Installation and VersaMax System Integration

• Carrier compatibility: Use a carrier supported by the applicable VersaMax hardware configuration.
• DIN-rail mounting: Secure the carrier and module according to the installation manual.
• Controller configuration: Verify the module identity, output mapping, and assigned data length.
• Field wiring: Confirm the terminal assignments and output polarity from the official wiring diagram.
• Power distribution: Separate backplane power requirements from external field-load power requirements.
• Hot insertion: The supplied description identifies hot-insertion capability. Confirm that the controller, carrier, and installation procedure support this operation before removing or installing the module under power.

Output-type verification: The supplied description identifies positive logic outputs but also describes the outputs as sinking type. These descriptions may conflict. Verify the official IC200MDL742 wiring diagram before connecting field loads or selecting replacement hardware.

06 | Compatible Equipment and Typical Applications

• VersaMax PLC stations: Provides discrete output control within a compatible GE Fanuc VersaMax I/O configuration.
• Solenoid valves: Controls compatible 24 VDC valve coils within the permitted output current and switching limits.
• Relay interface circuits: Drives suitable DC relay coils when their electrical characteristics meet the module requirements.
• Contactor control circuits: Operates compatible low-power DC control circuits rather than assuming direct compatibility with every contactor coil.
• Machine automation: Supports discrete commands for conveyors, packaging equipment, and assembly machinery.
• Process equipment: Controls compatible actuators, status lamps, and other discrete field devices.
• Industrial retrofit projects: Supports replacement planning when the original controller, carrier, wiring, and output configuration remain compatible.

Confirm load current, output topology, common wiring, and controller compatibility before integrating the module into an existing installation.

07 | Replacement Selection Checklist

• Match the complete part number: IC200MDL742.
• Confirm the 16-point physical output configuration.
• Verify the nominal 24 VDC field supply and the permitted voltage range.
• Check individual load current and total group loading.
• Confirm output polarity and sourcing or sinking behavior from the manufacturer's documentation.
• Check the carrier, controller, module configuration, and data mapping.
• Review isolation requirements and the existing field wiring arrangement.
• Confirm the required accessories and installation documentation before ordering.

08 | Packaging, Shipping, and Warranty

09 | Frequently Asked Questions

Q1: How should engineers calculate the number of output points needed for a machine?

Answer: Count every independently controlled field device and reserve spare points for planned expansion. Check whether any device requires interposing relays or additional interface hardware. Also consider group loading and the controller's available I/O capacity.

Q2: What should technicians investigate when several outputs fail after a maintenance shutdown?

Answer: Check shared field power, group connections, common wiring, and controller configuration before testing individual channels. Multiple simultaneous failures often justify checking shared dependencies first. Follow the electrical drawings to isolate the affected circuit systematically.

Q3: Can the module directly drive a DC load rated at 0.5 A?

Answer: The supplied description lists 0.5 A at 30 VDC. However, engineers must also verify the actual supply voltage, startup current, inductive characteristics, group loading, and manufacturer's derating rules. Do not assume that every output can continuously deliver its individual maximum under every operating condition.

Q4: What information should maintenance teams record after an output fault?

Answer: Record the affected point, PLC command state, LED indications, measured field voltage, load resistance, and observed fault conditions. Include the field supply status and any protection events. These records help identify recurring wiring or load problems and support evidence-based replacement decisions.

Q5: How can buyers avoid ordering an electrically incompatible replacement?

Answer: Compare the full part number, physical output count, output topology, field voltage, current rating, carrier compatibility, and controller configuration. Request confirmation against the existing wiring diagram when the output polarity is unclear. Do not select a substitute based on voltage and channel count alone.
