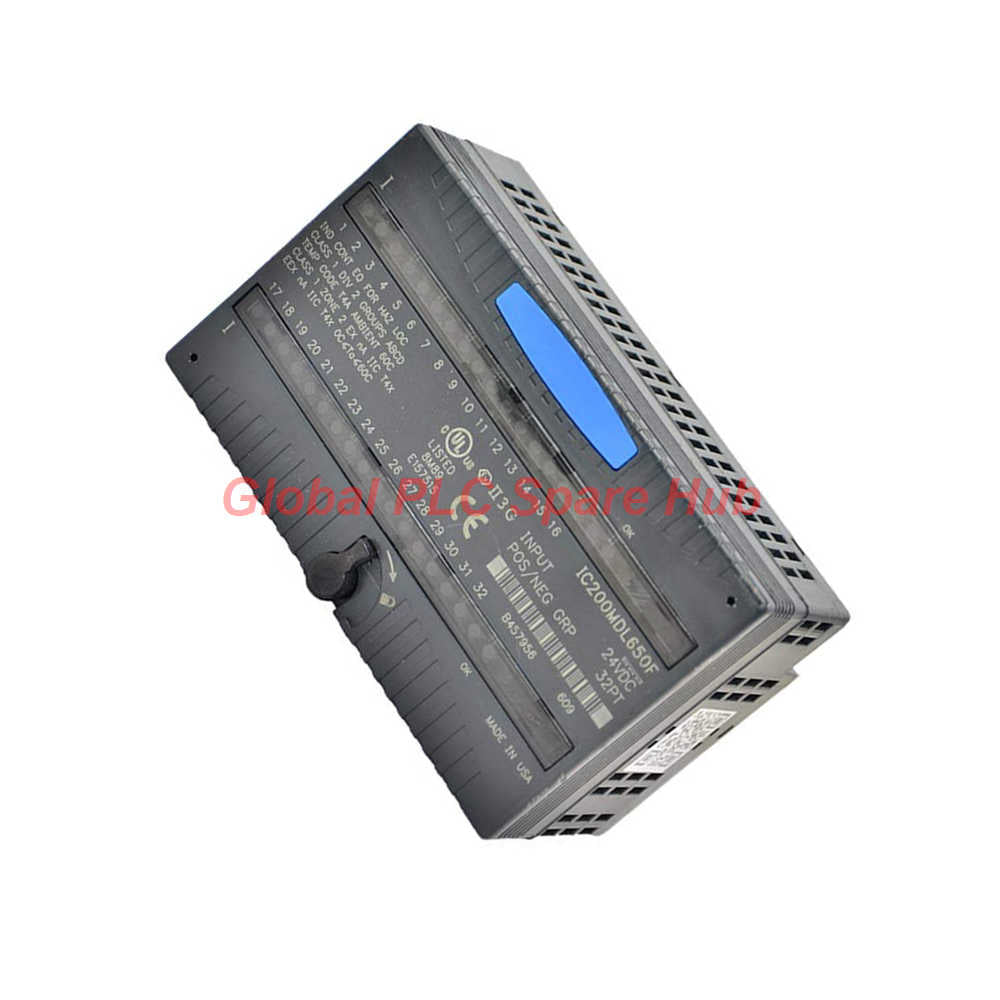

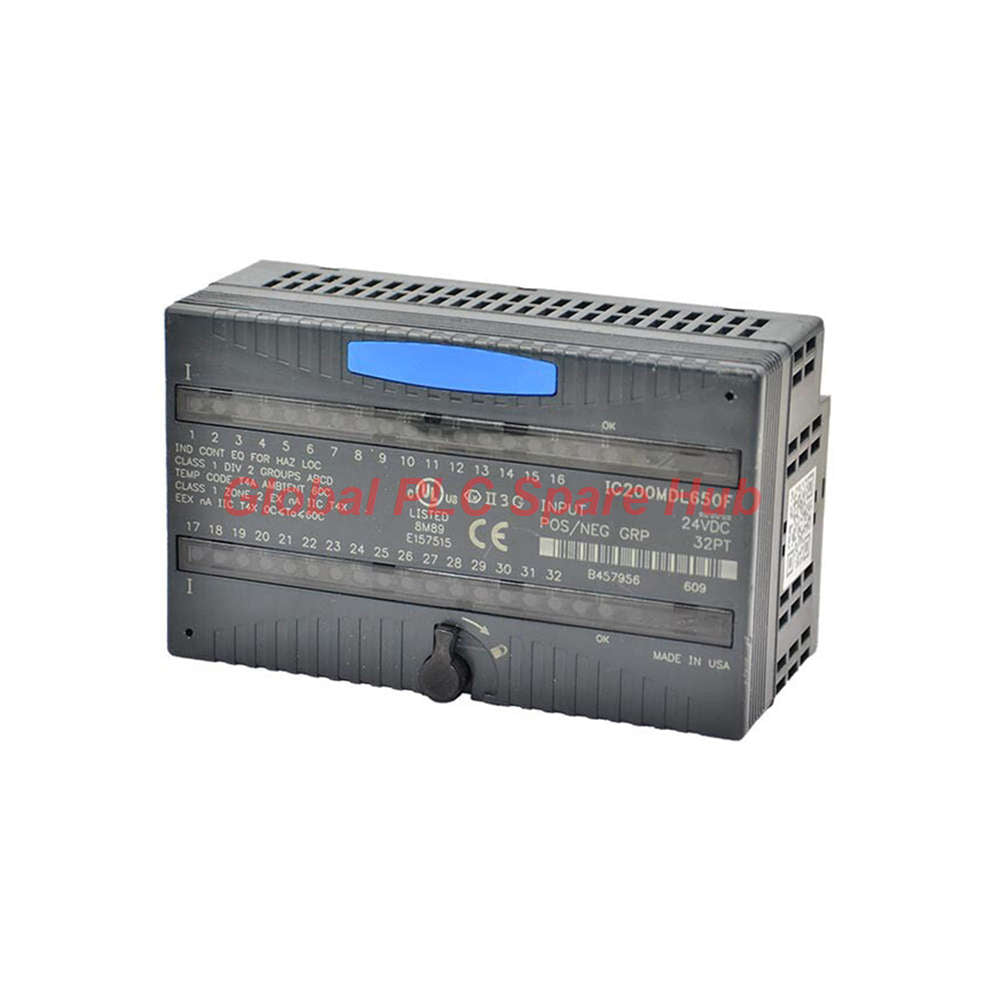

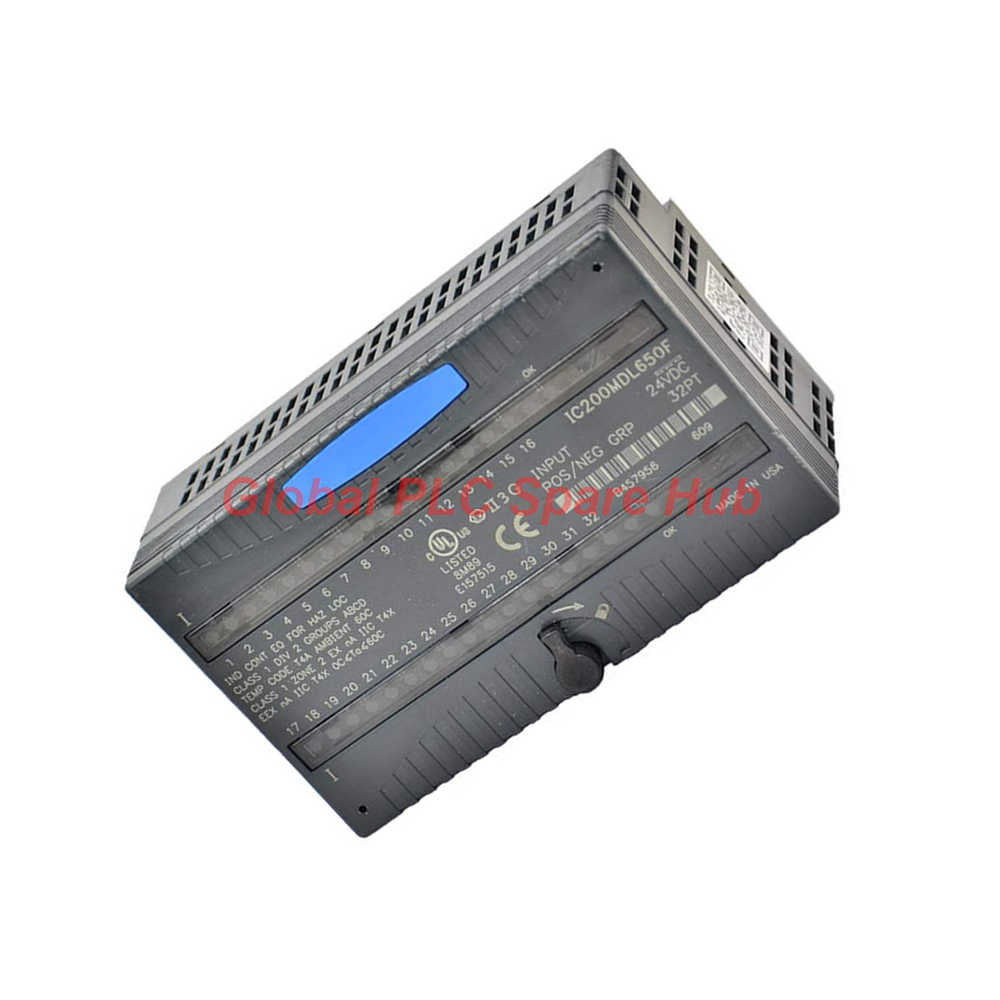

IC200MDL650 GE Fanuc VersaMax I/O 24VDC 32-Point Input Hardware

Product Overview

The IC200MDL650 is a high-density 32-channel discrete input module designed specifically for the VersaMax I/O platform. Originally manufactured by GE Intelligent Platforms / GE Fanuc and supported through industrial automation channels, this compact unit processes 24 VDC binary signals from plant-floor devices. Engineered with flexibility in mind, the IC200MDL650 supports both positive (sourcing) and negative (sinking) logic wiring schemes across four independent groups of eight channels each. Automation engineers deploy this module to optimize cabinet space while gathering critical operational feedback from complex machinery.

Technical Specifications

• Brand: GE Fanuc / GE Intelligent Platforms
• Series: VersaMax I/O
• Model / Part Number: IC200MDL650
• Module Type: Discrete Input Module
• Number of Channels: 32 Input Points (4 Groups of 8 Channels)
• Nominal Input Voltage: 24 VDC (Operating Range: 0 to 30 VDC)
• On-State Voltage / Current: 15 to 30 VDC; 2.0 to 5.5 mA
• Off-State Voltage / Current: 0 to 5 VDC; 0 to 0.5 mA
• Input Impedance: 10 kOhms
• Response Time: 0.5 ms maximum (ON/OFF transition)
• Configurable Filter Times: 0 ms, 1.0 ms (default), or 7.0 ms
• Backplane Current Consumption: 50 mA maximum at +5 VDC
• Isolation Rating: 250 VAC continuous, 1500 VAC for 1 minute (Group-to-Group)
• Mounting Profile: Standard DIN rail (horizontal or vertical orientation)

Diagnostic Capabilities & Status Indicators

• Per-Point LED Monitoring: Features 32 individual green point status LEDs alongside a dedicated module OK indicator for immediate visual feedback.
• Software Filtering: Provides selectable filter intervals to actively mitigate switch bounce and high-frequency noise spikes in harsh industrial settings.
• Hardware ID Recognition: Stores an internal module ID (80088008) for automated rack configuration verification and system health tracking.

Recommended Applications & Compatible Equipment

• Target Field Devices: DC proximity sensors, photoelectric switches, mechanical limit switches, pushbuttons, and auxiliary relay contacts.
• Industrial Environments: Automated material handling systems, high-speed packaging lines, water treatment telemetry, and assembly robotics.
• System Integration: Mounts efficiently onto modular VersaMax I/O carriers, supporting flexible expansion across distributed control architectures.

Global PLC Spare HUB's Insight

When integrating the IC200MDL650 into high-vibration manufacturing environments, panel builders must ensure secure DIN rail end-stops to prevent physical shifting along vertical or horizontal orientations. Because the module groups channels into blocks of eight with group-to-group isolation, engineers should carefully map power distribution to segregate interlock loops from standard sensor circuits. Furthermore, adjusting the software input filter from the default 1.0 ms to 7.0 ms is highly recommended when dealing with long cable runs prone to induced electromagnetic noise, effectively preventing false state transitions in fast-acting logic routines.

Shipping, Warranty & Order Fulfillment

• Global Dispatch: Fast and secure shipping worldwide via FedEx, UPS, and DHL.
• Fulfillment Window: Orders are processed and dispatched within 24-48 hours from purchase verification.
• Warranty Coverage: Fully protected by a dependable 12-month warranty for secure long-term plant operations.

Frequently Asked Questions

Q: How do I select between positive and negative logic wiring on the IC200MDL650?

A: Logic selection depends on how you wire the common terminal of each 8-channel group to your external 24 VDC power supply rails relative to sinking or sourcing field sensor types.

Q: What is the primary benefit of adjusting the input filter time on the IC200MDL650?

A: Increasing the filter time from 1.0 ms to 7.0 ms helps eliminate erratic signal toggling caused by mechanical contact bounce in older pushbuttons or electrical noise picked up over extended wiring paths.

Q: Does the IC200MDL650 require an external power supply to power its input channels?

A: Yes, while the module draws 50 mA from the 5V backplane for its internal logic, the connected field sensors and input loops require an external user-supplied 24 VDC power source.

Q: Can the IC200MDL650 module be mounted vertically on a DIN rail?

A: Yes, the module is fully rated for both horizontal and vertical DIN rail orientations, though thermal derating guidelines should be reviewed if operating near maximum ambient temperature limits.

Q: What steps should I take if a specific input channel LED fails to light up when a sensor activates?

A: First verify that the field input voltage measures between 15 and 30 VDC at the terminal block, check for broken wire connections, and confirm that the corresponding group common is properly energized.
